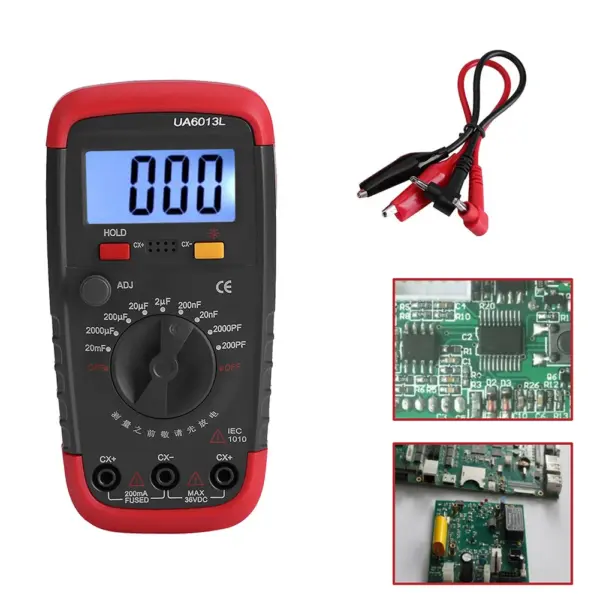

Capacitance Measurement Tool Power Tool Accessory Digital LCR Meter Sampling 2-3 Times sec 6F22 9V Battery not Included

Features:

1. Can be used for digital analysis, capacitor selection, unknown capacitor measurement, capacitor matching, cable capacitance measurement, etc.

2. 9 measurement ranges, 26 mm digit height, maximum display value 1999, manual for zeroing, low battery voltage display, and discharge protection.

3. Features data hold and backlight functions.

4. Compact design, equipped with a safety sleeve, easy to operate and carry, making it an for ideal electrical measurement tool.

5. This is a new type of handheld LCD capacitive capacitance meter that can measure data across 9 ranges within a wide range from 0.1 pF to 20,000 uF.

Specifications:

Part Name: 6013L Multimeter

Material: ABS

Color: Black and Red

Size: 143*74*35mm / 5.59*2.91*1.38 inches

Capacitance:200pF/2000pF/20nF/200nF/2uF/20uF/200uF/2000uF/20mF

Basic Accuracy: ±0.8%

Measuring Range: 0.1pF-20,000uF, with 9 ranges.

Maximum Display Value: "1999", equivalent to 3.5 inches.

Sampling Rate: 2-3 times per second

for Zero Point Adjustment: Manual

Power Supply: 6F22 9V stacked battery (not included)

Maintaining Precise Operating Temperature: 23±5℃

Operating Environment: 0-40℃, Relative Humidity: ≤85%

Storage Environment: Temperature -10-50℃, Relative Humidity: ≤85%

Package Contents:

1*Multimeter

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2. Please allow slight manual measurement deviation for the data.
