Description

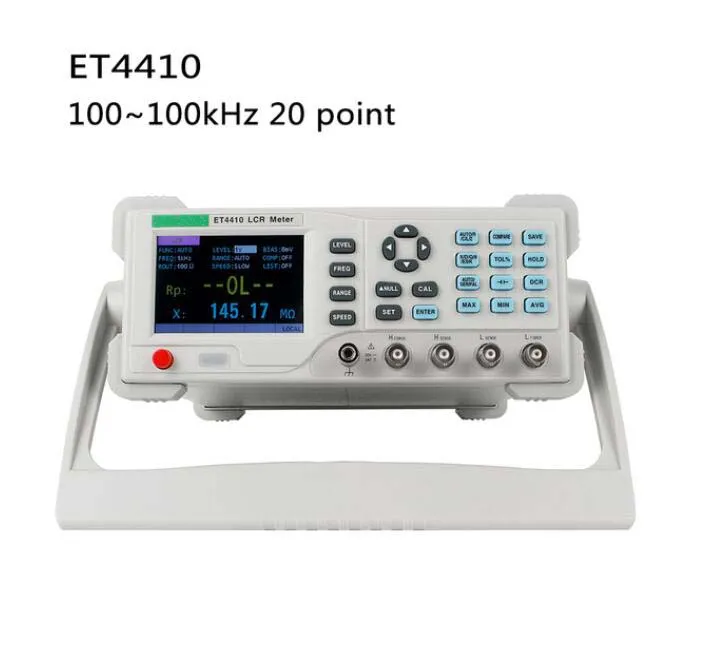

ET4410 100KHZ Desktop Digital LCR Meter Capacitance Resistance Impedance Inductance Measure LCR Bridge Meters
|
Model |
ET4401 |
ET4402 |
ET4410 |
|
Digits |
Main parameter: 5 digits; secondary parameter: 5 digits |
||
|
Measurement Parameter |
Main parameter: L/C/R/Z; secondary parameter: X/D/Q/θ/ESR |
||
|
Measurement Range(L) |
0.01μH – 9999H |
||
|
Measurement Range(C) |
0.01pF – 99999μF |
||
|
Measurement Range(R) |
0.01pF – 99999μF |
||
|
Basic Accuracy |
0.002 |
||
|
Test Frequency (Hz) |
100~10kHz 10 point |
100~20kHz 12point |
100~100kHz 20 point |
|
Measurement |
2 times/second (slow), 4 times/second |
||
|
Display Speed |
(medium speed), 8 times/sec (fast) |
||
|
Internal Bias |
0-1500mV adjustable, 1mV stepping |
||
|
Test Level |
100mV, 300mV, 600mV, 1000mV, 1500mV, 2000mV |
||
|
Correction Function |
Open circuit correction, short circuit correction |
||
|
Screening function |
The screening limit can be set from -50% to + 50% |
||
|
with fixed points of 1%, 5%, 10% and 20% |
|||
|
Selection of comparator |
Five gear sorting, third gear qualified, one gear failed, one ancillary gear |
||
|

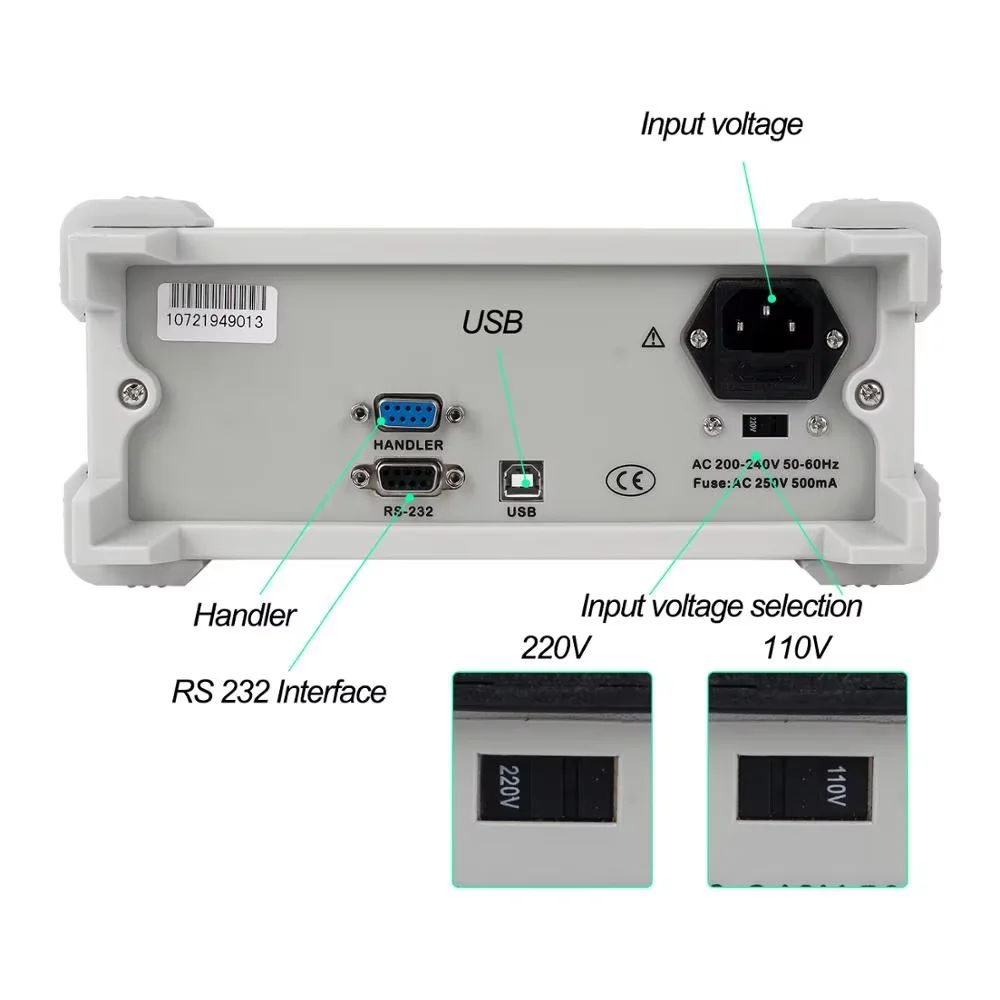

Communication Interface |
Standard configuration: USB, RS232 (or 485), |
||
|
Handle interface; Optional: GPIB, USB Host |
|||
|
Others |
Support DCR, electrolytic capacitor measurement mode, |
||
|
adjustable backlight brightness, optional in English and Chinese |
|||
More Information

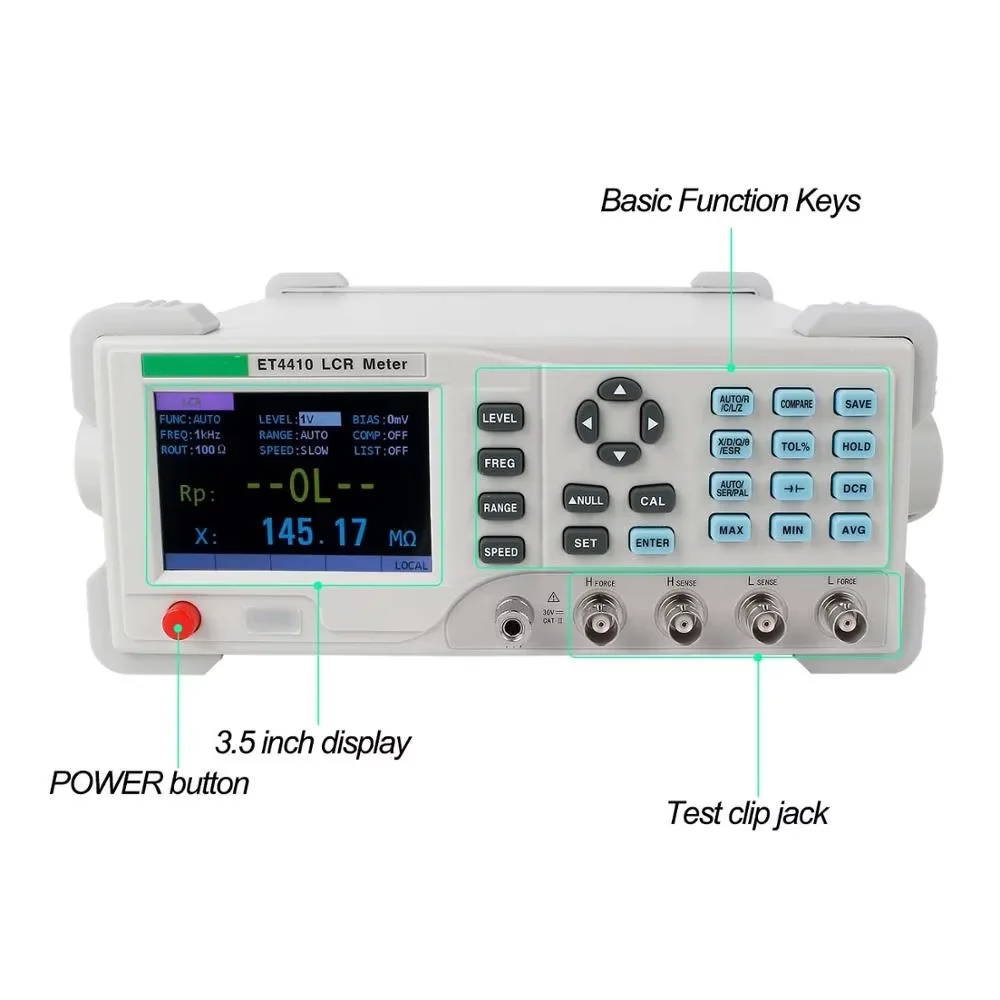

● Measurement frequency up to 100kHz ● Test level 100 ~ 2000mV ●Support the measurement of DC resistance and electrolytic capacitor ●Internal bias voltage output (1mV-1500mV) ●Automatic identification of component measurement ●3.5-inch TFT display, 5 and a half bits display ●USB, RS232 communication interface, Handle sorting ● Data recording function (maximum and minimum values, average value) ● Support SCPI communication protocol ● Provide system settings, which can configure language, buzzer, screen brightness, etc accordingto the needs of users. ● Basic accuracy 0.2% ● Manual and automatic range ● Be equipped with open circuit and short circuit correction ● Comparator has sorting and alarm function ● Provide a variety of test ports
