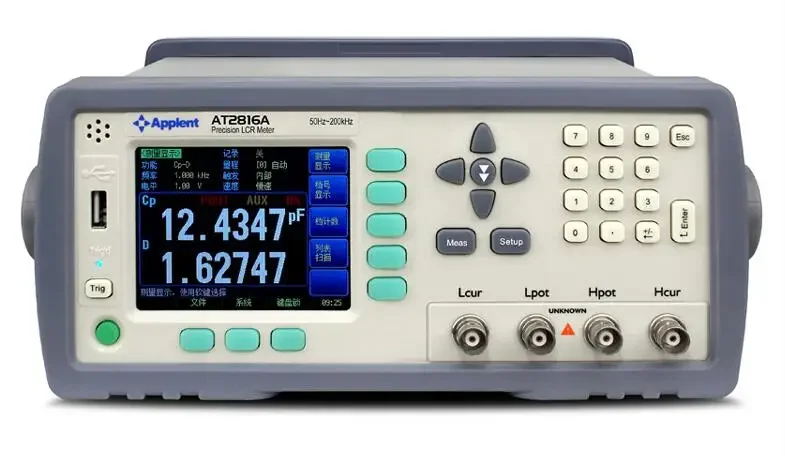

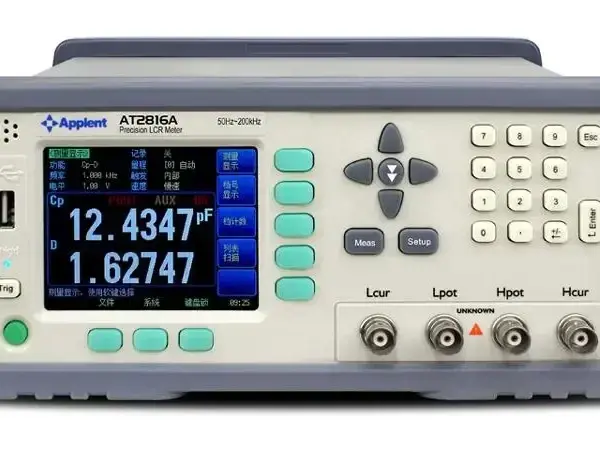

Name: Hot Product AT2816A High Frequency 50Hz-200kHz Digital LCR Meter Tester, New
Brand: Toolsindo.id
SKU: 1005010526356551
Price: 81864250 IDR
Availability: InStock

Description

General Introduction:

l The AT2816A is the use of a high-performance processors and 3.5″ TFT LCD screen smart LCR Meter. Since the SMD technology makes AT2816A portability. We rely on highly skilled technical, so that the instrument even more outstanding performance.

l AT2816A offers wide frequency range (50Hz~200kHz 0.001Hz Step), programmable signal level (0.01V to 2.00V), auto range with 9 ranges, 30Ω/50Ω/100Ω constant output impedance and easy-to-use operation system.

l Built-in RS232C and handler interfaces help build an automatic component test system, communicate with the computer and analysis the test results.

Features:

TFT-LCD Display

Correction: OPEN and SHORT

Comparator Function: 10 files,14 bins: P1~P9,NG,AUX, HI, IN, LO

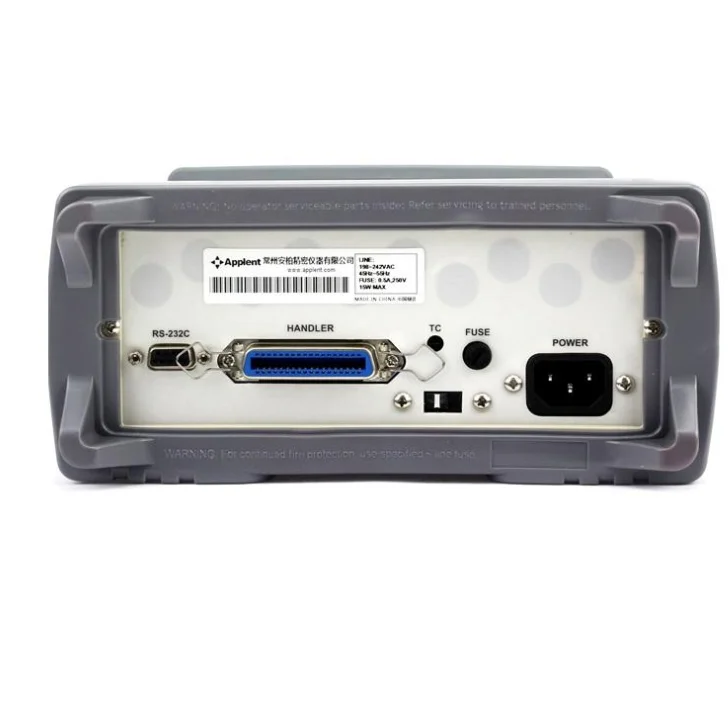

Interface: RS232C and Handler

Optional Interface: USB

Avarage rate: 1~200times

Measurement Terminal: 5 terminals

Key lock function

Specifications:

Parameters	Cs-Rs, Cs-D, Cp-Rp, Cp-D,Lp-Rp, Lp-Q, Ls-Rs, Ls-Q, G-B, R-X, Z-θrad, Z-θdeg
Monitor Parameters	Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ%
Accuracy	0.05% ±5 dgt
Frequency	50Hz – 200kHz (continuous frequency with resolution of 0.001Hz)
Display Range	L: 0.00001μH-999999H C: 0.00001pF – 999999μF R,Z: 0.00001Ω – 99.9999MΩ D,Q: 0.00001 – 999999 θ(deg): -179.999 °-179.999 ° θ(rad): -3.14159 – 3.14159 Δ%: -999999% – 999999%
Source Resistance	30Ω, 50Ω, 100Ω
Range	9 ranges, Automatic, Manual, Nominal
Max Reading	6 dgt, principle parameter: 999999; sub parameter: 999999; monitor parameter: 999999
Signal Source	0.01V – 2.00V (10mV Step)
Speed	30 times/second, 10 times/second, 6 times/second, 3 times/second 1 – 256 times average is available
Comparator	14-bin sorting, 10-bin GD, 1-bin NG, 1-bin AUX, 2-bin principle parameter NG Count function: Max – 999999
List Scanning	10 groups frequency and level scanning test
Adjustment	Open/Short frequency reset, 3 point frequency and load correction
Files	10 group files to save users’ setting, 1 group to save system data real-time
Interface	RS232C, ExHandler Interface, standard USB disc interface (article 10000 data)
Others	LCR automatic select, keypad lock, SCPI instruction set, true-color TFT-LCD display
GENERAL FEATURES
Power Supply	Voltage: 90V AC – 250V AC Frequency: 50Hz – 60Hz Power: Max 20VA
Dimension & Weight	264mm(Width)x107mm(Height)x350 mm(Depth); 4kg
ORDERING INFORMATION
Accessories	ATL501: Test cable ATL607: Test Fixture ATL600: Short-circuit device ATL801: 232 Communication cable
Optional Accessories	ATL608 SMD patch clamp ATL508: SMD patch test clip ATS810A: Data acquisition software ATL508A: SMD patch test clip

Standard Configuration:

Name	Specification	Quantity	Remark
LCR Meter	AT2816A	1
User’s Guide		1
Test Report		1
Warranty Paper		1
AC Power Lord		1
Fixture	ATL607	1	Short Bar Included
RS232 Communication Cable	ATL108	1	1.8m
Fixture	ATL501A	1	0.8m
Fixture	ATL508A	1	0.8m
Fuse	3 A SB	1
