Product Description

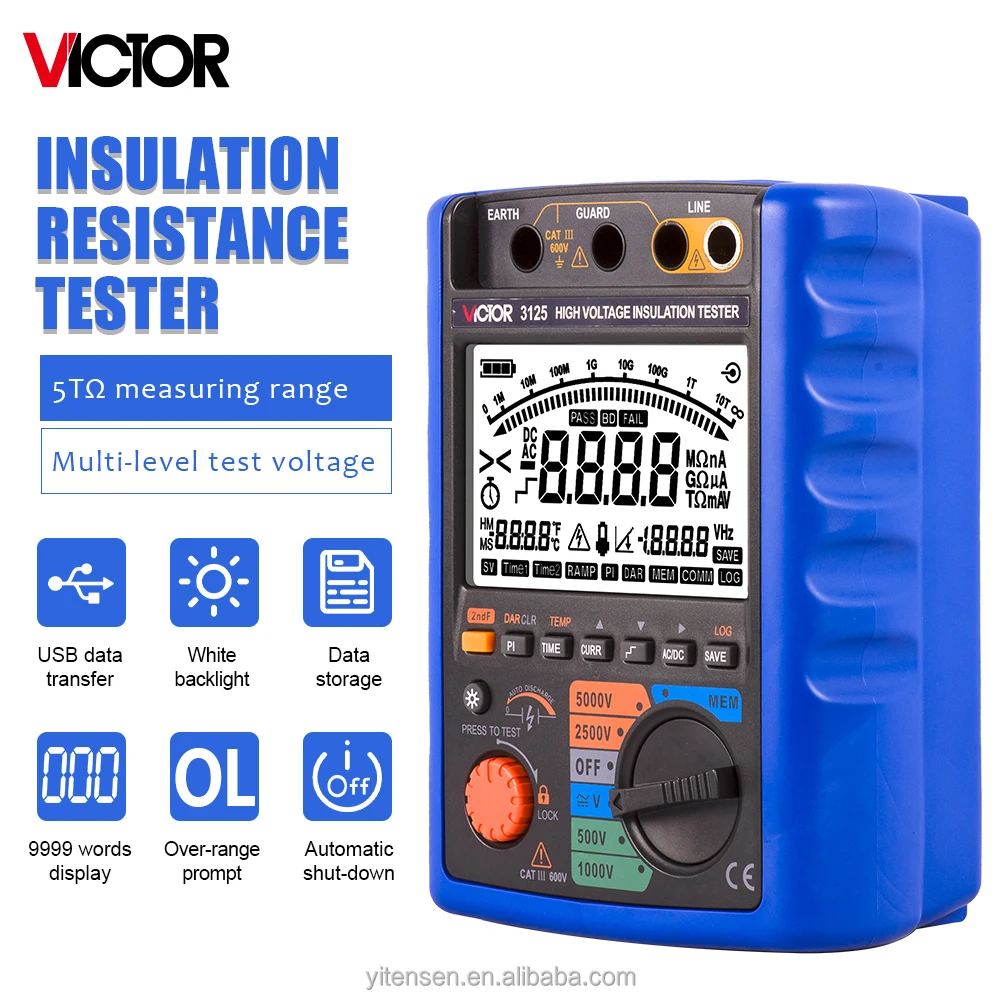

Product Features:

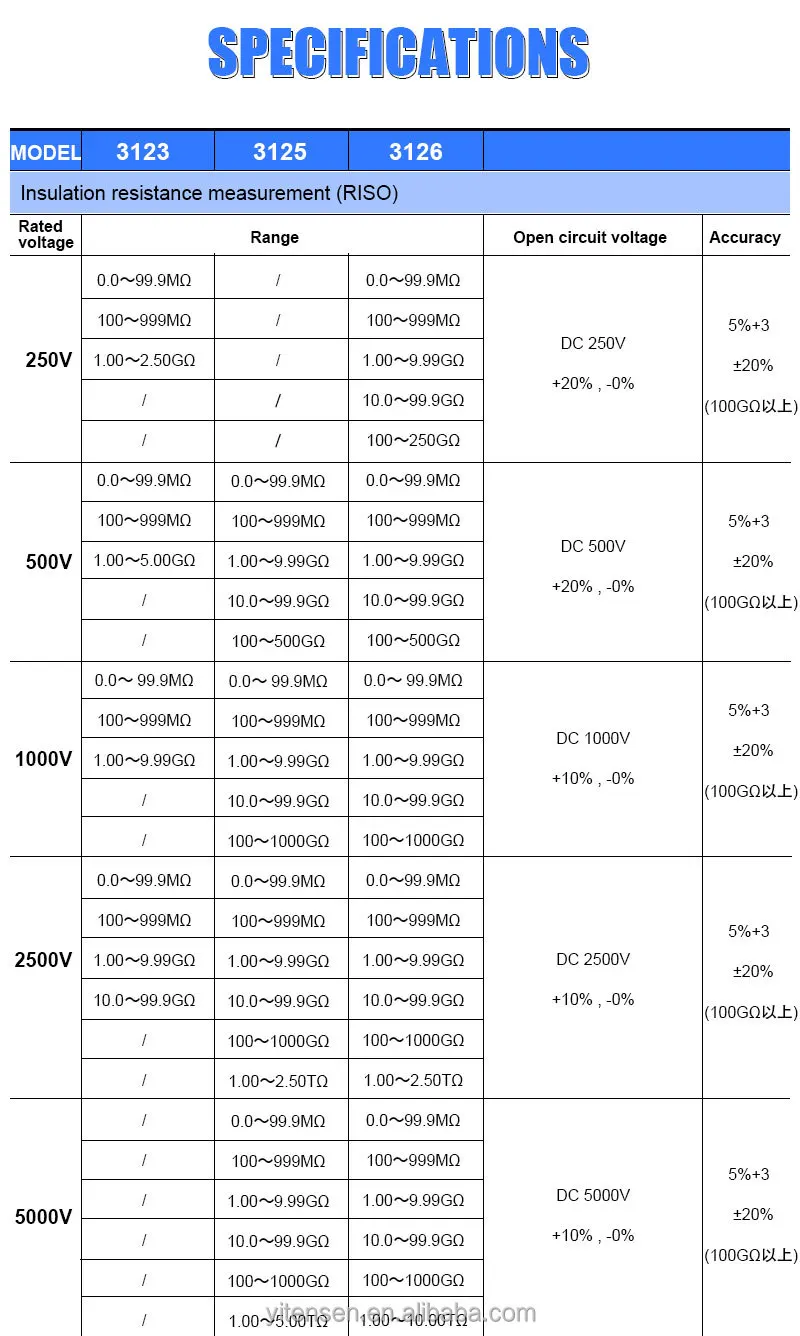

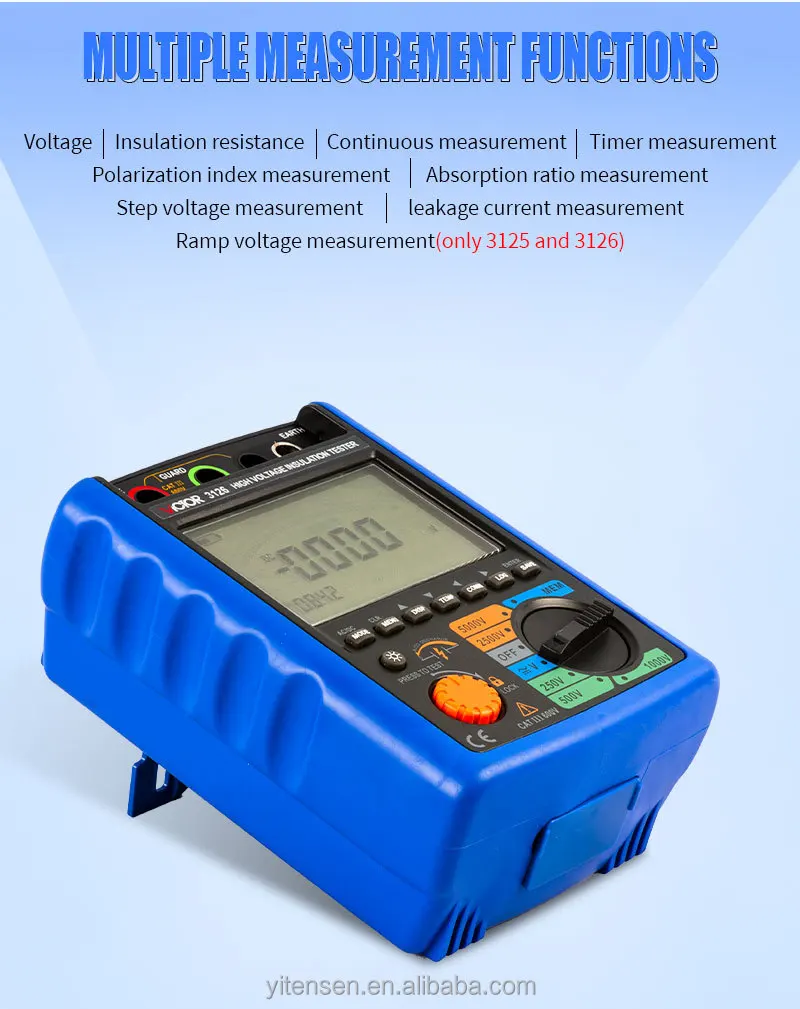

1, Range: 500V, 1000V, 2500V, 5000V, the basic accuracy: 5%.
2, AC and DC voltage measurement: DC: 0V~± 1000V AC: 30V ~ 600V (50 / 60Hz),
the basic accuracy: 2%.
3, The maximum of measurement shows 9999 words, 36 section bar ring display.
4, The rate of measurement about 0.5 to 5 times / sec.
5, High-voltage insulation resistance detection for the automatic range.
6. Pl (polarization index), DAR (absorption ratio) automatic measurement,
7, Continuous test function.
8, Set the test time TIME function.
9, Automatic discharge function.

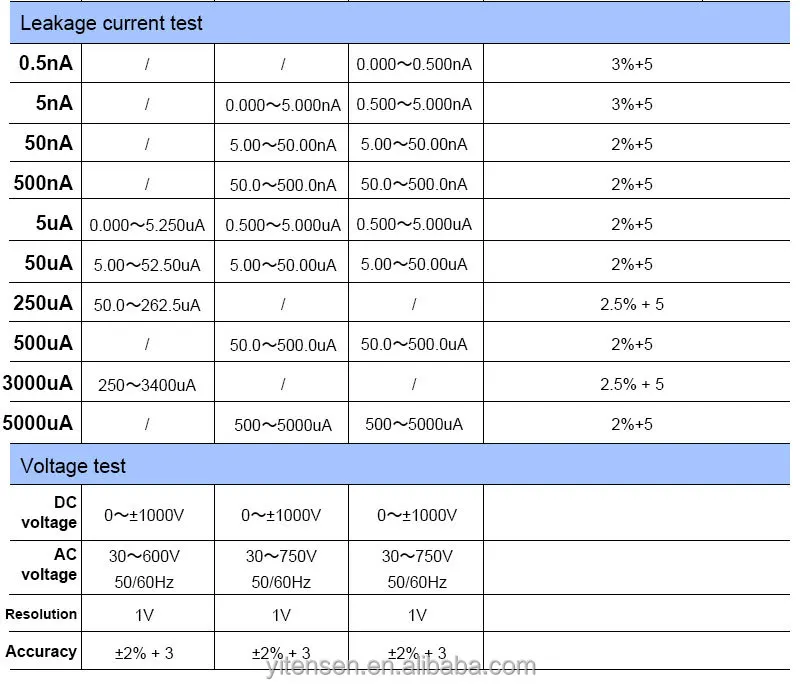

10, Step voltage test, temperature measurement, leakage current display.
11, The actual output voltage and the measured insulation value display at the same time.
12, Built-in real-time clock, for the matching and measurement work to provide accurate timing.
13, Two easy to operate data recording function: manual recording and job recording, and can
easily query the record data, the internal memory can be stored independently of 760 (group)
measurement data.

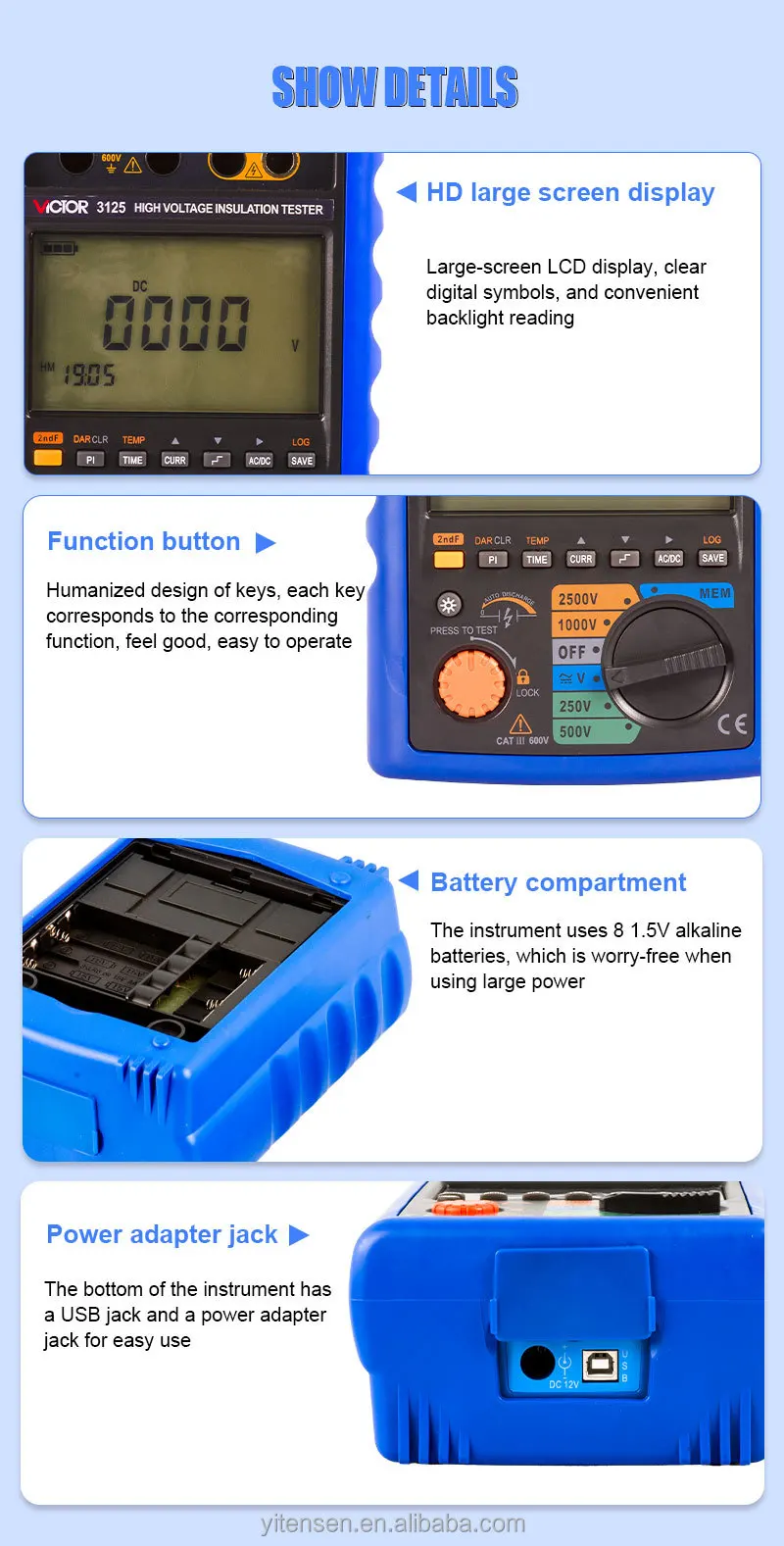

14, Available alkaline batteries, NI-HI battery or power adapter power supply, battery compartment
can easily replace the battery.

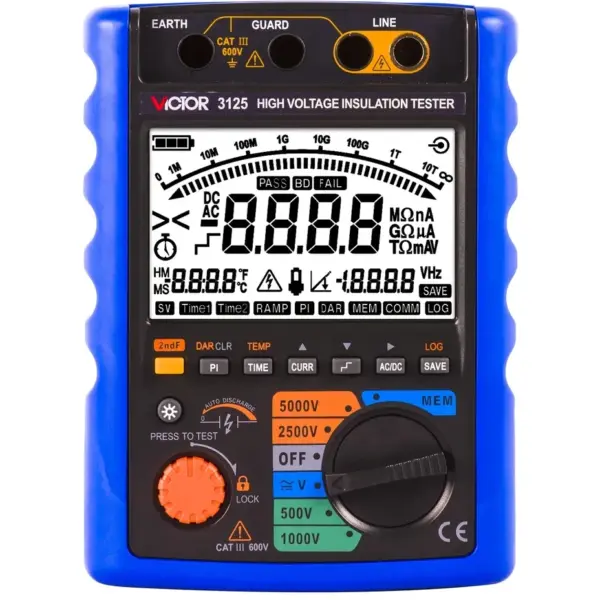

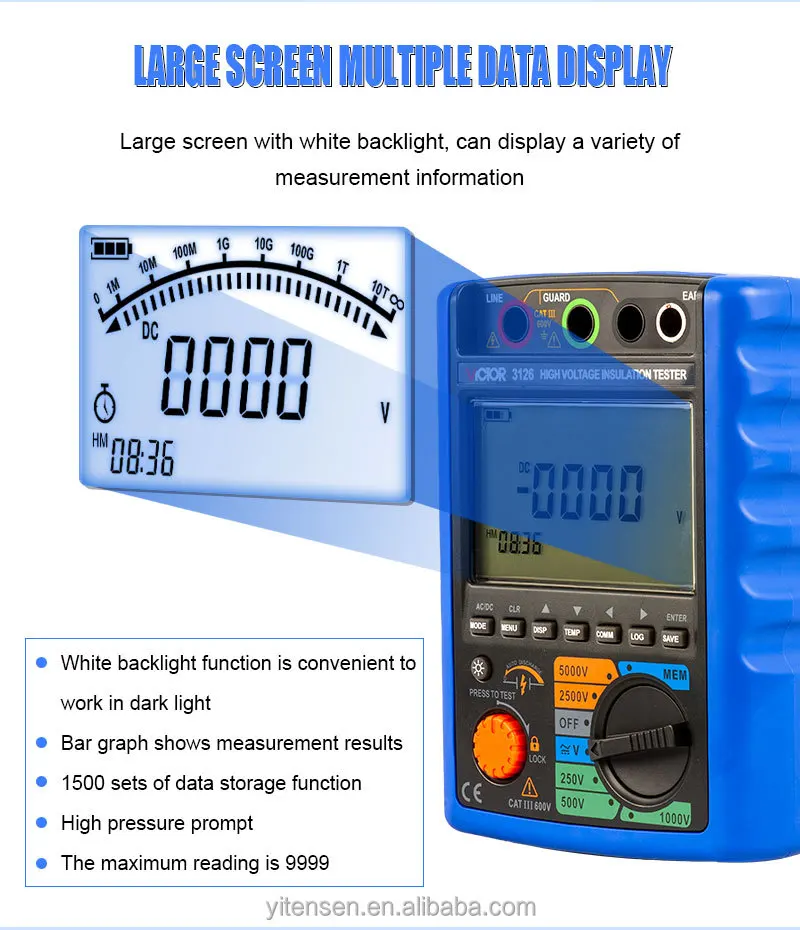

15, Large-screen LCD display, with white LED backlight.
16, The instrument communicates with the computer via an isolated USB interface and can
operate the instrument via a computer.
17, Simple man-machine operation, portable, rugged,suitable for field use.
1, Range: 500V, 1000V, 2500V, 5000V, the basic accuracy: 5%.
2, AC and DC voltage measurement: DC: 0V~± 1000V AC: 30V ~ 600V (50 / 60Hz),
the basic accuracy: 2%.
3, The maximum of measurement shows 9999 words, 36 section bar ring display.
4, The rate of measurement about 0.5 to 5 times / sec.
5, High-voltage insulation resistance detection for the automatic range.
6. Pl (polarization index), DAR (absorption ratio) automatic measurement,
7, Continuous test function.
8, Set the test time TIME function.
9, Automatic discharge function.
10, Step voltage test, temperature measurement, leakage current display.
11, The actual output voltage and the measured insulation value display at the same time.
12, Built-in real-time clock, for the matching and measurement work to provide accurate timing.
13, Two easy to operate data recording function: manual recording and job recording, and can
easily query the record data, the internal memory can be stored independently of 760 (group)
measurement data.
14, Available alkaline batteries, NI-HI battery or power adapter power supply, battery compartment
can easily replace the battery.
15, Large-screen LCD display, with white LED backlight.
16, The instrument communicates with the computer via an isolated USB interface and can
operate the instrument via a computer.
17, Simple man-machine operation, portable, rugged,suitable for field use.
