Product Description

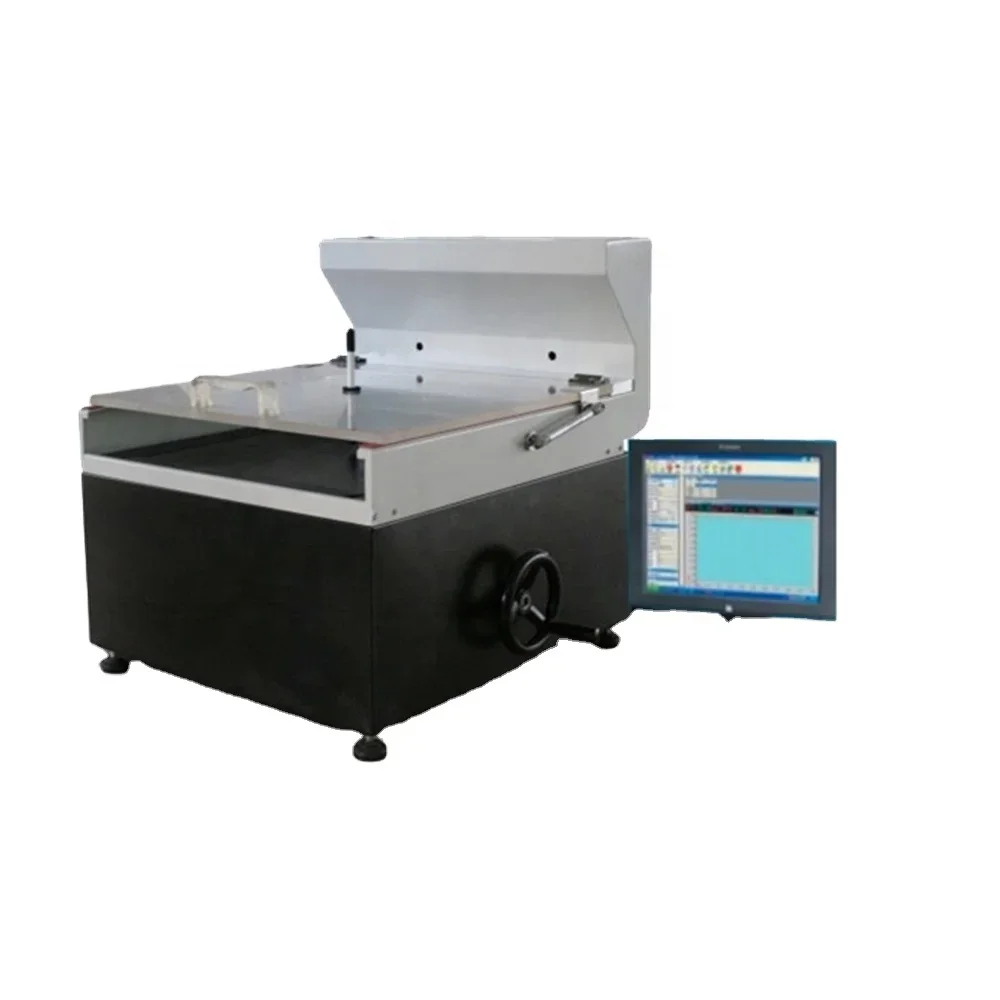

SKZ175C ASTM Hot Plate Sweating Guarded Heat Thermal Insulation Thermal Resistance Tester
Measurement of thermal resistance under steady-state conditions, by sweating guarded hotplate test method Standard: ISO11092:1993 ASTM D1518
Specification
|
item
|
value
|
|
Warranty
|
1 year
|
|
Customized support
|
OEM
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
SKZ
|
|
Thermal resistance (Rct)
|
Range: 0.002-2.000m2. K /W
|
|
|
Resolution: 0.0001m 2 . K/ W
|
|
Test Bench temperature
|
20 — 50 ℃ adjustable
|
|
|
Resolution: ± 0.1 ℃
|
|
Temperature accuracy
|
± 0.1 ℃, Resolution: 0.01 ℃
|
|
Sample thickness
|
0-50mm
|
|
Air velocity within the duct
|
(1 ± 0.05) m/s, 0.1m/s-2 m/s adjustable
|
|
Thermal ring size
|
512mm×512mm
|
|
Thermal ring width
|
127mm
|
|
Test plate size
|
254mm × 254mm
|
|
Sample size
|
515mm × 515mm
|
|
Climate chamber size
|
76cm × 78cm × 63cm
|
|
Power
|
AC220V±10%V,50Hz, 0.8kW
|
|
Dimensions
|
60cm×70cm×55cm (L × W × H)
|
|
Weight
|
100kg
|
Dear friends, please be informed! The product weight is based on the shipping weight, please consult before purchasing!!!
