Description
DESCRIPTION
ACCESSORIES ( Click the pictures to the links)
|
|
|
|
|
|
MARKER STRIPS |
END COVER |
MARKER CARRIER |
MARKER CLIPS |

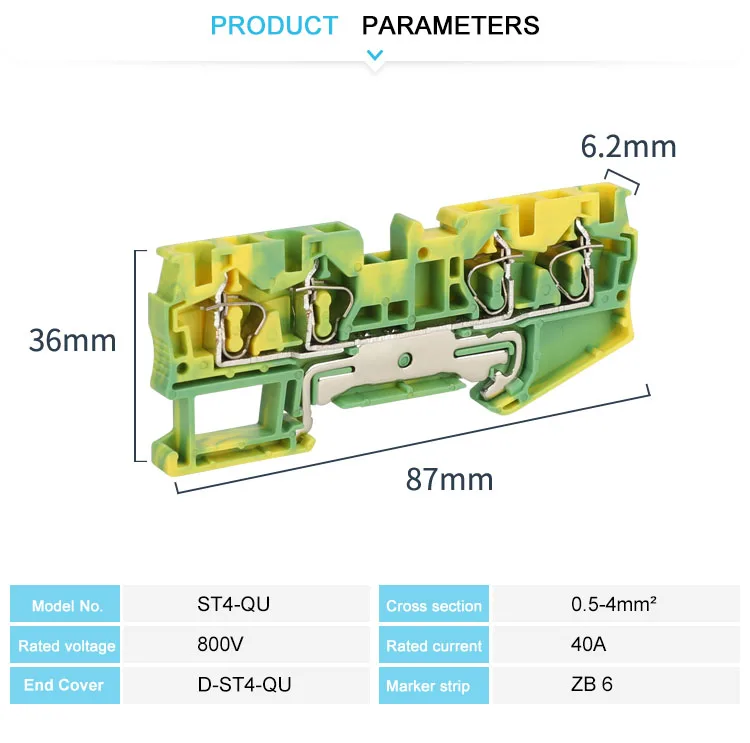

Technical Parameters
|
Type No. |
Details |
Accessories |
|
ST 4-QU-PE |
800V/40A 0.5-6mm²/0.5-4mm² L87/H36/W6.2 mm |
End cover: D-ST 4-QU |
|
Marker strip: ZB 6 |
|
Model Number |
ST 4-QU-PE |
|
Color |
Yellow/Green, other color can be customized |
|
Length/Wide/Height (mm) |
87/36.5/6.2 |
|
Connection method |
Spring-cage connection |
|
Material |
Nylon PA66 |
|
Rated Voltage/Current |
800V/40A |
|
Cross section, solid/soft Cable |
0.5-6mm2; / 0.5-4mm2; |
|
Conductor Size |
20-10 AWG |
|
Mounting Type |
NS 35/7.5 |
|
Standard |
IEC 60947-7-1 |
|
LOGO |
Customized logo are supported |
|
Packing Detail |
17.31g/pc |
|
Certification |
CE/RoHS/CQC/ISO 9001 |
