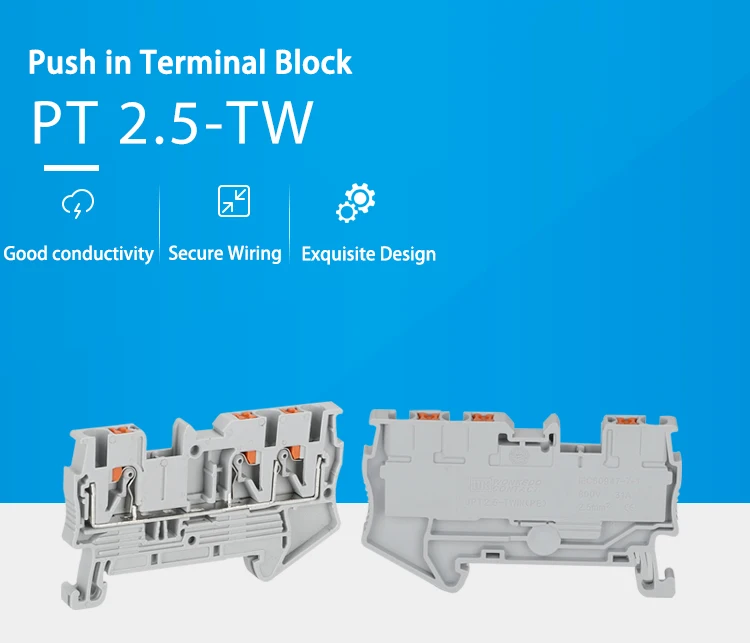

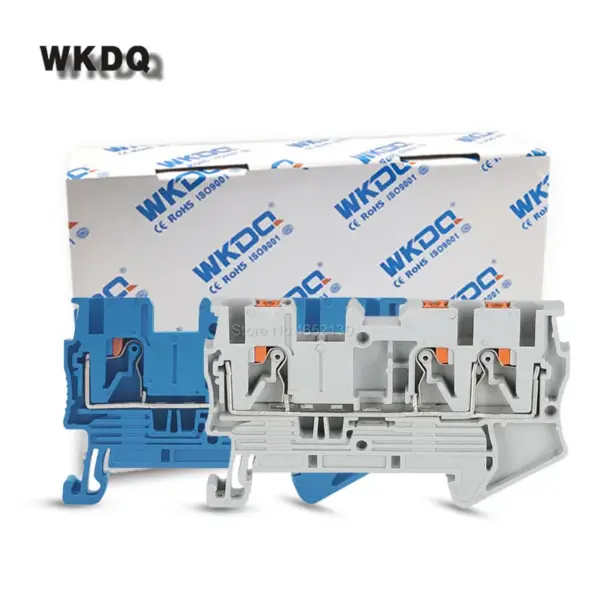

PT 2.5 TW Twin Push In Terminal Block One in Two Out Push in type Terminal Blocks
1. DESCRIPTION:

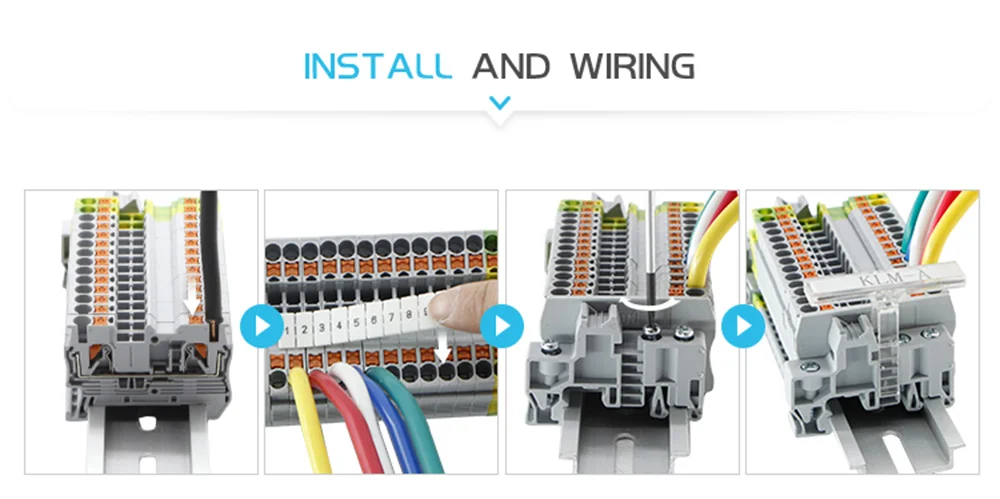

Push-In Technology DIN Rail Terminal Blocks Push-In technology allows wires to be connected easier and faster than ever before.Users can quickly connect ferruled wires by directly pushing them into the terminal, without the use of tools.
◆ Made from Anti Inflaming Nylon PA 66, nickel plated brass bar.
◆ The Push-in connection terminal blocks are characterized by easy and tool-free wiring of conductors with ferrules or solid conductors.
◆ The compact design and front connection enable wiring in a confined space.
◆ Stranded wires can also be connected by depressing the orange actuator, and inserting the conductor.
◆ The wires are retained with a stainless steel leg spring which tightens under tension.
◆ With universal foot which can be installed on Din Rail NS 35.

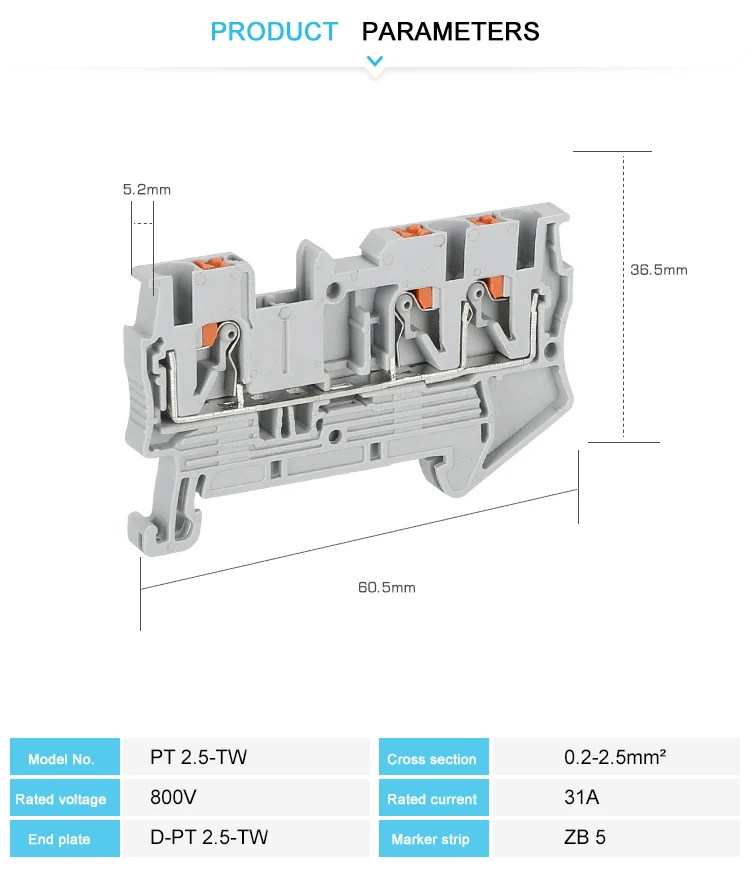

Technical Parameters
|
Model No. |
PT 2.5-TW |
|
Color |
Grey, Blue, other color can be customized |
|
Length/Height/Wide (mm) |
60.5/36.5/5.2 |
|
Connection method |
Push in connection |
|
Material |
Nylon PA66 |
|
Rated Voltage/Current |
800V/31A |
|
Cross section, solid/soft Cable |
0.2-4mm² / 0.2-2.5mm² |
|
Conductor Size |
24-12 AWG |
|
Mounting Type |
NS 35 mm |
|
Standard |
IEC 60947-7-1 |
|
LOGO |
Customized logo are accept |
|
Packing Detail |
7.19g/pc, 50PCS/BOX |
|
Certification |
CE/RoHS/CQC/ISO 9001 |

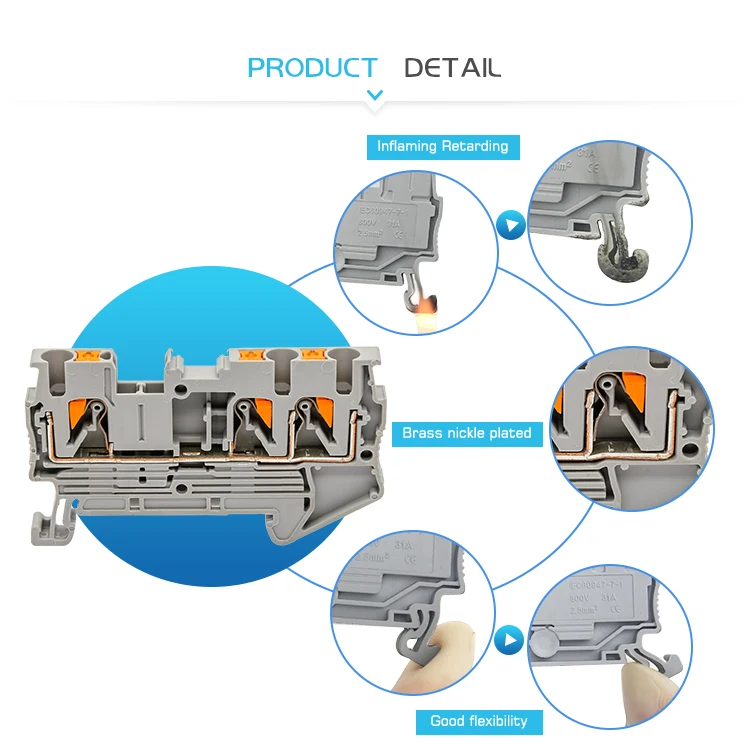

2. PRODUCT DETAIL
