Description
1, Pilot-oriented mode : Internal pilot or external pilot.
2, Three position solenoid valves have three kinds of central function for
your choice.
3, Double control solenoid valves have memory function.
4, Internal hole adopts special processing technology which has little
attrition friction ,low start pressure and long service life.
5, No need to add oil for lubrication.
6, Several standard voltage grades are optional.
|

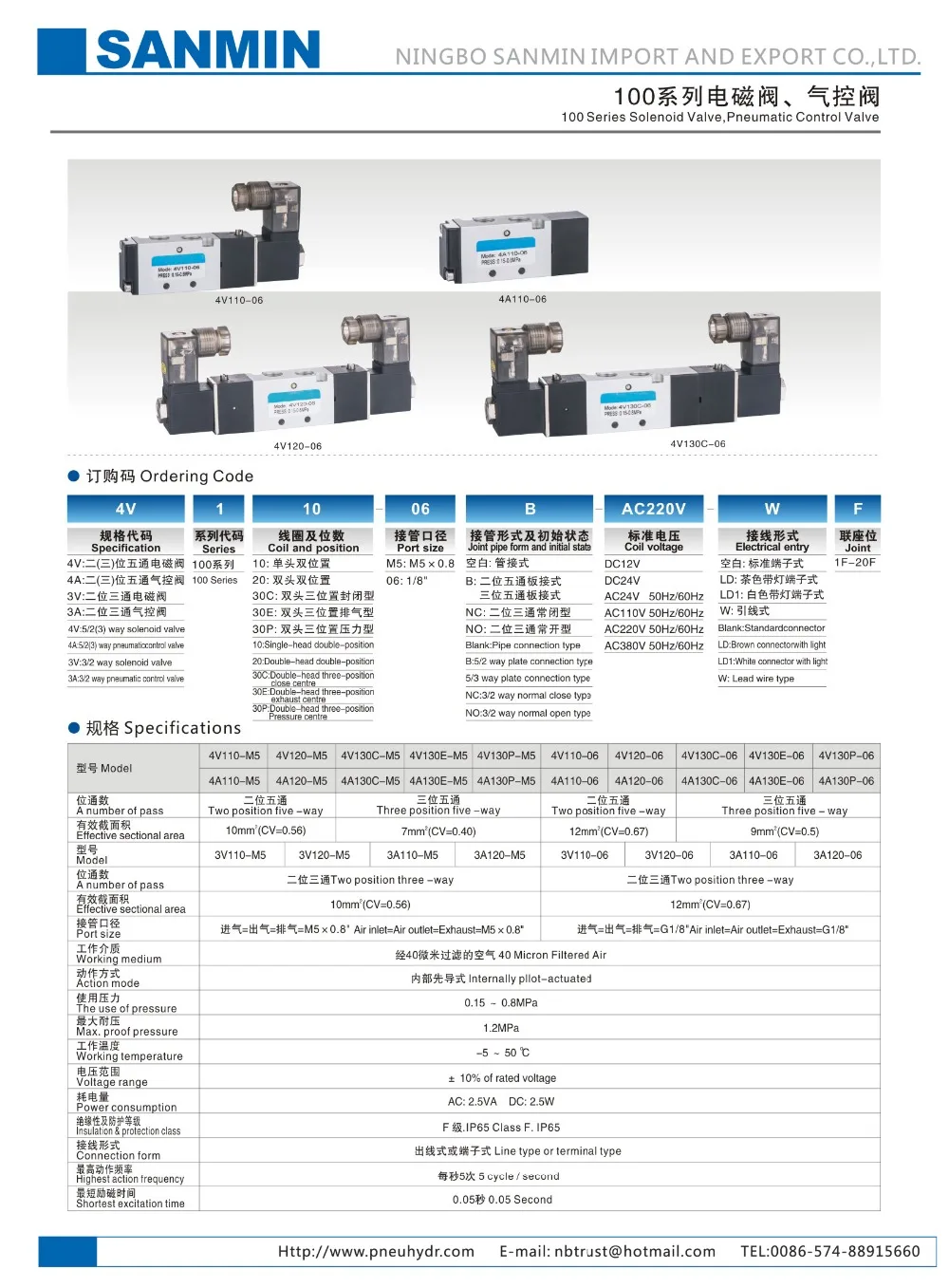

Model |
4V110-M5 |
4V120-M5 |
4V130C-M5 |
4V130E-M5 |
4V130P-M5 |
4V110-06 |
4V120-06 |

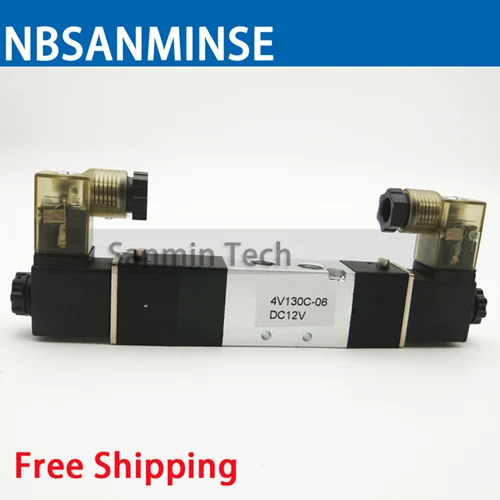

4V130C-06 |
4V130E-06 |
4V130P-06 |
|
4A110-M5 |
4A120-M5 |
4A130V-M5 |
4A130E-M5 |
4A130P-M5 |
4A110-06 |
4A120-06 |
4A130C-06 |
4A130E-06 |
4A130P-06 |
|
|
A number of pass |
Two position five-way |
Three position five -way |
Two position five-way |
Three position five-way |
||||||
|
Effective sectional area |
10mm2;(CV=0.56) |
7mm2;(CV=0.40) |
12mm2;(CV=0.67) |
9mm2;(CV=0.5) |
||||||
|
Model |
3V110-M5 |
3V120-M5 |
3A110-M5 |
3A120-M5 |
|
3V110-06 |
3V120-06 |
3A110-06 |
3A120-06 |
|
|
A number of pass |
Two position three-way |
Two position three-way |
||||||||
|
Effective sectional area |
10mm2;(CV=0.56) |
12mm2;(CV=0.67) |
||||||||
|

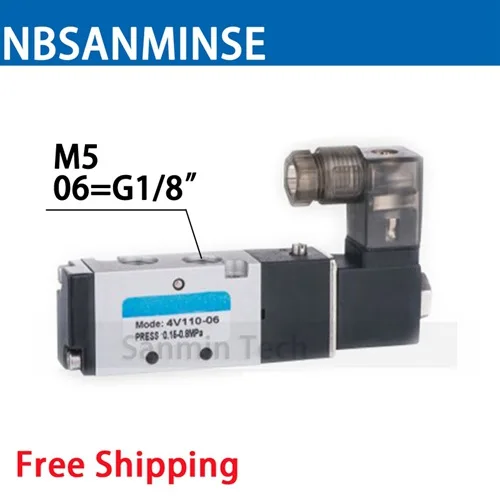

Port size |
Air inlet=Air outlet=Exhaust=M5×0.8” |
G1/8” Air inlet=Air outlet=Exhaust=G1/8” |
||||||||
|
Working medium |
40 Micron Filtered Air |
|||||||||
|
Action mode |
Internally pllot-actuated |
|||||||||
|
The use of pressure |
0.15~0.8MPa |
|||||||||
|
Max. poof pressure |
1.2MPa |
|||||||||
|
Working temperature |
-5~50℃ |
|||||||||
|
Voltage range |
± 10% of rated voltage |
|||||||||
|
Power consumption |
AC: 2.5VA DC2.5W |
|||||||||
|
Insulation& Protection class |
Class F. IP65 |
|||||||||
|
Connection form |
Line type or terminal type |
|||||||||
|
Highest action frequency |
5 cycle/second |
|||||||||
|
Shortest excitation time |
0.05 Second |
|||||||||
