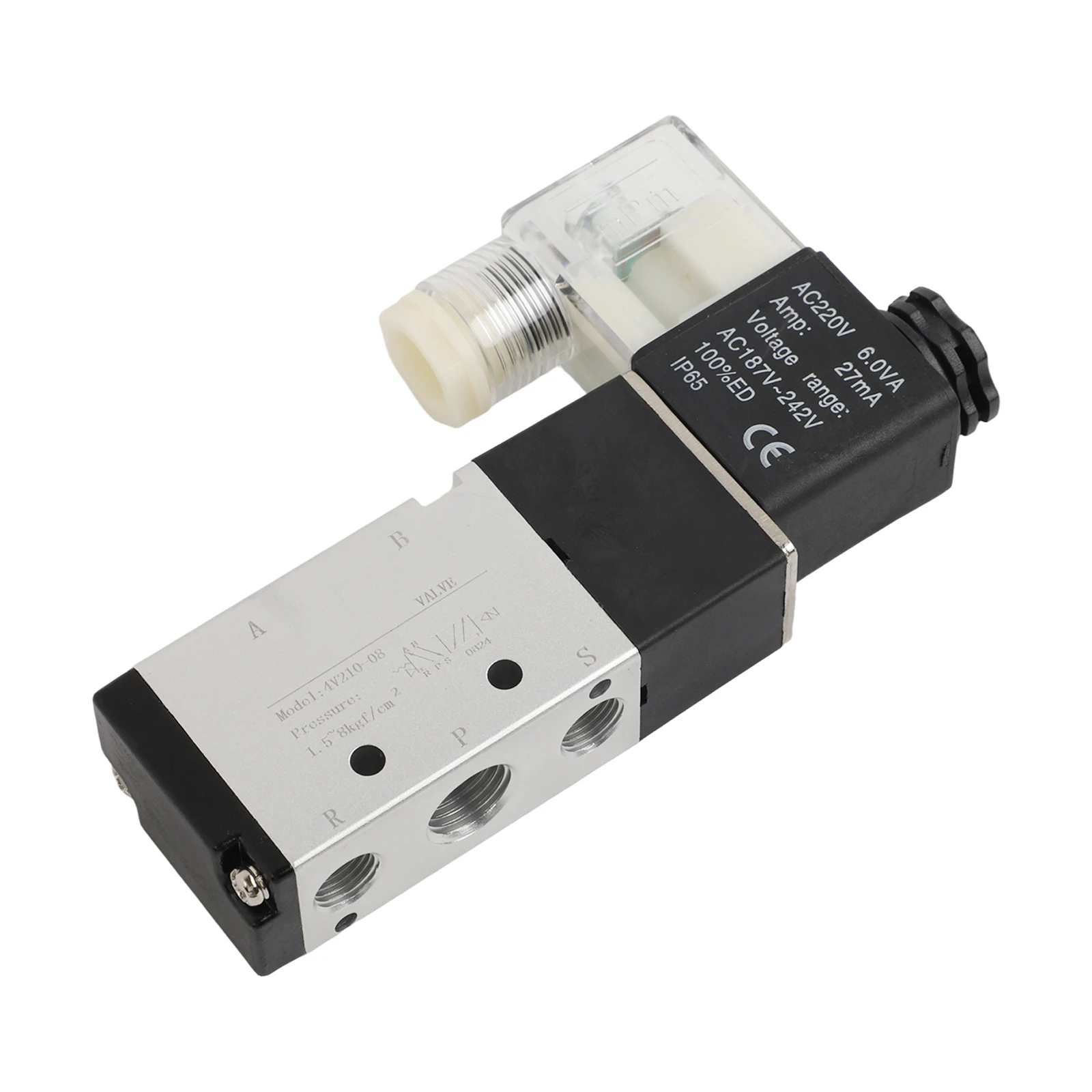

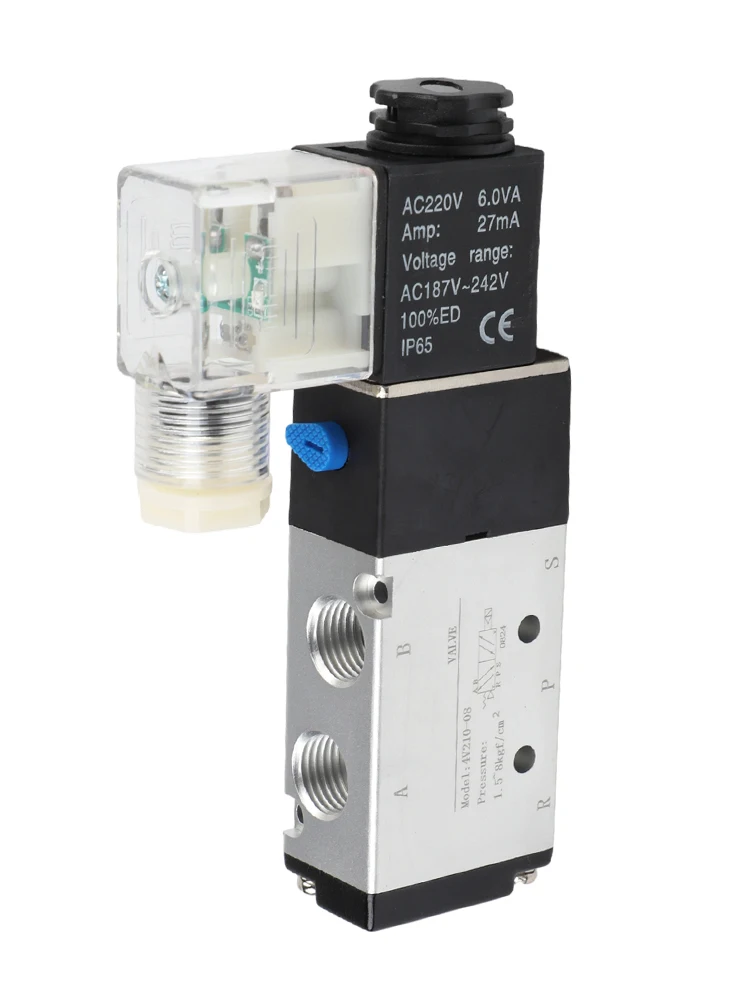

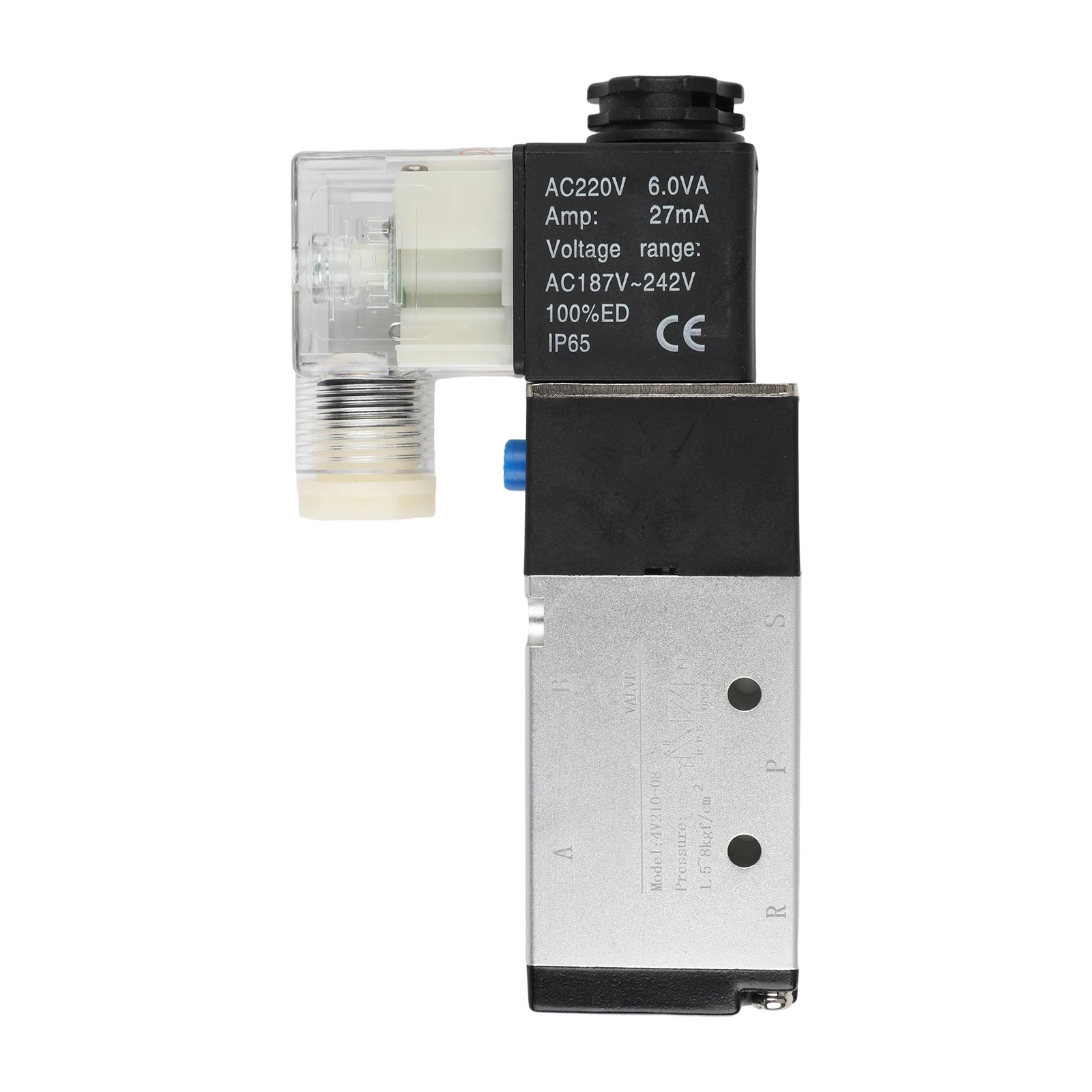

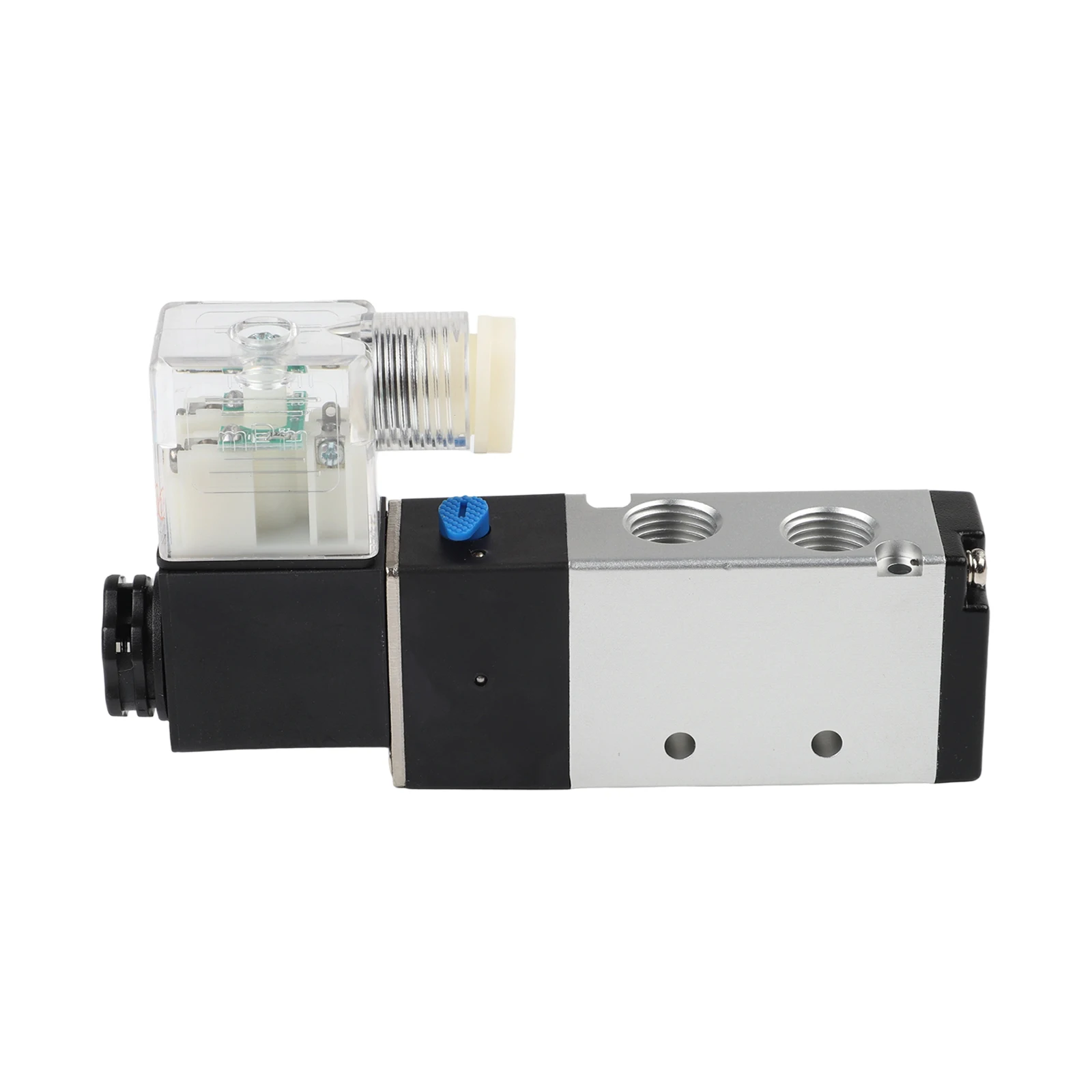

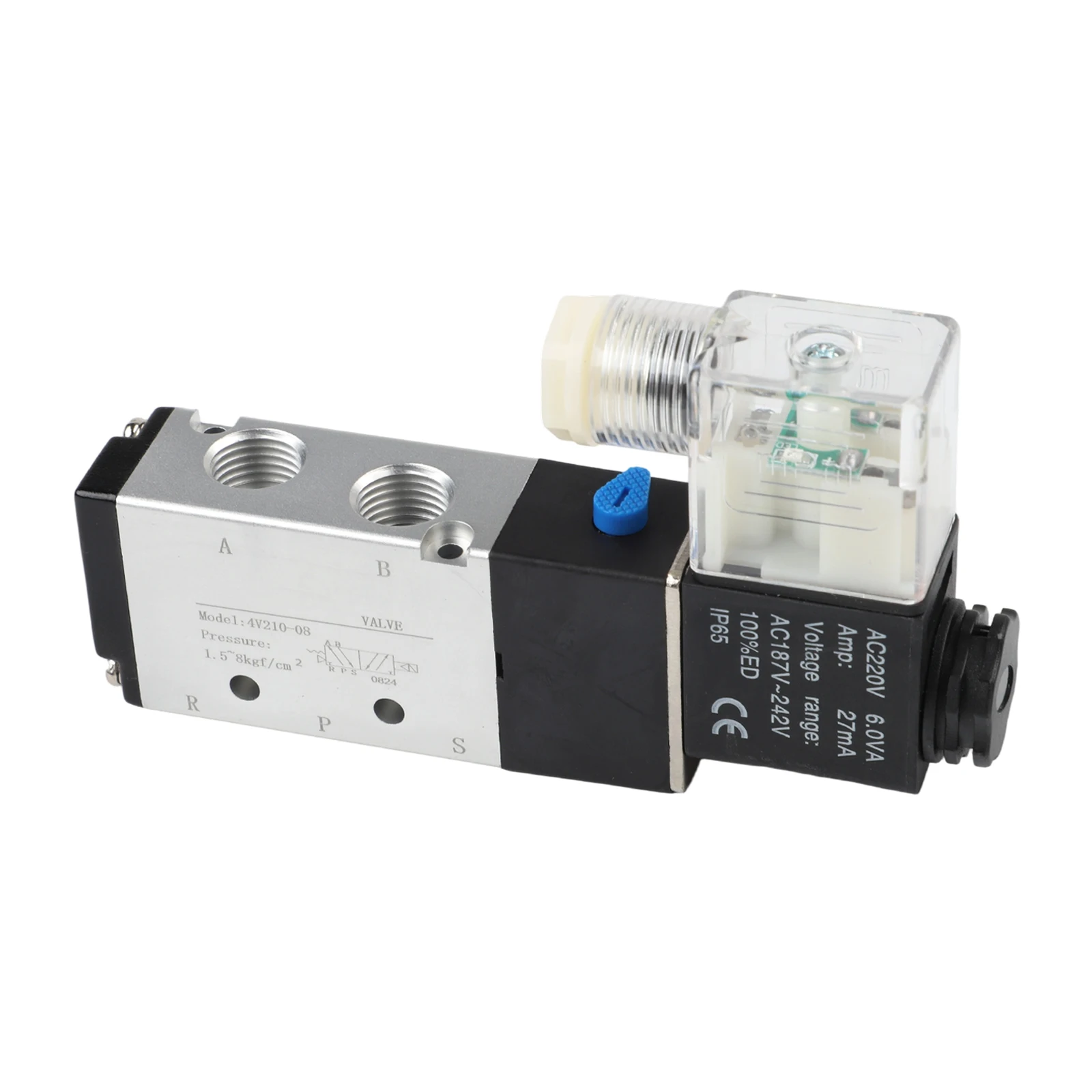

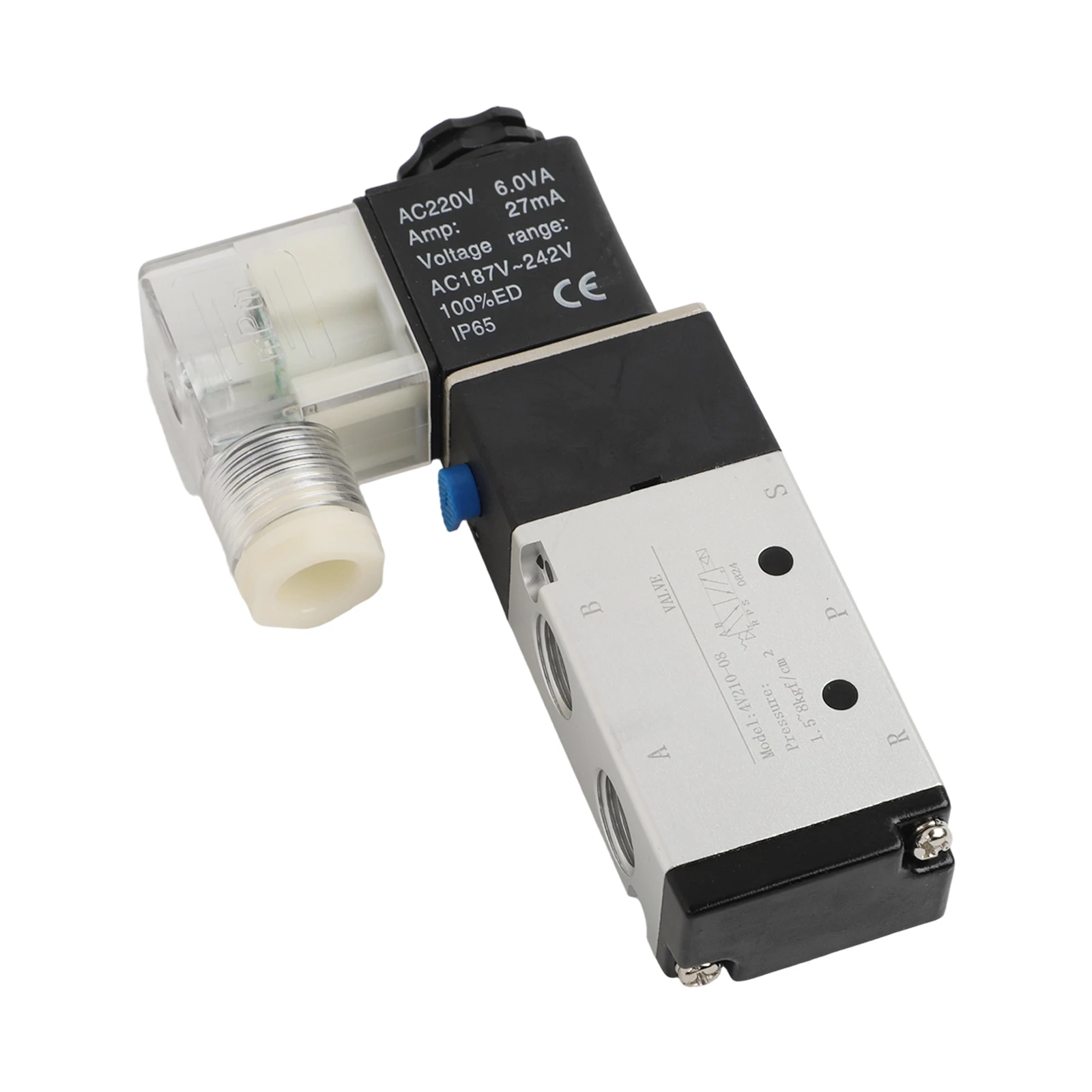

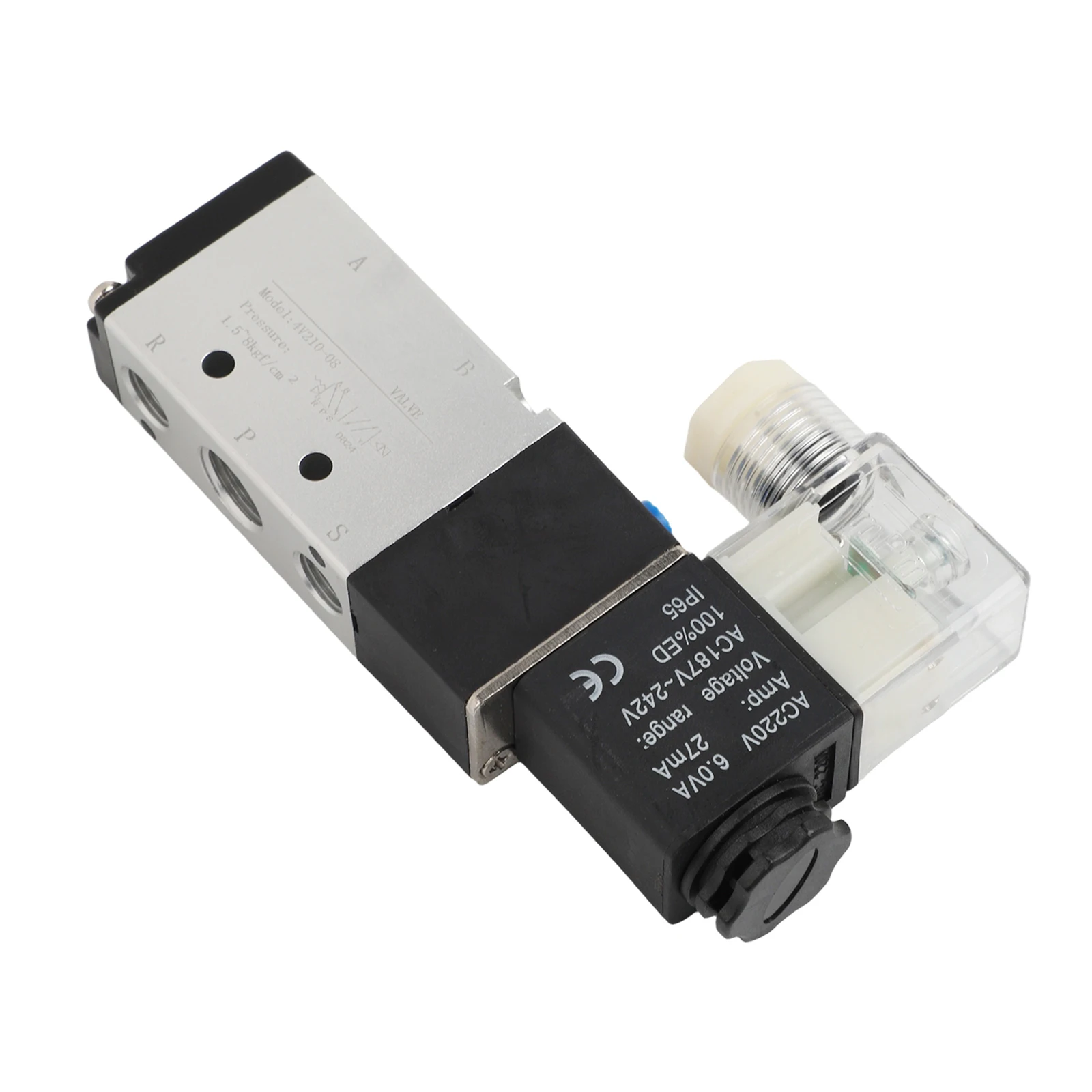

AC 220V 5 Way 2 Position Pneumatic Solenoid Valve 4V210-08 For 1/4" BSPT Air Systems 4V210-08 Solenoid Valve

Features:

* The 4V210-08 pneumatic solenoid valve is a 2-position 5-way valve with a 1/4-inch BSPT interface, compatible with AC 220V voltage. It is widely used in pneumatic control systems to achieve precise control of airflow direction and on/off, stability and reliability.

* Utilizing high-quality sealing materials and  valve body manufacturing, it boasts strong sealing performance and fast response, effectively reducing air leakage and stable operation of the pneumatic circuit, lowering energy consumption and equipment failure risks.

* The 2-position 5-way design allows for multi-directional airflow switching, adapting to various pneumatic actuators and suitable for different pneumatic control scenarios such as automated equipment, production lines, and mechanical devices.

* The 1/4-inch BSPT standard interface offers strong installation versatility, a secure connection that is not easily loosened, and compatibility with conventional pneumatic pipelines. It is easy to install and remove, allowing for quick integration into existing pneumatic systems.

* Rated voltage AC 220V, the coil is stable, with energization response and low heat generation during prolonged operation, long-term stable switching of the solenoid valve and extending its overall service life.

* The valve body features a compact structure and small size, occupying minimal installation space. It is suitable for installation within space-constrained equipment without affecting the overall layout and is compatible with various small and medium-sized pneumatic equipment.

Specifications:

Part Name: Solenoid Valve

Model: 4V210-08

Material: Metal

Color: As shown in the picture

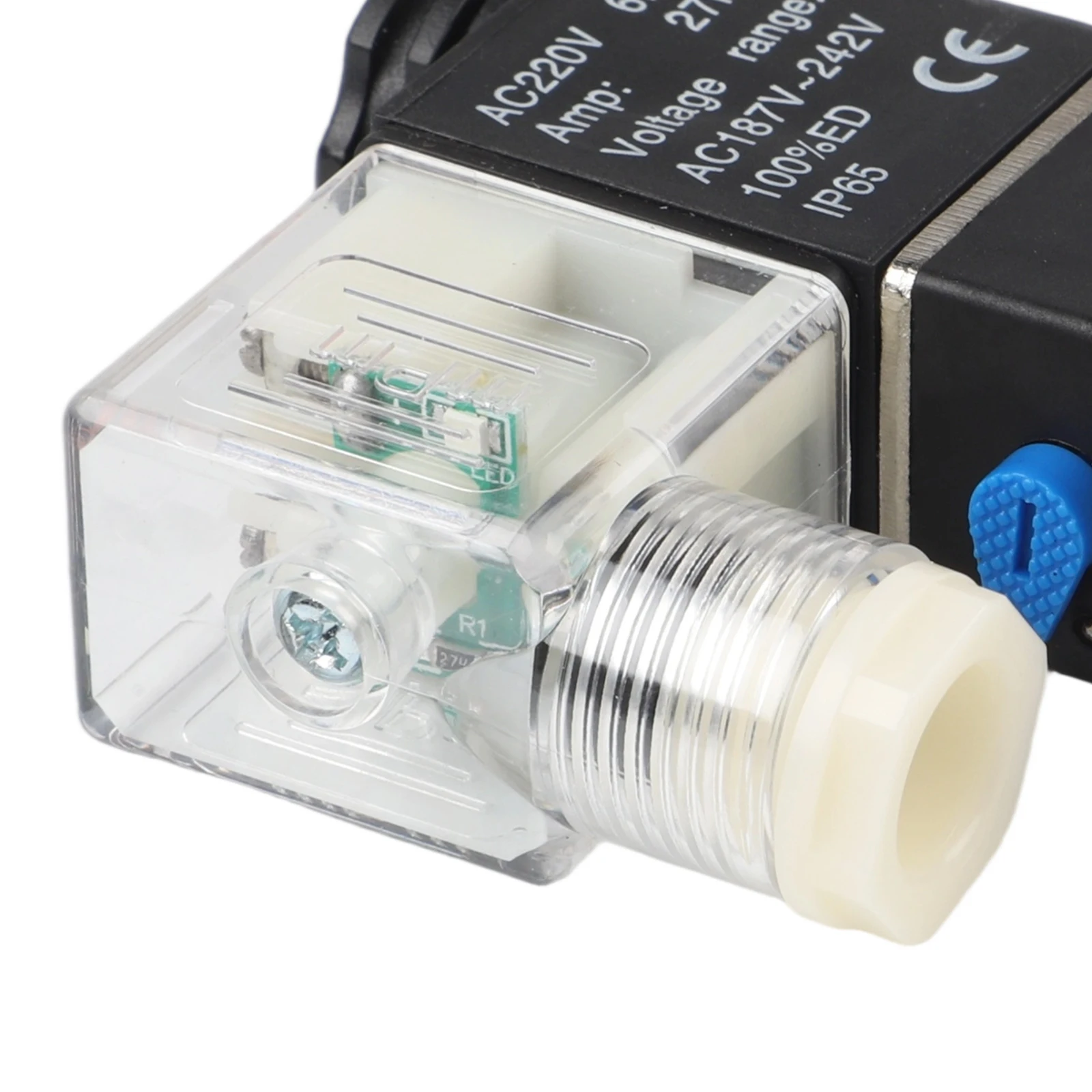

Coil: AC220V LED indicator

Interface Size: 1/4" BSPT

Effective Area: 16mm²

Operating Temperature Range: -5~55℃

Recovery Value: 0.78

Coil Power: 3VA

Operating Pressure Range: 0.15~0.8MPa

Withstand Pressure: 1.05MPa

Voltage Range: ±10%

Power Consumption: AC: 1.3W DC: 1.5W

Insulation Protection Class: IP65

Connection: Box Type

Frequency: 5 Hz

Response Time: 50ms

Package Contents:

1 x 4V210-08 Solenoid Valve

Note：

1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2.Please allow slight manual measurement deviation for the data.
