Description
The circuit breaker has the functions of short circuit protection, overloadprotection, control, isolation and so on. it is suitable for terminal powerdistribution, civil construction, energy control, communication, and infrastructureconstruction fields.
Ideal for: Solar photovoltaic systems / Energy storage applications /DC electrical distribution
Technical Data
-

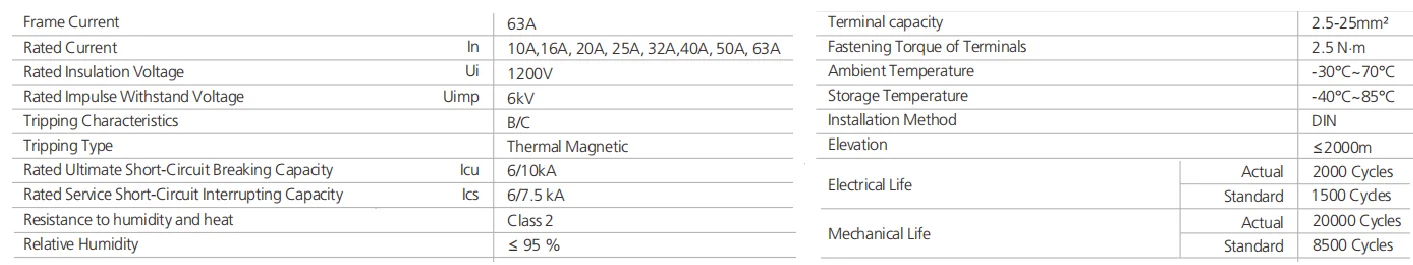

Technical Specification
-

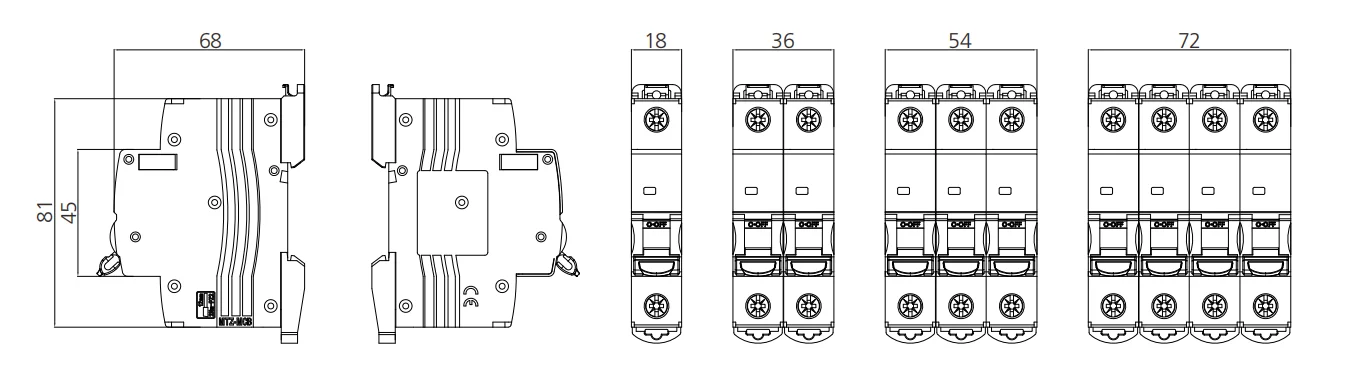

Outline Overall And Installing Dimensions
-

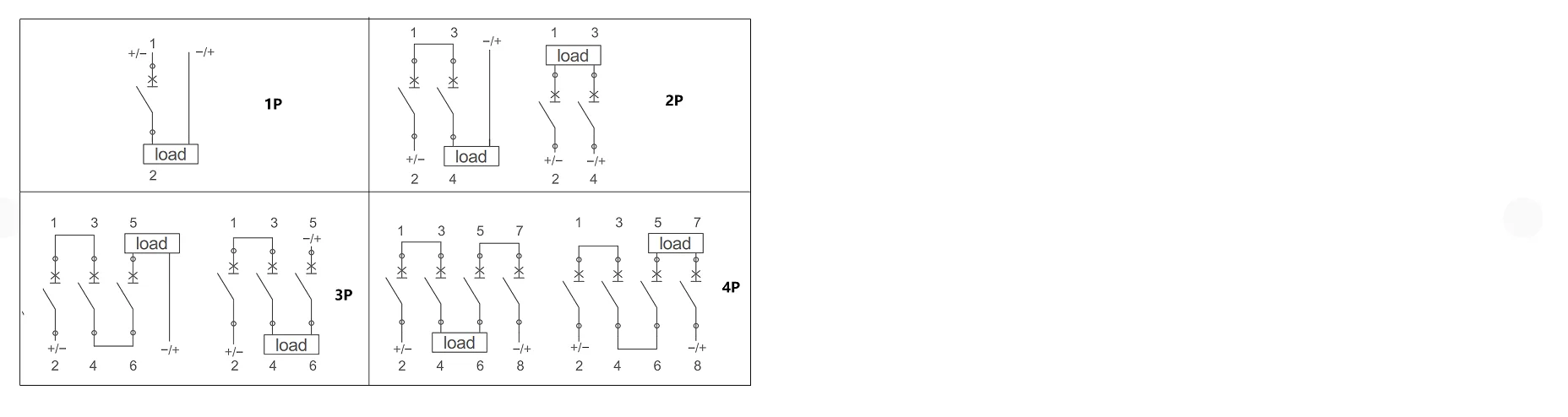

Circuit Diagram
Product Benefits
1.Overload and the short circuit protection function
2.Rated short circuit breaking capacity up to 10 kA
3.Non-polarity and Polarity both available
4.Rated Current in up to 63A
5.Rated Voltage up to 1000V
6.Designed for PV, energy storage and other DC applicationsAS/NZS 60947.2 and lEC 60947-2 standard
7.Reliability: B/C tripping curve ensures optimal protection.
