JDS2900 15-60MHz DDS Function Signal Generator CNC Arbitrary Waveform Pulse Wave Frequency Counter

Description

Frequency Characteristics
	JDS2900-15M	JDS2900-30M				JDS2900-40M		JDS2900-50M		JDS2900-60M
Sine wave frequency range	0~15MHz	0~30MHz				0~40MHz		0~50MHz		0~60MHz
Square wave frequency range	0~15MHz	0-25MHz				0-25MHz		0-25MHz		0-25MHz
Triangle wave frequency range
Pulse wave frequency range	0~6MHz	0~6MHz				0~6MHz		0~6MHz		0~6MHz
TTL digital wave frequency range
Arbitrary frequency range
Pulse width adjustment range	100nS~4000S	50nS~4000S				40nS~4000S		30nS~4000S		25nS~4000S
Square wave rise time	≤25ns	≤15ns				≤10ns		≤10ns		≤10ns
Minimum frequency resolution	0.01uHz（0.00000001Hz）
Frequency accuracy	±20ppm
Frequency stability	±1ppm/3hours
Waveform characteristics
Waveform type	SineSquare、pulse (adjustable duty cycle, precise adjustment of pulse width and period), triangular wave, partial sine wave, CMOS wave, DC level (set DC amplitude by adjusting offset), half wave, full Wave, positive staircase wave, anti-ladder wave, noise wave, exponential rise, exponential drop, multisonic wave, Symplectic pulse and Lorenz pulseand 60 arbitrarywave forms.
Wave length	2048 points
Waveformsampling rate	266MSa/s
Waveform vertical resolution	14-bits
Square wave and pulse wave	Overshoot				≤5%
Pulse wave	Duty cycle adjustment range				0.1%~99.9%
Partial sine wave	Duty cycle adjustment range				0.1%~99.9%
Sine wave	Harmonic Suppression				≥45dBc(<1MHz); ≥40dBc(1MHz~20MHz)
	Total harmonic distortion				<1%(20Hz~20kHz,0dBm)
Saw-tooth wave	Linearity				≥98%(0.01Hz~10kHz)
Output characteristics
Sine wave amplitude range	Frequency ＜ 11MHz			11MHz ≤ Frequency ＜ 31MHz					31MHz ≤ Frequency
	2mVpp~20Vpp			2mVpp~10Vpp					2mVpp~5Vpp
Squarewave/Triangle wave amplitude range	Frequency ≤ 10MHz			10MHz ≤Frequency ≤25MHz
	2mVpp~20Vpp			2mVpp~10Vpp
Amplituderesolution	1mV
Amplitudestability	±0.5%/5 hours
Flatness ofamplitude	±5%(<10MHz); ±10%(>10MHz)
Waveform output
Outputimpedance	50Ω±10% (typical)
Protection	All signal outputs can work within 60 seconds when the load is short-circuited.
DC offset
Offsetadjustment range	|Offset|≤10-ampilitude/2
Offset resolution	0.01 V
Phase characteristics
Phaseadjustment range	0~359.9°
Phase resolution	0.1°
TTL/CMOS output
Low level	<0.3V
High level	1V~10V
Level rise/fall time	≤20ns
External measurement function
Frequencymeter function	Frequency measurement range						1Hz~100MHz
	Measurement accuracy						Gate time 0.01S~10s continuously adjustable
Counter function	Counting range						0-4294967295
	Coupling method						DC and AC coupling methods
	Counting method						Manually
Input signal voltage range	2Vpp~20Vpp
Pulse width measurement	0.01us resolution, measure up to 20s
Period measurement	0.01us resolution, measure up to 20s
Sweep function
Sweep channel	CH1 or CH2
Sweep type	Linear sweep, logarithmic sweep
Sweep time	0.1s~999.9s
Setting range	Any setting between the maximum output frequency of the corresponding model of the starting point (0.01Hz) and the end point
Sweep direction	Forward, reverse and round trip
Bursting function
Number of pulses	1-1048575
Burst mode	Manual burst, CH2 burst, external burst (AC), external burst (DC)
General specifications
Display	Display type		2.4 inch TFT color LCD display
Store and load	Quantity		100
	Position		00 to 99 (00 memory location parameter is loaded by default as power on)
Arbitrary wave	Quantity		1 to 60 total 60 groups (15 groups by default as power on)
Interface	Interface mode		USB to serial interface
	Extension interface		With TTL level mode serial interface for user secondary development
	Communication speed		Adopt standard 115200bps
	Protocol		Using the command line, the protocolis made public
Power supply	Voltage range		DC5V±0.5V
Manufacturing technology	Surface mount technology, large-scale integrated circuits, high reliability, long service life
Prompt tone	Users can turn on or off by setting program
Operating characteristics	All key operations, knob continuous adjustment
Environmental conditions	Temperature: 0~40℃ Humidity: <80%

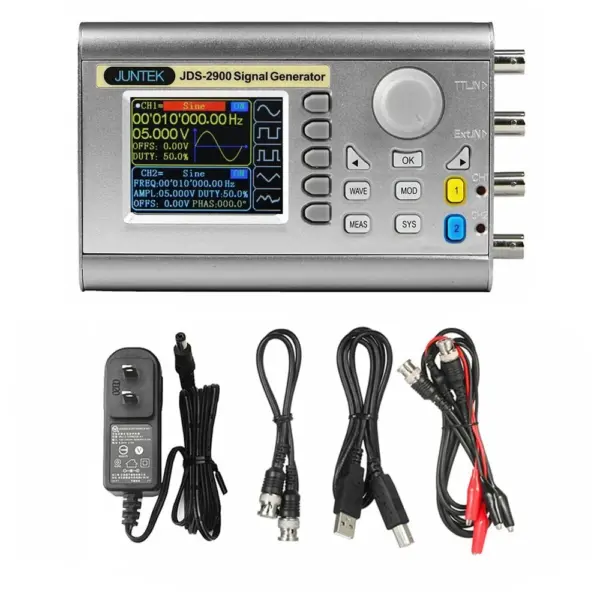

1. DDS Signal Generator*1

2. Power Adapter(In:100~240V~50/60Hz,Out:5.0V-0.2A)*1                    3. BNC-BNC Cable*1

                      4. USB Data Cable*1                                                                                 5. BNC-Clip Cable*2
