532nm10mw/30mw/50mW Green Laser Locator Module Line Beam Fit For Woodcut Positioning Light Marker Laser Level Tool

532nm10mw~50mW Green Laser Locator Module Line Beam Fit For Woodcut Positioning Light Marker Laser Level Tool

Parameters:

Wavelength:532nm
Output Power:10mw/30mw/50mw
Core device: Mitsubishi
Working Voltage:DC5v
Working Current:260mA
Working Temperature:＋15 ℃~＋35 ℃
Lens:Glass
Optical Part:Collimating lens+K9 glass lens
Laser Shape:Line
Focusable:N/A
Material:Aviation aluminum
Dimensions:￠18 mm X 75mm

Features:

1. The laser adopts the original diode, the volume is small, the light is clear;
2. Can not be focusable, but the glass lens light fine;
3. The use of international standard female interface, DC specifications for the 5.5×2.1mm. The core is positive, the product tail with special plug head;
4. All-metal package, good heat dissipation, can effectively ensure product stability and service life. The product is internally assembled with copper, which can quickly cool the laser diode.

Package:

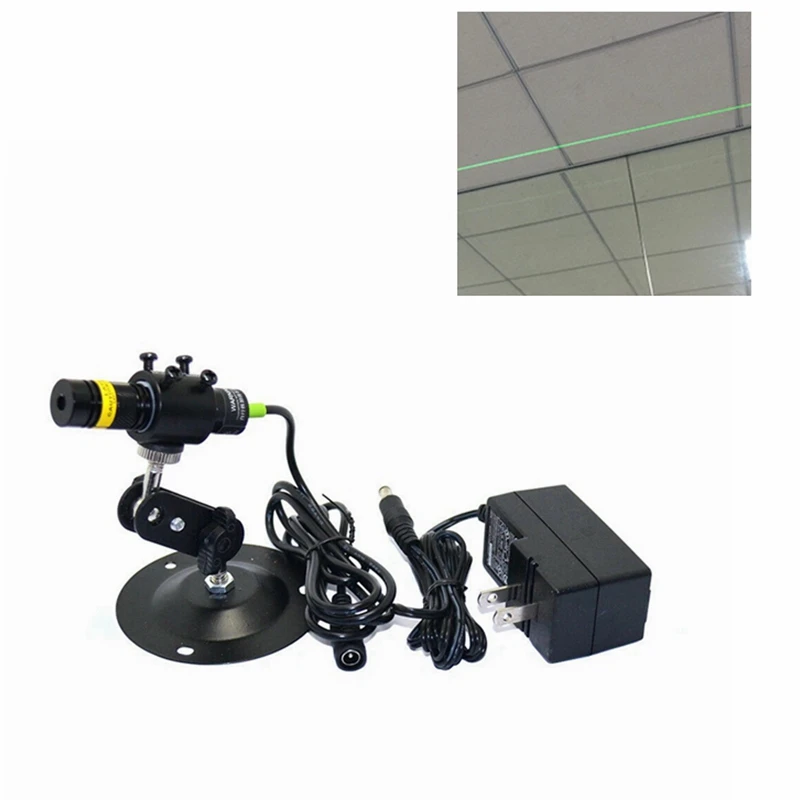

1pc 532nm Laser Diode Locator Module
1pc 5V adapter
1pc holder
