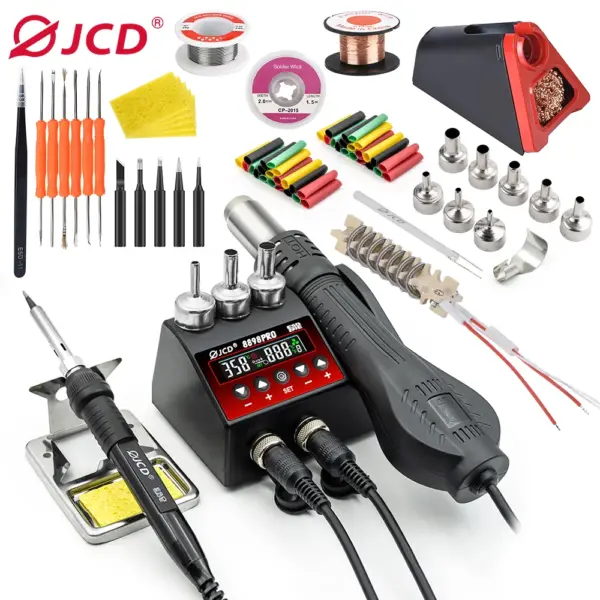

JCD 750W Soldering Station 8898Pro LCD HD Digital Display 2 in 1 Rework Welding Station For Phone BGA SMD PCB IC Repair Tools

Description

JCD New Soldering Station 8898PRO LCD HD Digital Display Hot Air Gun Welding Rework For Phone BGA SMD PCB IC Solder Repair Tools

Hot air heater and welding iron 2in1 rework soldering station.
Dual LCD digital displays to show precision temperature.
Extremely low noise and space saving design.
Intelligence self-detection function features safe personal operation.
Automatic cooling function for effectively prolonging the heater's life and protecting the hot air heater.

Fahrenheit/Celsius switchin
Heat gun airflowcontrol & display

Hot air gun
Working Voltage: AC220-240V OR AC100-130V
Frequency: 50Hz/60Hz
Output Power: 800W
Temperature Range: 100°C~480°C
Temperature Stability:±2℃
Air Flow: 150L/min (max)

Soldering iron
Working Voltage: AC220-240V OR AC100-130V
Output Power: 80W
Frequency: 50Hz/60Hz
Temperature Range: 180°C-500°C
Temperature Stability: ±1°C
Soldering Iron : ESD design
Heater Material : Ceramics

How to use:
1. Clean the electronic components to be soldered.
2. Once iron reaches temperature (not too high, recommend 300-400℃).
3. Apply a little solder to the heated iron tip to prevent oxidation, then rub the iron tip to evenly extend the solder to the surface of the iron tip.
4. Start to solder
