Description
Description:
1. Suitable for foundational electronic technology and skills training.
2. Enhances soldering proficiency and speed, ideal for DIY enthusiasts.
3. Stable performance and extended service life ensure reliable operation.
4. Includes complete components and schematics for straightforward self-assembly.
5. Supports C-interface and serial port programming with robust expandability.
Product Description:
This kit serves for foundational electronic technology training, electronic skills instruction, electronic craftsmanship teaching, digital circuit education, and practical use by electronics enthusiasts and beginners. The kit includes all components, circuit boards, supporting diagrams, and a parts list. (Note: This kit is not a finished product and requires customer soldering and assembly!)
Product Specifications:
Material: Metal
Interface: Type-C connector
Supply Voltage: 5V

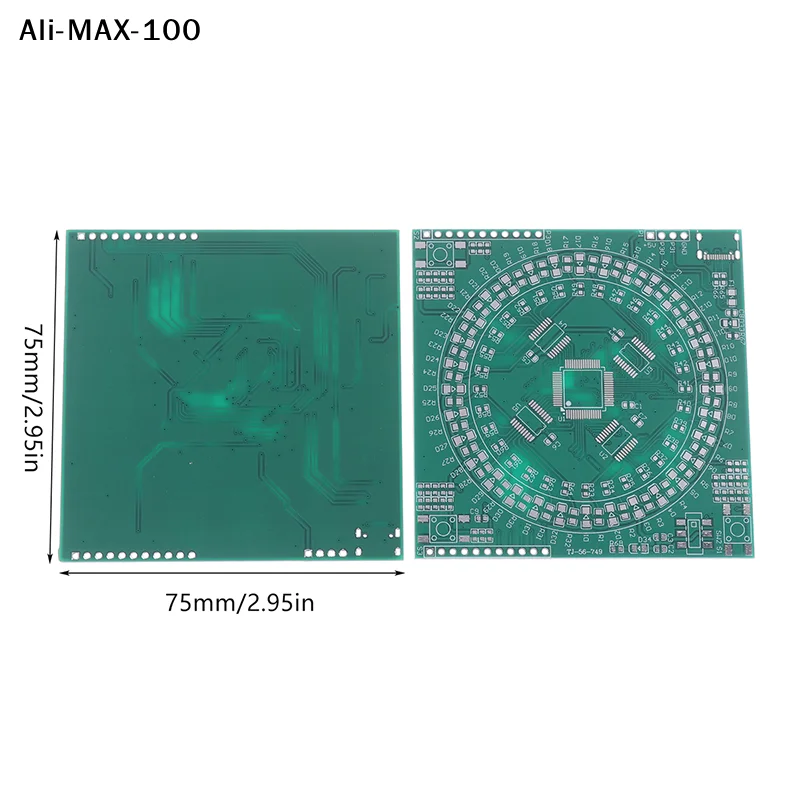

Dimensions: 75 × 75 mm
Color: As Shown In The Picture
Soldering Instructions:
1. LEDs and chips have designated orientations. LEDs are marked with a cathode symbol; chips are marked with pin indicators.
2. Capacitors, resistors, fuses, and switches have no orientation. Ensure correct parameter identification to avoid errors.
3. Soldering the Type-C port presents some difficulty. Consider using a header pin for 5V power supply to test circuit sections first.
4. The holes on both sides are for future expansion with LED dot matrix modules.
5. For self-programming, either the C interface or serial port may be used. Observe operating procedures.
Package Included:
1 x DIY kit components
Note:
1. Please note that the photo does not show actual size please refer to Description for size details.
2. Please allow differences due to manual measurement thanks.
3. Due to the difference between different monitors the image may not reflect the actual color of the item.
