Valve Type: 2 Way Normally Closed (Valve opens with energized)

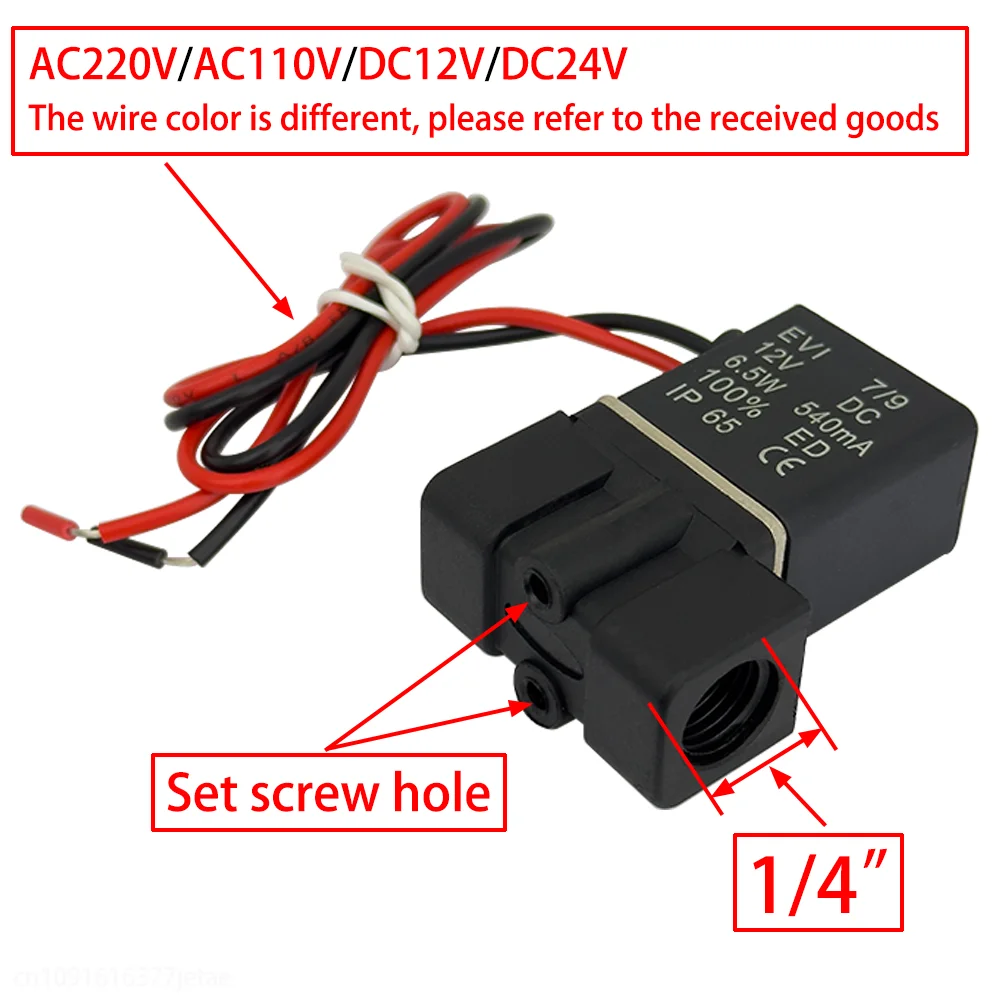

Port Size: 1/4" Female Port
Diameter of the outlet of the brass joint: 4/6/8/10/12/14/16MM
Coil Voltage: DC12V/DC24V/AC110V/AC220V
Material:
Body Material: Engineering plastics
Seal Material: NBR (Buna N)
Armature Tube Material: Brass/304 stainless steel
Plunger & Spring Material: Stainless Steel
Working temperature: 0~60℃
Applying pressure: 0.15~0.8Mpa
Ensure pressure: 1.0Mpa
Protection level: IP65
Working method: Internal leading approach
The selected material for the tower connector: 304 stainless steel
Additional information
Color
Model A-12MM, Model A-6MM, Model B-12MM, Model B-6MM, Model A-8MM, Model B-4MM, Model B-8MM, Model A-10MM, Model A-14MM, Model B-10MM
Specification
DC12V, AC110V, DC24V, AC220V
