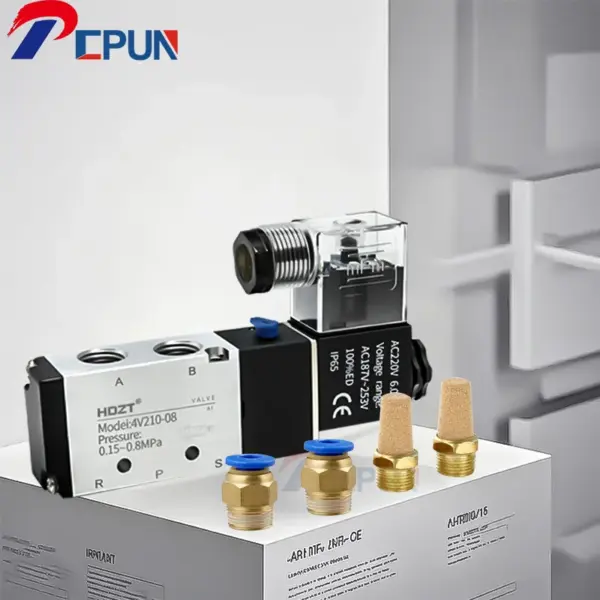

4V210-08 2 Position 5 Way Pneumatic Solenoid Valve DC12V DC24V AC110V AC220V Aluminum Alloy Body with Multiple Voltage Options

Model 4V210-08
Type 2-position 5-way solenoid valve
Pilot Type Internal or external optional
Structure Slider structure
Working Medium Air (filtered through a 40μm filter)
Port Size 1/4 inch PT
Effective Cross-sectional Area (Cv) 17.0mm² (Cv=1.0)
Working Pressure Range 0.15~0.8Mpa (21~114psi)
Proof Pressure 1.2Mpa (175psi)
Working Temperature -20~70℃
Body Material Aluminum alloy
Lubrication Not required
Maximum Operating Frequency 5 times/second
Weight 220g
Standard Voltage AC220V, AC110V, AC24V, DC24V, DC12V
Voltage Tolerance AC: ±15%, DC: ±10%
Power Consumption 4.5VA, 4.5VA, 5.0VA, 3.0W, 2.5W
Protection Level IP65 (DIN40050)
Thermal Class B class
Connection Type DIN socket type
Response Time Less than 0.05 seconds
