12V 24V 220V miniature Pneumatic Solenoid Valve Combination Positive pressure negative pressure use 2/3 way NC Valves

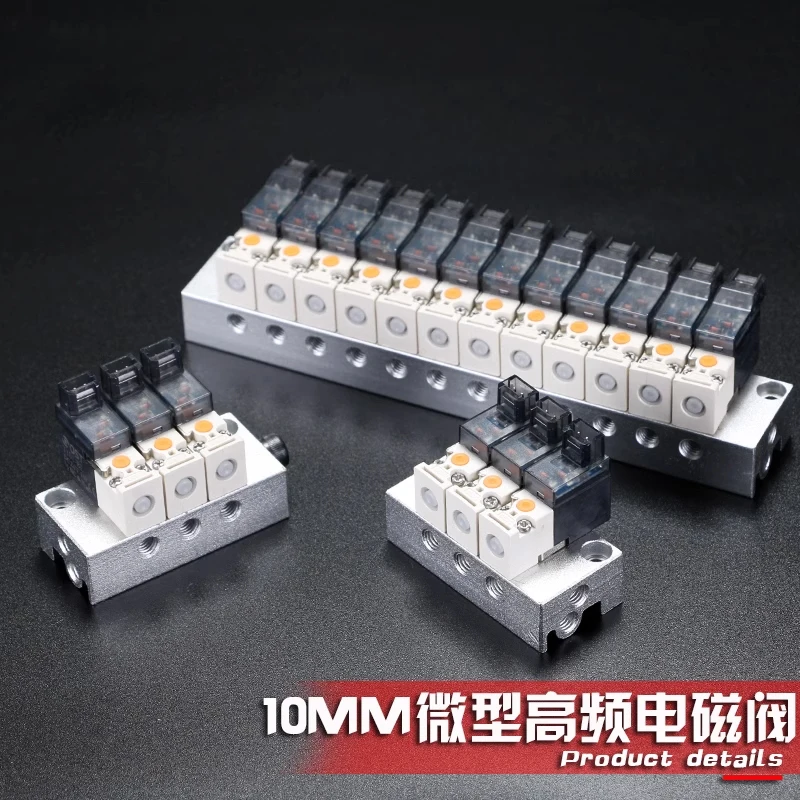

This series of valves has one inlet and multiple outlets with manifold
2F is controlled by one inlet, two outlets, one inlet, two outlets and two coils separately
3F is controlled separately by one inlet, three outlets, one inlet, three outlets and three coils
4F is controlled separately by one inlet, two outlets, one inlet, four outlets and four coils
5F is controlled separately by one inlet, three outlets, one inlet, five outlets and five coils

Two-position three-way normally closed solenoid valve combination
The delivery includes wires and free terminal blocks
OURS TOP PNEUMATIC manufacturer of miniature solenoid valves profession
Miniature solenoid valve, can be used in machinery, electronics, medical, knitted, semiconductor and other air way reversing control fifield.
1.Small size and convenient installation
Ideal for installation where the space is limited, you can install on a single base, you can also set the board installed on the manifold.It has strong compatibility on installation size , and can replace most similar products at home and abroad, also can be used as sy series and 4v series of pilot control valve.
2. Energy saving and environmental protection
The power consumption of the standard type is only 1w, And the energy saving type is only 0.3w.
3. High capacity, wide application
It has large flflow rate, can be used for compact cylinder, swing cylinder and other slider series, also applies to the pilot control of the processing valve. Especially the flflow rate of the large type has promoted 50% above on the basis of the standard type, can better meet your needs.
4.Quick response
the response time is less than 10ms, can realize vacuum function
5. Specififications
According to the voltage identifification, ac220v, ac110v, dc24v, dc12v,
dc6v, dc3v etc. ccording to electrical interface mode to distinguish: vertical type (ltype), the horizontal type (m type), direct line type (g type) etc. easily.
6. Long service life
Even electric sustained rate in 24 hours of continuous work and 100% case is also very reliable.
类型 Valve function 两位两通 常闭 2/3 N.C.
工作介质 Media 压缩空气,惰性气体 Compressed air,Inert gases
润滑 Lubrication 不需要 Not necessary
环境及介质温度 Ambient and media temperature -10℃～+80℃
工作压力 Working pressure 0～7bar
阀口通径 Orififice size Φ0.75mm(P port)/Φ1.0mm(R port) We usually ship Φ0.75mm(P port)
6bar时流量(△p=1bar) Flow rate at 6 bar and △ p=1bar 16 NL/min(P1→P2),23 NL/min(P2→P3)
电接口方式 Electrical connection
垂直式(L型) Vertical type(L type)
水平式(M型) Horizontal type(M type)
直接出线式(G型) Direct line type(G type)
标准电压 Nominal voltage AC220V,AC110V,DC 24V,DC 12V,DC6V,DC3V
允许电压波动 Voltage tolerance ±10%
通电持续率 Duty cycle ED 100%
绝缘等级 Insulation class H
防护等级 Degree of pretection IP50
响应时间 Response time 10ms以内
Less than 10ms 最大工作频率 Max operating frequency 30Hz
使用寿命 Life time expectancy 5000万次以上 More than 50 millions times
