Description
Small size, multiple functions, simple operation, easy to carry.
ith an oscilloscope, which can be used in electronic circuit experiment and debugging, the frequenc
Due to the good precision of DDS and frequency stability, is also very suitable for oscilloscope swe
With an oscilloscope, which can be used in electronic circuit experiment and debugging, the frequency characteristics of audio amplifier and pulse response of test and measurement.
Square wave output
Also suit for oscilloscope attenuator and probe pulse adjustment, etc
The main output waveform : sine wave and square-wave, Triangular wave, sawtooth wave.
Maximum output amplitude : +/- 10Vpp (no-load)
Output impedance : 50Ohm+/-10%
Dc bias : +/- 10V (no-load)
Display : LCD1602
Resolution : 1 Hz
Power supply : DC 3. 5-10V
Output frequency range :
Sine wave : 1Hz-500KHz
Square-wave : 1 Hz – 20kHz (the valid range)
Triangular wave : 1 Hz – 20KHz (the valid range)
Sawtooth wave : 1 Hz – 20kHz (the valid range)
Note: Due to different production batches, there may be slight differences in products.
Colour: White
Material: Plastic
Package Contents:

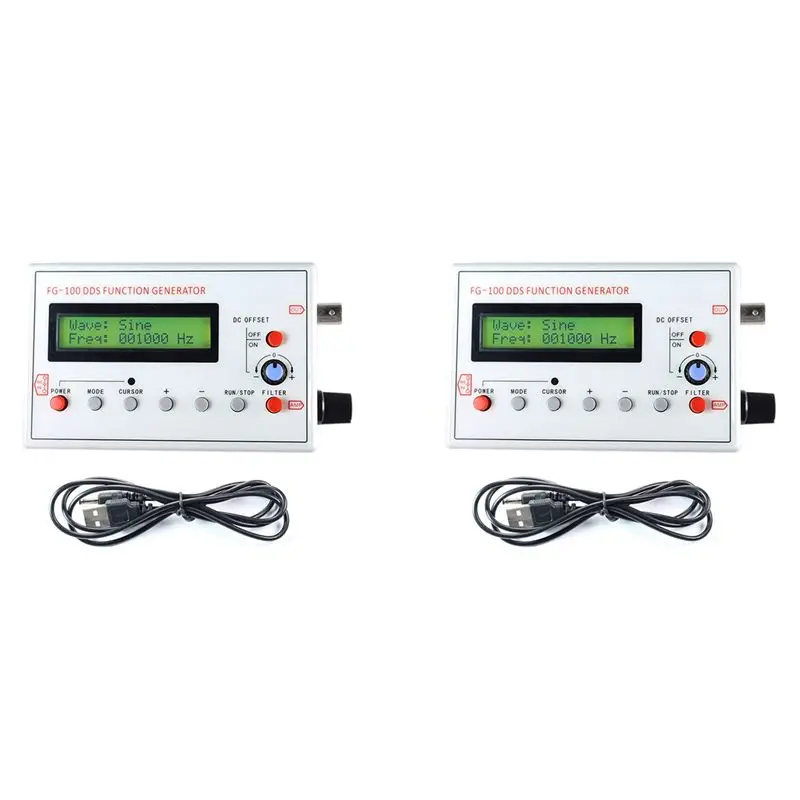

2 x FG-100 DDS Signal Generator
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
|
