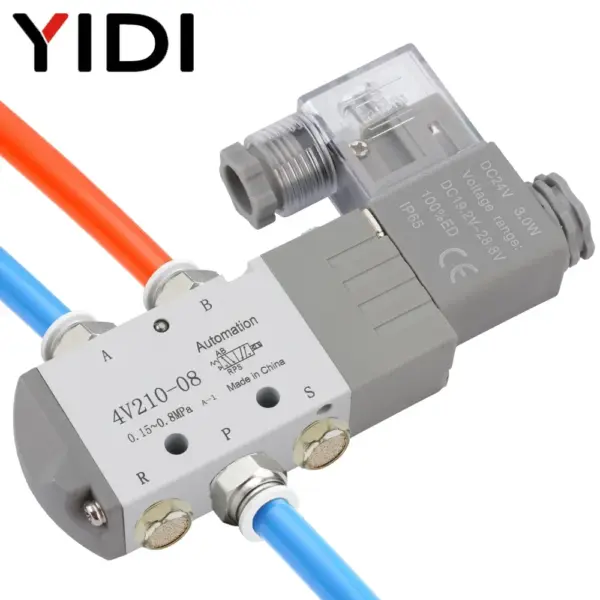

YIDI Solenoid Valve 4V210-08 Air Compressor Pneumatic Control Tool Tools 2 Way Position 5 Port G1/4 4V21008 DC24V AC220V AC110V
Rp531.950

YIDI Solenoid Valve 4V210-08 Air Compressor Pneumatic Control Tool Tools 2 Way Position 5 Port G1/4 4V21008 DC24V AC220V AC110V

1 terjual
SKU: 1005009382538816 Categories: ,
Terjual: 1+  |  Toko: YIDI Electric Store
🕐 Pre-Order · Estimasi 30 Hari
Color
Specification

Pilihan varian akan disertakan dalam pesan WhatsApp Anda.

🚚
Pengiriman ke seluruh Indonesia Estimasi 2–7 hari kerja via ekspedisi terpercaya
💬
Konsultasi gratis via WhatsApp Tim kami siap membantu Anda memilih produk
🏷️
Harga terbaik & transparan Harga sudah termasuk pajak, tanpa biaya tersembunyi

Description

YIDI Solenoid Valve 4V210-08 Air Compressor Pneumatic Control Tool Tools 2 Way Position 5 Port G1/4 4V21008 AC220V AC110V AC36V AC34V DC24V DC12V

Specification:
Item No.: 4V210-08 / 4V21008
Type: Solenoid Valve
Action Mode: Intemal Pilot Type
Working Media: Clean Air
Effective Sectional Area: 16.0mm²(Cv=0.89)
Position: 2/5 Position

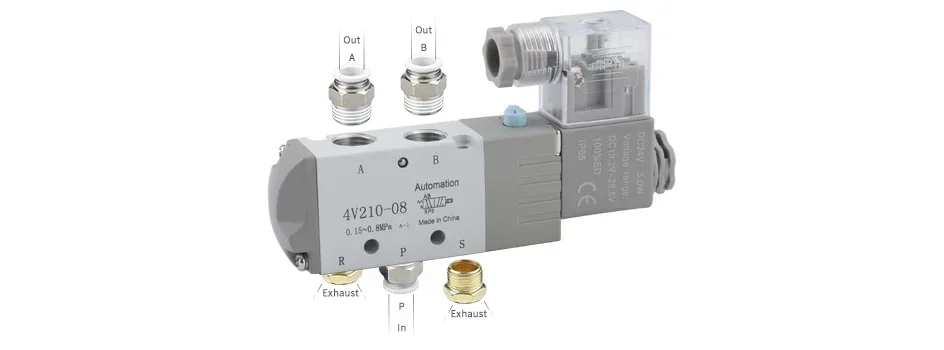

Port Size: Inlet=Outlet=1/4, Exhaust=1/8
Normal Operating Pressure: 1.5~8kgf/cm²(0.15~0.8MPa/1.5~8bar)
Max.Operating Pressure: 1.0MPa(10Bar)
Ambient And Fluid Tempereature: 0~120℃(32℉~248℉)
Material: Nitrile Rubber and Aluminum Alloy

Order List: 1pc Valve and fittings (fittings have or not have, base on your choose.)



Installation Instructions:
Installation
Grasp the tubing and slowly push it into the fitting until it comes to stop. The tubing will be locked by the spring gasket.

Remove
Push the release button to open the spring gasket so that the tubing can be released.

Cautions:
1. Cleaning: Clean the piping before connection to remove debris.

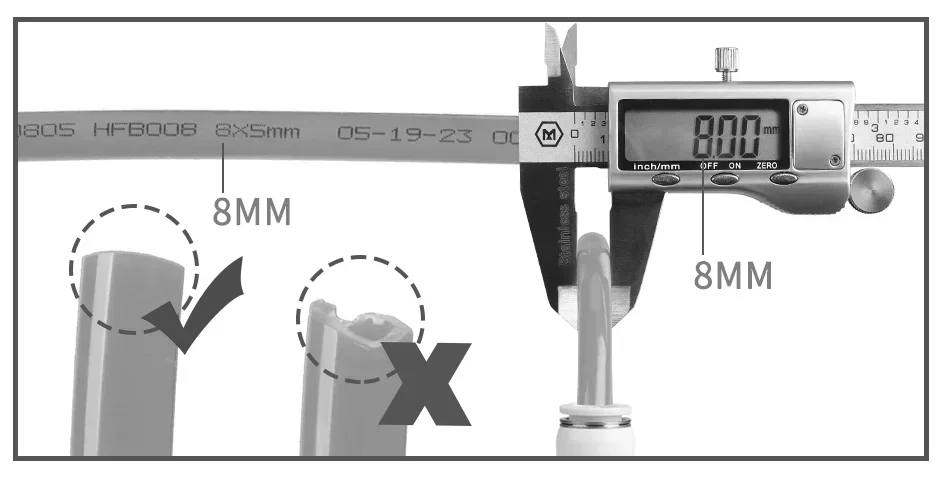

2. Tubing Cut: Ensure a perpendicular cut without scratches on the tubing’s outer diameter.
3. Pipe Length: Avoid excessive bending; select a proper pipe length.
4. Connection: After connecting, pull the tubing gently to check its seal.
5. Release: Push evenly on the release button flange for proper tubing withdrawal.
6. Removal: Avoid rotating the tubing fully during removal.
7. Assembly: Ensure no debris enters when screwing pipes and fittings together.

Safety Instructions:

1. Pressure: Ensure zero pressure in the tubing before removal.
2. Spatter Zones: Avoid standard fittings in spatter-producing areas.
3. Monitor Conditions: Stay within specified pressure and temperature ranges.
4. Environment: Avoid corrosive gases, chemicals, and extreme conditions.
5. Placement: Avoid areas with heavy vibrations or shocks.
6. Direction: Install tubing in the correct one-way direction.




Additional information

Color

4V210-08 – 10MM, Only 4V210-08, 4V210-08 – 6MM, 4V210-08 – 12MM, 4V210-08 – 4MM, 4V210-08 – 8MM
Specification

DC24V, 24V AC, 36V AC, DC12V, 220V AC, 110V AC
