Description

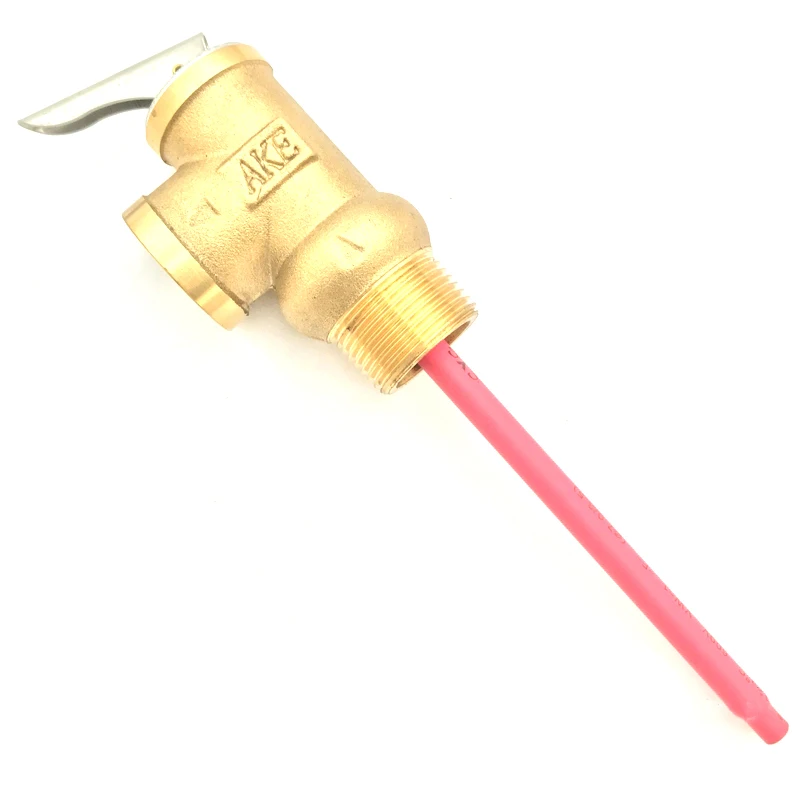

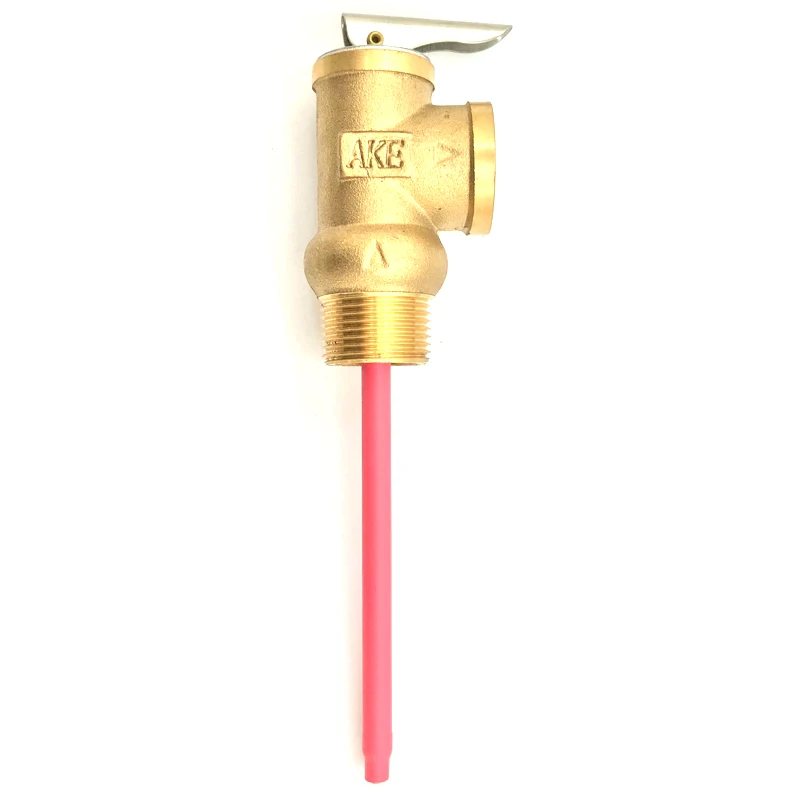

WYA-20 99C 101 PSI 210F WYA-20 0.7Mpa to Valve BSP 3/4 Inch Temperature and Pressure Relief Valve As TP Safety Valve
Introduction: Temperature and Pressure Safety Valves (T / P Valves)
0.7Mpa applies = 101PSI
Detailed introduction:
Temperature and pressure relief valves (TP valves) are suitable for other sensitive heaters such as solar water heaters, electric heaters, heat pump water heaters, various heating functions (such as boilers).
The TP valve can automatically reduce the temperature and pressure, and has the dual safety protection function of temperature and pressure. It is the safety protector of the current pressure water heater.
Features:

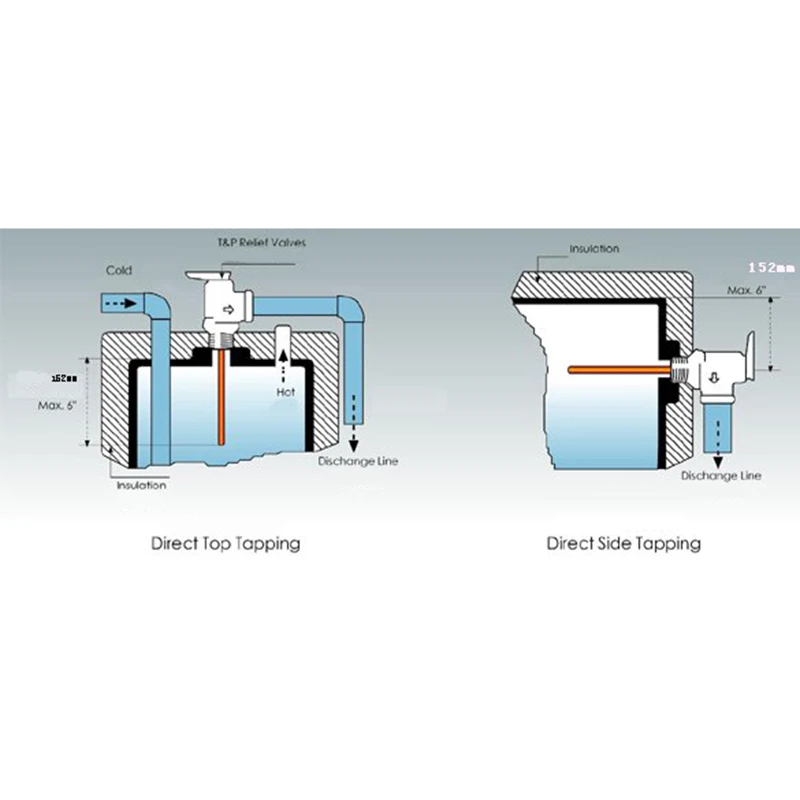

Safety relief valves are commonly used to control the pressure in boilers in heating systems, hot water tanks stored in domestic hot water systems, and general water systems.
When the calibrated pressure is reached, the valve opens and, by venting to the atmosphere, prevents the system from reaching pressure levels that are dangerous to the components in the boiler and the system itself.
Calibration pressure: 0.1, 0.15, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0 Mpa;
Deviation: When not more than 0.5Mpa, the deviation is 0.015Mpa, and when it is greater than 0.5Mpa, the deviation is 3% of the rated pressure.
Technical specifications:
color:gold
material:

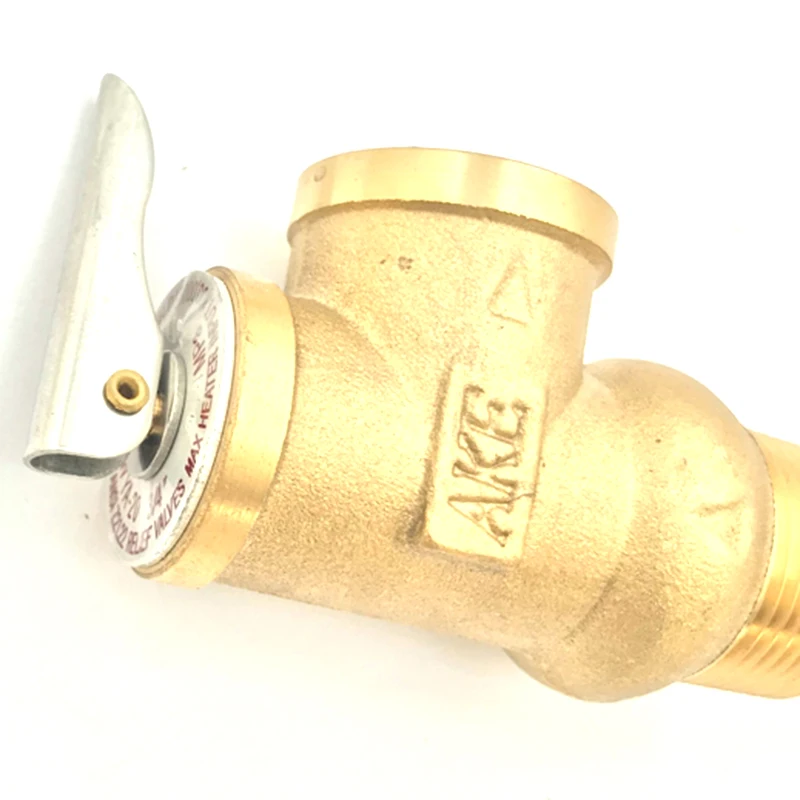

Body: 3/4 inch ; brass
Control spindle: brass
Closed hole: silicone gel gasket

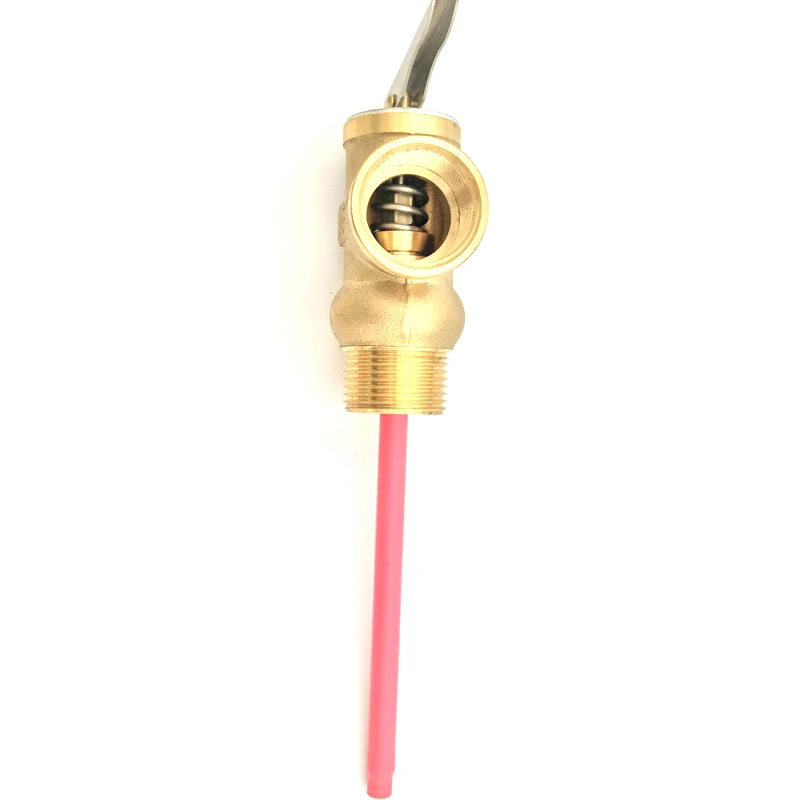

Spring: SUS304 stainless steel
Nominal pressure: PN10
Temperature range: 5-110 ° C
Set pressure: 0.5, 0.6, 0.7, 0.8, 0.9, 1.0 MPa
Set pressure deviation: -10%-5% set pressure
Set temperature: 99±4 degrees Celsius

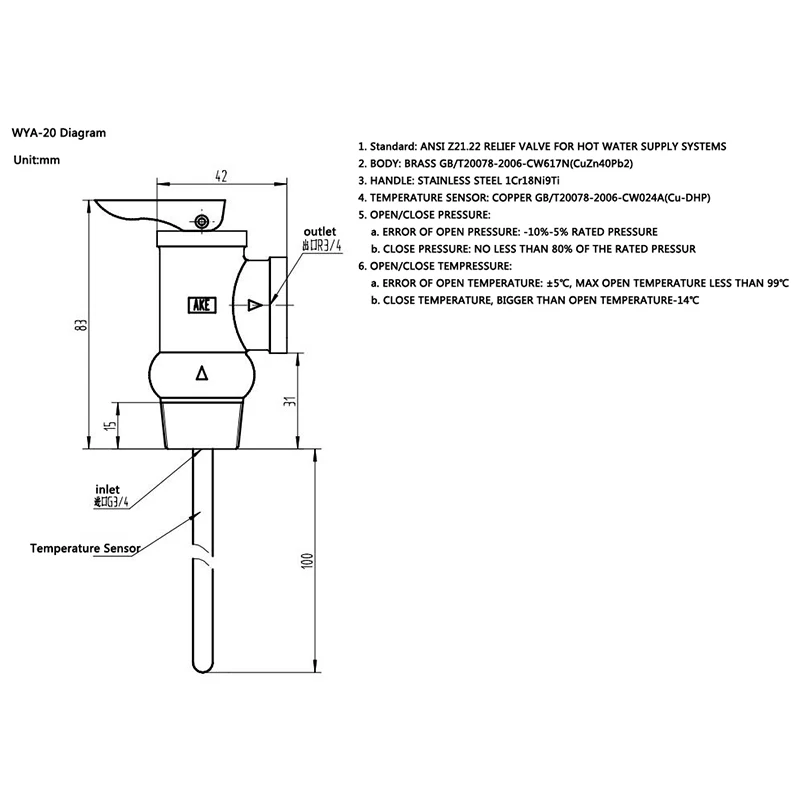

Entrance and exit (middle): BSPP 3/4 * 3/4
Weight (g): 238g
size:83 * 42mm
Package included:
1 * Pressure Valve
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
0.7Mpa applies = 101PSI
Detailed introduction:
Temperature and pressure relief valves (TP valves) are suitable for other sensitive heaters such as solar water heaters, electric heaters, heat pump water heaters, various heating functions (such as boilers).
The TP valve can automatically reduce the temperature and pressure, and has the dual safety protection function of temperature and pressure. It is the safety protector of the current pressure water heater.
Features:
Safety relief valves are commonly used to control the pressure in boilers in heating systems, hot water tanks stored in domestic hot water systems, and general water systems.
When the calibrated pressure is reached, the valve opens and, by venting to the atmosphere, prevents the system from reaching pressure levels that are dangerous to the components in the boiler and the system itself.
Calibration pressure: 0.1, 0.15, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0 Mpa;
Deviation: When not more than 0.5Mpa, the deviation is 0.015Mpa, and when it is greater than 0.5Mpa, the deviation is 3% of the rated pressure.
Technical specifications:
color:gold
material:
Body: 3/4 inch ; brass
Control spindle: brass
Closed hole: silicone gel gasket
Spring: SUS304 stainless steel
Nominal pressure: PN10
Temperature range: 5-110 ° C
Set pressure: 0.5, 0.6, 0.7, 0.8, 0.9, 1.0 MPa
Set pressure deviation: -10%-5% set pressure
Set temperature: 99±4 degrees Celsius
Entrance and exit (middle): BSPP 3/4 * 3/4
Weight (g): 238g
size:83 * 42mm
Package included:
1 * Pressure Valve
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
|
