Description
1.Max output voltage 5000V, Max test resistance value 1000GΩ, Max short circuit current 2mA
2.Insulation resistance value, test time and output voltage are displayed on the same screen.
3.Safe structure and improved circuit new design, more complete function, higher accuracy, more convenient and reliable operation.

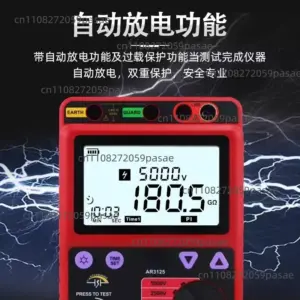

4.Auto discharge and perfect protection circuit, which can effectively prevent the damage of counter voltage.
5.The host equip with large LCD display, white screen and backlight, bar chart indication, clearly and obvious.
|
Power Supply |
DC 1.5V 6 PCS LR14 dry battery |
|
Display Mode |
4digital max. LCD display, the contrast is obvious. |
|
LCD Size |
108mm×65mm |
|
Output Rated Voltage |
50V, 250V, 500V, 1000V, 2500V |
|
Output Voltage Accuracy |
(5%~10%)±10V |
|
Insulation Resistance Measurement Range |
0.1MΩ~200GΩ |
|
Voltage Measurement Range |
AC/DC: 0V~750V |
|
Short Circuit Current |
2mA MAX |
|
Max. Capacitive Load |
1uF |
|
Shift Gear |
Turn the shift rotary knob to select the appropriate gear |
|
Backlight |
Controllable off-white backlight, suitable for dark places |
|
Measurement Indication |
LED flicker and buzzer ring in measurement |
|
Test Time |
The single test time is 10 min. During the test, the user can stop automatically or automatically stop after 10 min, and the screen display measurement data. |
|
Battery Voltage |
Battery voltage symbol display, when battery voltage is low will remind to replace the battery in time |
|
Automatic Discharge |
During discharging symbol flash, Discharge completion symbol extinguish |
|
Auto Shutdown Function |
15 minutes after boot up, the tester shut down automatically without any operation |
|
Power consumption |
Standby: about 40mA(backlight off); measurement: about 100mA(backlight off) |
|
Instrument Size |
212mm×175mm×76mm |
|
Weight |
Tester: about 1360g(include battery); total weight: about 2.4kg(include package) |
|
Suitable Safety Standard |
IEC61010-1(CAT Ⅲ 300V, CAT IV 150V, pollution level 2) |
|
Working Temperature & |
-10℃~40℃; below 80%RH |
|
Storage Temperature & |
-20℃~60℃; below 70%RH |
