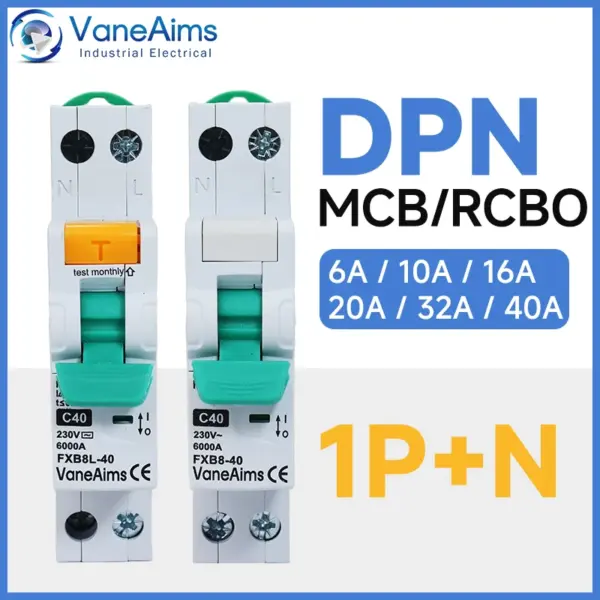

VaneAims DPN MCB Breaker 1P+N 6A 10A 16A 20A 32A 40A 230V AC Mini Circuit Breaker 6KA Din Rail Miniature Household Air Switch

Description

The FXB8-40 MCB miniature circuit breaker is mainly used for overload and short circuit protection under AC 50Hz/60Hz, rated voltage 230V, and rated current 6A to 40A.

~Compliant with IEC60898-1 standard.

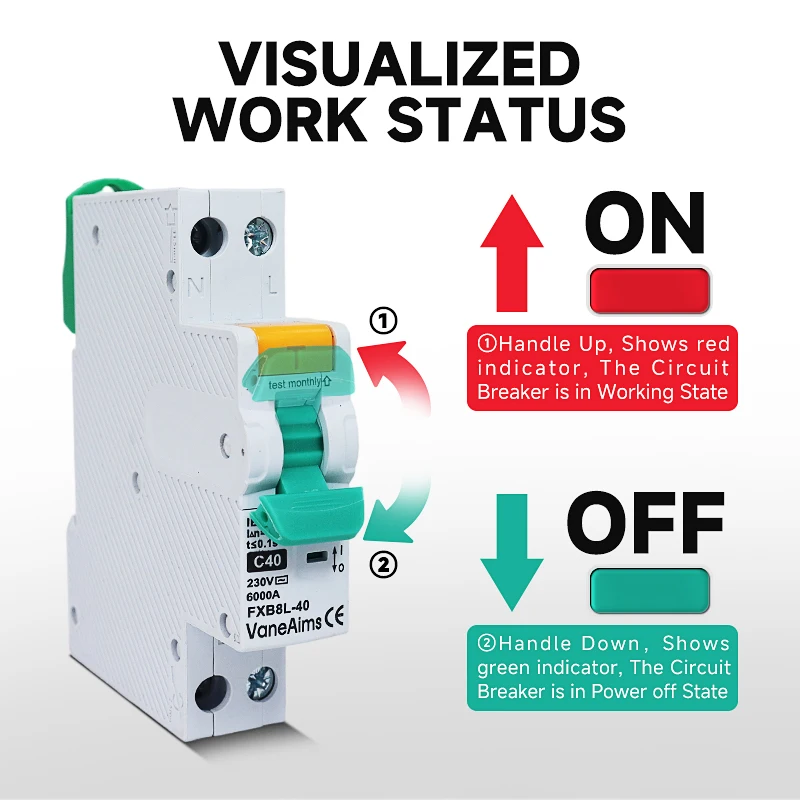

~It has an indication function. The green indicator light represents that the circuit breaker is in a power-off state; The red indicator light represents that the circuit breaker is in working condition.

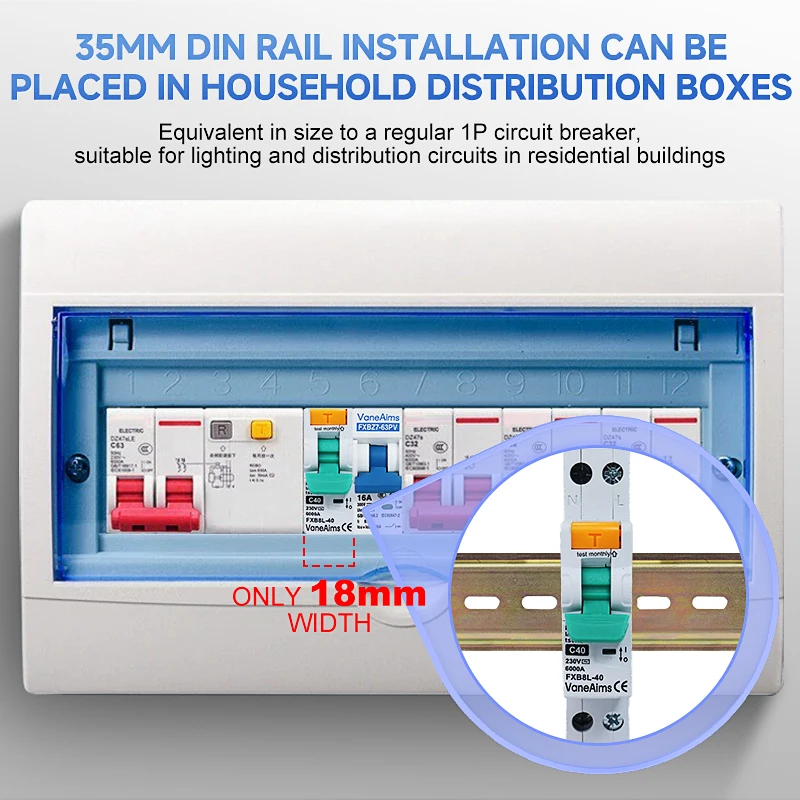

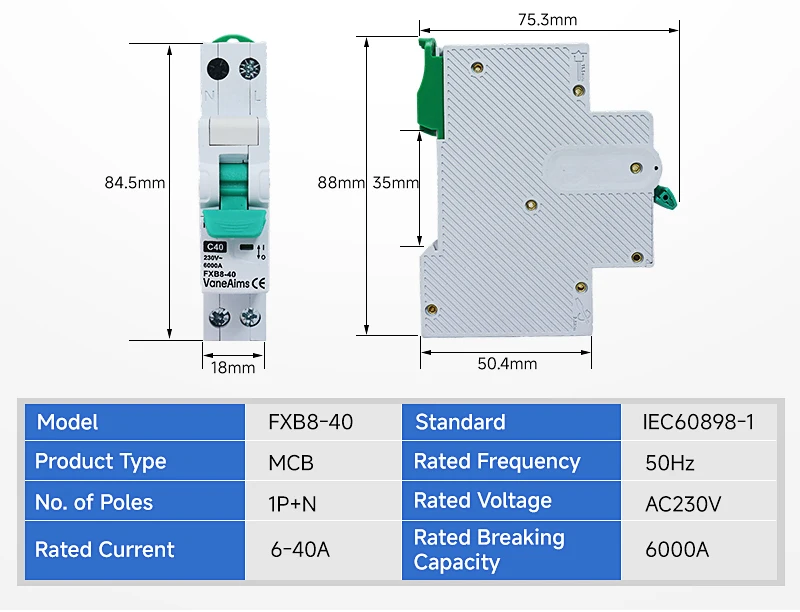

~ONLY 18MM WIDTH. 1P+N is equivalent in size to a regular 1P circuit breaker, suitable for lighting and distribution circuits in residential buildings.

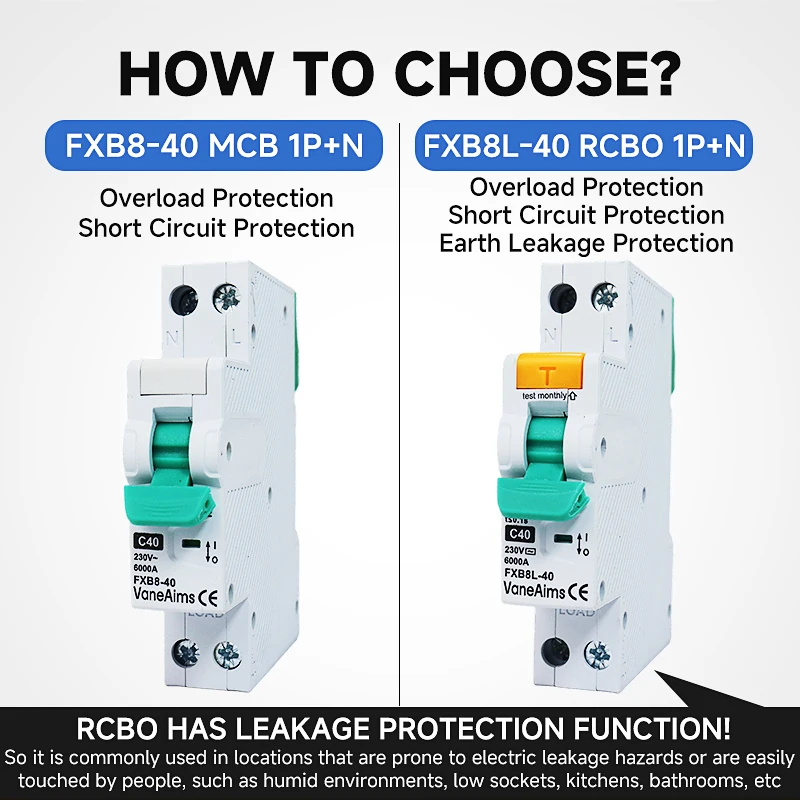

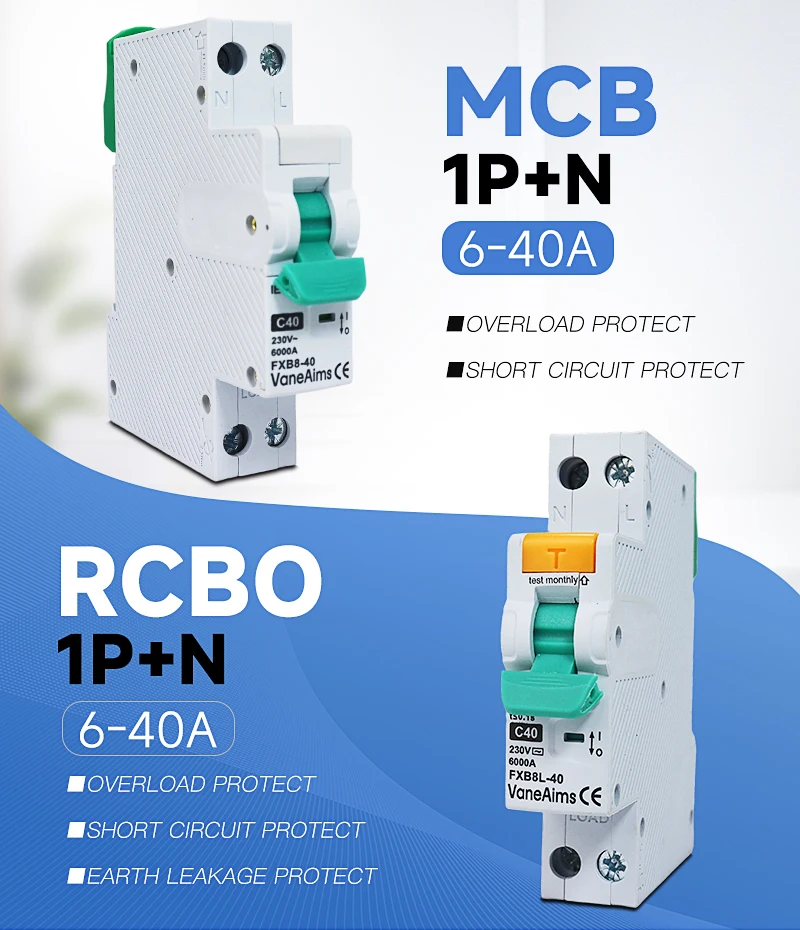

FXB8L-40 RCBO (Residual Current Circuit Breaker with Overcurrent Protection) is an electrical protection device that combines the functions of a leakage protector and a circuit breaker. It has the following product advantages and features:

1. Leakage protection function: RCBO will immediately cut off the leakage circuit to protect personal safety.

2. Overload protection function: RCBO can also detect whether there is overload current in the circuit. If the circuit load is too large, RCBO will automatically cut off the power supply.

3. Space saving: RCBO DPN integrates the functions of residual current device and circuit breaker in a space of 18mm, saving installation space and cost.

4. High sensitivity: The leakage prevention function of RCBO can detect very small leakage currents, providing higher safety.

5. Resettable: After detecting a leak, the RCBO can be manually reset for easier power restoration.

6. Insulation function: RCBO can provide circuit insulation function, which facilitates equipment maintenance and replacement.

In short, RCBO has various characteristics such as leakage protection, overload and short circuit protection, high sensitivity, resettable, space saving, and isolation functions, making it a very practical and safe electrical protection device.

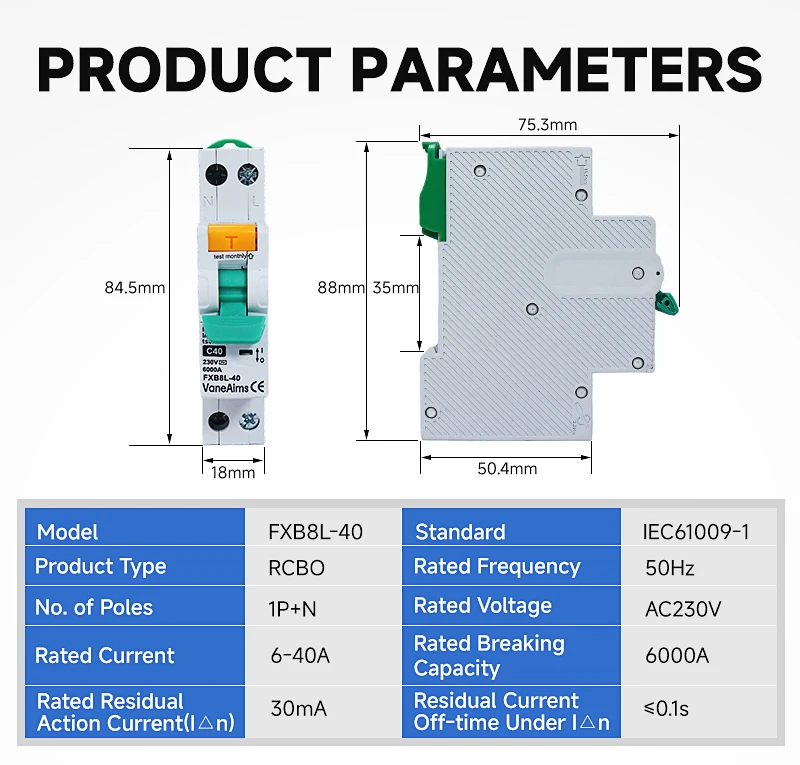

FXB8L-40 RCBO Parameter specification:

Rated current : 6A/10A/16A/20A/32A/40A

Rated voltage : 230V~

Poles : 1P+N

Rated breaking capacity : 6000A

Rated frequency : 50/60Hz

Rated residual action current(I△n):30mA

Residual current off-time under I△n:≤0.1s

Standard : IEC61009-1
