Description
DESCRIPTION

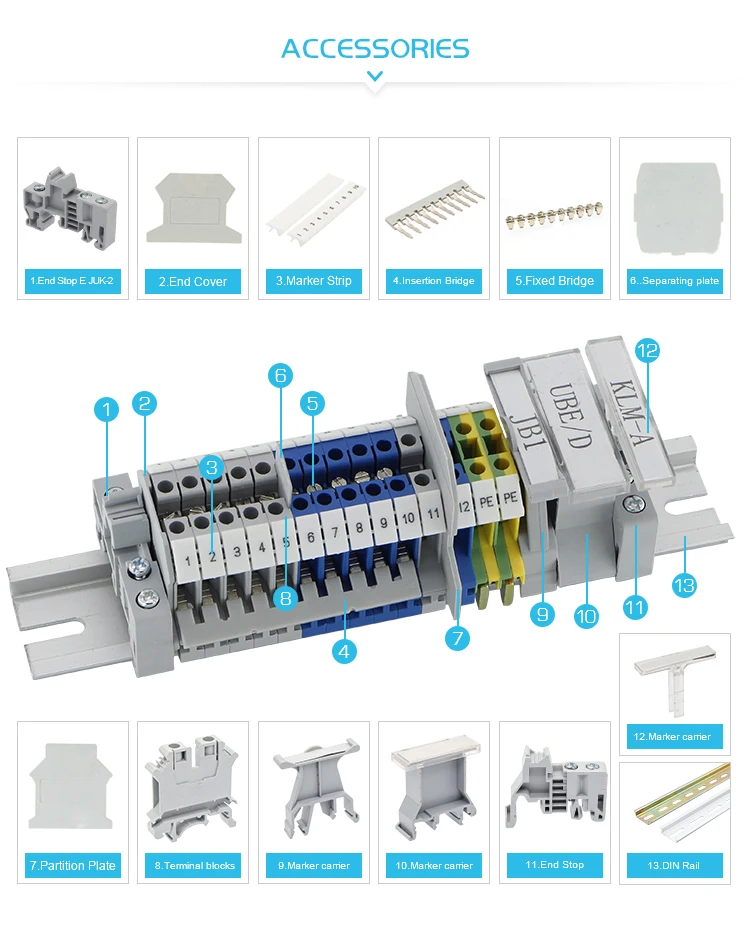

ACCESSORIES ( Click the pictures to the links)
ACCESSORIES ( Click the pictures to the links)
|
|
|
|
|
|
MARKER STRIPS |
END STOP |
MARKER CARRIER |
MARKER CLIPS |
|
|
|
|
|
|
DIN RAIL |
RECOMMEND (UK2.5) |
RECOMMEND (UK3N) |
RECOMMEND (DIKD1.5) |
Technical Parameters
|
Type No. |
Details |
Accessories |
|
USLKG 6N |
0.2-10mm2/0.2-6mm2 |
Marker strip: |
|
Model Number |

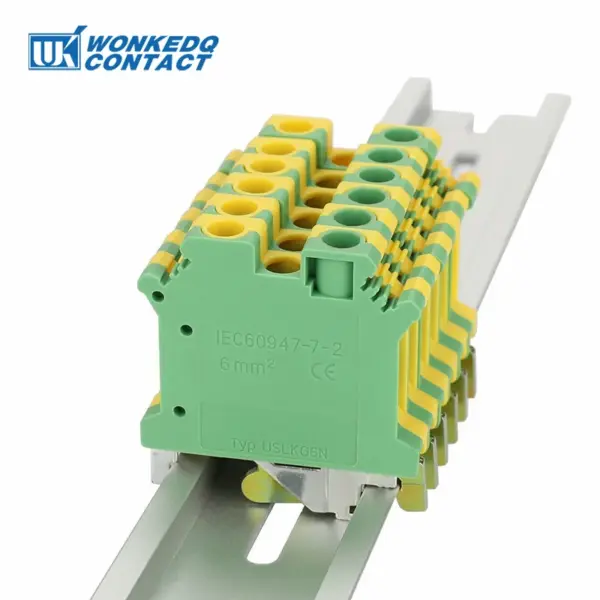

USLKG 6N, Ground Modular Terminal Block |
|
Color |
Yellow/Green, other color can be customized |
|

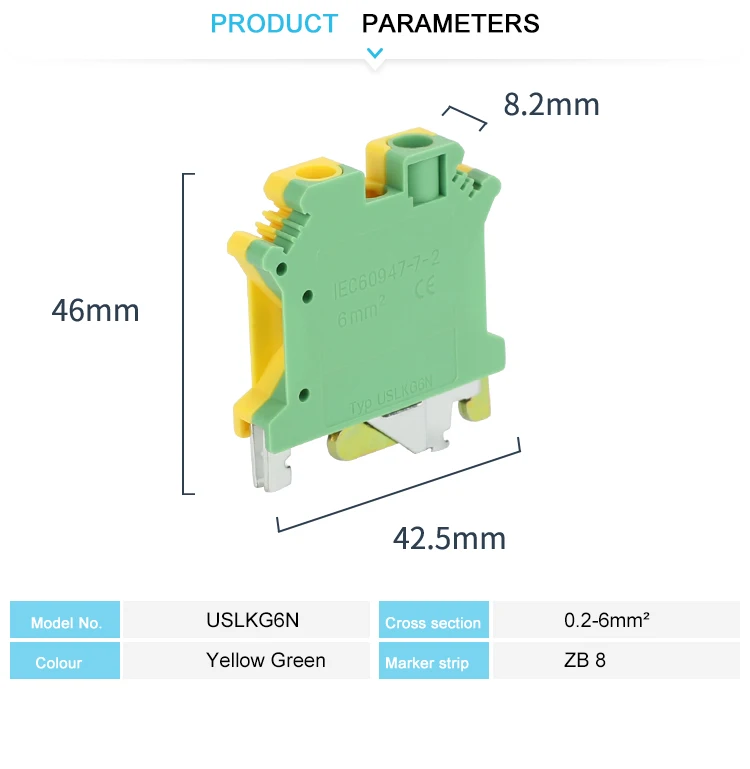

Length/Height/Wide (mm) |
42.5/46/8.2 |
|
Connection method |
Screw connection |
|
Material |
Nylon PA66 |
|
Rated Voltage/Current |
800V/57A |
|
Cross section, solid/soft Cable |
0.2-10mm²/0.2-6mm²
|
|
Conductor Size |
24-8 AWG |
|
Mounting Type |
NS 35/7.5 |
|
Standard |
IEC 60947-7-1 |
|
LOGO |
Customized logo are supported |
|
Packing Detail |
24.90g/pc, 50PCS/BOX |
|
Certification |
CE/RoHS/CQC/ISO 9001 |
