Description
· It can work without power supply after connecting to the air source.
·The sensor control does not require a foot switch to strip the head accurately.

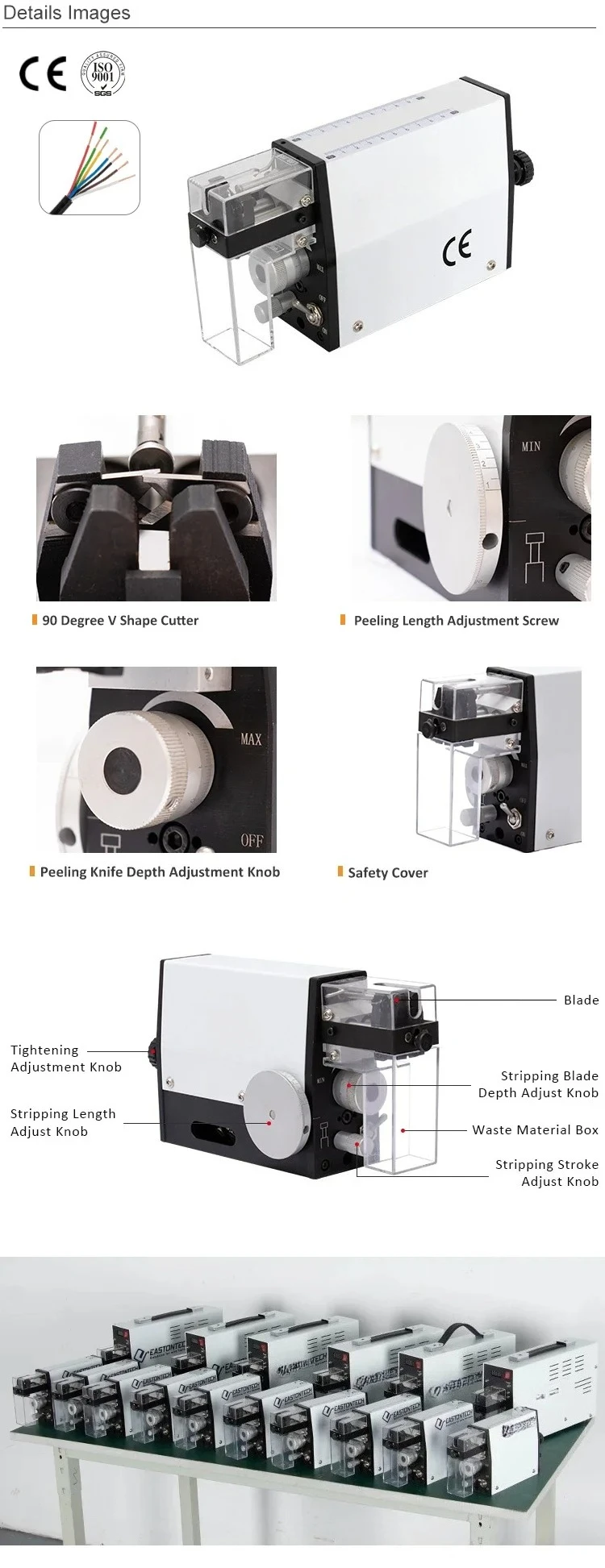

·The stripping length, cutting depth, half stripping and full stripping are all adjusted by the scale knob without tool assistance. Simple and fast.
·The 90-degree V-shaped knife edge design is extremely versatile, and it does not need to change the knife edge to process different wires.
·Small size (3KG), easy to move, it can work normally where there is air source.
Our Wire Stripping Machine has CE certification
|
Model |
EW-10MT |
|
Wire Size Range |
0.03 – 2.08 mm2 (32 – 14 AWG) |
|
Max. Outer Cable Diameter |
3.2 mm |
|
Stripping Length Increments |
Full strip: 0.5 mm Partial strip: 2 mm |
|
Precision of Diameter Setting |
0.01 mm |
|
Max. Strip Length |
20 mm |
|
Cycle Time |
approx. 0.3s |
|

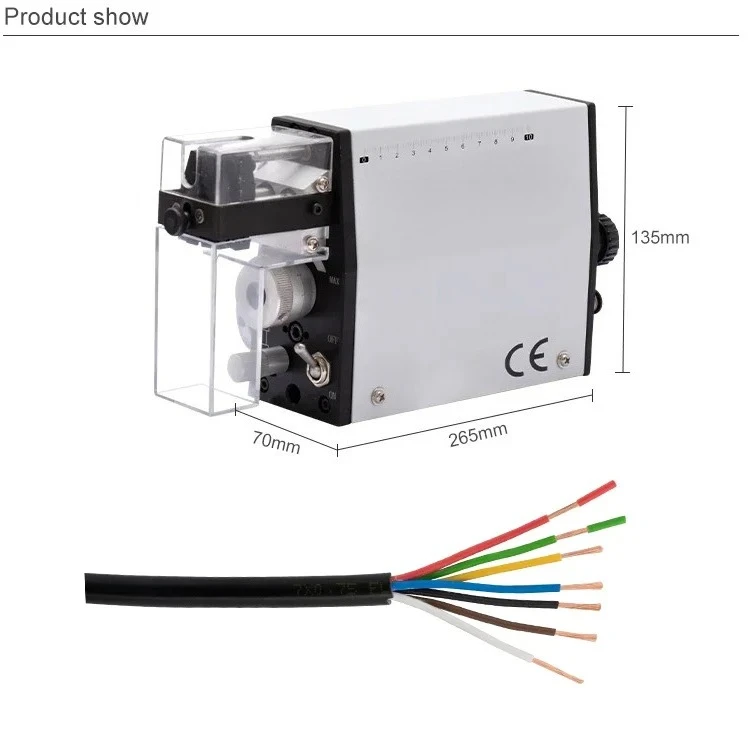

Dimensions (L x W x H) |
265 x 70 x 135 mm |
|
Weight |
Net: 2.0 kg Gross: 2.4 kg |
