Description

1.DESCRIPTION

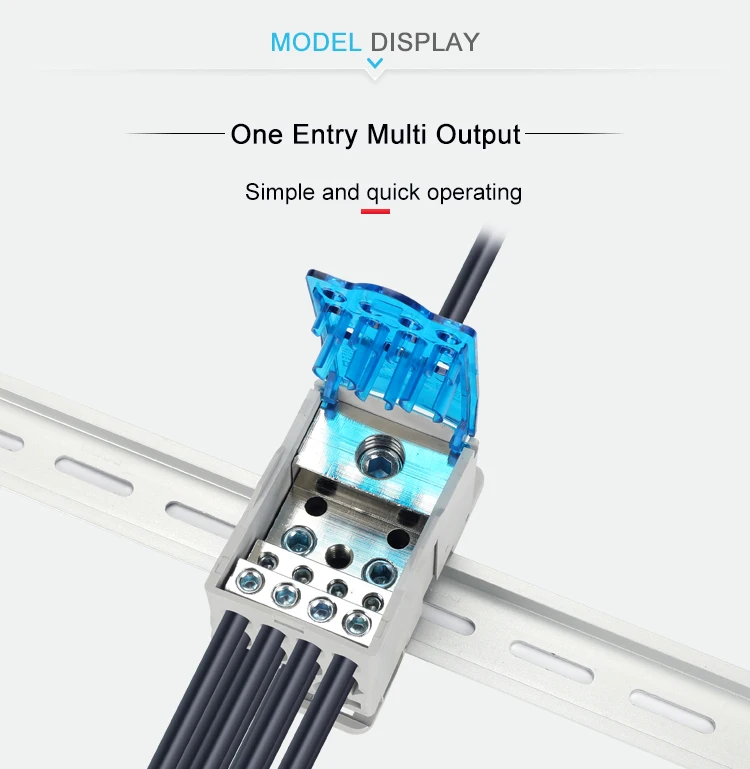

These blocks are used in electrical power distribution. An electric power distribution terminal block is a convenient, economical and safer way to distribute power from a single input source to multiple outputs. Complete with main removeable cover.High conductivity with excellent electrical contacts.

Compact design.

Simple and Safety Operating

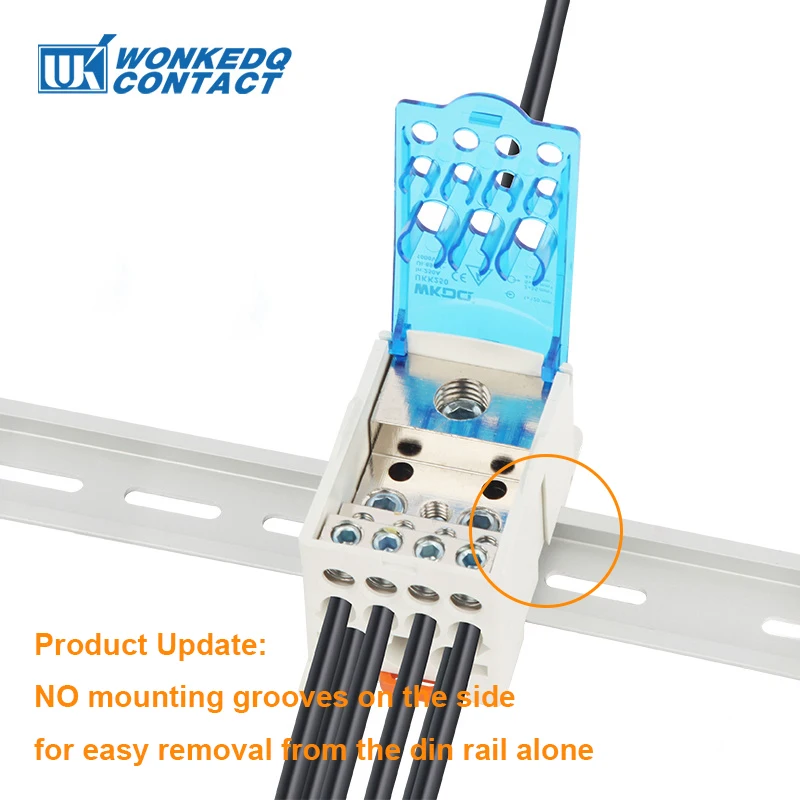

Install on 35mm wide DIN rail or chassis mounting with screws.
With Dust-proof and insulation cover
hinged design with safety removable cover.

UKK80A	690V/80A 1 input 6 output L65/H47/W29.5 mm	Input: 1 x 16mm² Output: 4 x 6mm² 2 x 16mm²	Buy
UKK125A	690V/125A 1 input 6 output L74/H47/W29.4 mm	Input: 1 x 16mm² 1 x 35mm² Output: 6 x 16mm²	Buy
UKK160A	690V/160A 1 input 6 output L74/H47/W29.4 mm	Input: 1 x 70mm² 1 x 16mm² Output: 6 x 16mm²	Buy

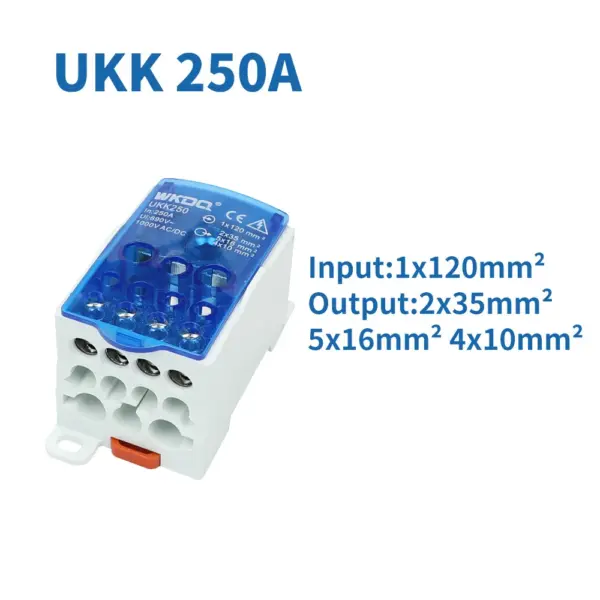

UKK250A	690V/250A 1 input 11 output L96/H50/W47.8 mm	Input: 1 x 120mm² Output: 2 x 35mm² 5 x 16mm² 4 x 10mm²	Buy
UKK400A	690V/400A 1 input 11 output L96/H50/W47.8 mm	Input: 1 x 185mm² Output: 2 x 35mm² 4 x 10mm² 5 x 16mm²	Buy
UKK500A	690V/500A 1 input 11 output L96/H50/W47.8 mm	Input: 3 x 15mm² 8 x 24mm² Output: 2 x 35mm² 4 x 10mm² 5 x 16mm²	Buy
WKH207	500V/125A Cross section: 35mm² L67/H50/W45 mm	Hole Qty: 2 x 7 Brass Bar : 6.5 x 12mm	Buy
WKH211	500V/125A Cross section: 35mm² L100/H50/W45 mm	Hole Qty: 2 x 11 Brass Bar : 6.5 x 12mm	Buy
WKH215	500V/125A Cross section: 35mm² L134/H50/W45 mm	Hole Qty: 2 x 15 Brass Bar : 6.5 x 12mm	Buy
WKH407	500V/125A Cross section: 35mm² L67/H50/W90 mm	Hole Qty: 4 x 7 Brass Bar : 6.5 x 12mm	Buy
WKH411	500V/125A Cross section: 35mm² L100/H50/W90 mm	Hole Qty: 4 x 11 Brass Bar : 6.5 x 12mm	Buy
WKH415	500V/125A Cross section: 35mm² L134/H50/W90 mm	Hole Qty: 4 x 15 Brass Bar : 6.5 x 12mm	Buy

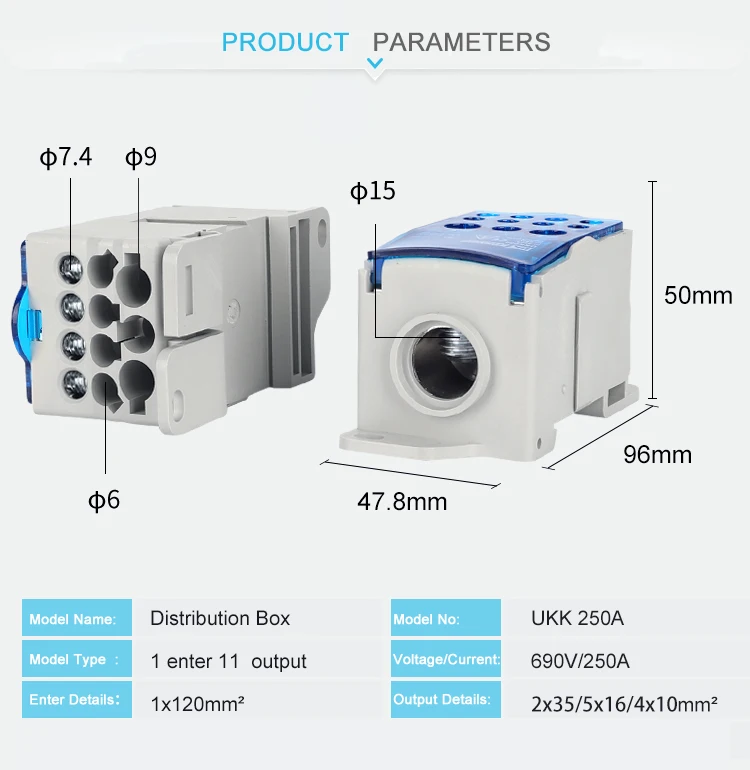

2. TECHNICAL PARAMETERS

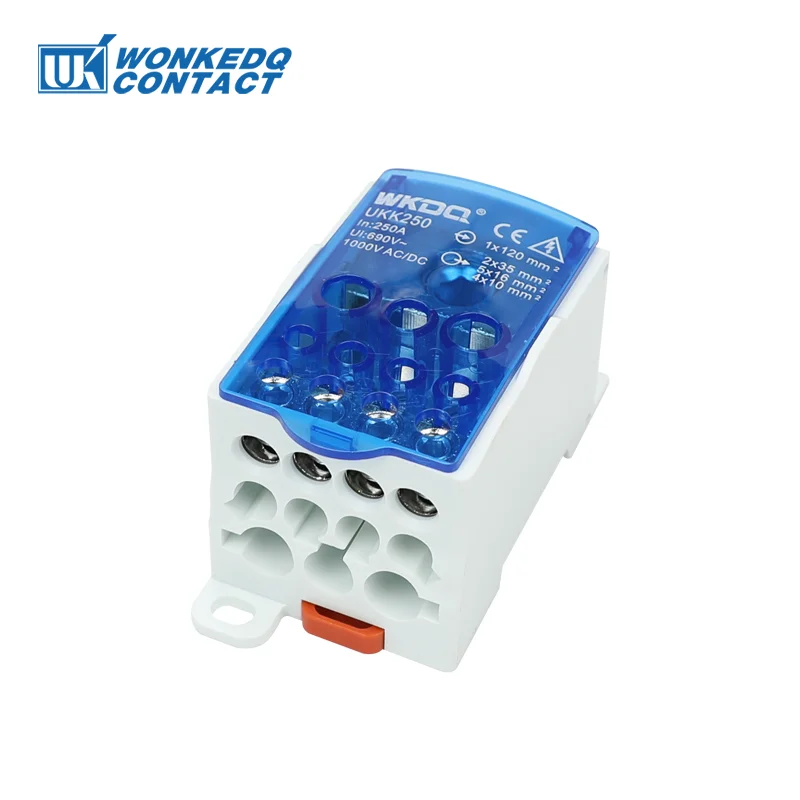

Model No.	UKK 250A
Color	Blue and Gray
Length/Height/Wide (mm)	47.8/50/96
Connection method	Screw connection

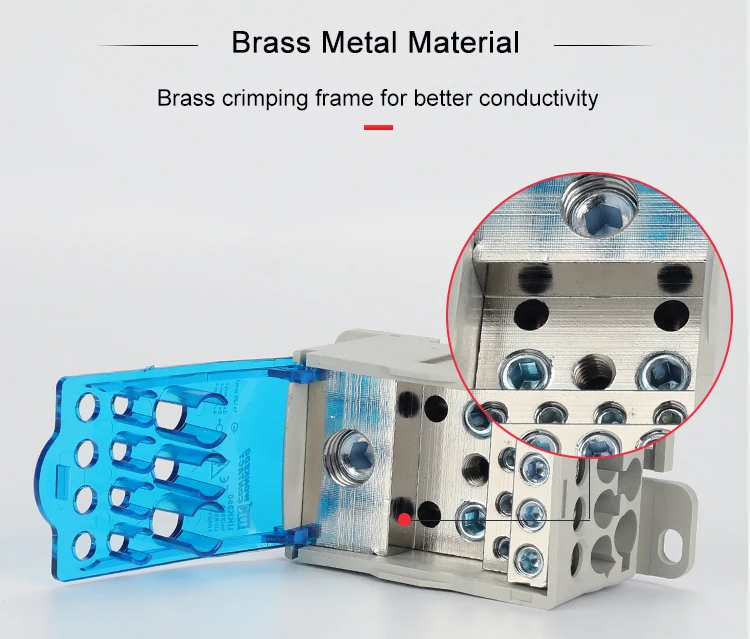

Material	Flame resistant Nylon PA66, brass conductor
Rated Voltage/Current	690V/250A
Entry Specification	1X120 mm²
Output Specification	2X35/ 5X16/4×10 mm²
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Certification	CE/RoHS/CQC/ISO 9001
