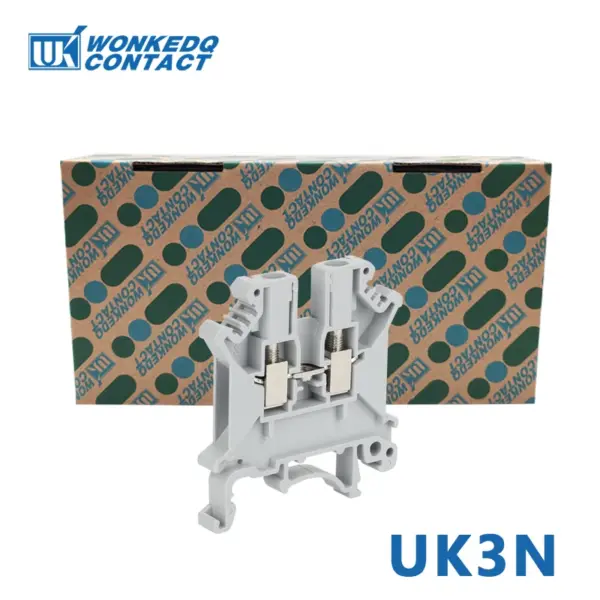

UK3N UK3 Multi-Color Screw Feed-through Terminal Block Din Rail Universal Plug Connductor Wire Electrical Connector UK 3N

END COVER
D-UK 4/10

FIXED BRIDGE
FBI 10-5

PLUG-IN BRIDGE
EB 10-5

MARKER STRIPS
ZB 5

END STOP
E-UK

MARKER CLIPS
KLM-A

DIN RAIL
NS35-S

MARKER CARRIER
B1

Type No.

Details

Accessories

UK 3N

800V/32A
0.2-4mm2/0.2-2.5mm2
L42.5/H46.2/W5.2 mm

End cover:
D-UK 4-10

Fixed bridge:
FBI 10-5

Insertion bridge:
EB 10-5

Marker strip:
ZB5

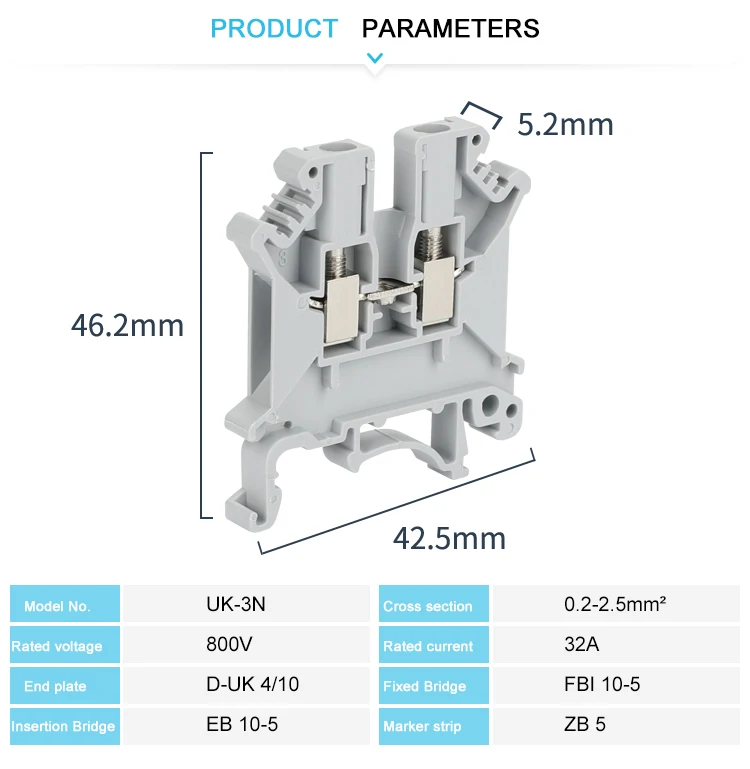

Model Number

UK 3N

Color

Grey, Blue, Red other color can be customized

Length/Height/Wide (mm)

42.5/46.2/5.2

Connection method

Screw connection

Material

Nylon PA66

Rated Voltage/Current

800V/32A

Cross section, solid/soft Cable

0.2-4 mm2/ 0.2-2.5 mm2

Conductor Size

24-12 AWG

Mounting Type

NS 35/7.5

Standard

IEC 60947-7-1

LOGO

Customized logo are supported

Packing Detail

7.04g/pc

Certification

CE/RoHS/CQC/ISO 9001
