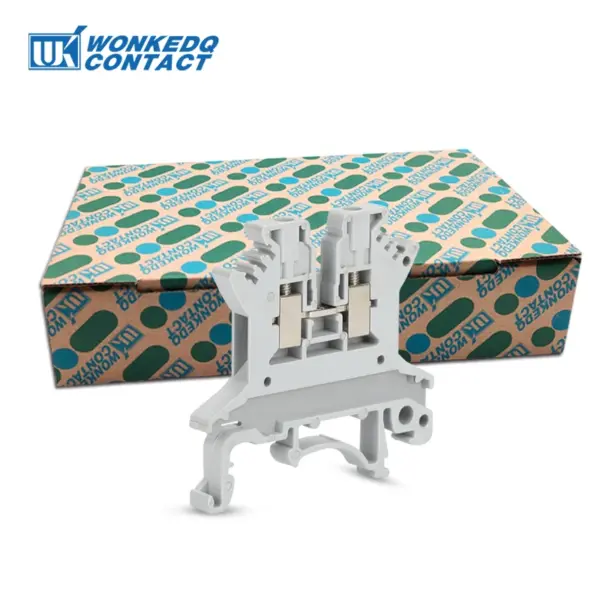

Name: UK1.5N UK 1.5 Screw Feed-through Universal Plug Connductor UK-1.5N Wire Electrical Connector Din Rail Terminal Block
Brand: Toolsindo.id
SKU: 4001053707209
Price: 212400 IDR
Availability: InStock

Description

DESCRIPTION

ACCESSORIES ( Click the pictures to the links)

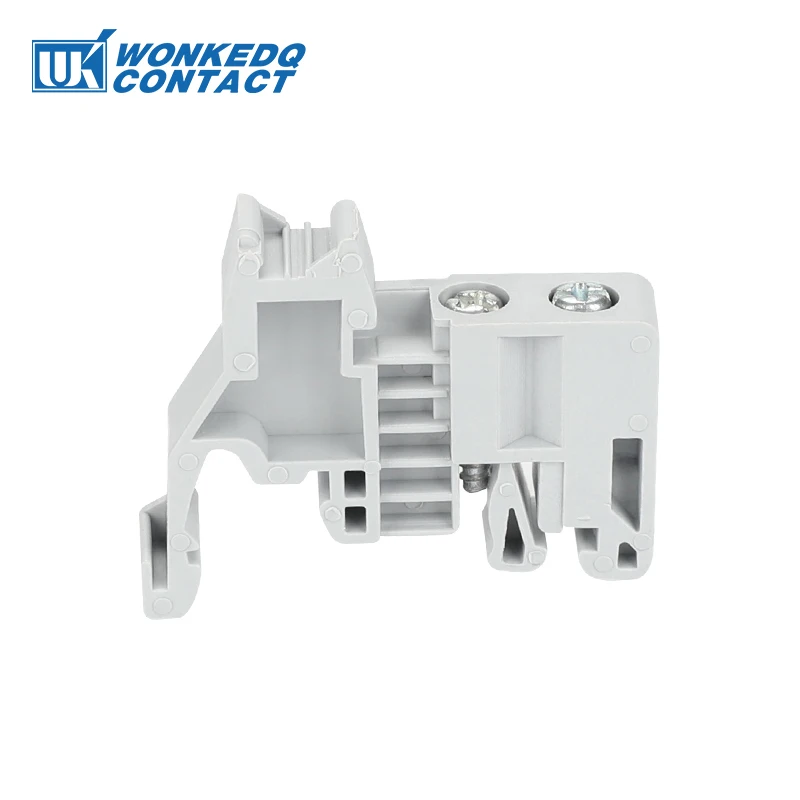

END COVER D-UK 1.5	FIXED BRIDGE FBI 10-4	MARKER STRIPS ZB 4	END STOP E-UK

MARKER CARRIER B1	MARKER CLIPS KLM-A	DIN RAIL NS35-S	RECOMMEND (DIKD1.5)

Type No.	Details	Accessories
UK 1.5N	690V/17.5A 0.14-1.5mm2/0.14-1.5mm2 L42.5/H41/W4.2 mm	End cover: D-UK 1.5

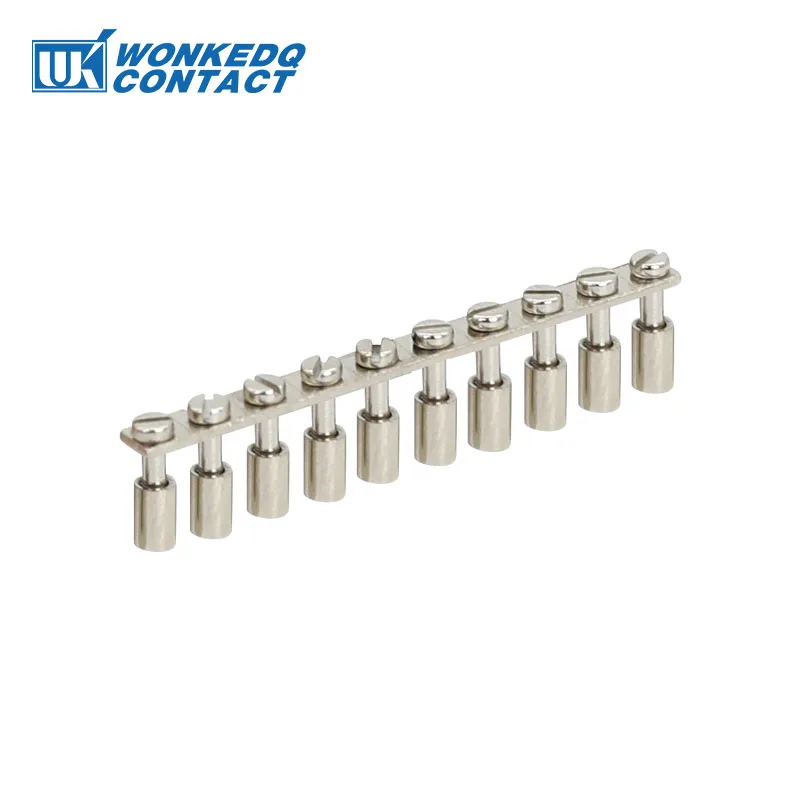

		Fixed bridge: FBI 10-4

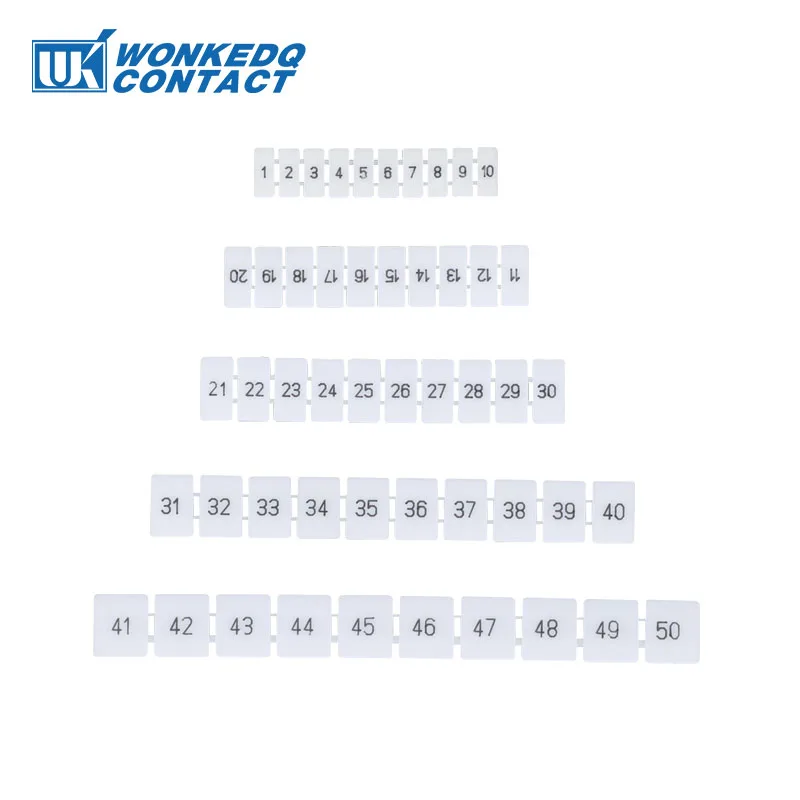

		Marker strip: ZB 4

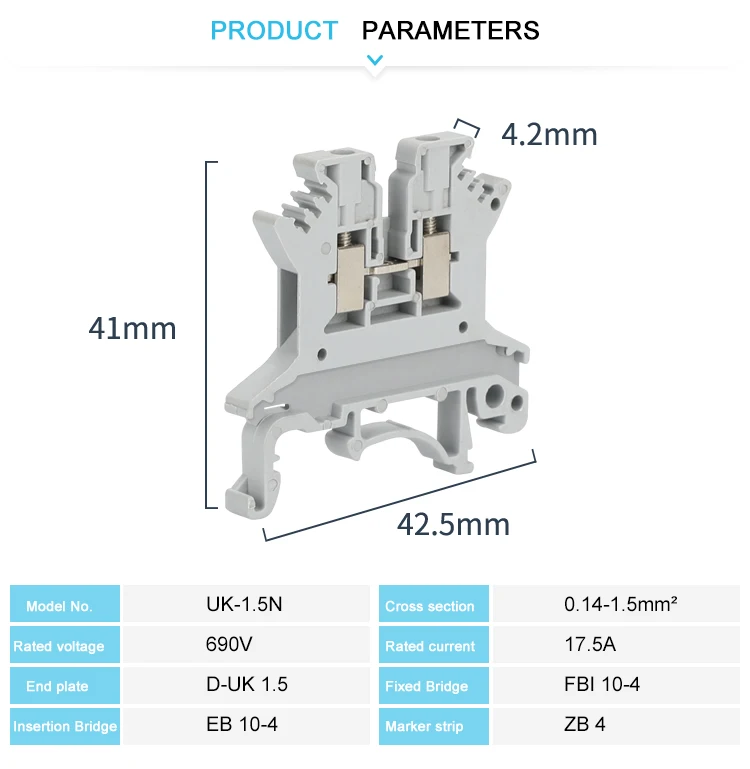

Technical Parameters

Model Number	UK 1.5 N
Color	Grey, Blue, other color can be customized
Length/Wide/Height (mm)	42.5/41/4.2
Connection method	Screw connection
Material	Nylon PA66
Rated Voltage/Current	690V/17.5A
Cross section, solid/soft Cable	0.14-1.5 mm2/ 0.14-1.5 mm2
Conductor Size	24-12 AWG

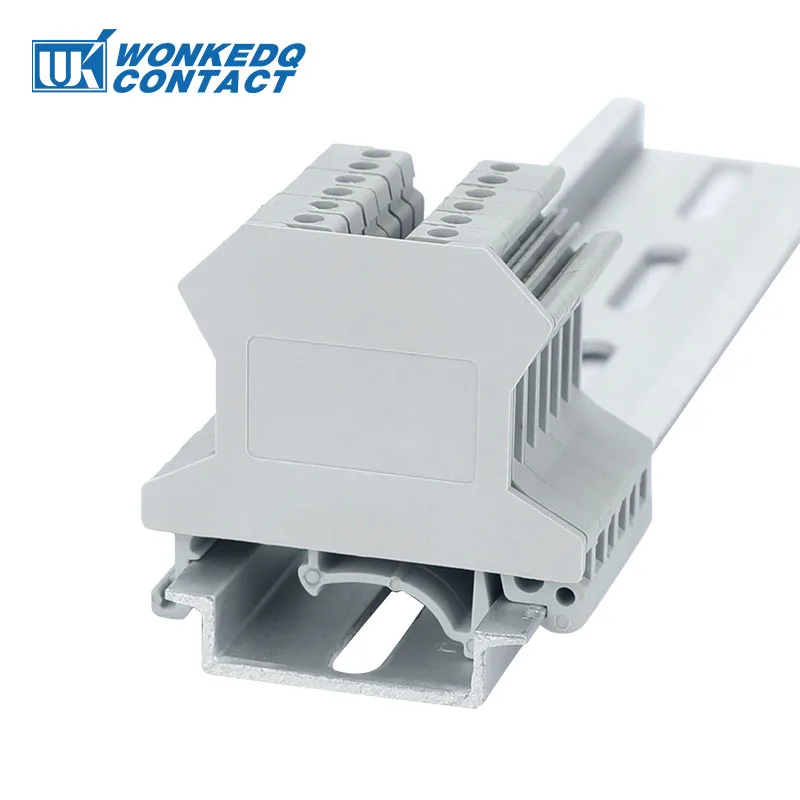

Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	4.32g/pc, 100PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
