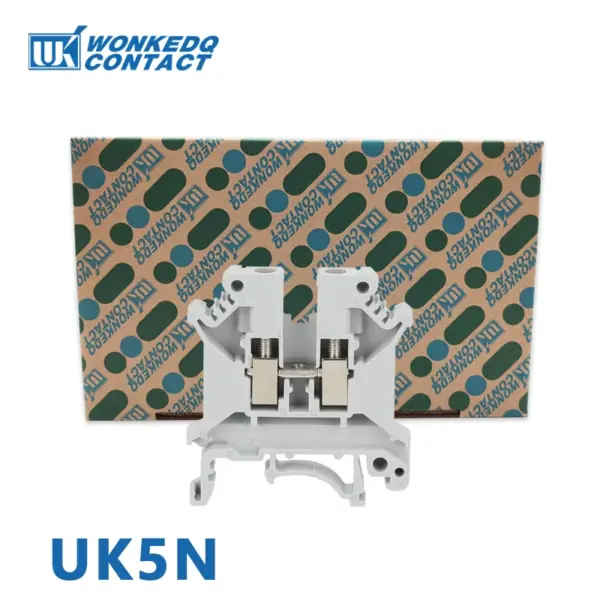

UK 5N Screw Feed-through Terminal Block Din Rail 0.2-4mm² Electrical Connector Universal Plug Connductor Wire UK5N

END COVER
D-UK 4-10

FIXED BRIDGE
FBI 10-6

PLUG-IN BRIDGE
EB 10-6

MARKER STRIPS
ZB 6

END STOP
E-UK

MARKER CARRIER
B1

MARKER CLIPS
KLM-A

DIN RAIL
NS35-S

Type No.

Details

Accessories

UK 5N

End cover:
D-UK 4/10

Fixed bridge:
FBI 10-6

Insertion bridge:
EB 10-6

Marker strip:
ZB6

Model Number

UK 5N

Color

Grey, Blue, other color can be customized

Length/Height/Wide (mm)

42.5/46.2/6.2

Connection method

Screw connection

Material

Nylon PA66

Rated Voltage/Current

800V/41A

Cross section, solid/soft Cable

0.2-6 mm2/ 0.2-4 mm2

Conductor Size

24-10 AWG

Mounting Type

NS 35/7.5

Standard

IEC 60947-7-1

LOGO

Customized logo are supported

Packing Detail

8.45g/pc, 50PCS/BOX,3000PCS/CTN

Certification

CE/RoHS/CQC/ISO 9001
