Description
Basic Information

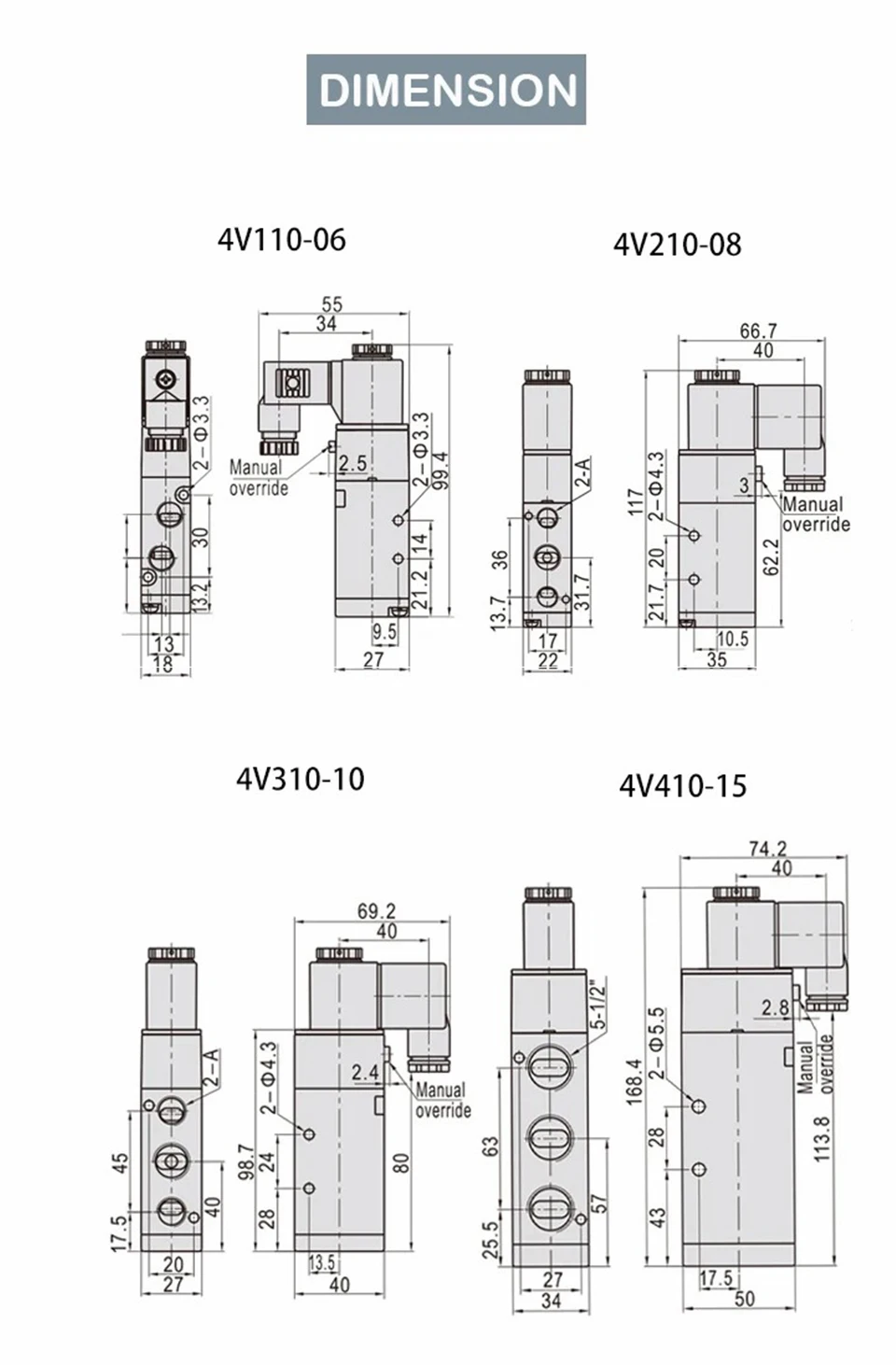

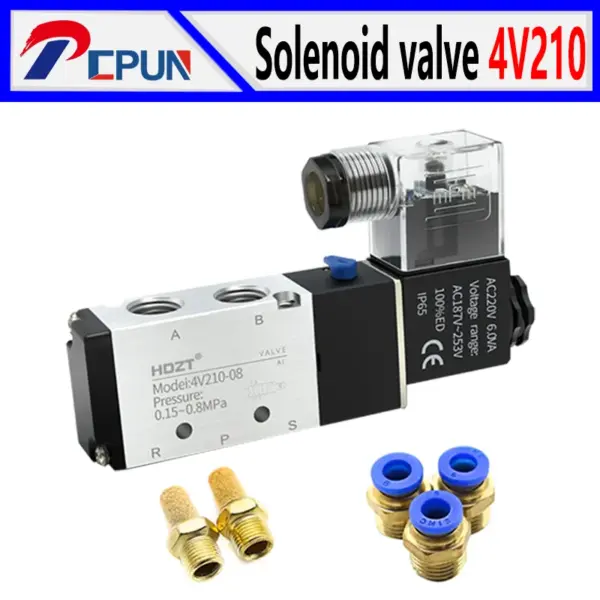

Model: 4V210-08
Type: 2-position 5-way solenoid valve
Pilot Type: Internal or external optional
Structure: Slider structure
Central Function: Three central functions available for 3-position valves
Memory Function: Available for double-headed 2-position valves
Specifications
Working Medium: Air (filtered through a 40μm filter)
Port Size: 1/4 inch PT
Effective Cross-sectional Area (Cv): 17.0mm² (Cv=1.0)
Working Pressure Range: 0.15~0.8Mpa (21~114psi)
Proof Pressure: 1.2Mpa (175psi)
Working Temperature: -20~70℃
Body Material: Aluminum alloy
Lubrication: Not required
Maximum Operating Frequency: 5 times/second
Weight: 220g
Standard Voltage: AC220V, AC110V, AC24V, DC24V, DC12V
Voltage Tolerance: AC: ±15%, DC: ±10%
Power Consumption: 4.5VA, 4.5VA, 5.0VA, 3.0W, 2.5W
Protection Level: IP65 (DIN40050)
Thermal Class: B class
Connection Type: DIN socket type
Response Time: Less than 0.05 seconds
Installation and Usage
Check for Damage: Before installation, check if the component is damaged during transportation.
Correct Gas Flow Direction: Pay attention to the gas flow direction and the correctness of the pipe thread type during installation. The working medium must be filtered through a 40μm filter.
Technical Requirements: Ensure that the installation conditions meet the technical requirements such as voltage, operating frequency, working pressure, and working temperature range.
Avoid Vibration and Cold: Avoid using the valve in a vibrating environment and take anti-freeze measures in low-temperature conditions.
Pipe Connection: When connecting pipes, pay attention to the correct winding of the sealing tape and the cleaning of the pipe joints to avoid impurities or foreign objects entering the valve body.
Dust-proof: It is recommended to install a silencer or silencer throttle valve at the exhaust port. When not in use, dust covers should be installed on the air inlet and outlet ports.
Manual Debugging: During the whole machine debugging, it is recommended to debug manually first, and then debug with electricity
