Description
1.NOTE:

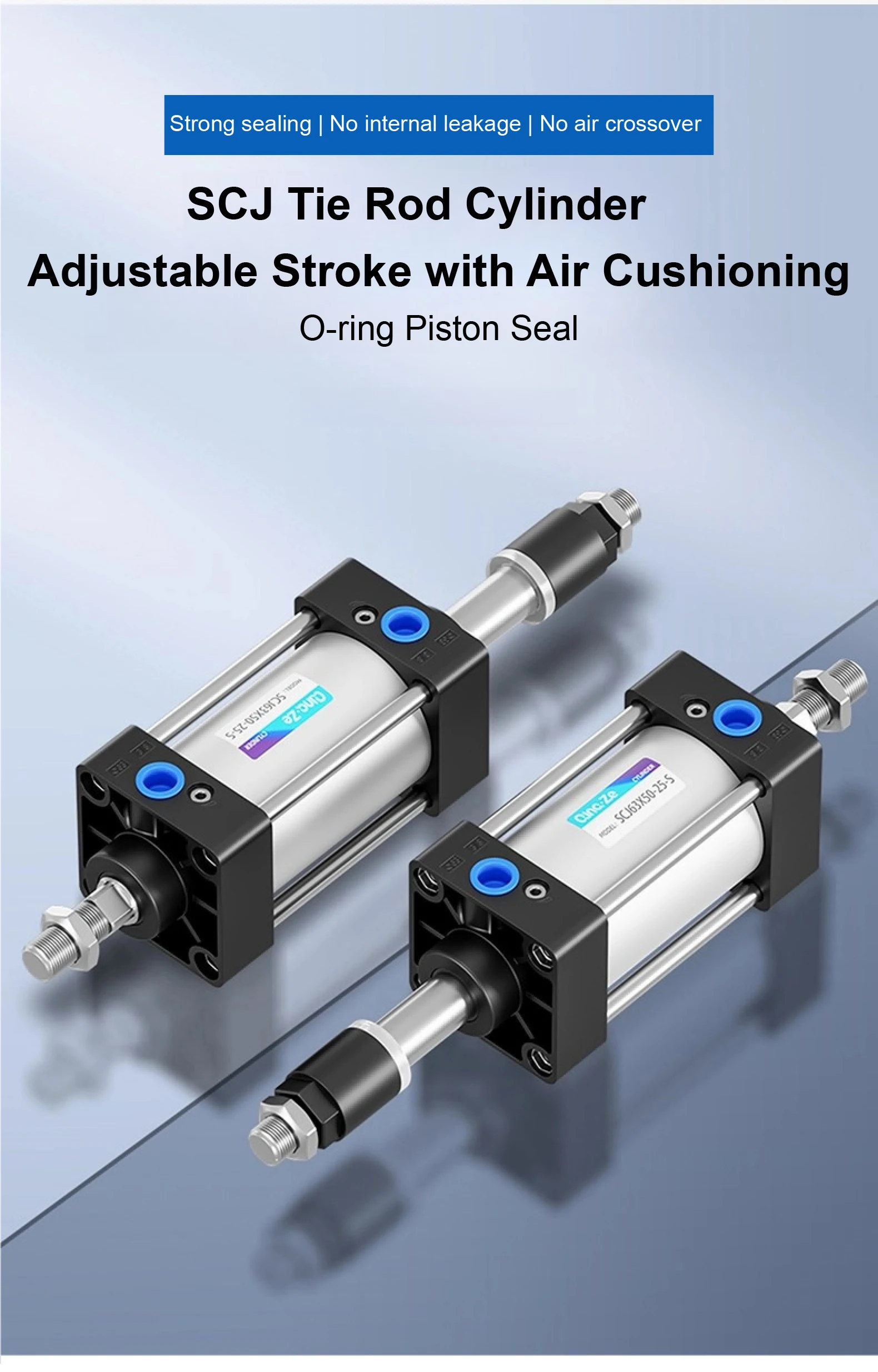

This product is SCJ-40 rod-type air cylinder with adjustable stroke and air cushioning. Bore: 40mm, thrust: 44kg (at 0.5MPa), stroke range: 0–1000mm (±1.5mm). Operating temperature: -20°C to 70°C. Optional features include high-temperature seals (up to 150°C) and various mounting types. For other sizes or special requirements, please contact us.
2. Parameters
|
Specification |
Value |
|

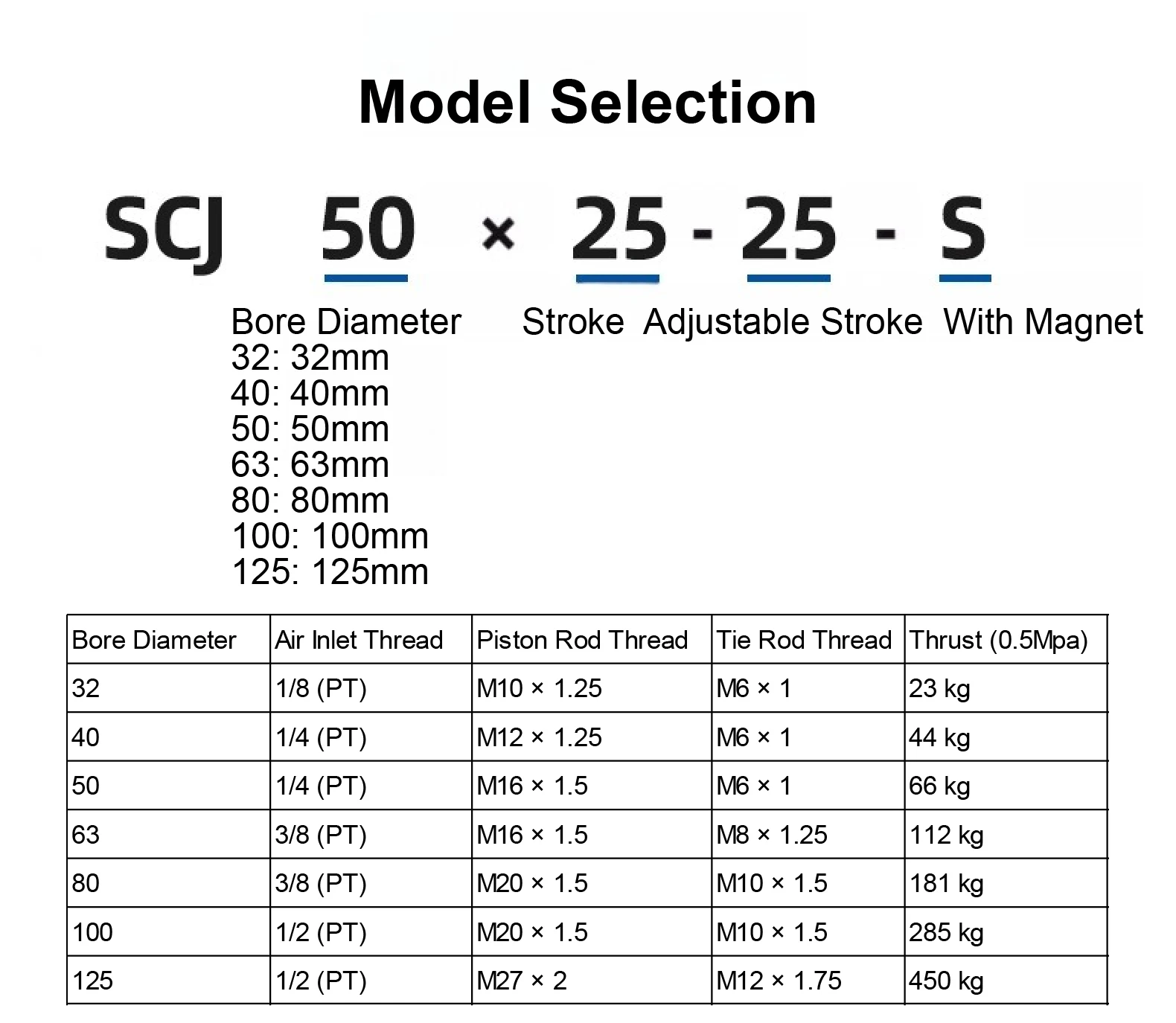

Bore Size |
32 / 40 / 50 / 63 / 80 / 100 / 125 mm |
|
Operation Type |
Double Acting |
|
Medium |
Filtered Air (≥40μm) |
|
Mounting Style |
SC / FA / FB / CA / LB / TC / TCM1 |
|
Pressure Range |
0.15–1.0 MPa (22–145 psi) |
|
Max Pressure |
1.5 MPa (215 psi) |
|
Temperature Range |
-20–70°C |
|
Speed Range |
30–800 mm/s |
|
Stroke Tolerance |
±1.0 ~ ±2.0 mm |
|
Cushion Type |
Adjustable |
|
Cushion Stroke |
21–29 mm |
|
Port Thread |
PT1/8 ~ PT1/2 |
3. Features

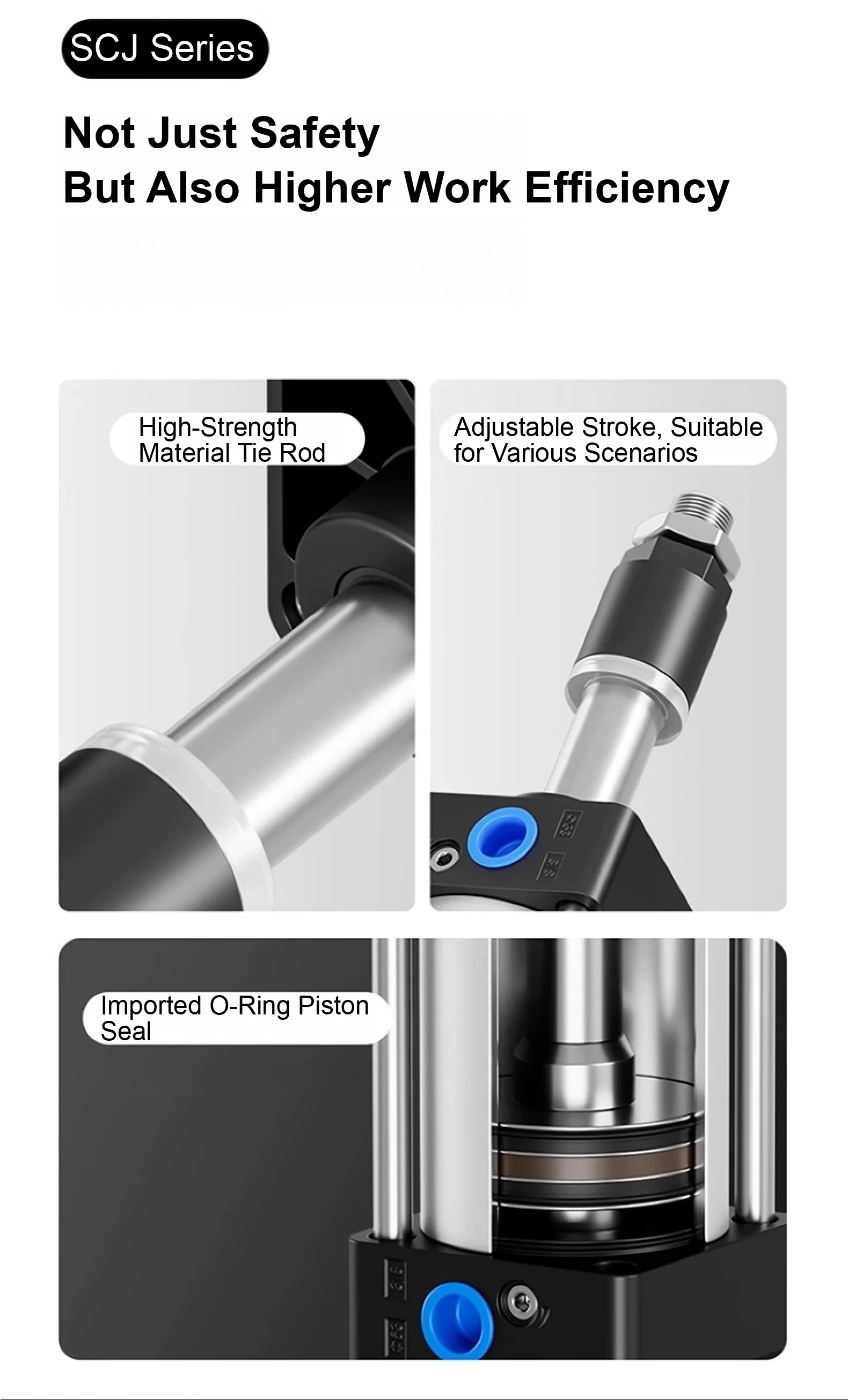

Adjustable stroke with precision control

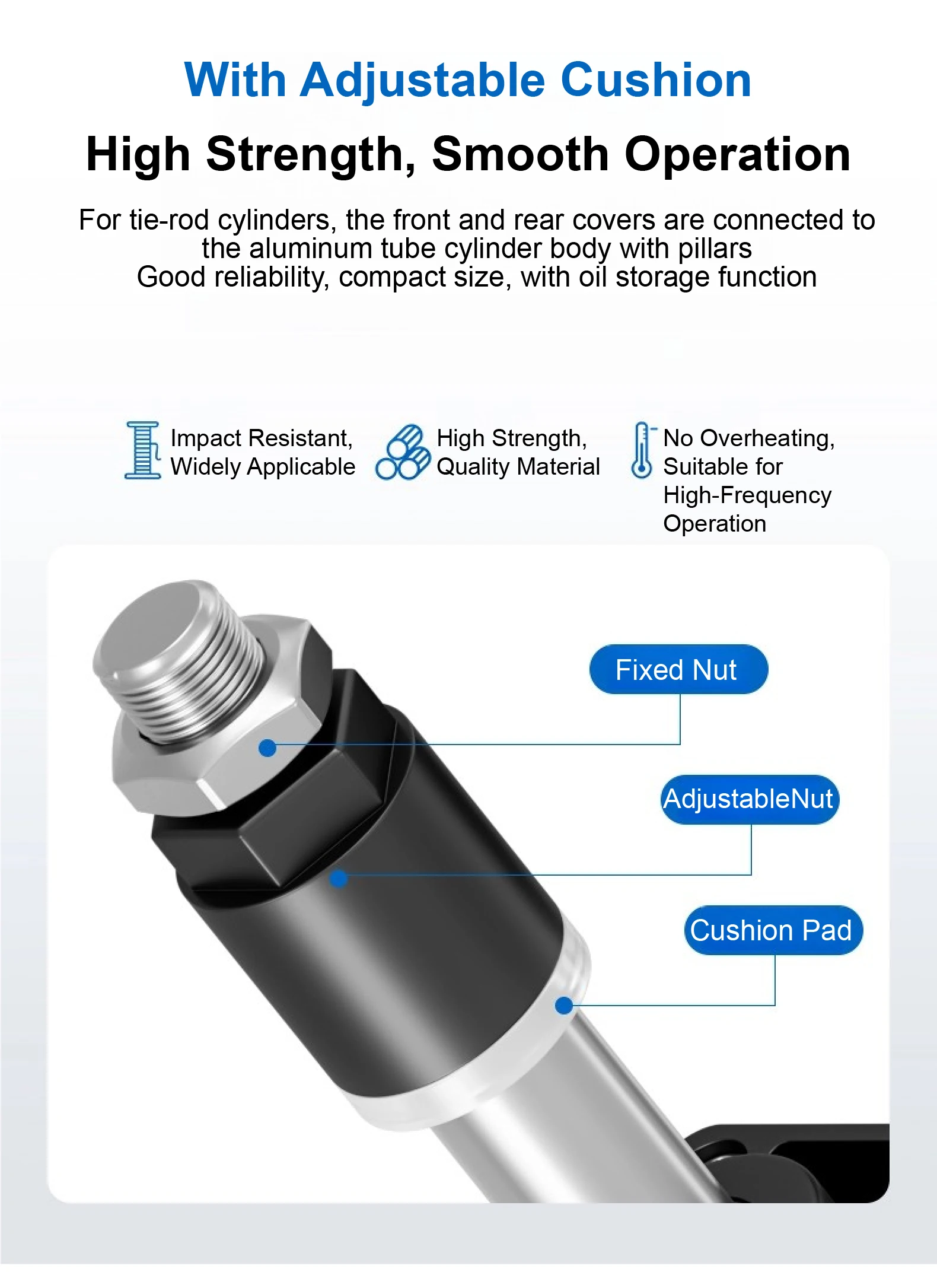

Built-in adjustable air cushioning ensures smooth, impact-free operation

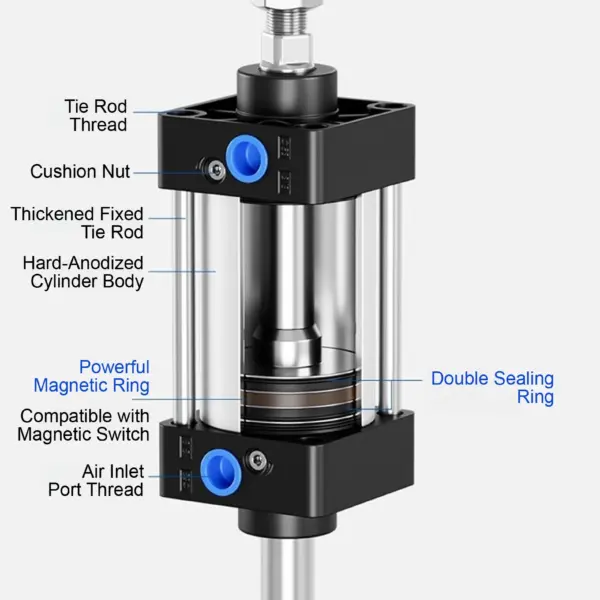

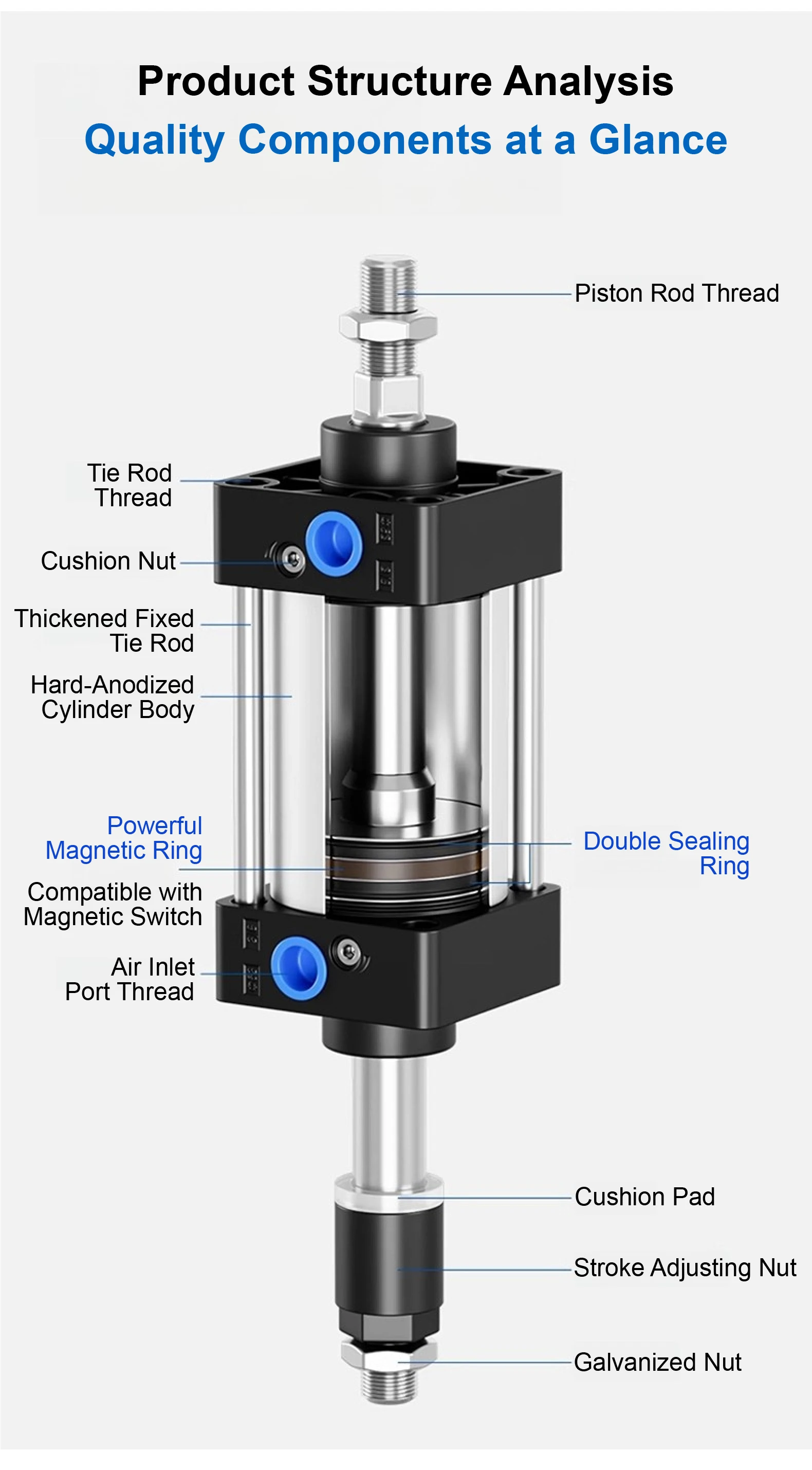

Tie-rod construction offers high reliability and structural strength

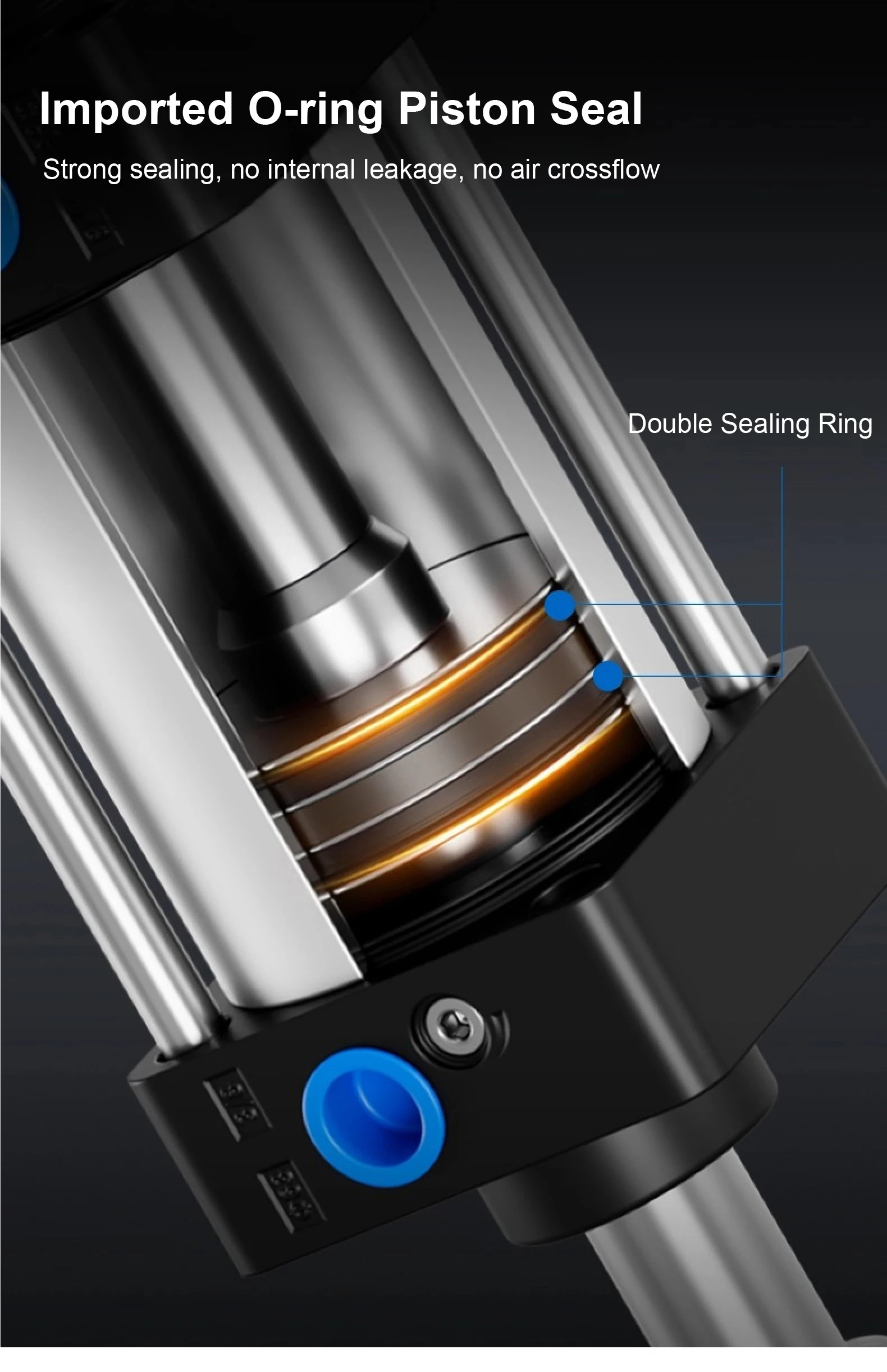

Compact design with internal lubrication and dual-lip piston seal
Compatible with standard mounting styles, saving space

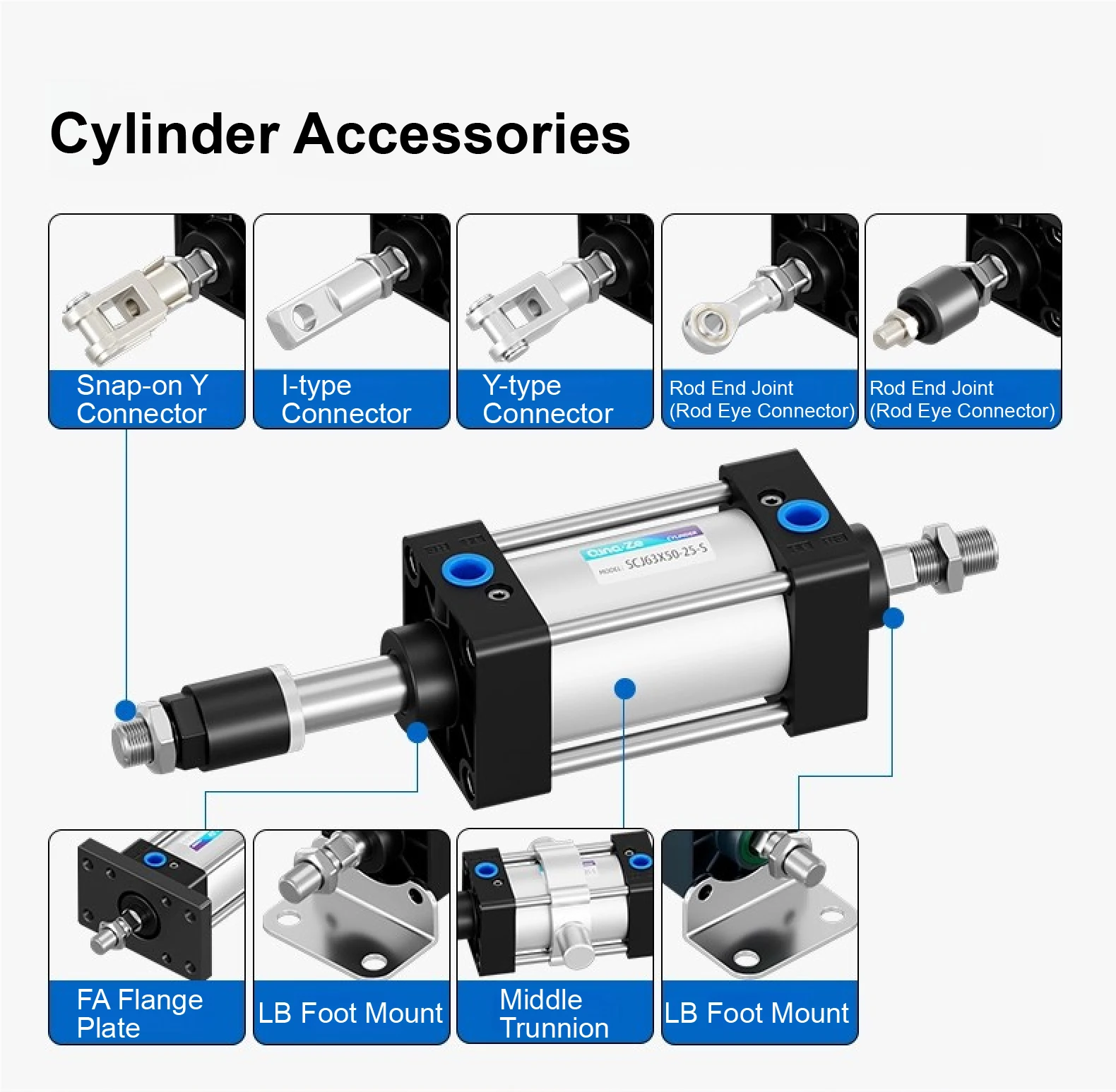

Multiple installation options and accessories available
Optional high-temperature seals for up to 150°C operation
4. Applications
Widely used in automated machinery, industrial robotics, packaging lines, and material handling systems.
Ideal for precise positioning, clamping, pushing, and lifting tasks.
5. FAQs
Q1: Can the stroke be customized?
A1: Yes, we support custom stroke lengths upon request.
Q2: What type of air source is recommended?
A2: Use clean, dry air filtered through a 40μm or finer filter for optimal performance.
