Description
Product Description
|
Item Name
|

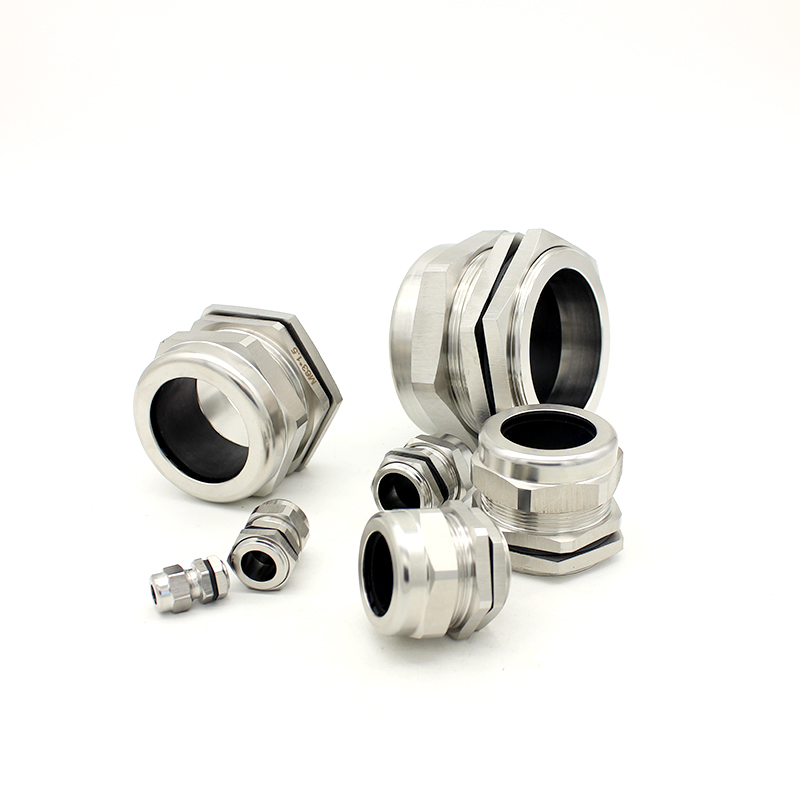

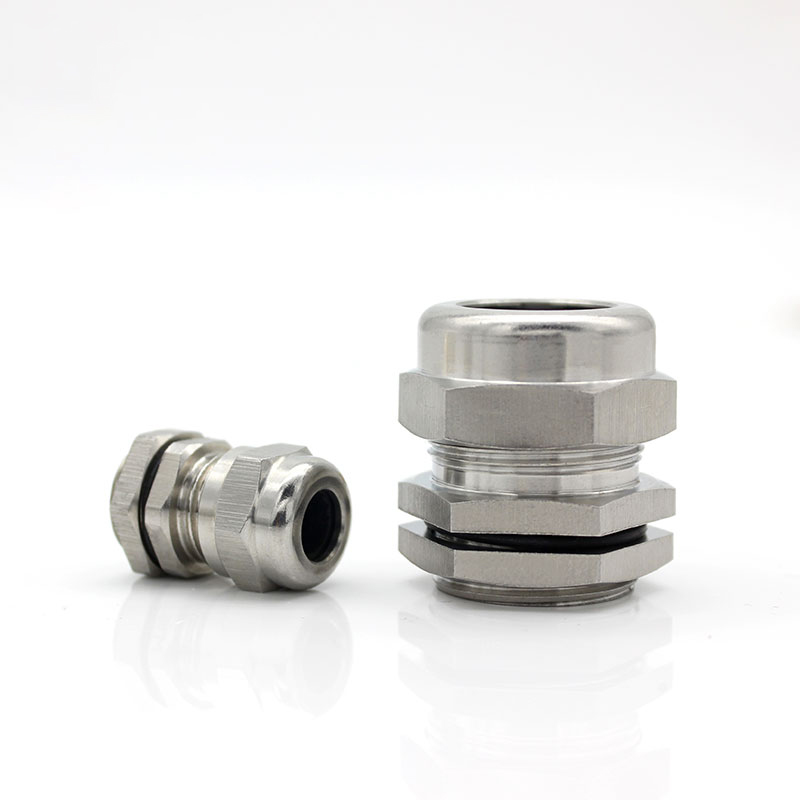

IP68 Stainless Steel Cable Gland
|
|
Matetrial
|
SS304,SS316
|
|
Approvals
|
RoHS, CE, TUV, IP68, ISO9001
|
|
Working Temperature
|
-40℃ to 100℃, short time to 120℃
|
|

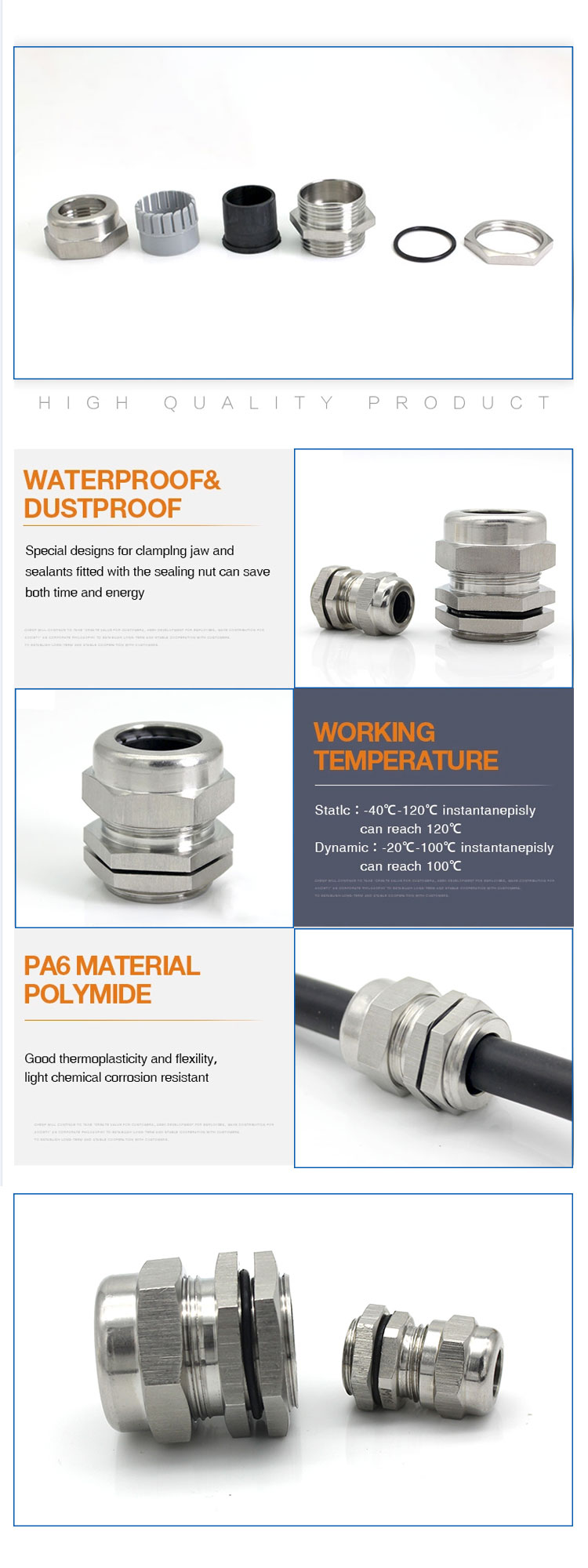

Extremely easy installation, simply insert cable through the assembled gland and tighten gland locknut until cable is secured.

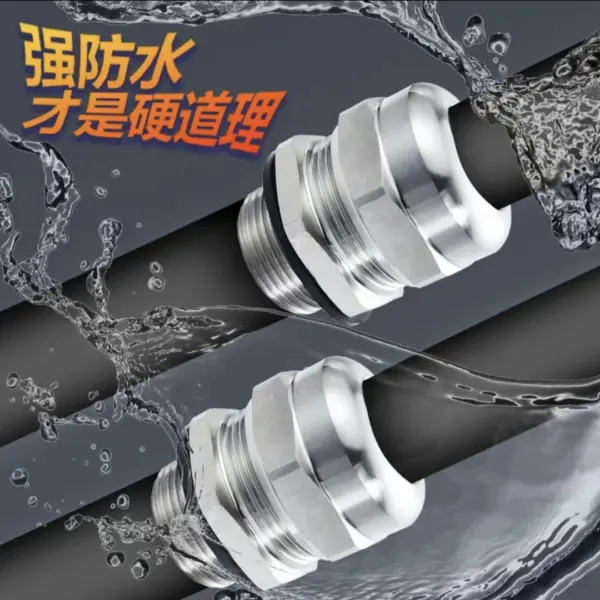

These cable glands are designed to withstand water,dust,salt,acid-base,alcohol,oil and common solvent. |
|
Specification
|
AG item |
Cable Range(mm) |
Thread O.D.(mm) |
Thread Length(mm) |
Spanner Size(mm) |
|
cable gland M8x1 |
2-4 |
8 |
5 |
12 |
|
M10x1 |
3-6.5 |
10 |
7 |
14 |
|
M12x1.5 |
3-6.5 |
12 |
7 |
14 |
|
M14x1.5 |
4-8 |
14 |
7 |
17 |
|
M16x1.5 |
4-8 |
16 |
8 |
18 |
|
M18x1.5 |
5-10 |
18 |
8 |
20 |
|
M20x1.5 |
6-12 |
20 |
8 |
22 |
|
M24×1.5 |
10-14 |
24 |
9 |
24/27 |
|
M28x1.5 |
13-18 |
28 |
9 |
30 |
|
M32x1.5 |
15-22 |
32 |
10 |
35 |
|
….. |
….. |
….. |
….. |
….. |
|
M100x2 |
78-84 |
100 |
15 |
110 |
|
cable gland PG7 |
3-6.5 |
12.5 |
7 |
14 |
|
PG9 |
4-8 |
15.2 |
8 |
17 |
|
PG11 |
5-10 |
18.6 |
8 |
20/21 |
|
PG13.5 |
6-12 |
20.4 |
8 |
22 |
|
PG16 |
10-14 |
22.5 |
9 |
24 |
|
PG21 |
13-18 |
28.3 |
9 |
30 |
|
….. |
….. |
….. |
….. |
….. |
|
PG63 |
42-52 |
72 |
15 |
77 |
|
cable gland NPT1/4 |
3-6.5 |
13.6 |
7 |
14 |
|
NPT3/8 |
4-8 |
17 |
8 |
18 |
|
NPT1/2 |
6-12 |
21.2 |
8 |
22 |
|
NPT3/4 |
13-18 |
26.5 |
9 |
30 |
|
NPT1 |
18-25 |
33.2 |
11 |
40 |
|
….. |
….. |
….. |
….. |
….. |
|
NPT3 |
65-70 |
88.6 |
15 |
98 |
|
cable gland G1/4 |
3-6.5 |
13.1 |
7 |
14 |
|
G3/8 |
4-8 |
16.6 |
8 |
18 |
|
G1/2 |
6-12 |
20.9 |
8 |
22 |
|
G3/4 |
13-18 |
26.4 |
9 |
30 |
|
G1 |
18-25 |
33.2 |
11 |
40 |
|
….. |
….. |
….. |
….. |
….. |
|
G3 |
65-70 |
87.8 |
15 |
94 |
