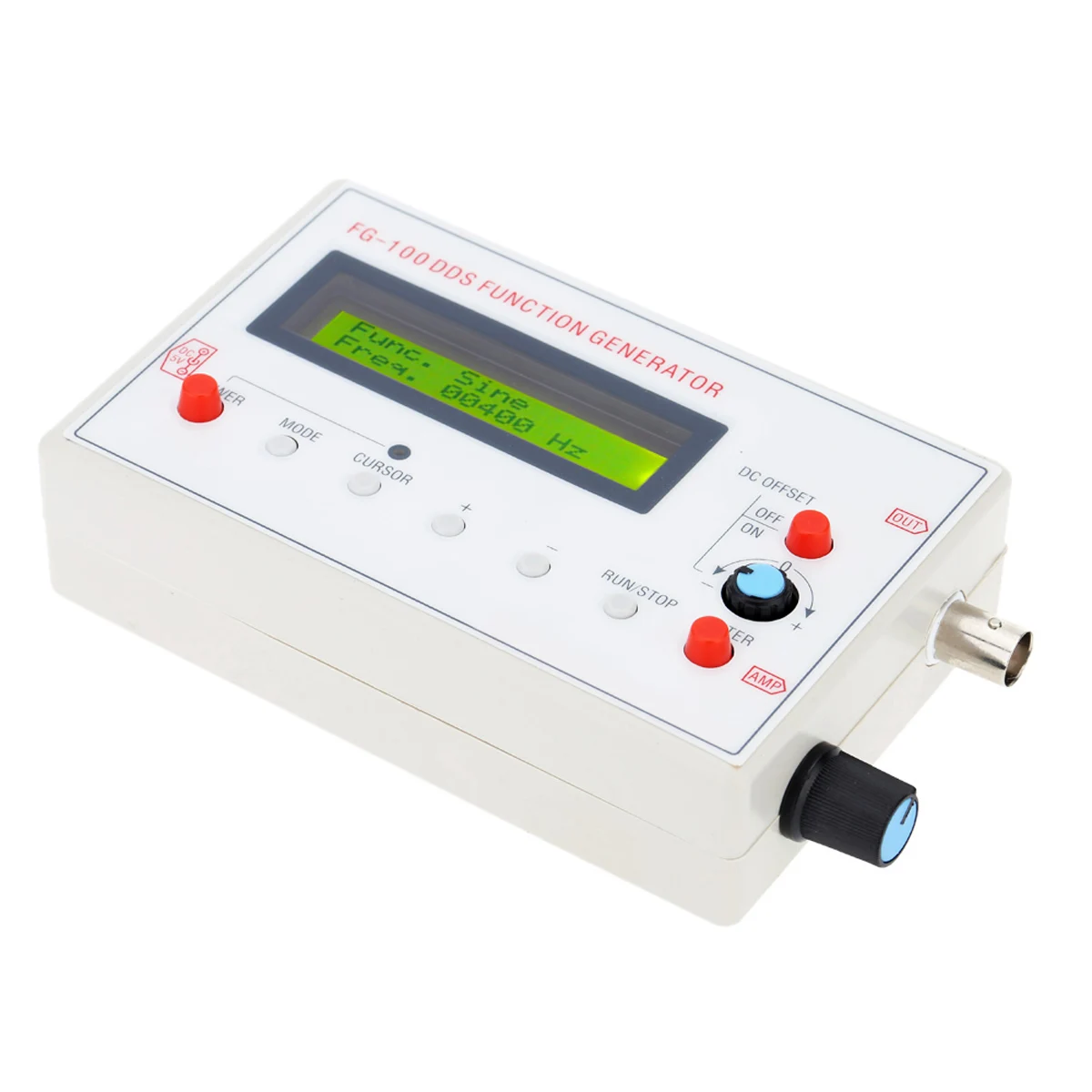

With an oscilloscope, which can be used in electronic circuit experiment and debugging, the frequency characteristics of audio amplifier and pulse response of test and measurement.
Due to the good precision of DDS and frequency stability, is also very suitable for oscilloscope time calibration factor. Square wave output also suit for oscilloscope attenuator and probe pulse adjustment, etc
The main output waveform : sine wave and square-wave, Triangular wave, sawtooth wave.
Maximum output amplitude : +/- 10Vpp (no-load)
Output impedance : 50Ohm+/-10%

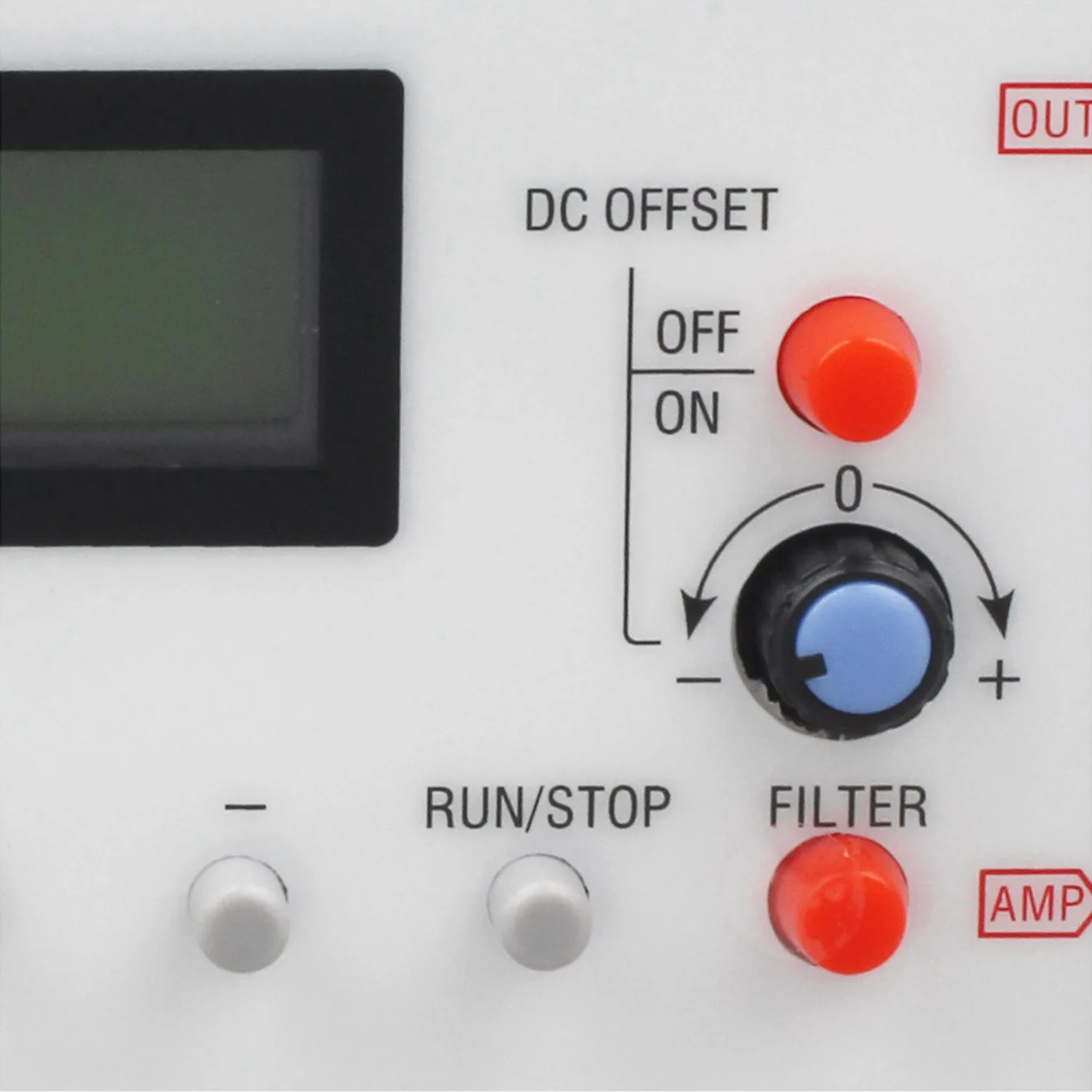

Dc bias : +/- 10V (no-load)
Display : LCD1602
Resolution : 1 Hz
Power supply : DC 3. 5-10V
Output frequency range:
Sine wave : 1Hz-500KHz
Square-wave : 1 Hz – 20kHz (the valid range)
Triangular wave : 1 Hz – 20KHz (the valid range)
Sawtooth wave : 1 Hz – 20kHz (the valid range)
Colour: white
Material: metal

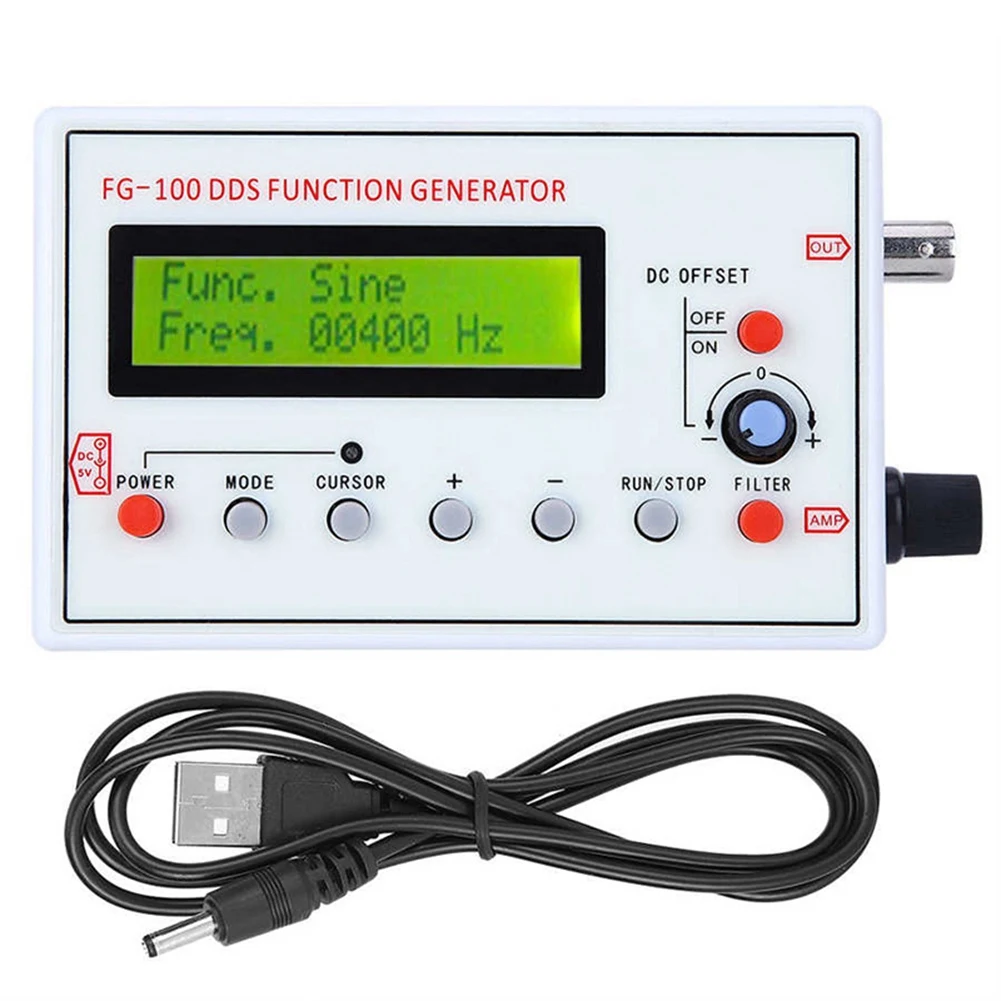

Package Contents:
1 x Function Signal Generator

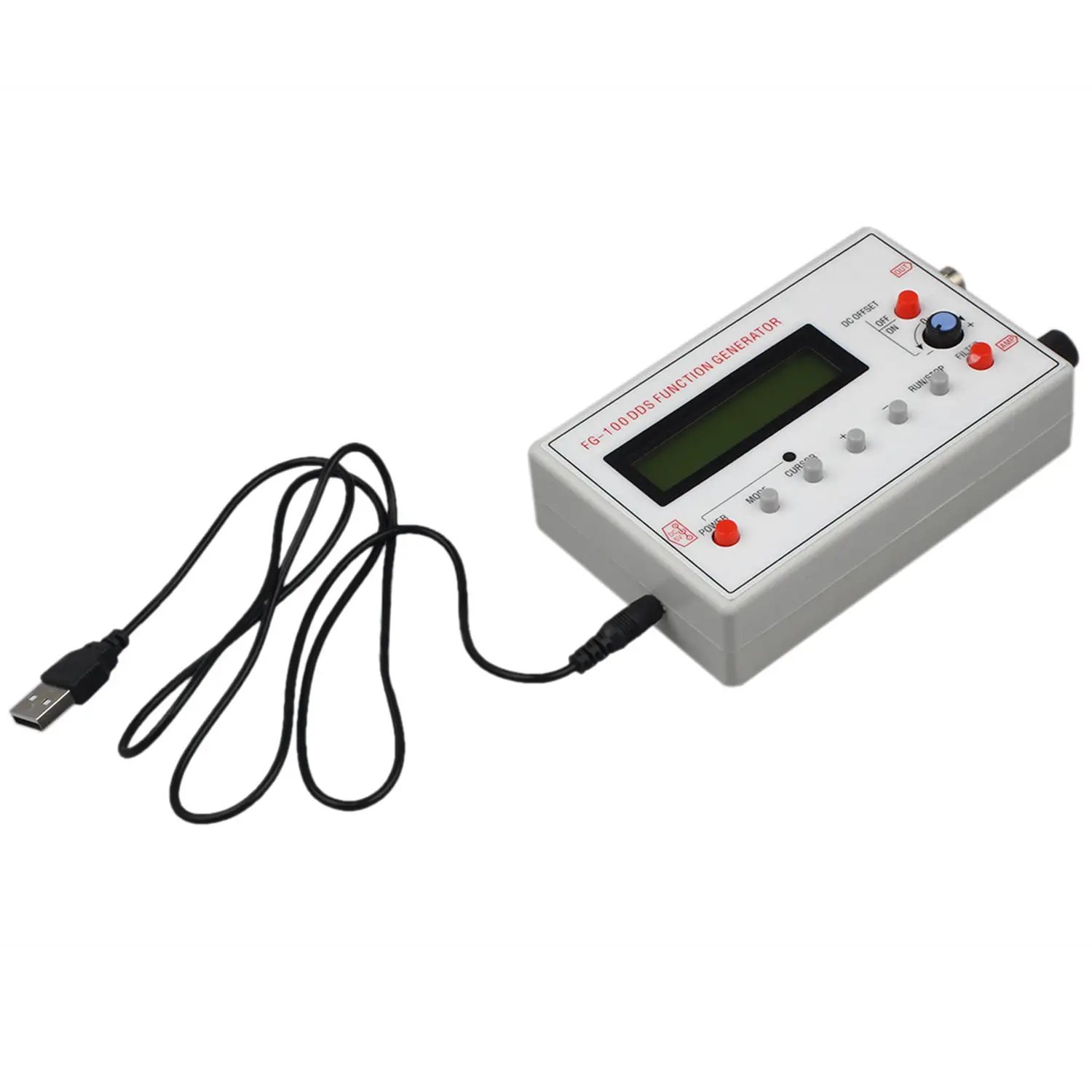

1 x USB Power Adapter Cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
|
|
