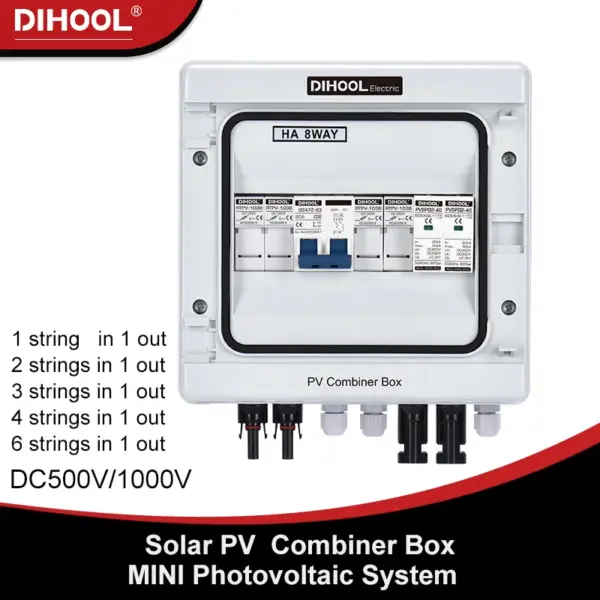

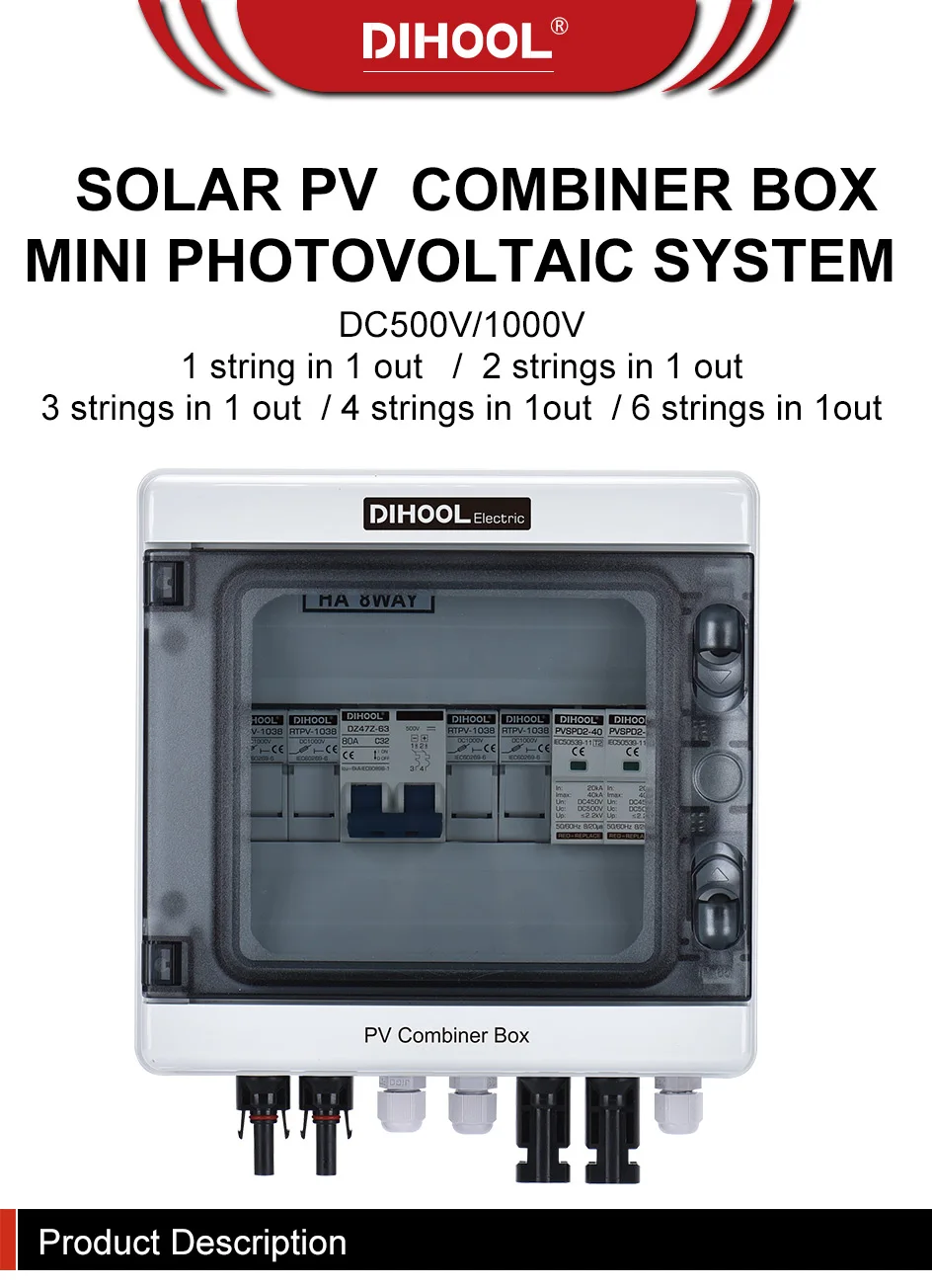

Solar PV Combiner Box With Lightning Circuit Breakers Fuses Protection Photovoltaic System Switch DC 500V 1000V Waterproof IP66

Rp4.355.000

Solar PV Combiner Box With Lightning Circuit Breakers Fuses Protection Photovoltaic System Switch DC 500V 1000V Waterproof IP66

SKU: 1005009011830200 Categories: Electrical Equipment & Supplies, Home Improvement

Toko: DIHOOL Global Store

🕐 Pre-Order · Estimasi 30 Hari

Color

Wattage

Pilihan varian akan disertakan dalam pesan WhatsApp Anda.

🚚

Pengiriman ke seluruh Indonesia Estimasi 2–7 hari kerja via ekspedisi terpercaya

💬

Konsultasi gratis via WhatsApp Tim kami siap membantu Anda memilih produk

🏷️

Harga terbaik & transparan Harga sudah termasuk pajak, tanpa biaya tersembunyi

Description

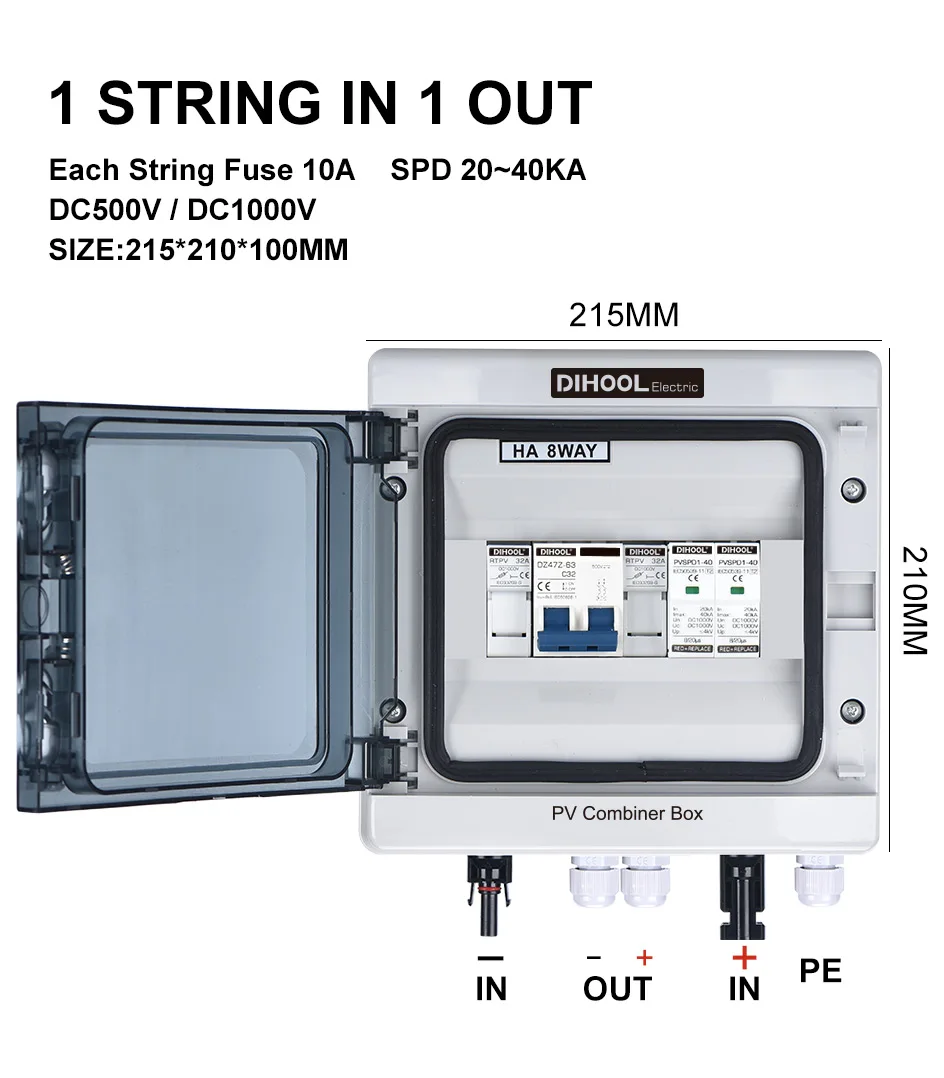

Model		PVHA-1V1
Input	PV Input String	1
	Max Current	8A	12A	20A
	DC1000V Fuse	10A	15A	25A
	Cable	2.5MM²	2.5MM²	4MM²
Output	PV Output String	1
	Max Current	8A	12A	20A
	Cable	2.5MM²	2.5MM²	4MM²
	Max Volatge	DC500V / DC1000V
	DC MCB	10A	16A	32A
	DC SPD	2P 8/20μs 40kA
Other Parameters	Protection Class	IP65
	Temperature Range	-30℃ ~ +60℃
	Product Size	215MMx210MMx100MM
	Package Size	220MMx250MMx110MM
	Cooling Method	Natural Cooling

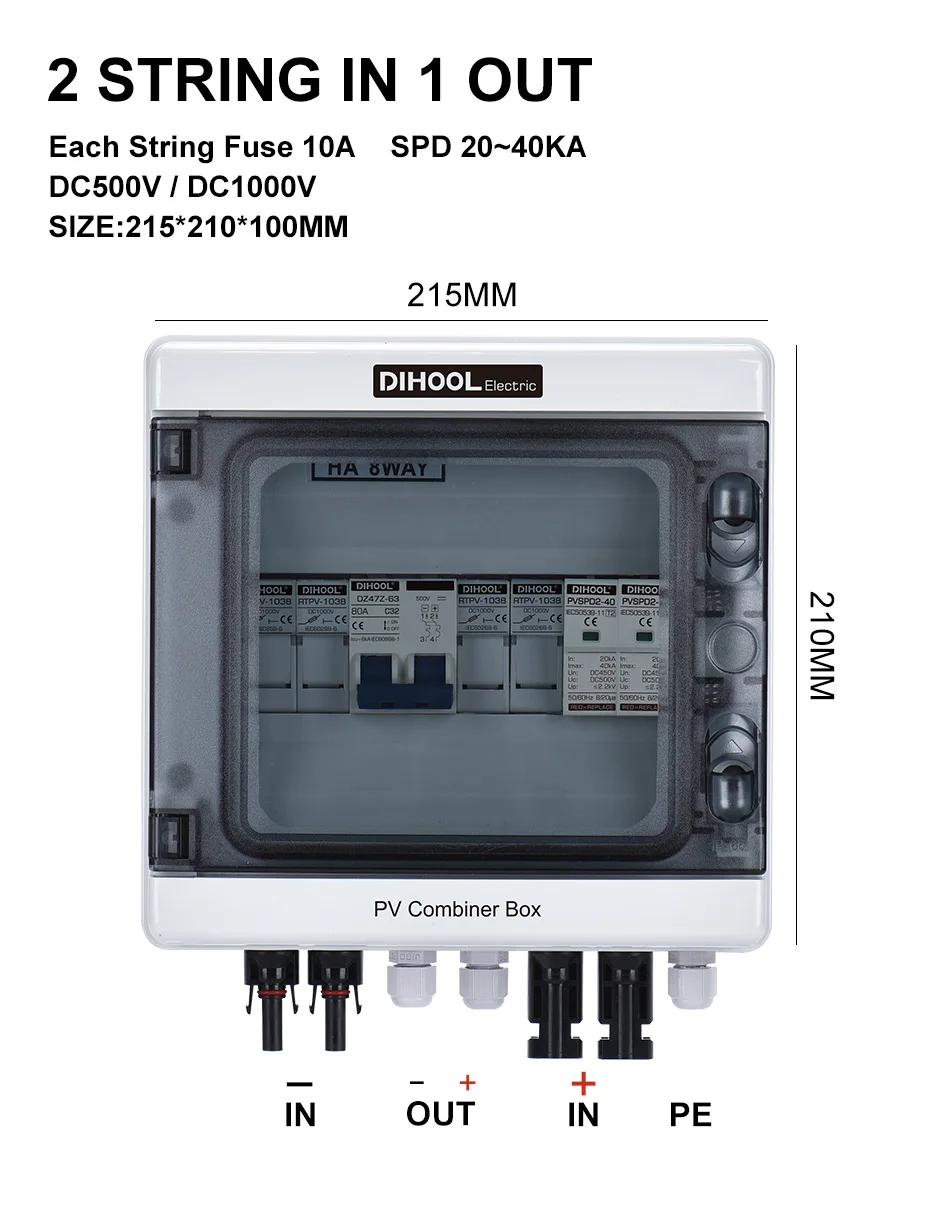

Model		PVHA-2V1
Input	PV Input String	2
	Max Current	8A	12A	20A
	DC1000V Fuse	10A	15A	25A
	Cable	2.5MM²	2.5MM²	4MM²
Output	PV Output String	1
	Max Current	16A	20A	24A
	Cable	4MM²	4MM²	6MM²
	Max Volatge	DC500V / DC1000V
	DC MCB	20A	32A	50A
	DC SPD	2P 8/20μs 40kA
Other Parameters	Protection Class	IP65
	Temperature Range	-30℃ ~ +60℃
	Product Size	215MMx210MMx100MM
	Package Size	220MMx250MMx110MM
	Cooling Method	Natural Cooling

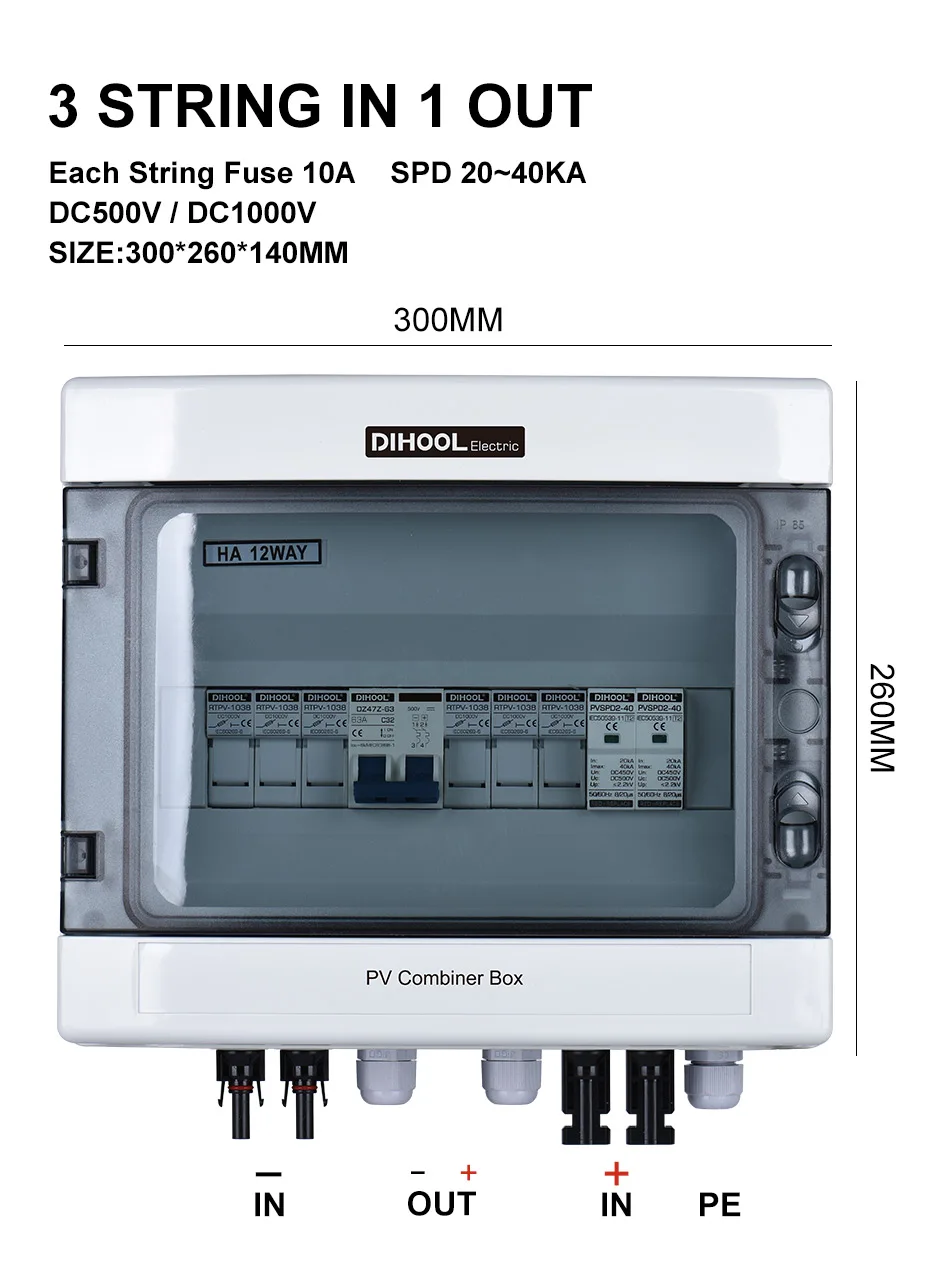

Model		PVHA-3V1
Input	PV Input String	3
	Max Current	8A	12A	20A
	DC1000V Fuse	10A	15A	25A
	Cable	2.5MM²	2.5MM²	4MM²
Output	PV Output String	1
	Max Current	24A	36A	60A
	Cable	4MM²	6MM²	16MM²
	Max Volatge	DC500V / DC1000V
	DC MCB	40A	63A	100A
	DC SPD	2P 8/20μs 40kA
Other Parameters	Protection Class	IP65
	Temperature Range	-30℃ ~ +60℃
	Product Size	300MMx260MMx140MM
	Package Size	310MMx300MMx150MM
	Cooling Method	Natural Cooling

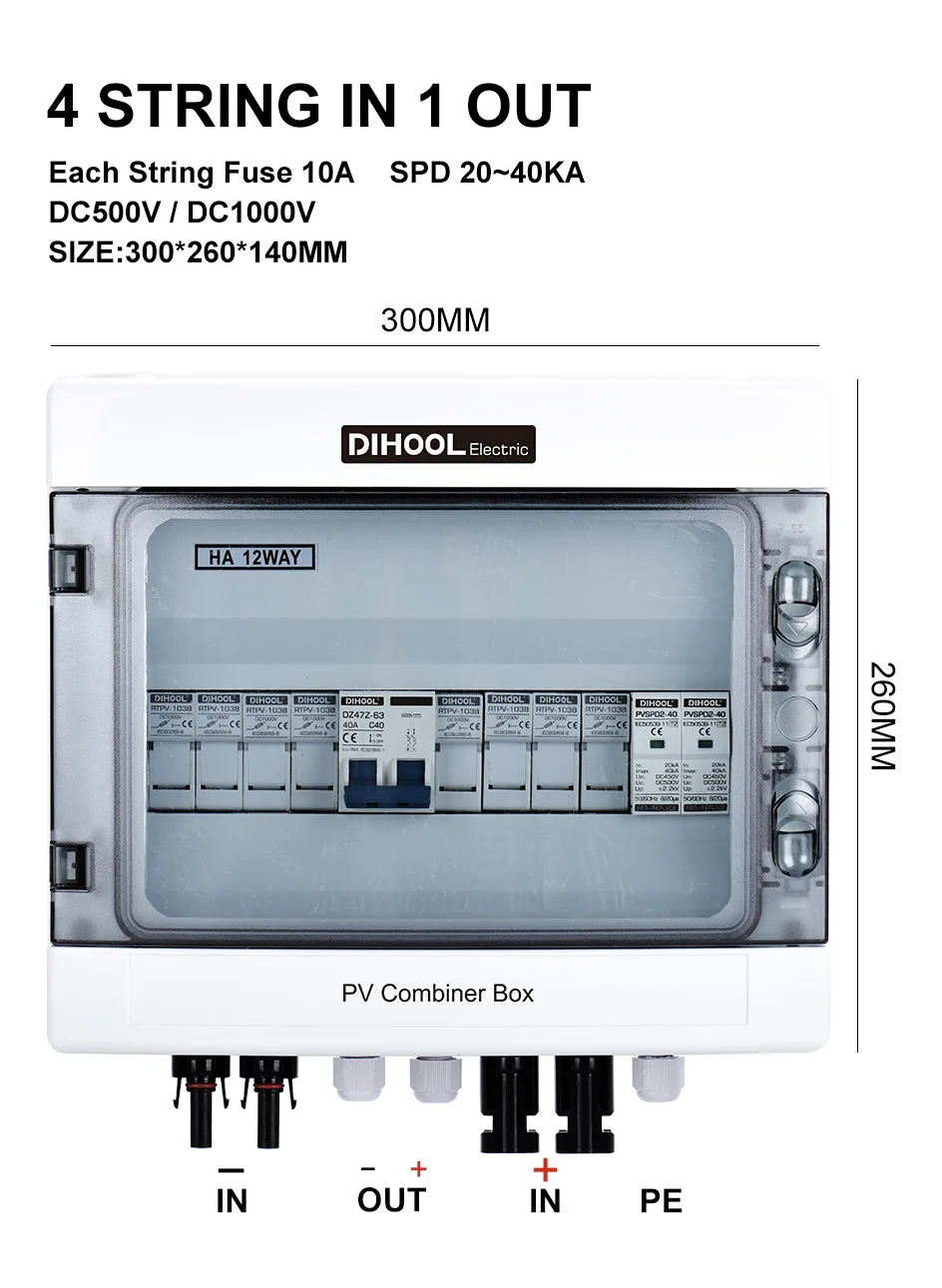

Model		PVHA-4V1
Input	PV Input String	4
	Max Current	8A	12A	20A
	DC1000V Fuse	10A	15A	25A
	Cable	2.5MM²	2.5MM²	4MM²
Output	PV Output String	1
	Max Current	32A	48A	80A
	Cable	4MM²	6MM²	16MM²
	Max Volatge	DC500V / DC1000V
	DC MCB	40A	63A	100A
	DC SPD	2P 8/20μs 40kA
Other Parameters	Protection Class	IP65
	Temperature Range	-30℃ ~ +60℃
	Product Size	300MMx260MMx140MM
	Package Size	310MMx300MMx150MM
	Cooling Method	Natural Cooling

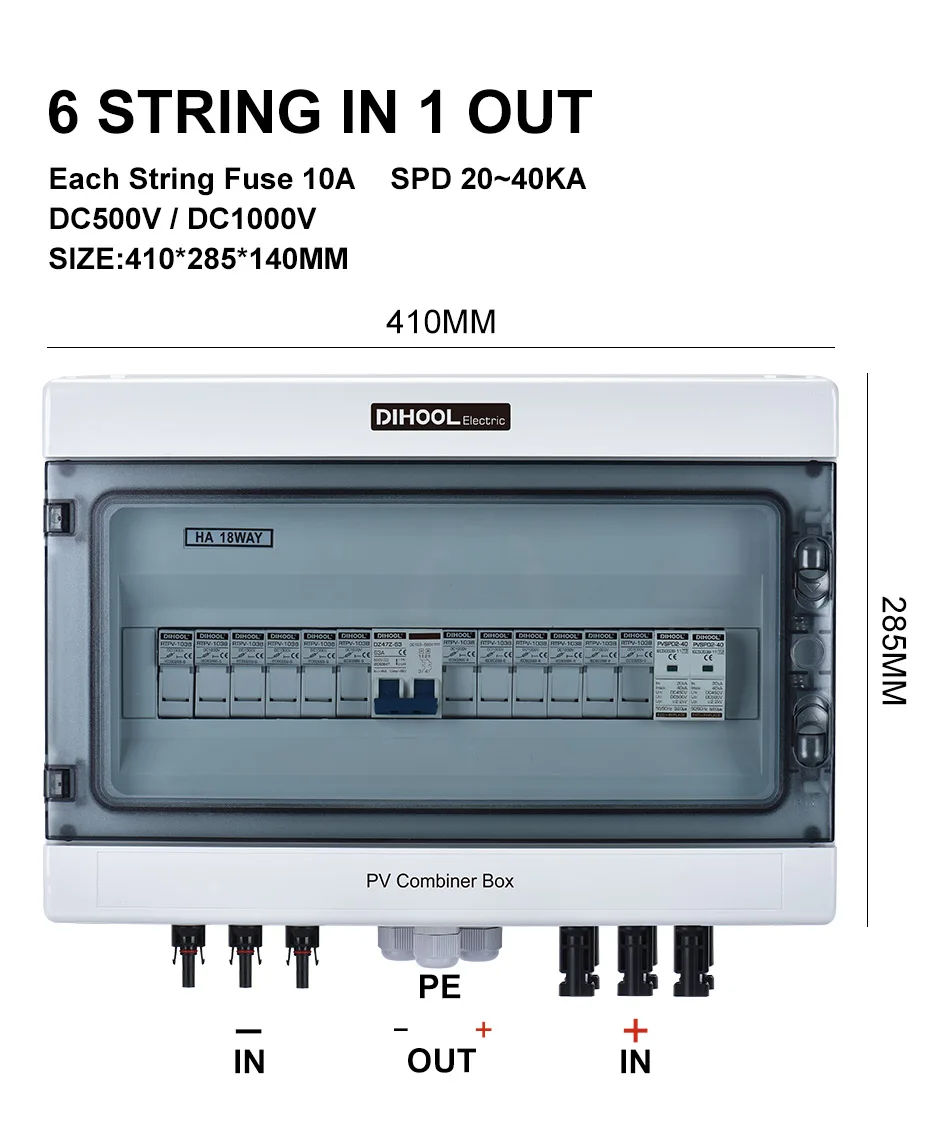

Model		PVHA-6V1
Input	PV Input String	6
	Max Current	8A	12A	20A
	DC1000V Fuse	10A	15A	25A
	Cable	2.5MM²	2.5MM²	4MM²
Output	PV Output String	1
	Max Current	48A	72A	120A
	Cable	10MM²	16MM²	25MM²
	Max Volatge	DC500V / DC1000V
	DC MCB	63A	100A	160A
	DC SPD	2P 8/20μs 40kA
Other Parameters	Protection Class	IP65
	Temperature Range	-30℃ ~ +60℃
	Product Size	410MMx285MMx140MM
	Package Size	420MMx330MMx150MM
	Cooling Method	Natural Cooling

Additional information

Color	1 IN 1 OUT, 6 IN 1 OUT, 2 IN 1 OUT, 3 IN 1 OUT, 4 IN 1 OUT
Wattage	1000V, 500V
