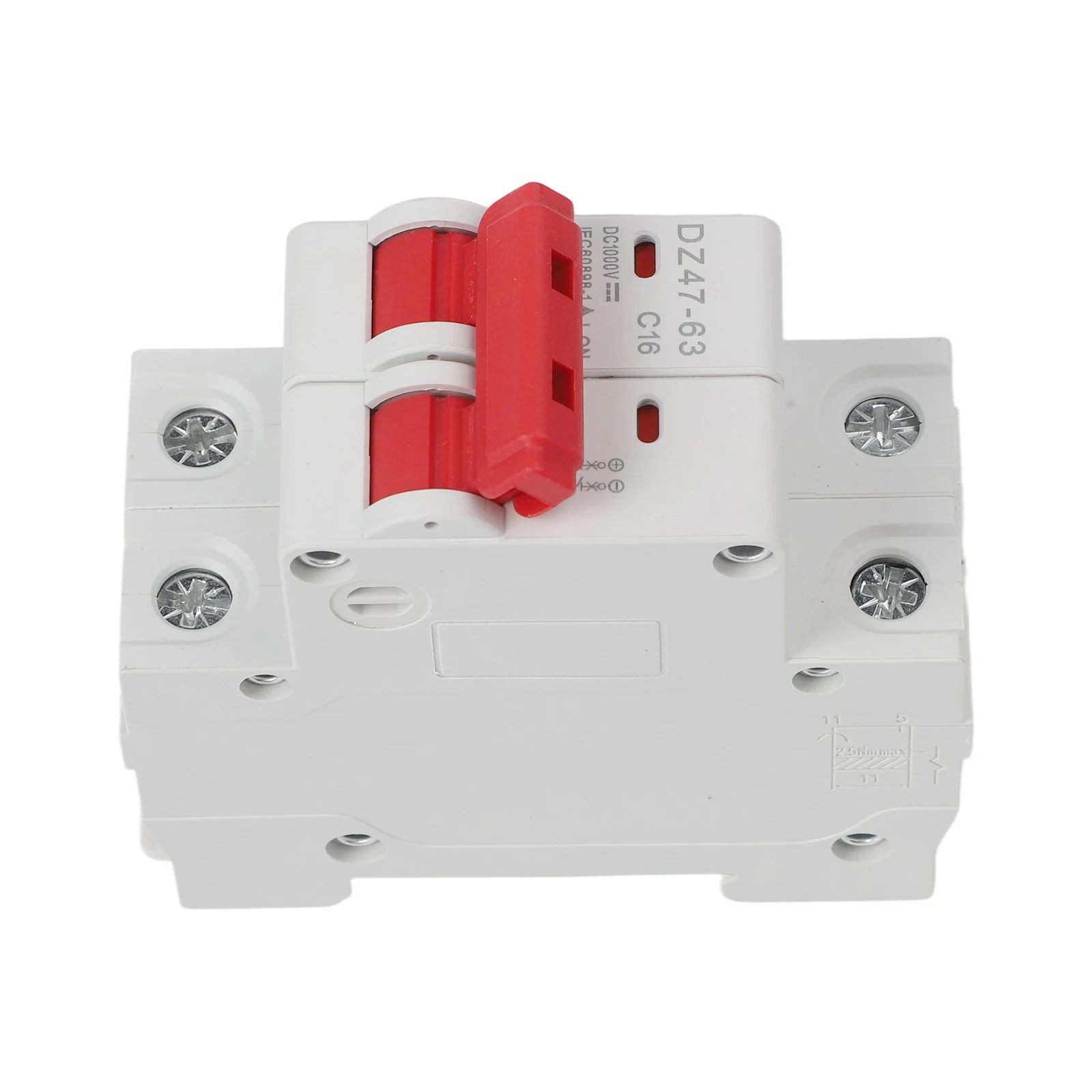

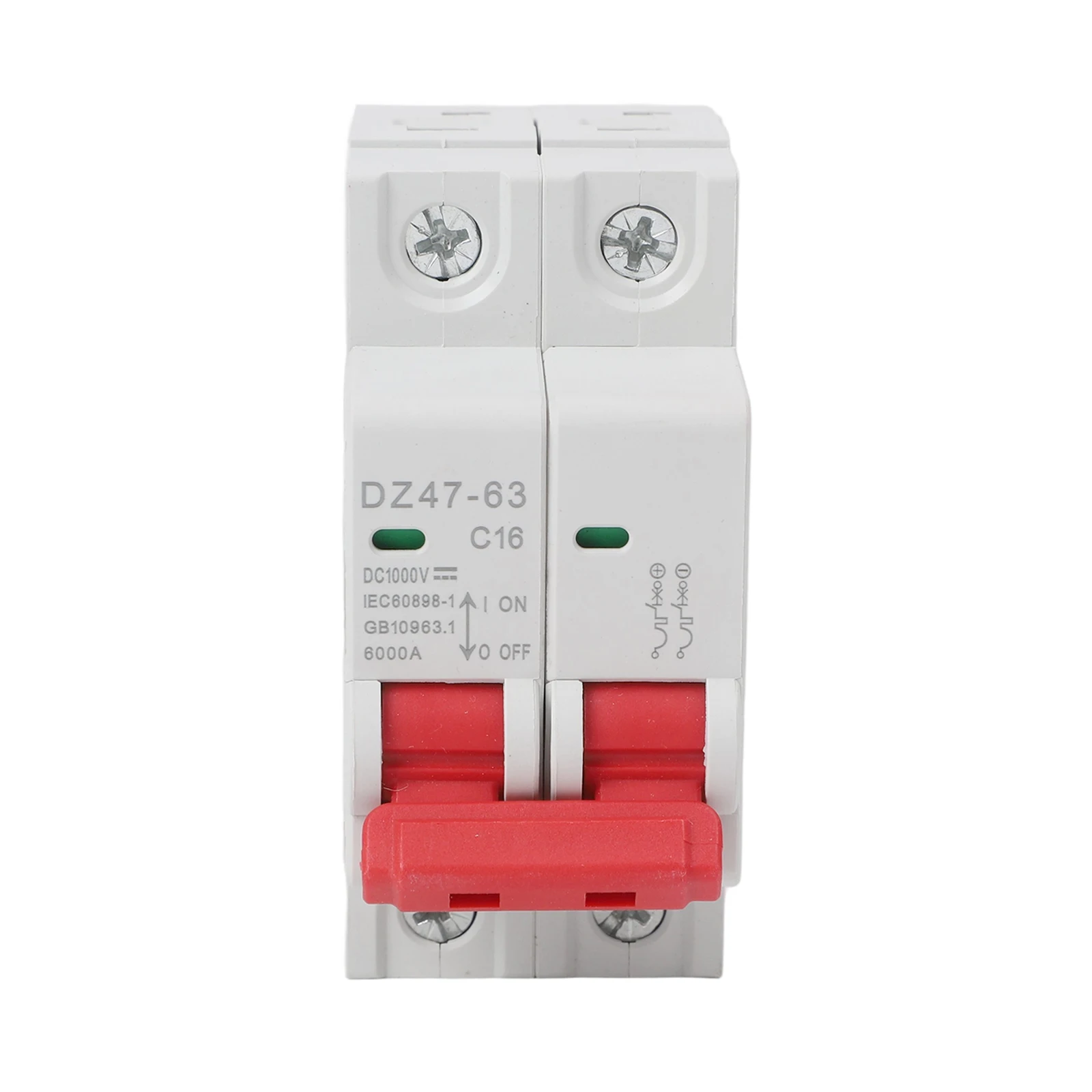

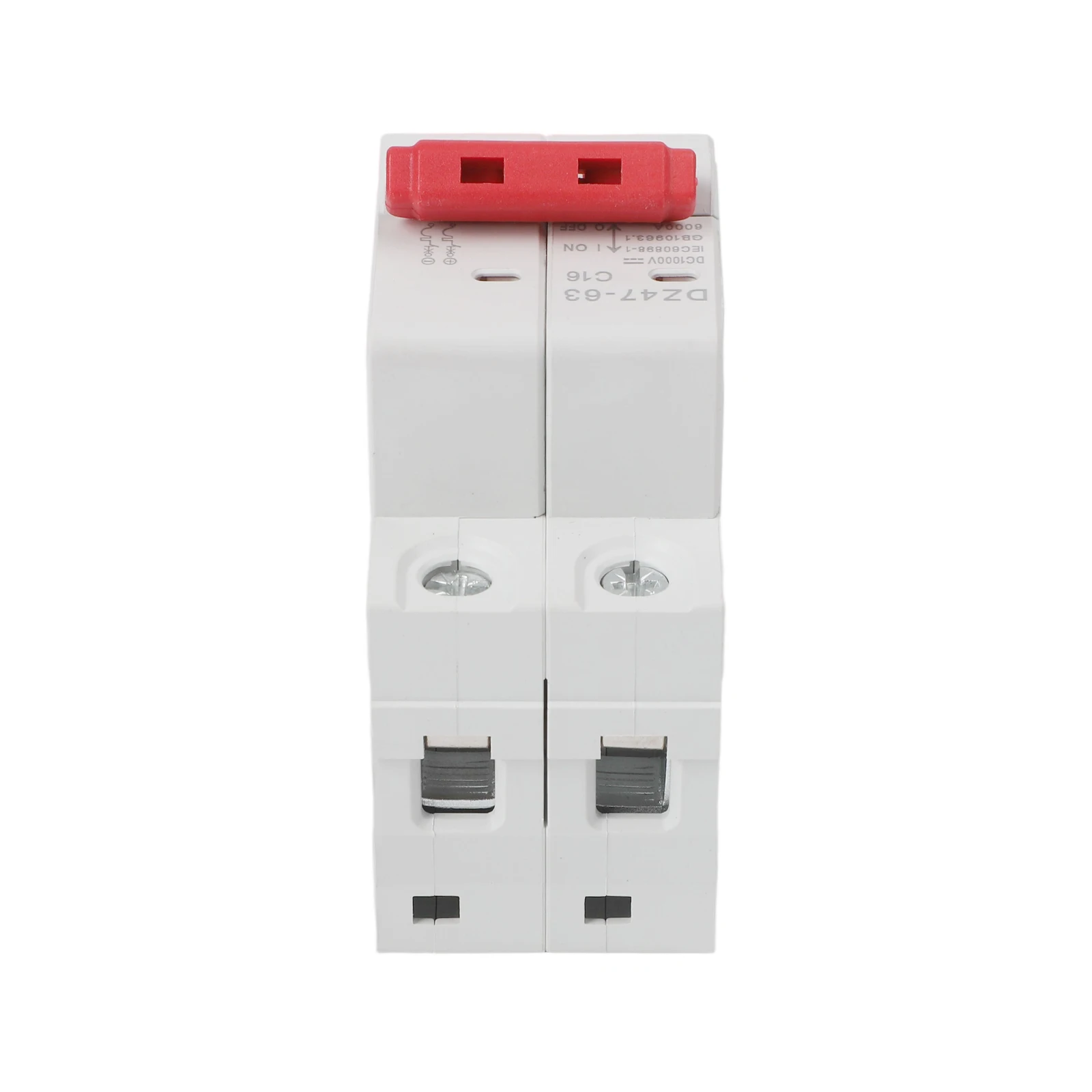

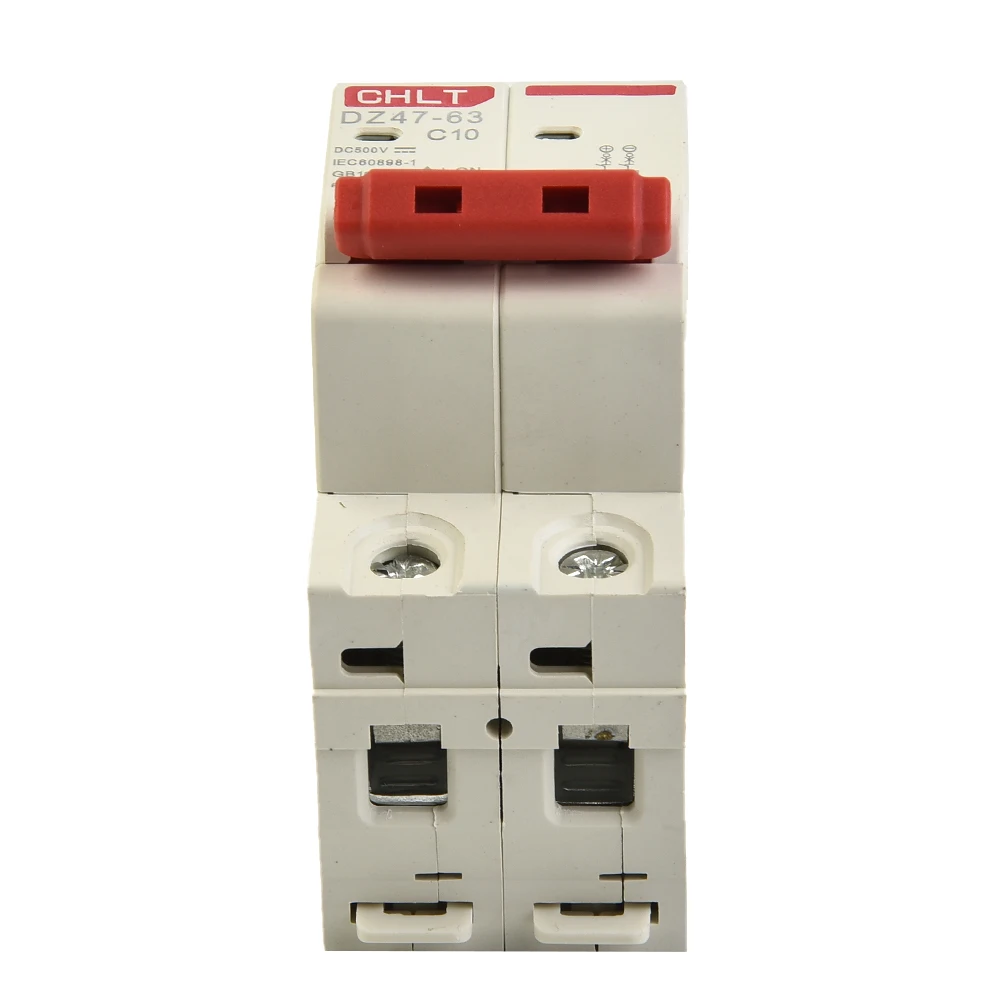

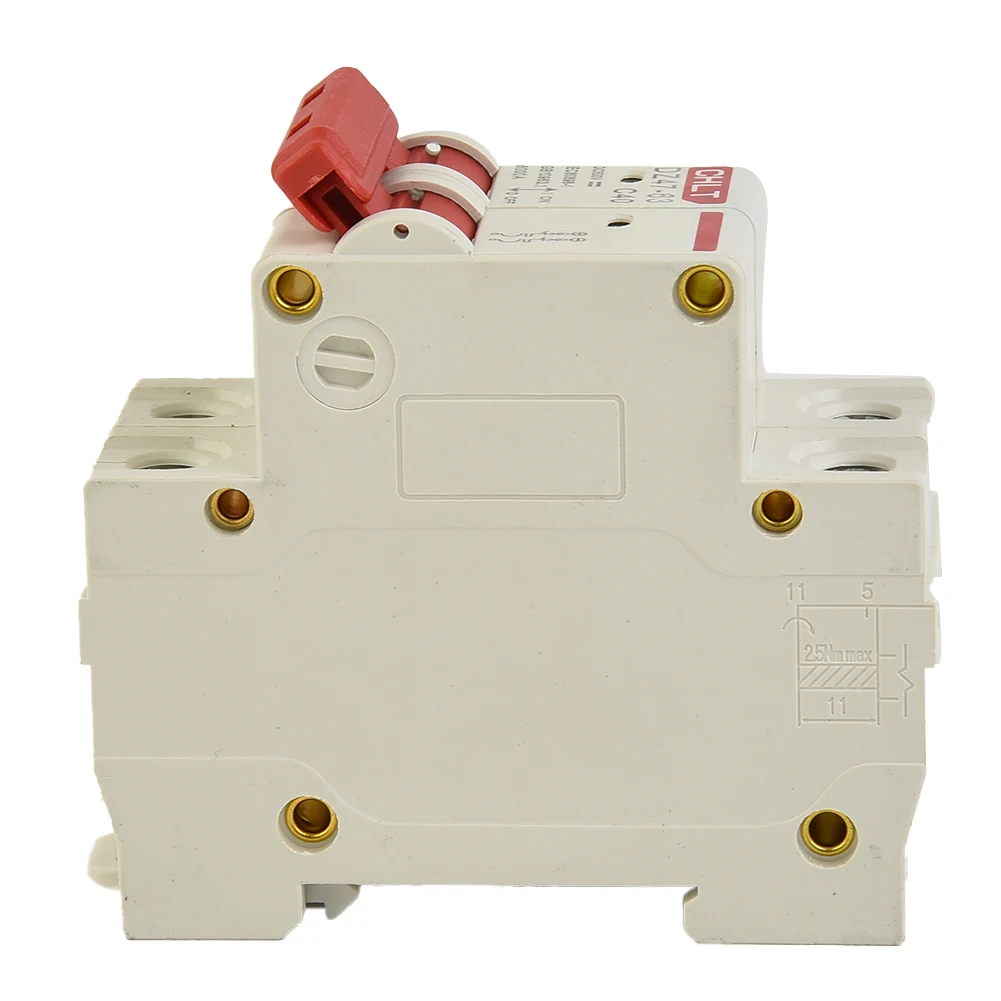

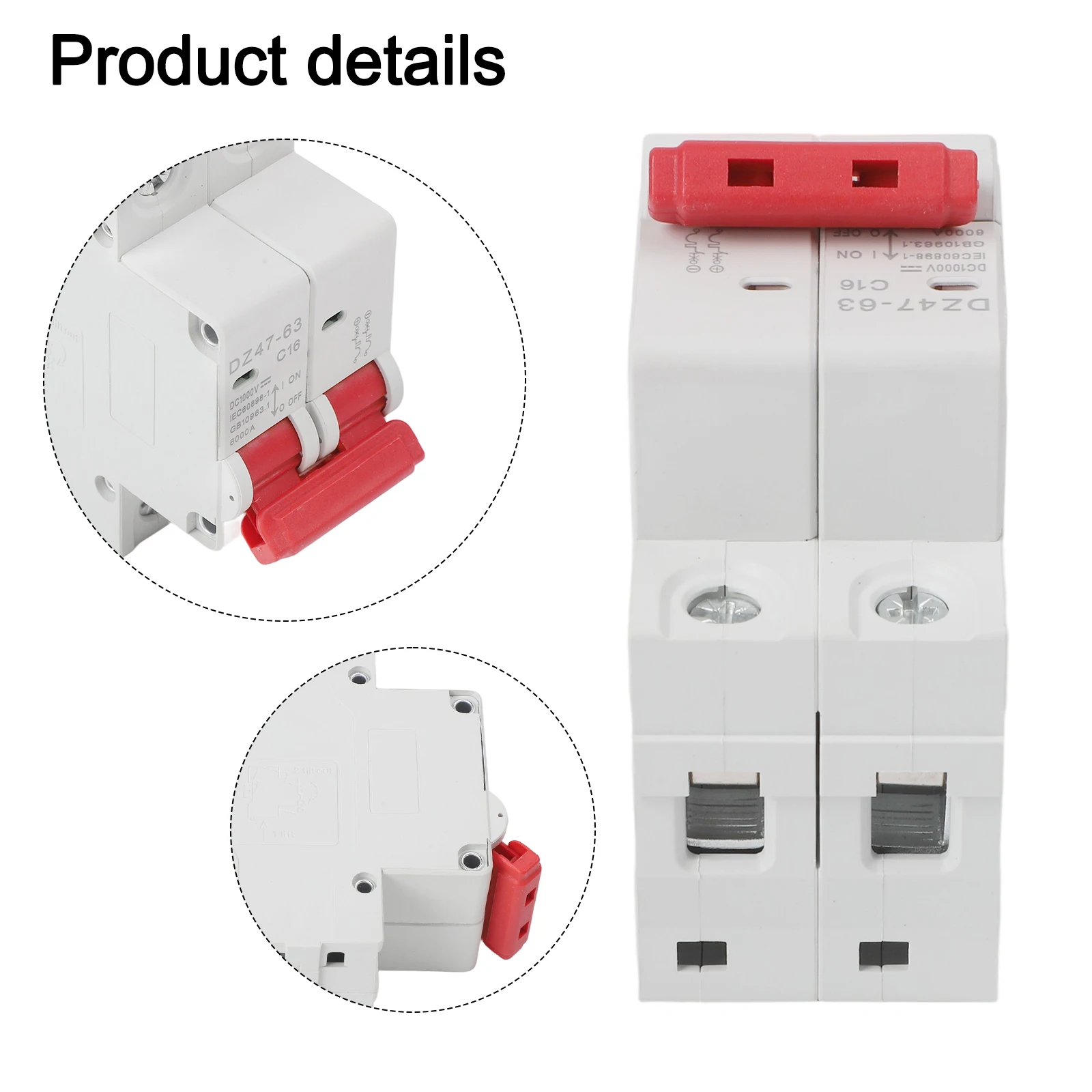

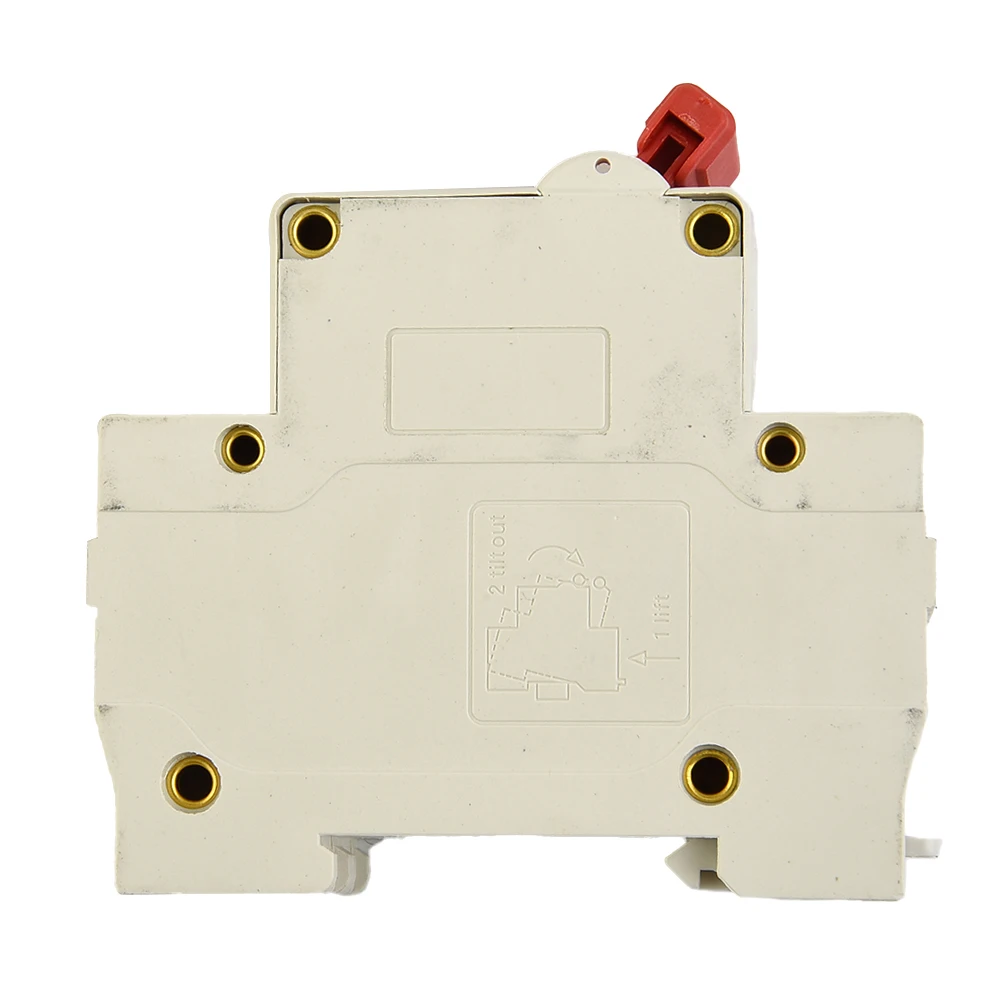

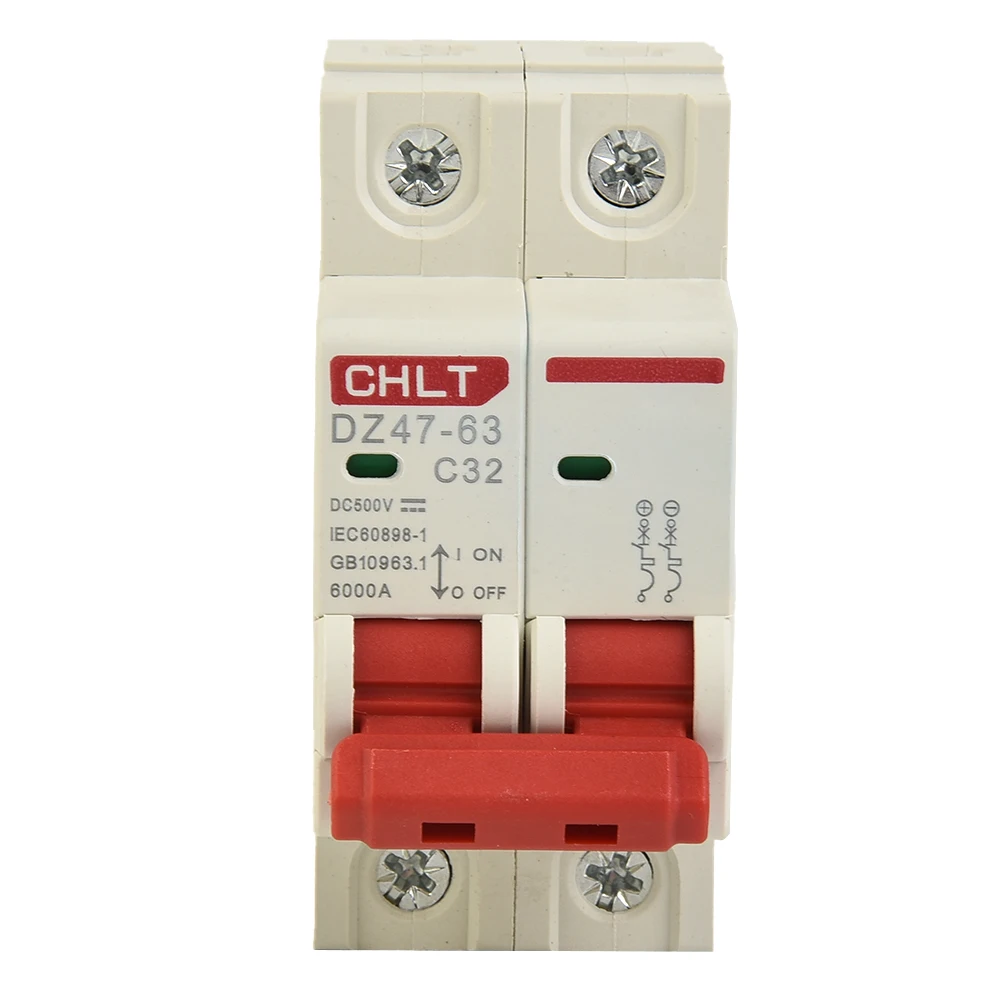

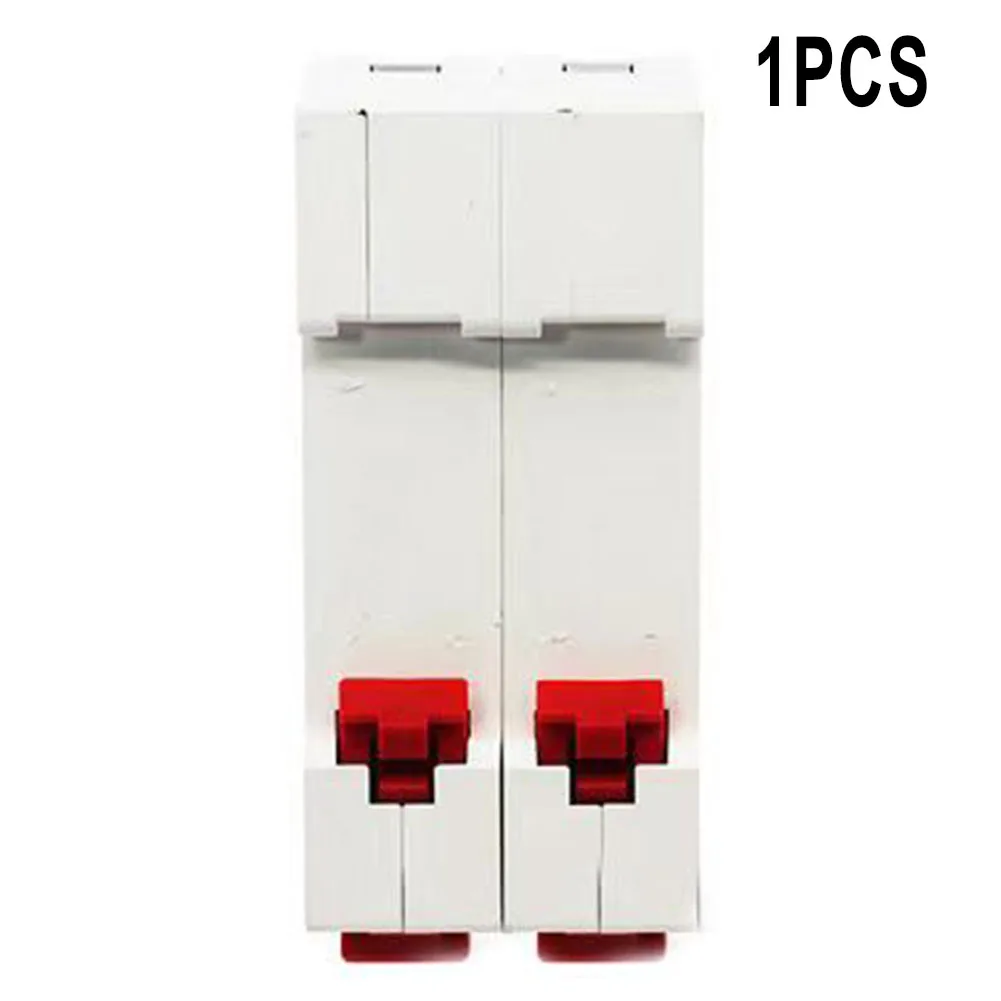

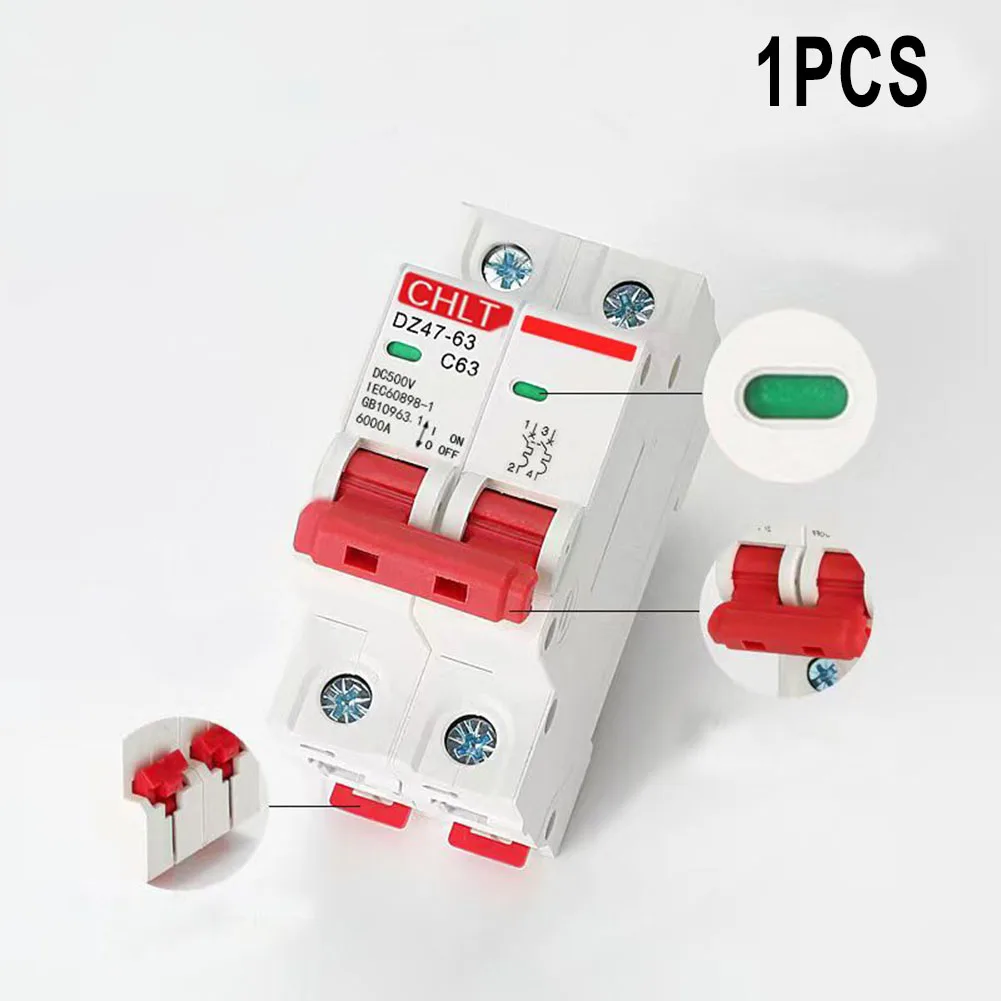

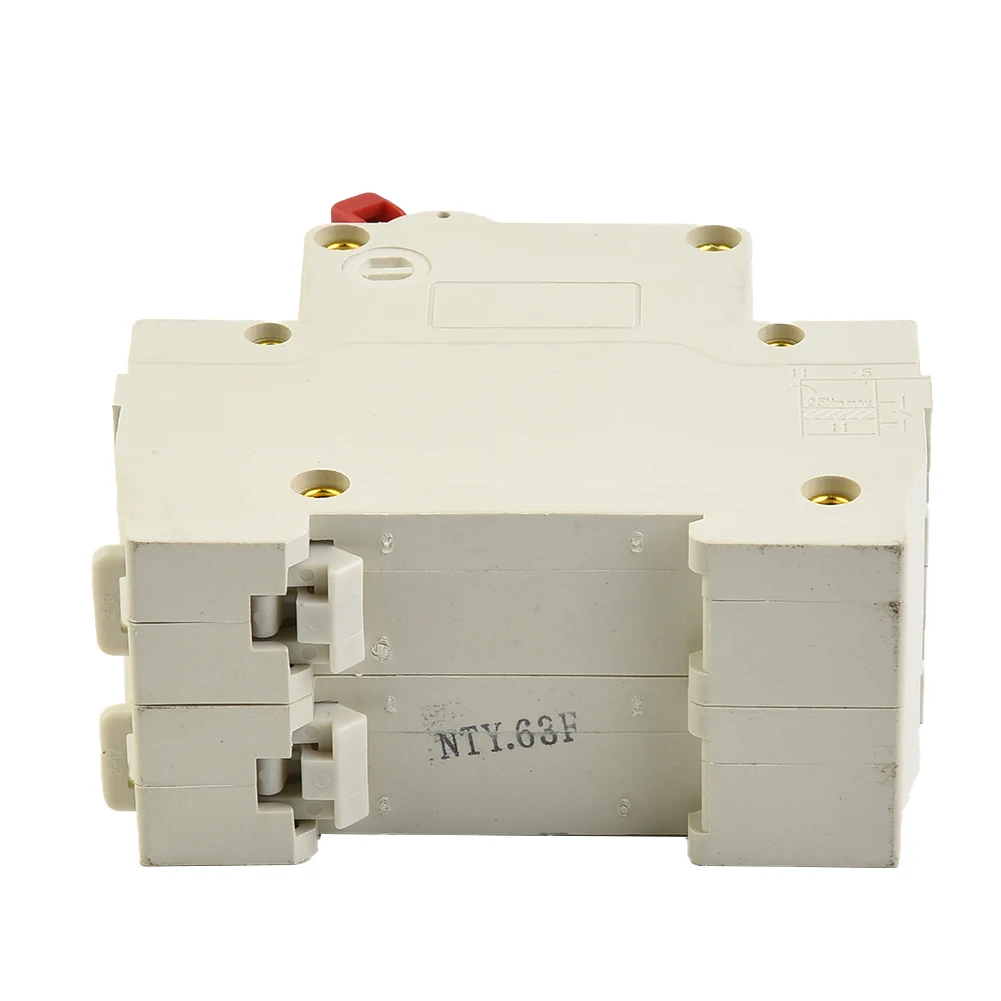

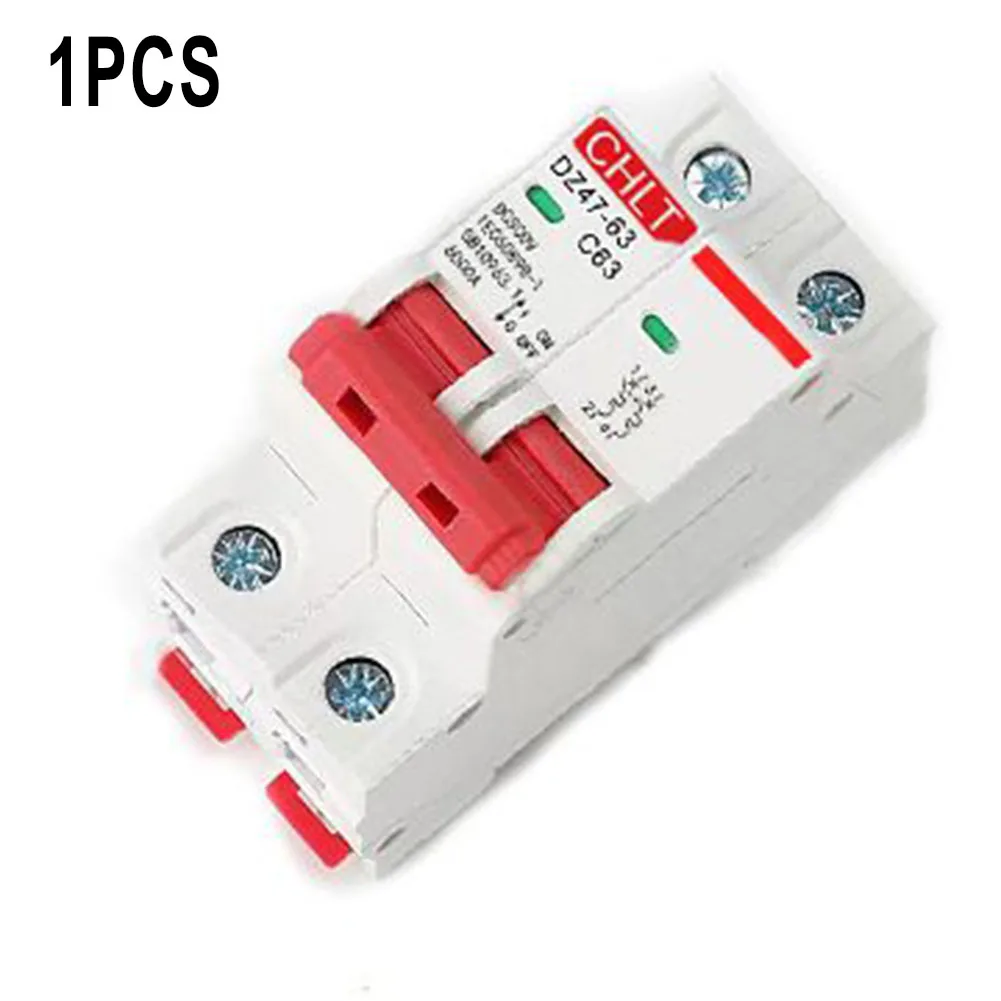

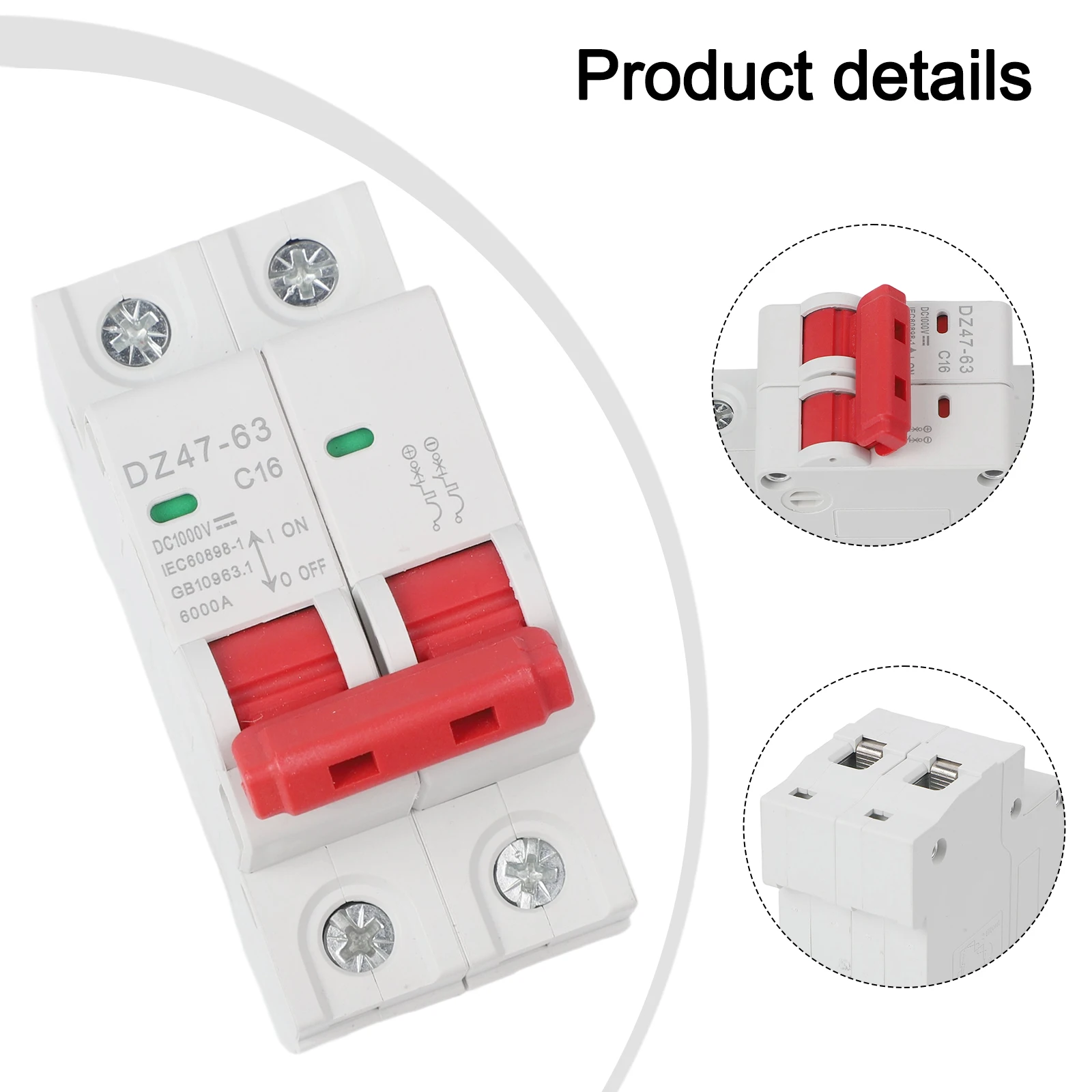

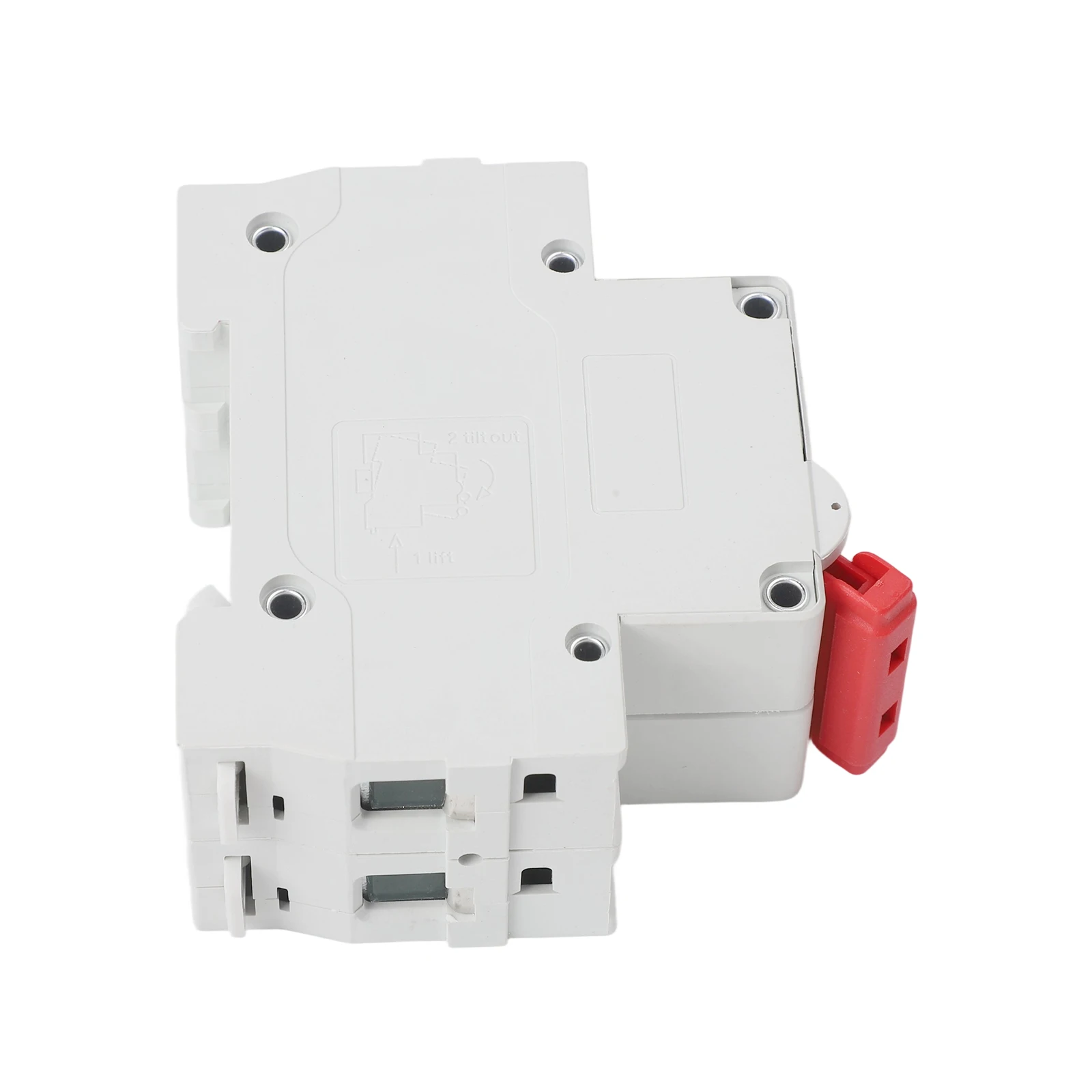

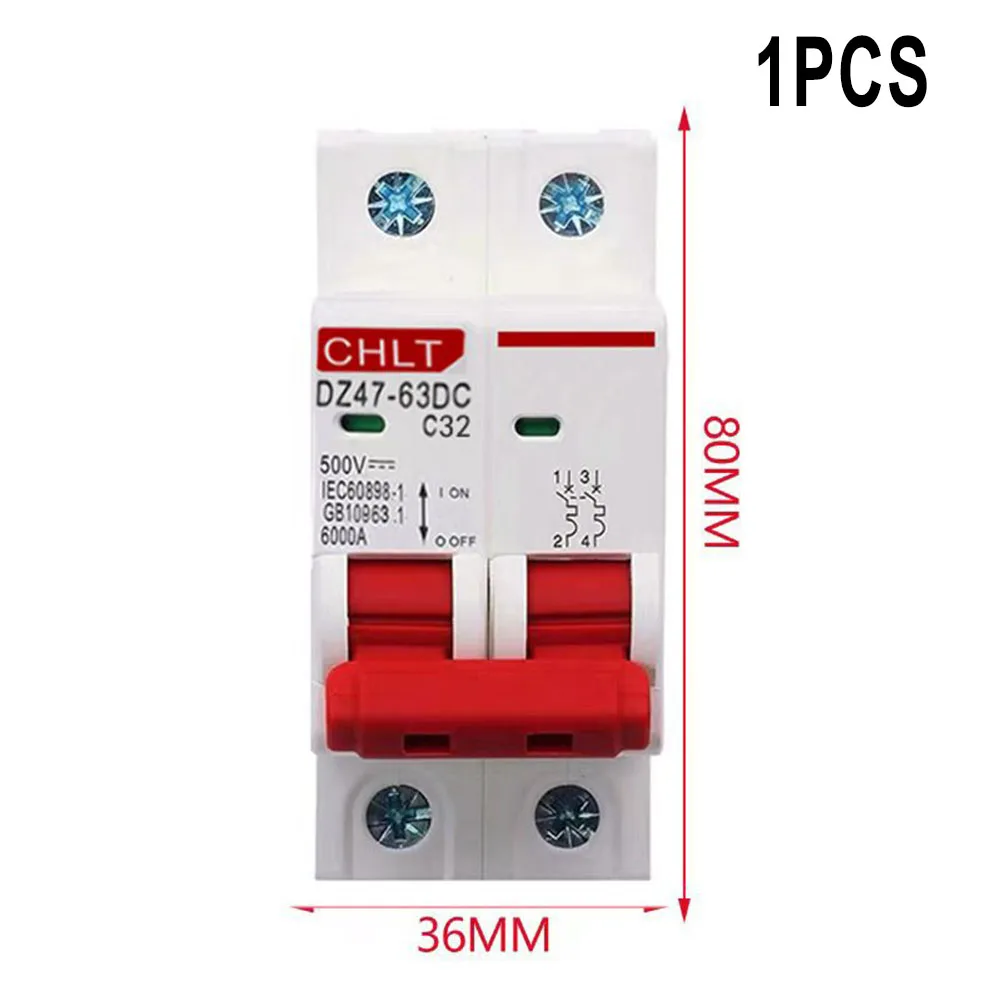

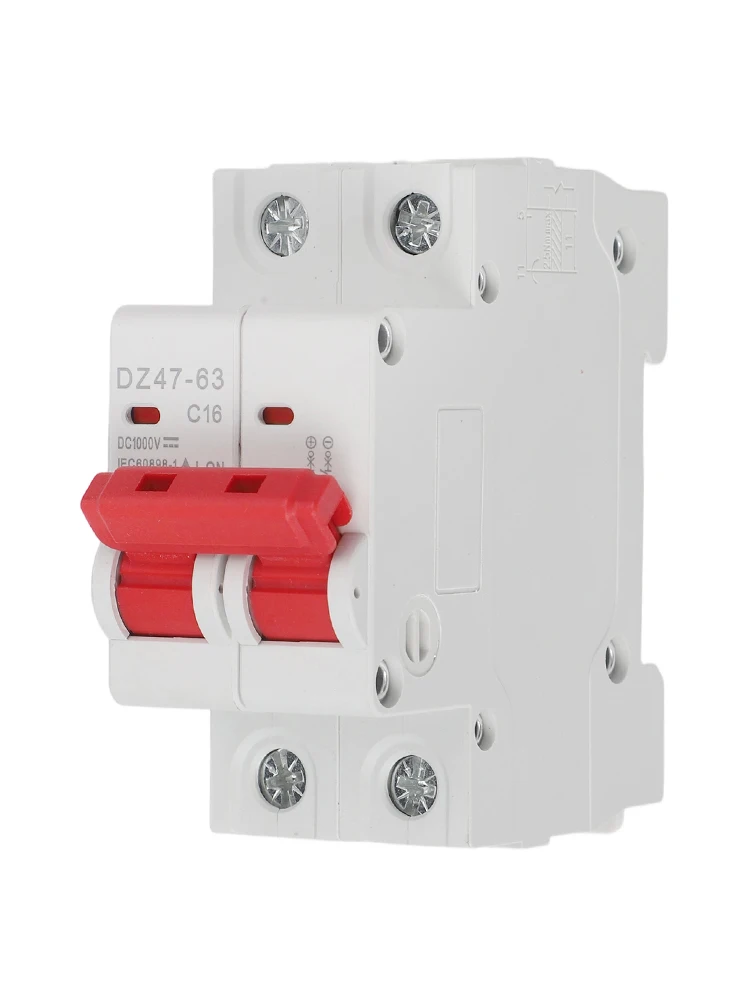

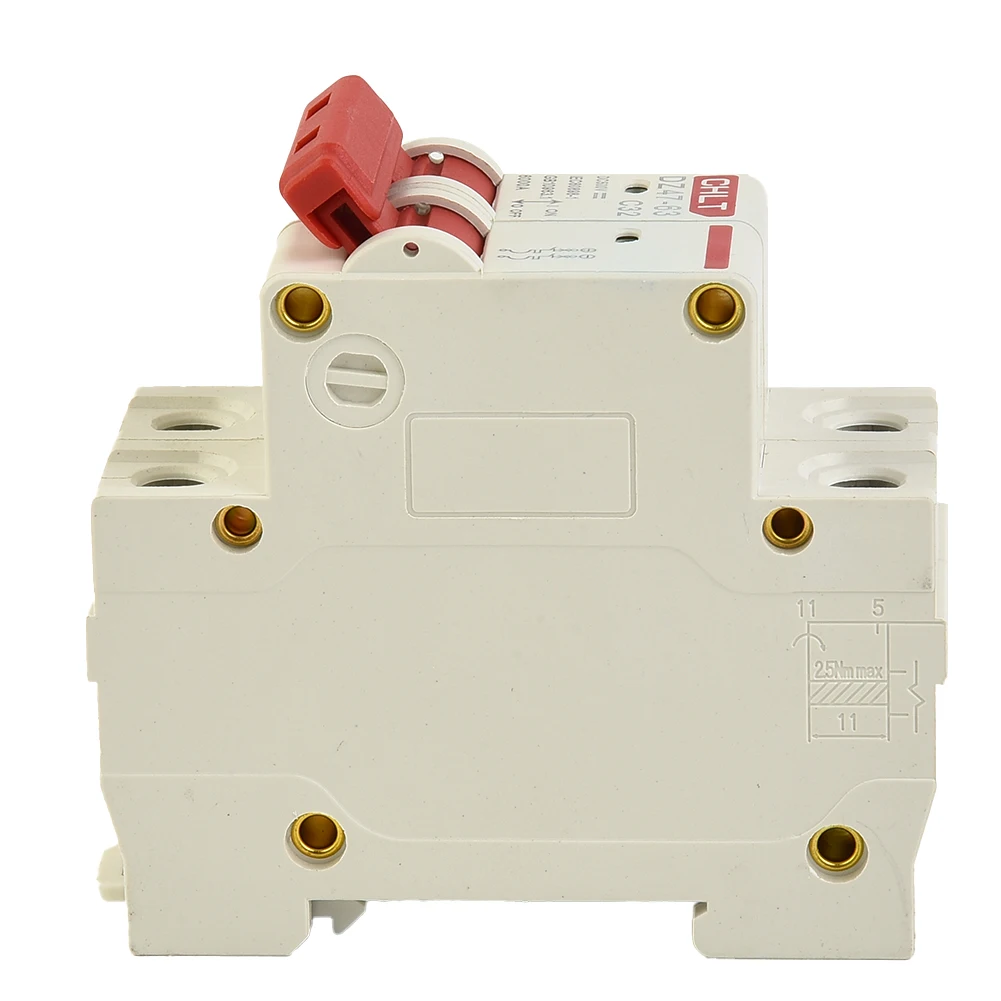

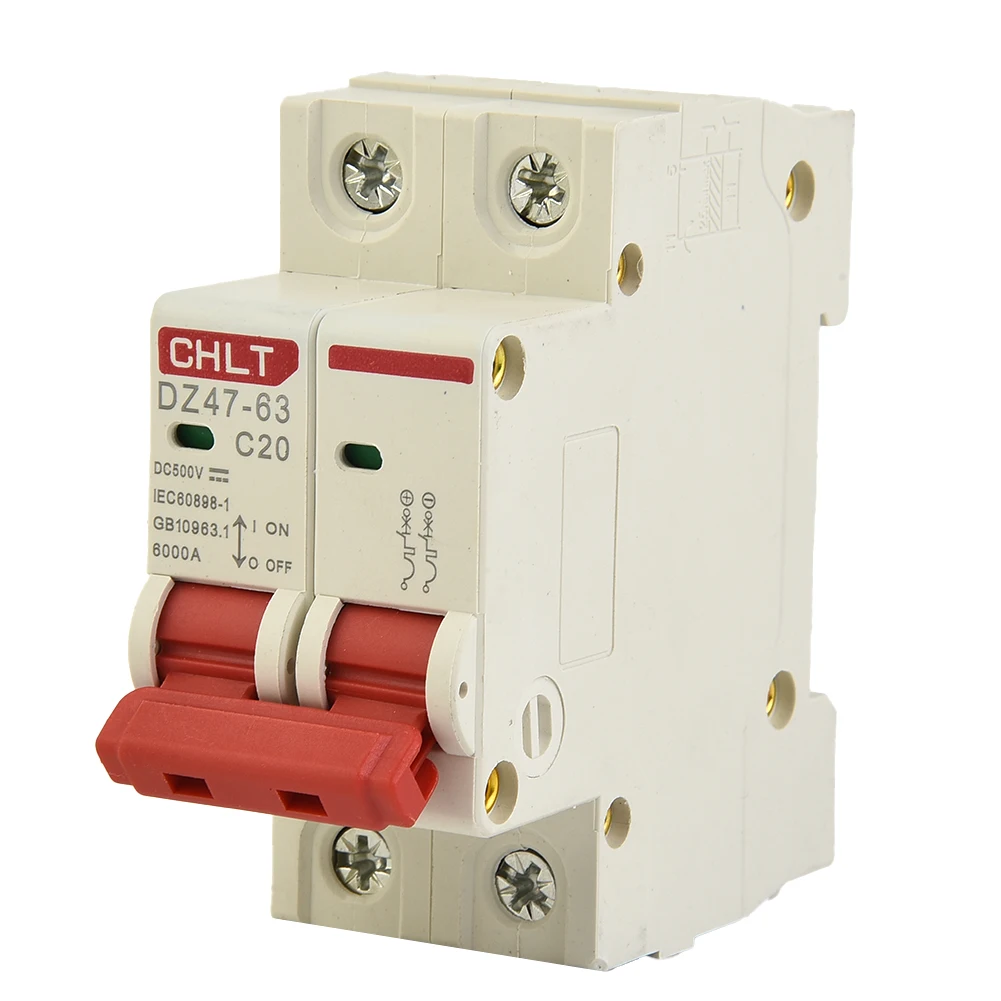

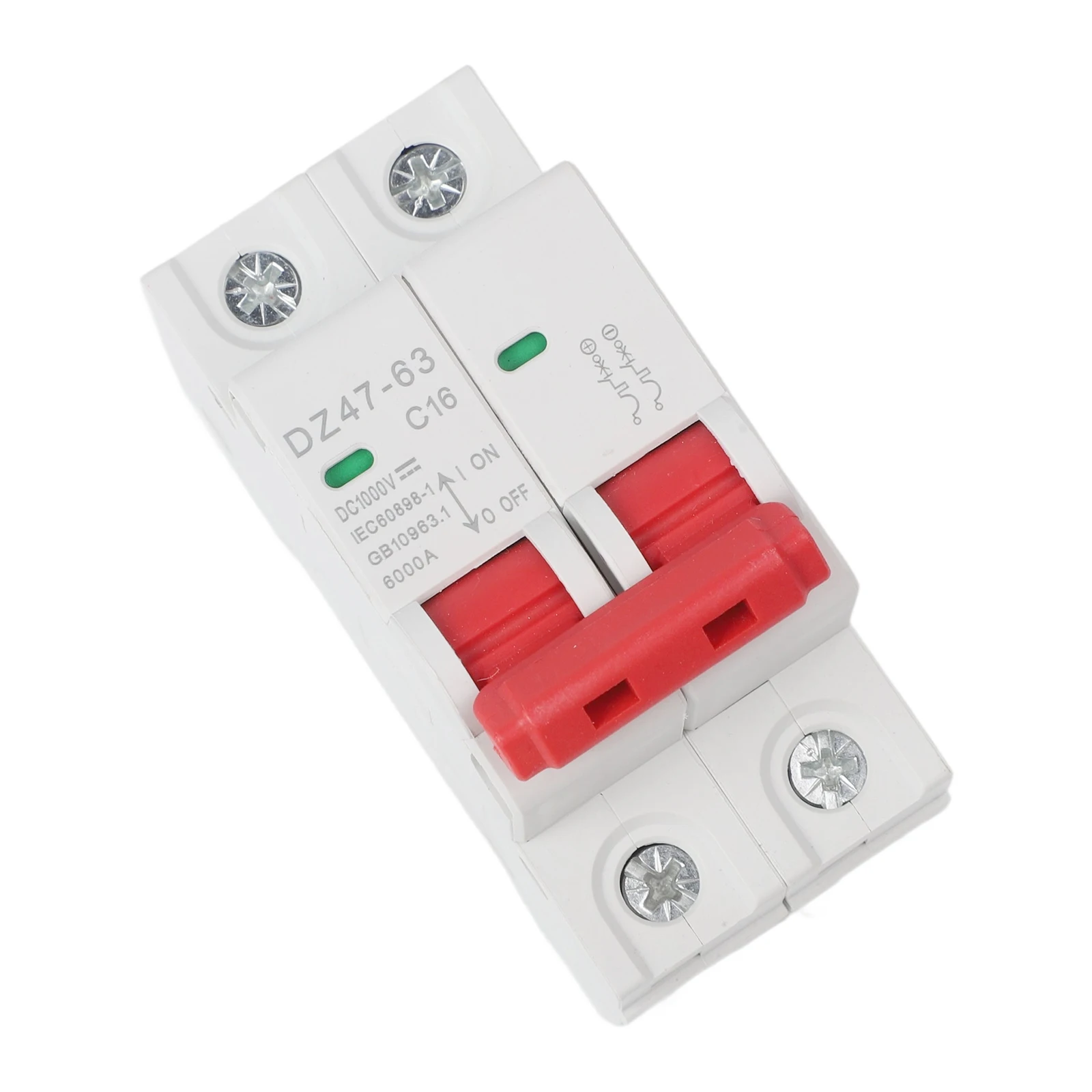

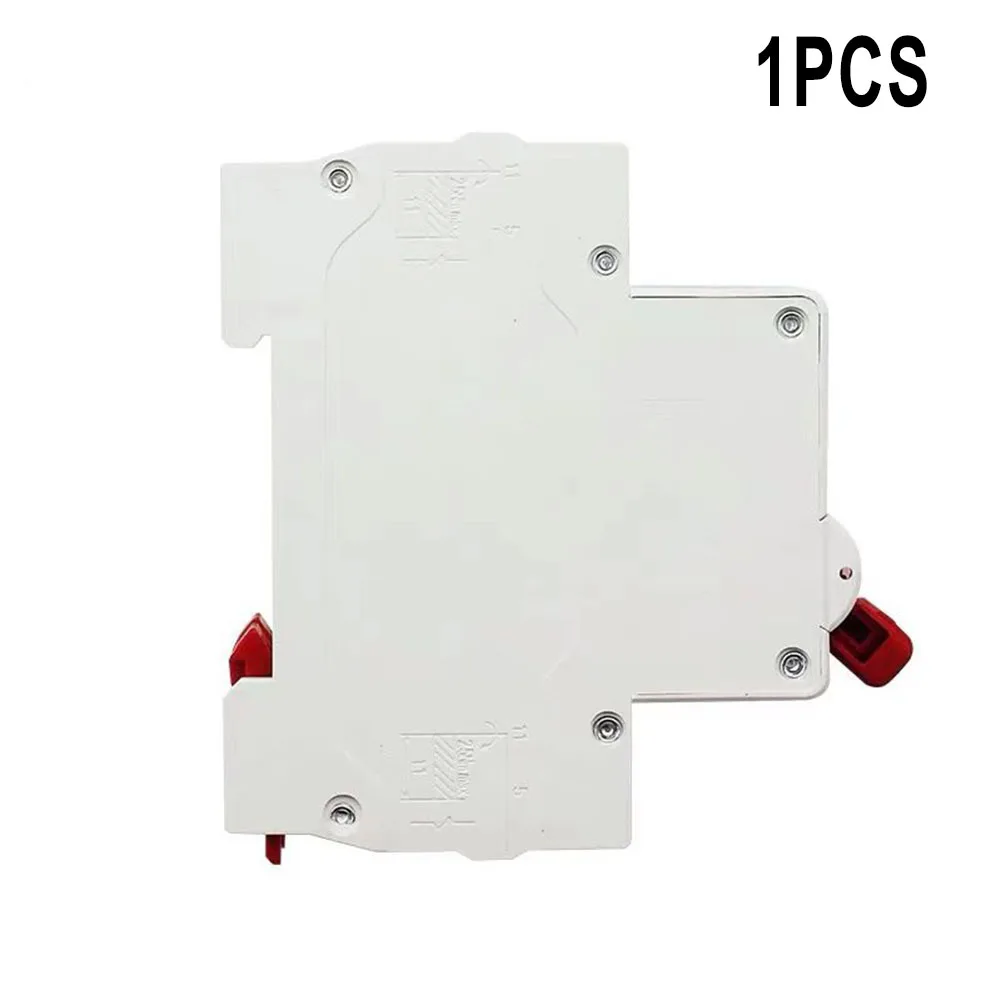

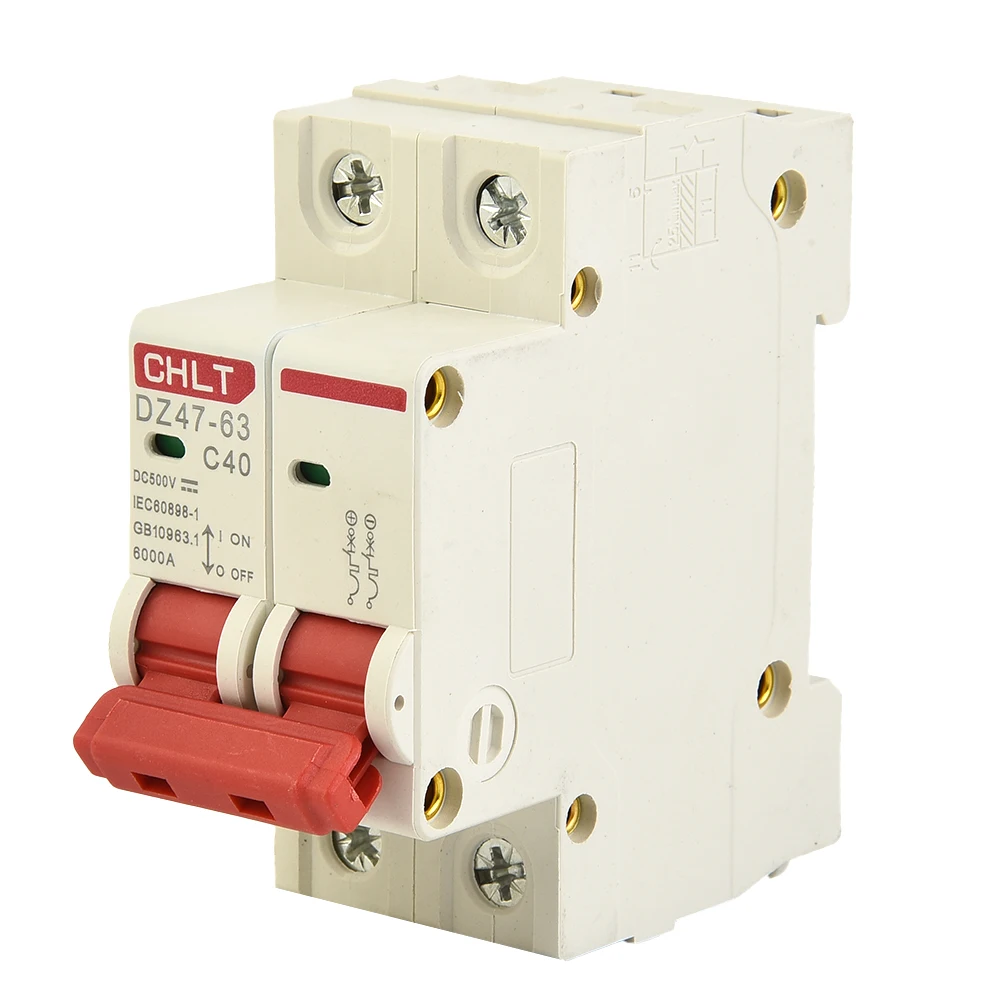

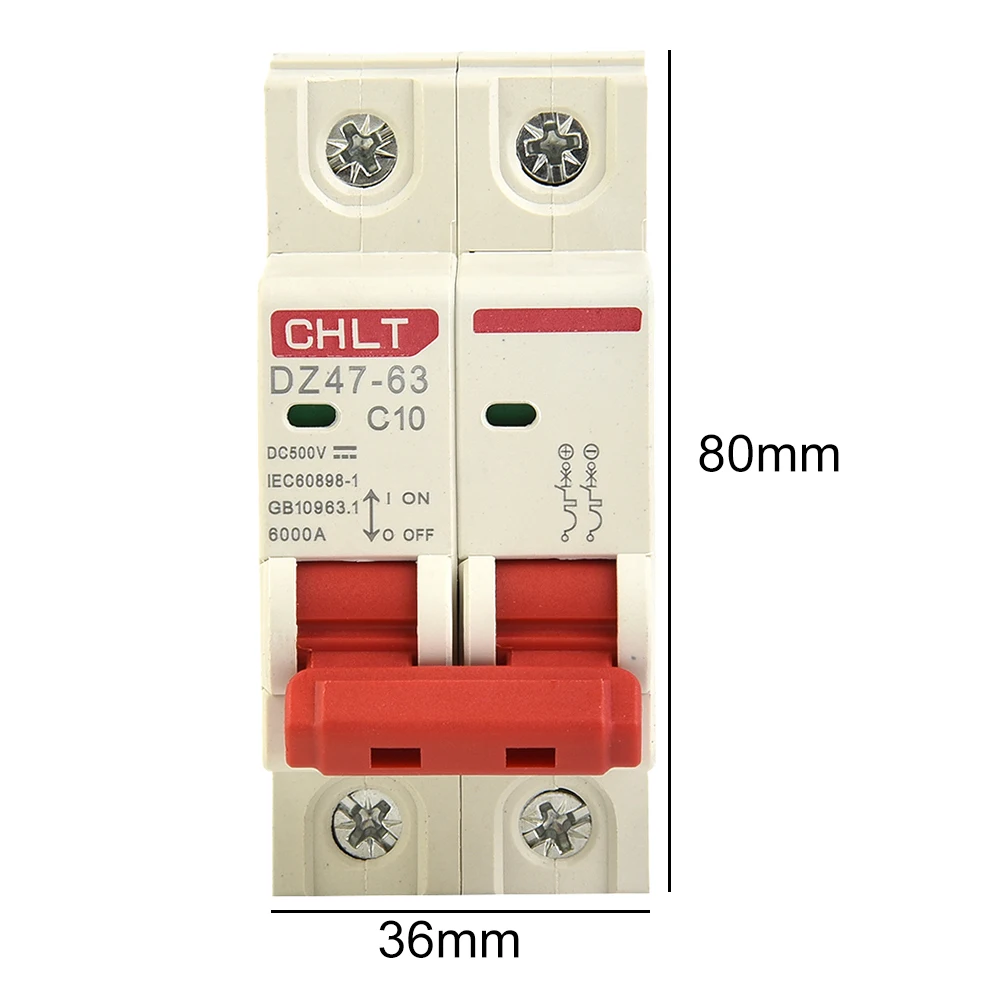

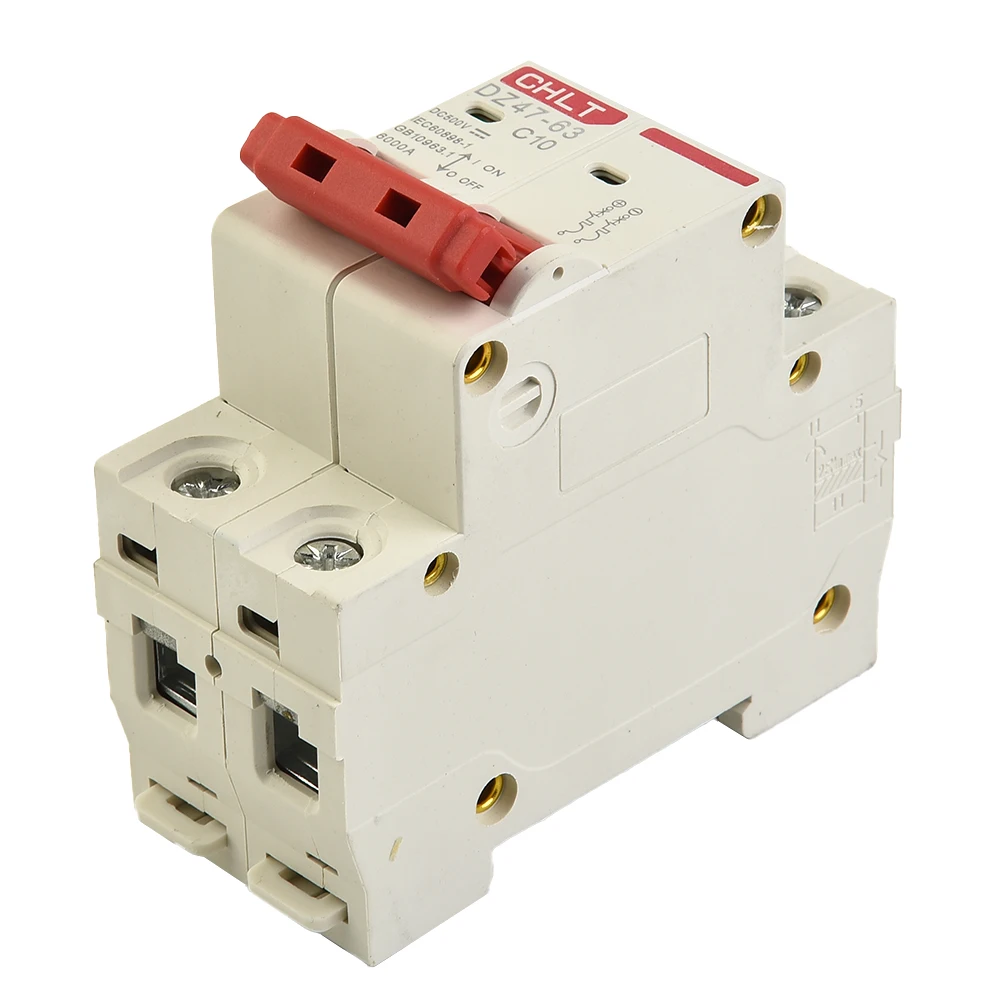

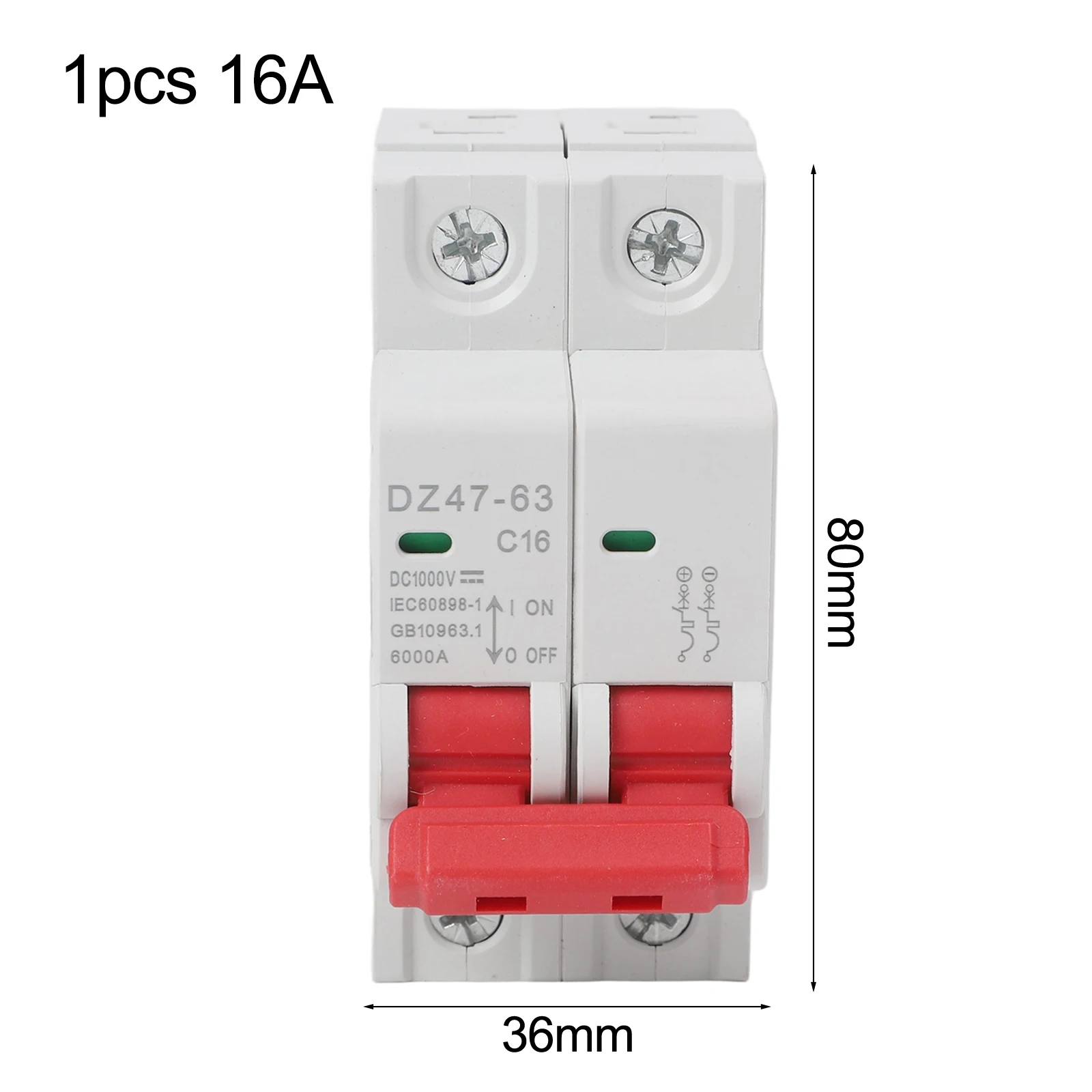

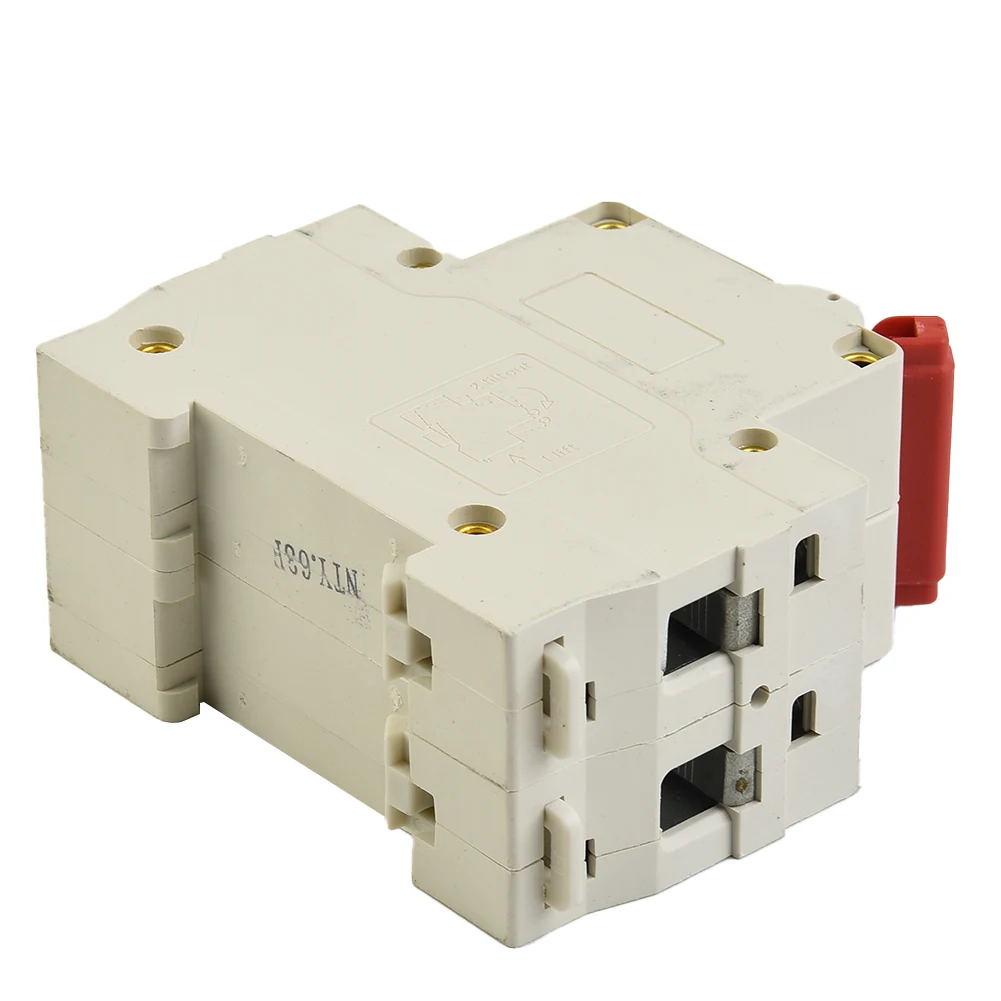

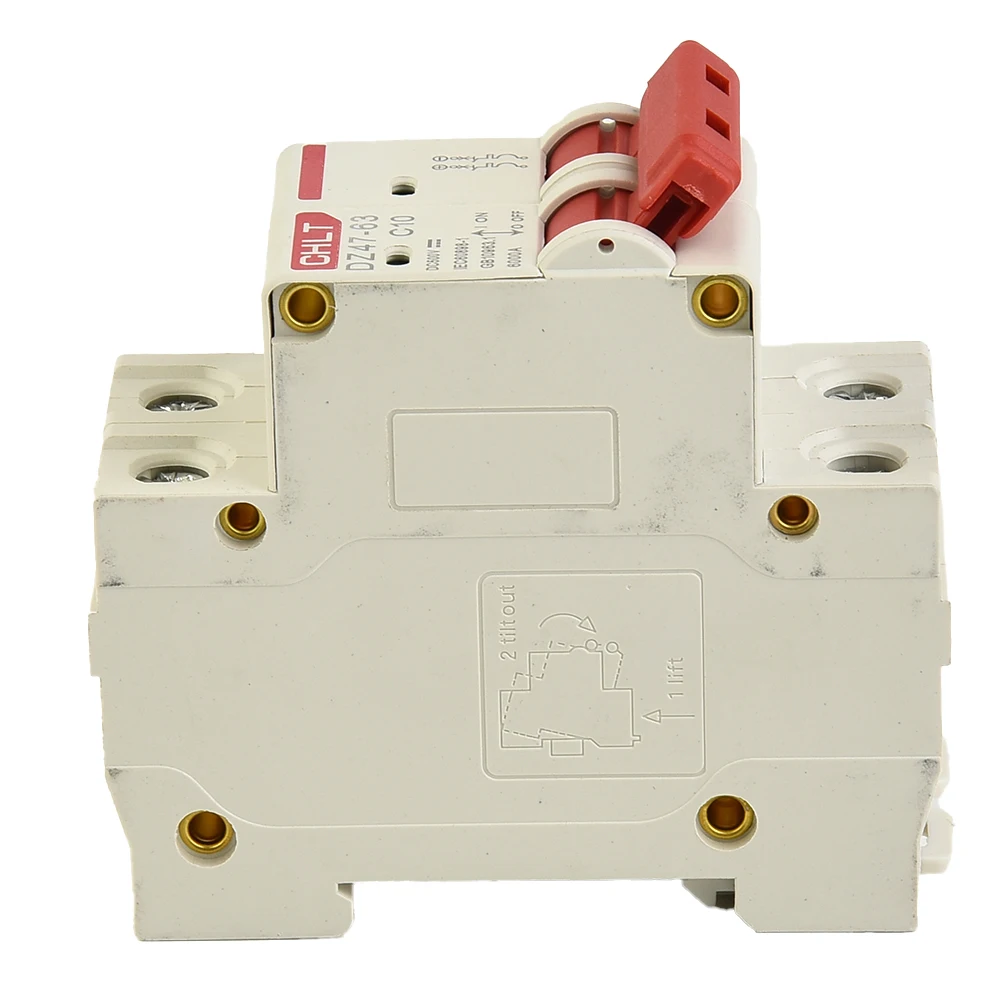

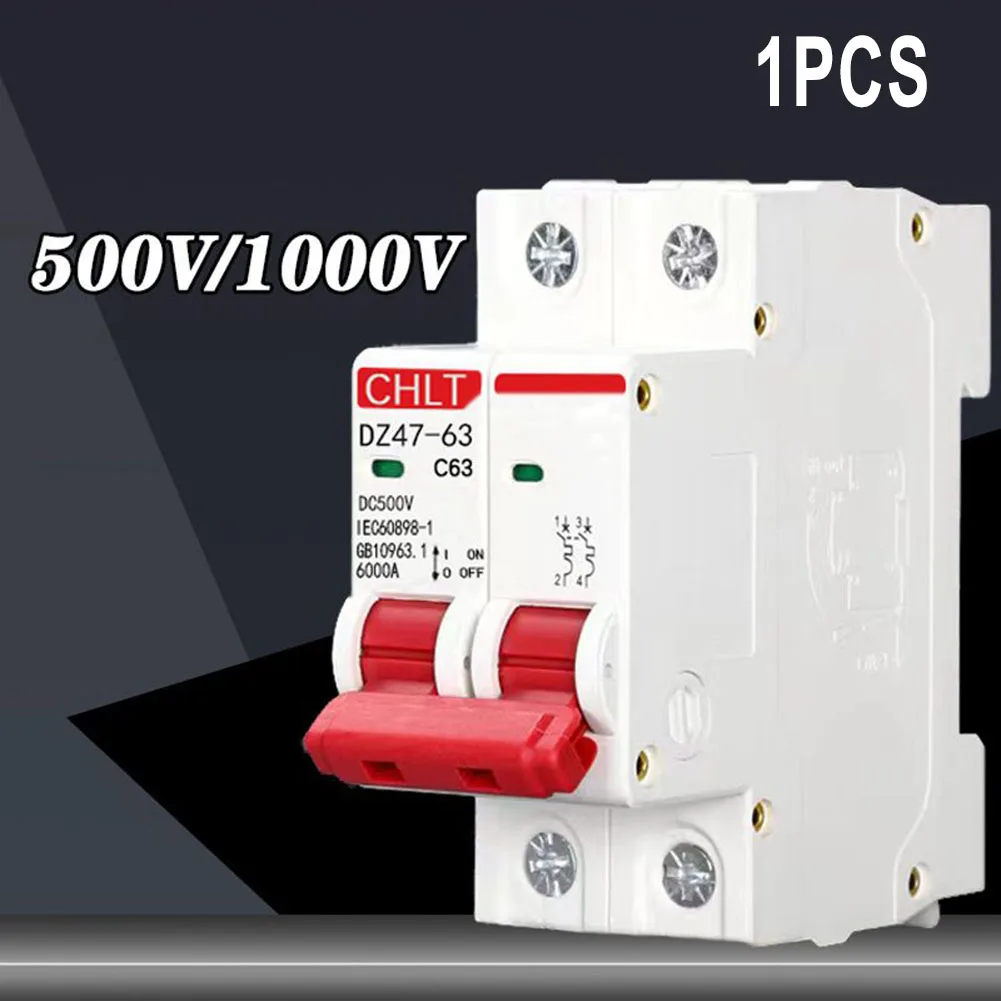

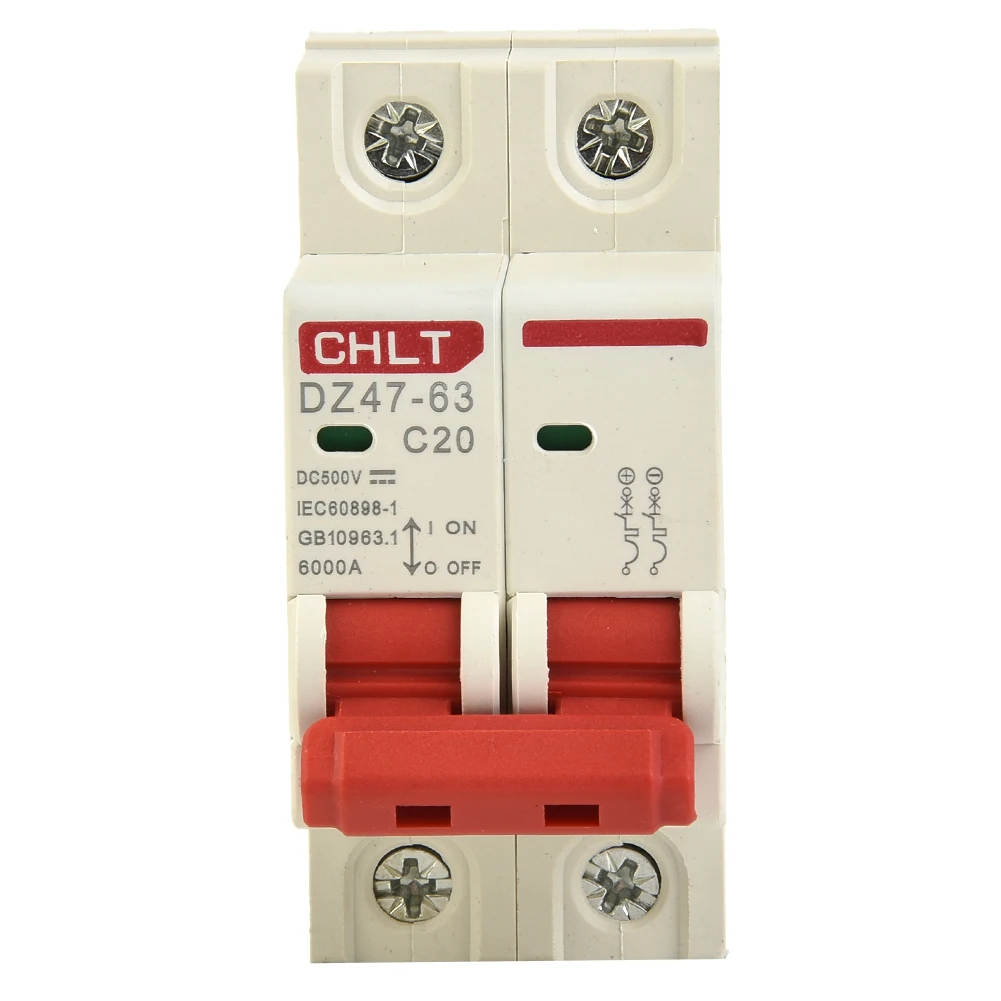

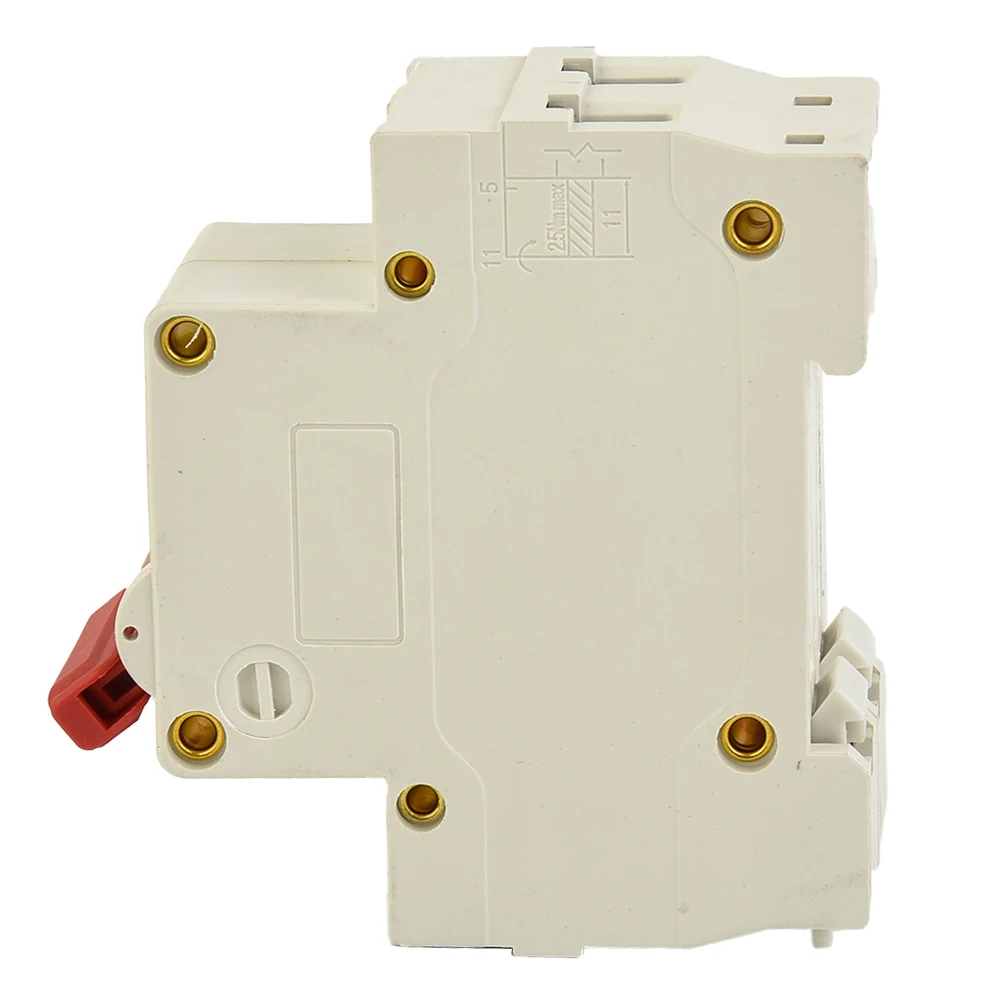

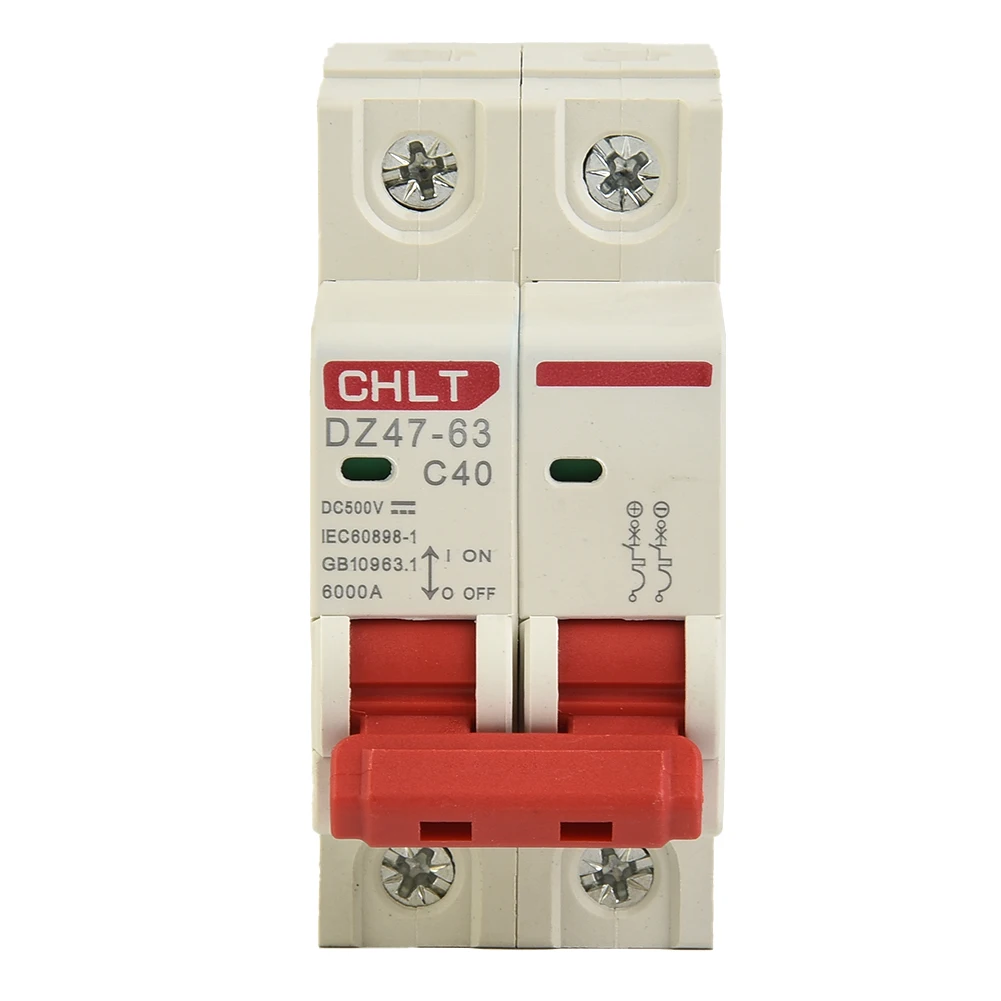

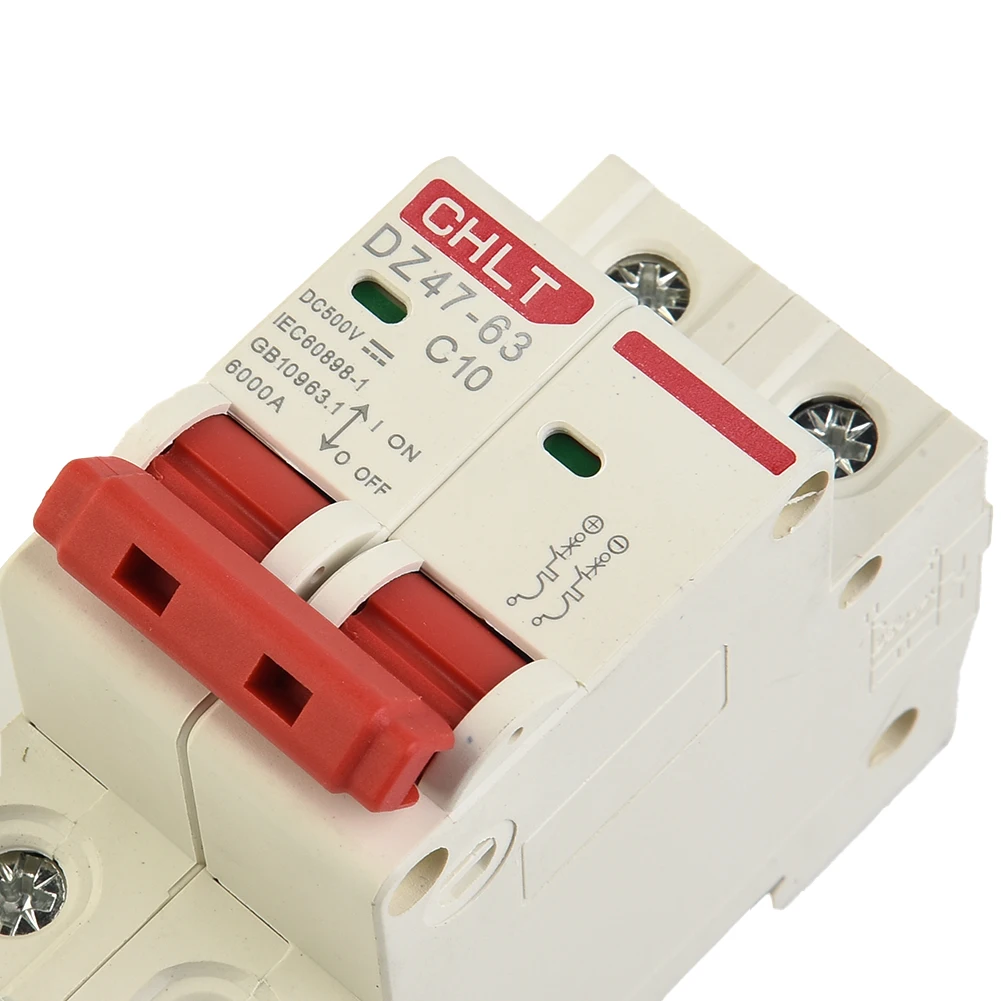

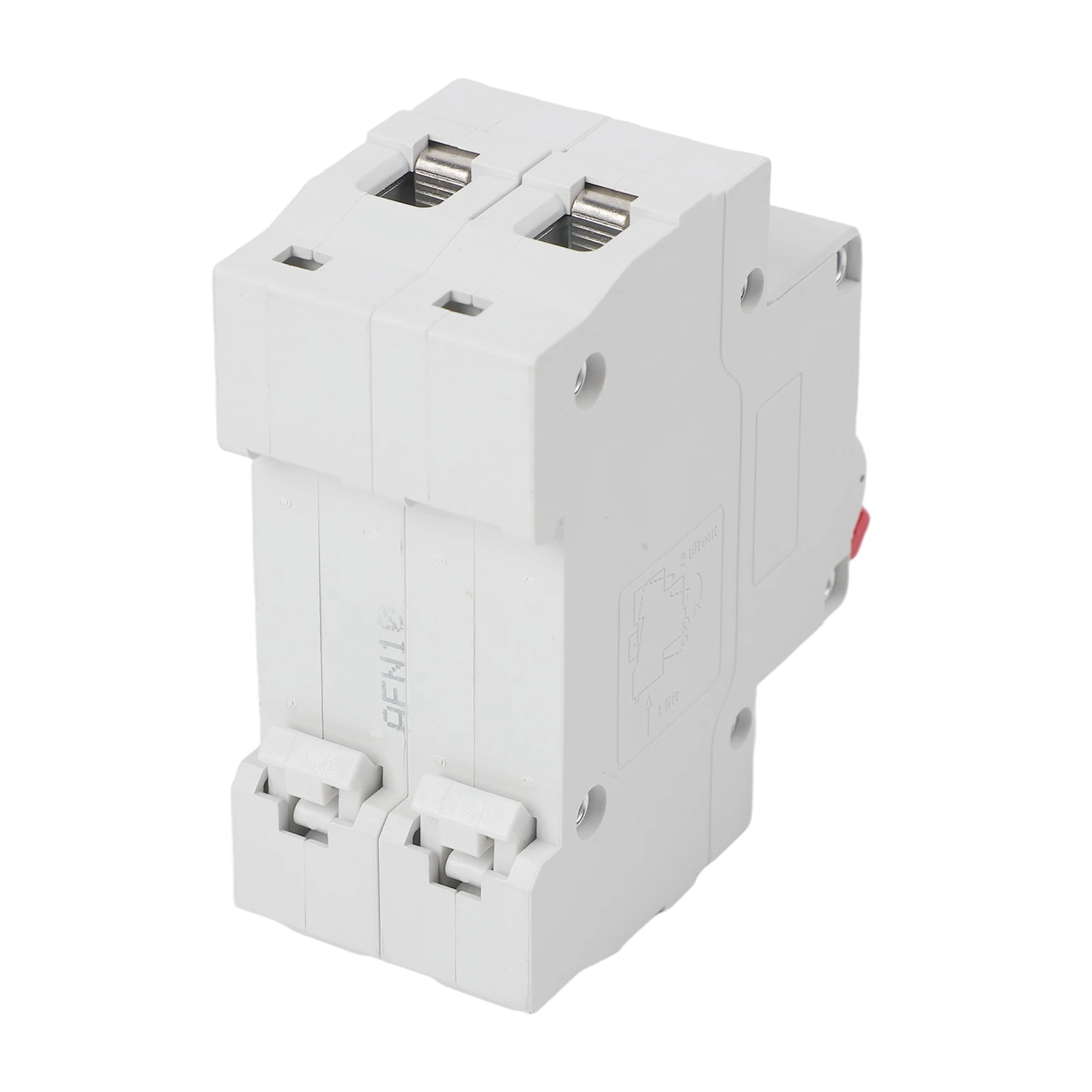

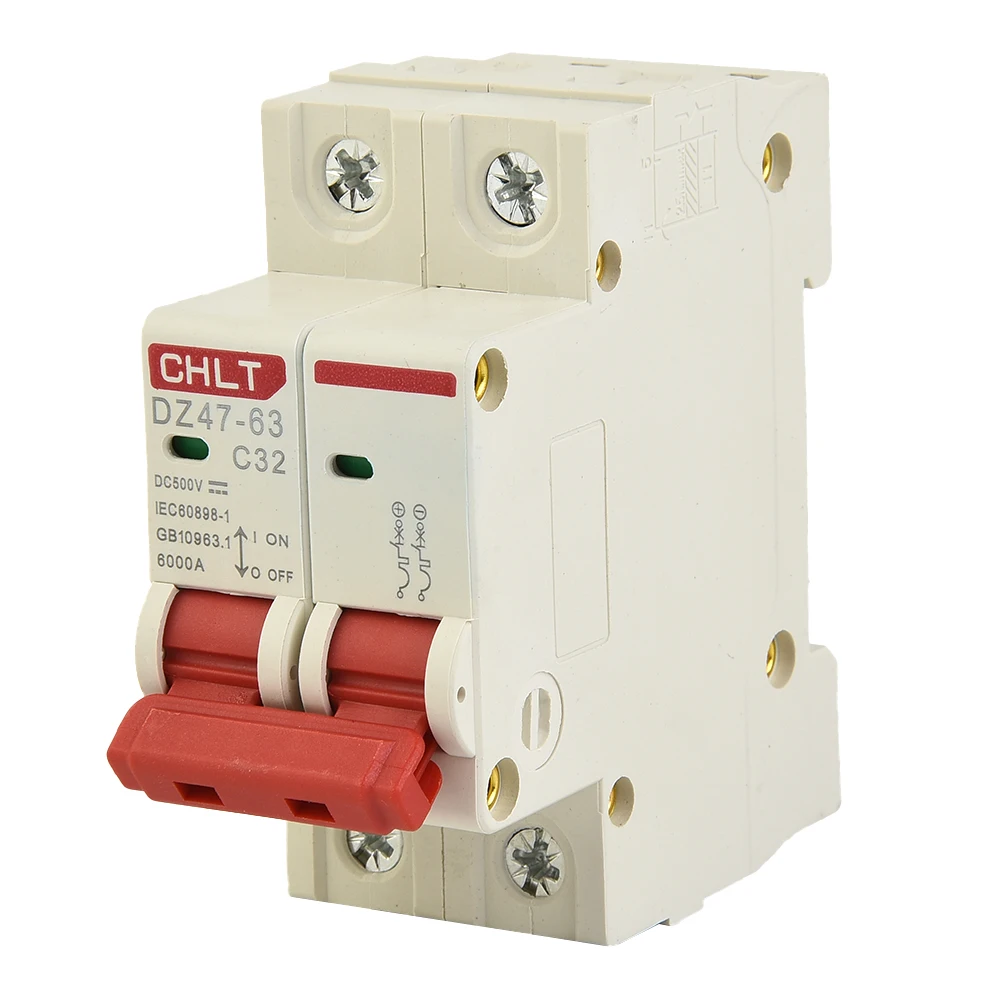

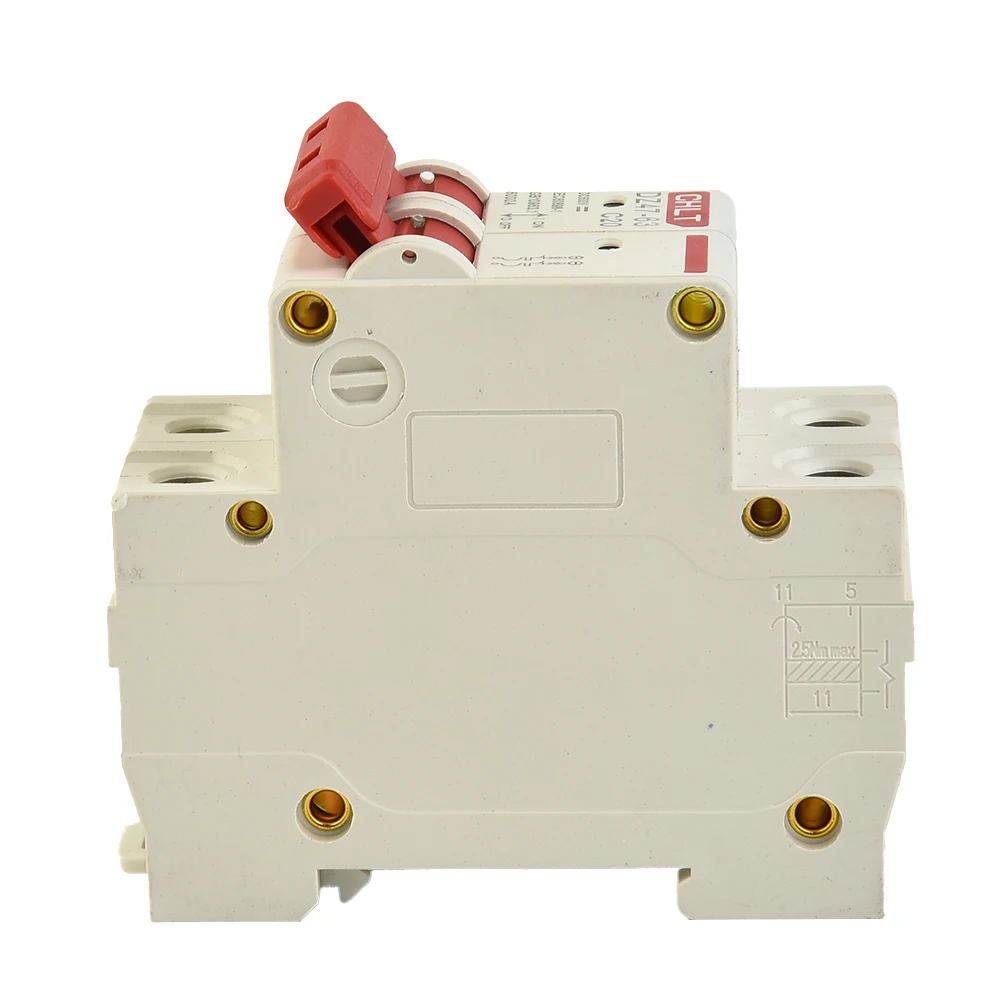

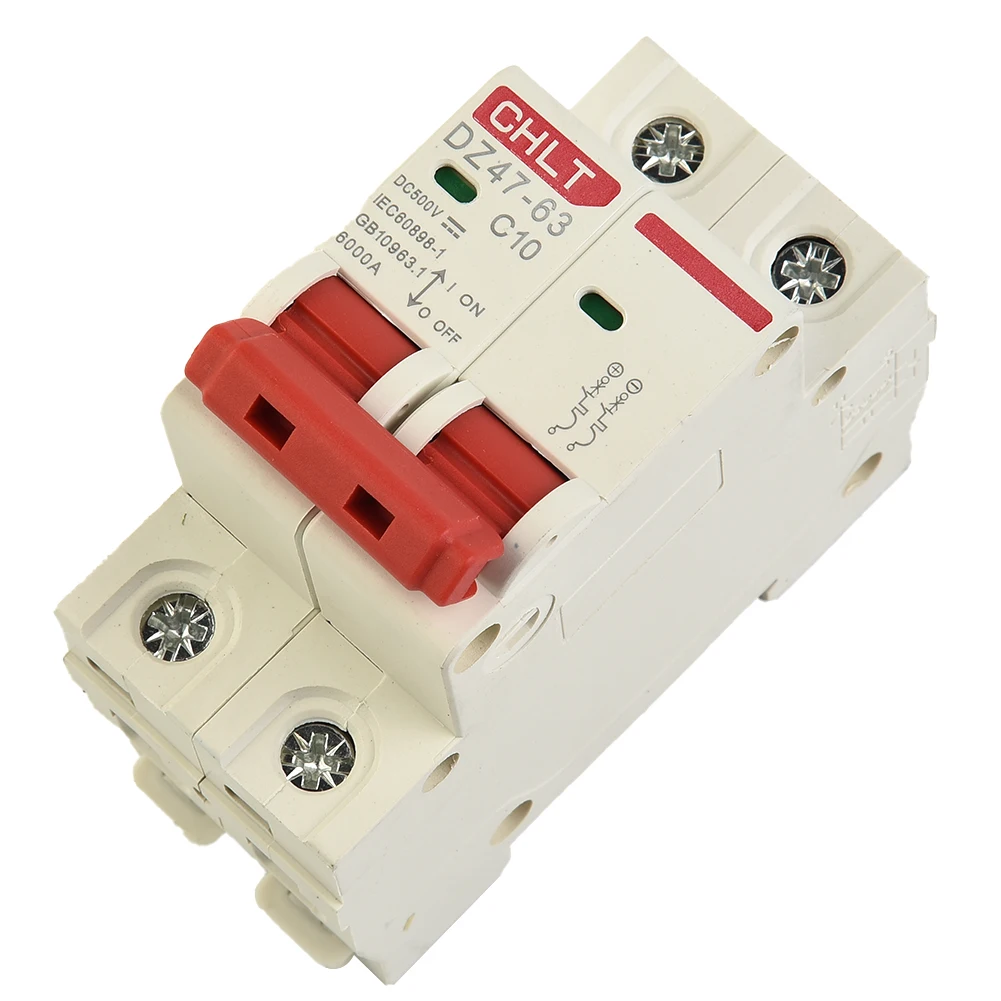

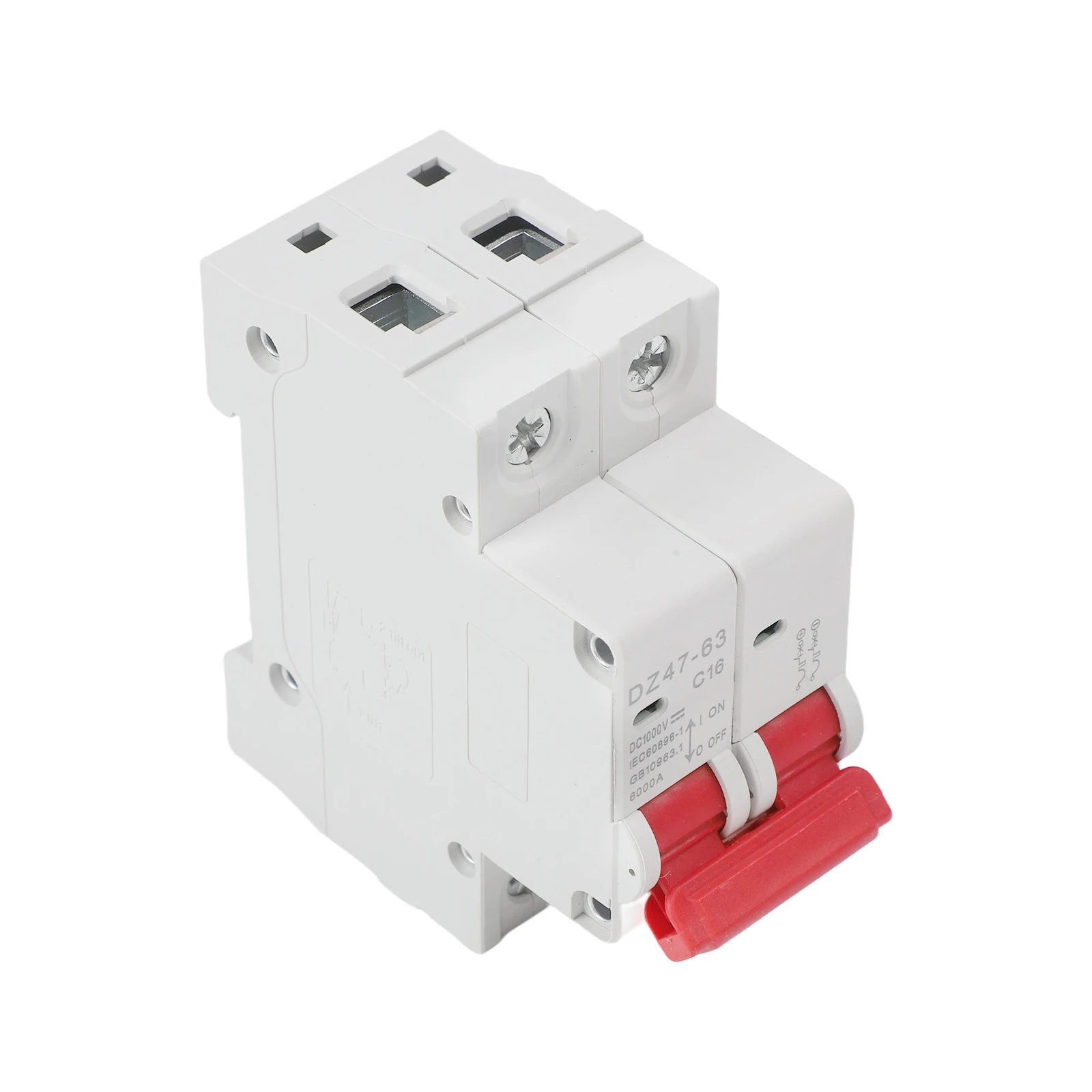

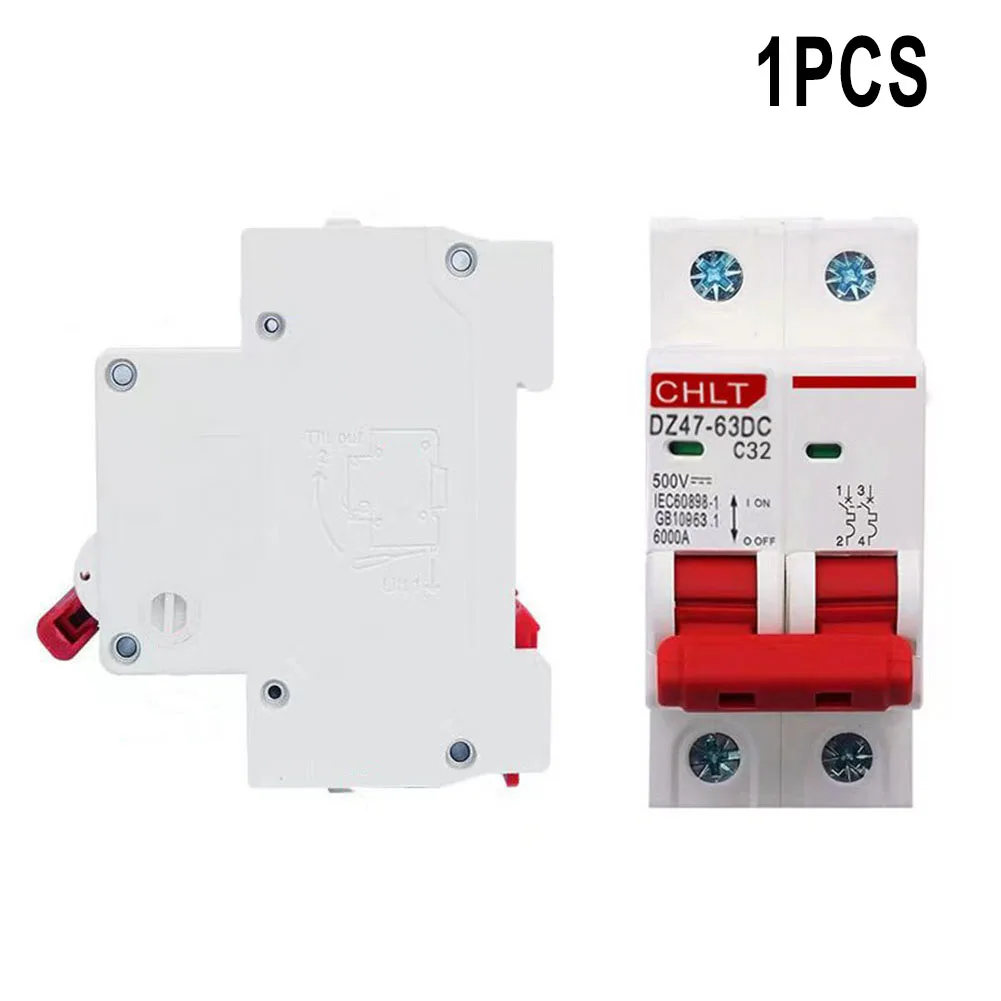

Solar PV Circuit Breaker 2 Pole DC MCB Rated At 500V With Overcurrent Protection Available In 10A To 63A Models

Features:

– and
– Made of materials,
– Excellent breaking capacity.
– Dual connection function of and bus.
– the circuit from overload currents.
– the circuit from short-circuit currents.

Specification:

– : switch
– Applications: Charging/Power, Commercial, Control Equipment Panels, Wires

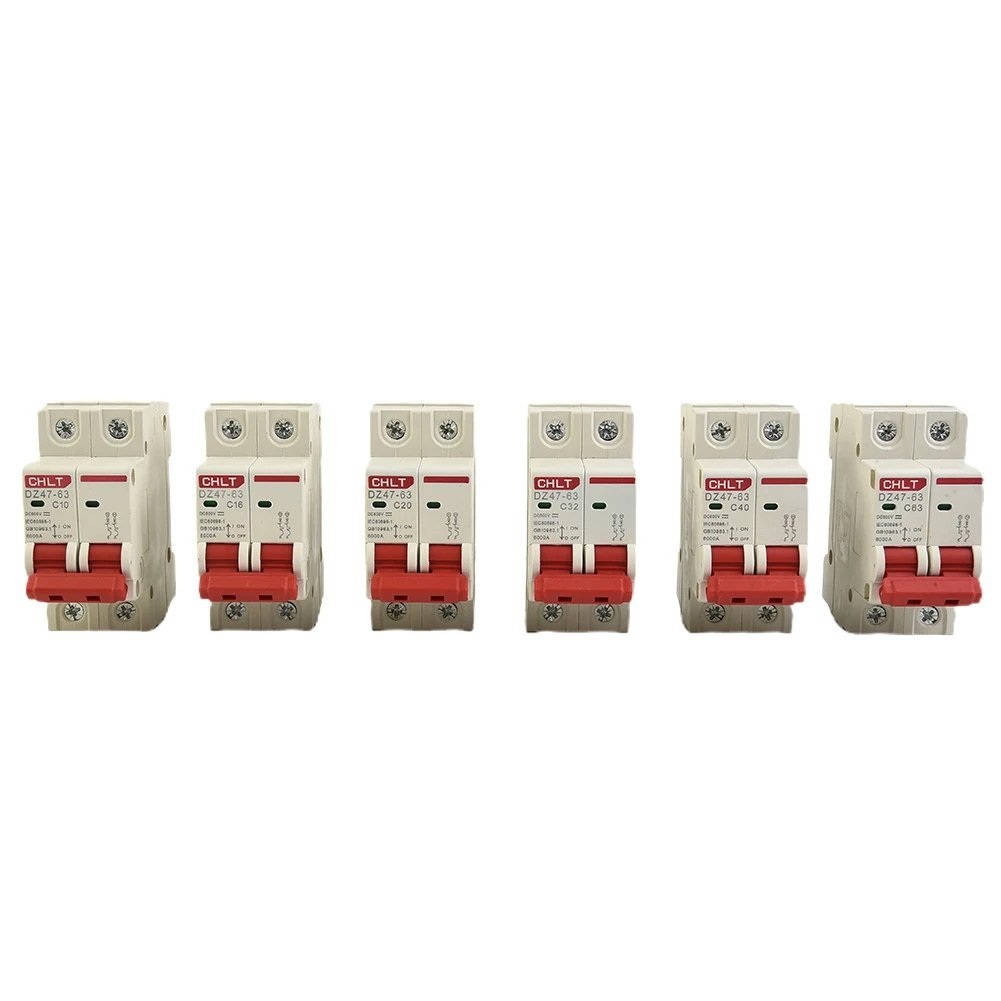

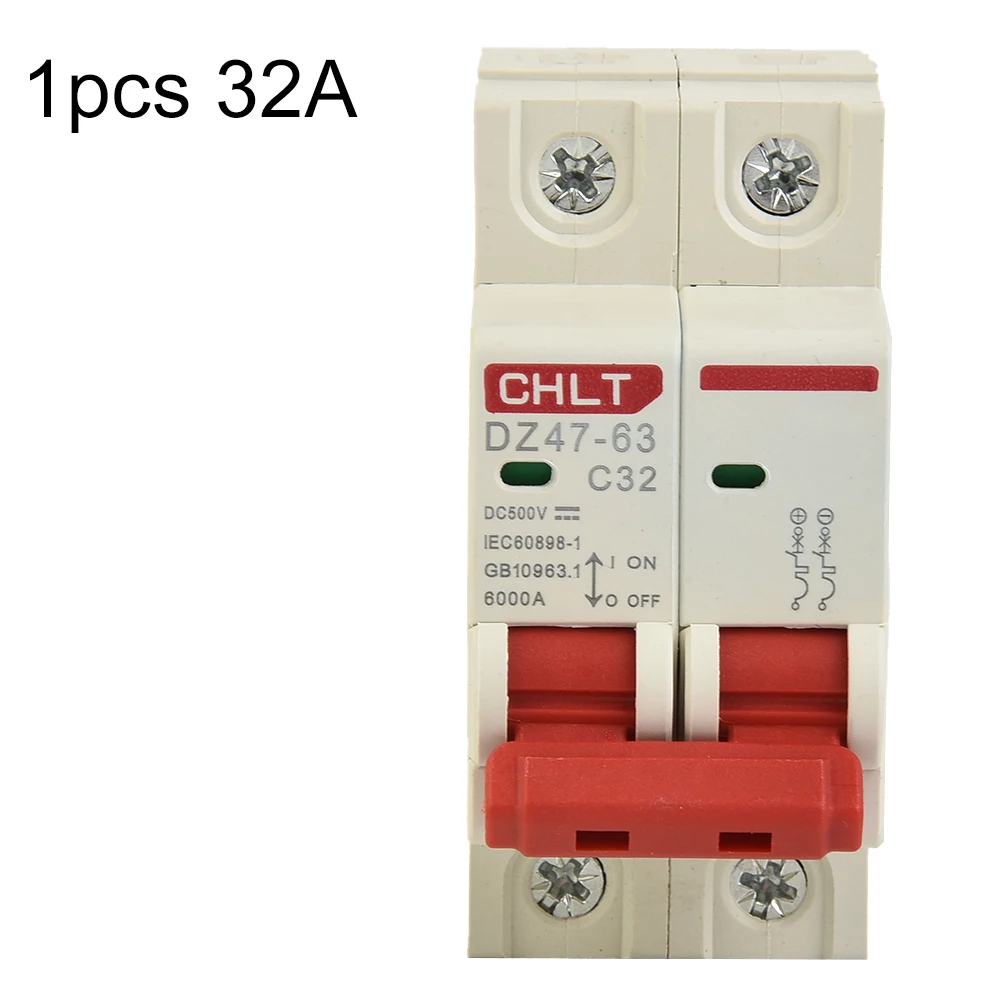

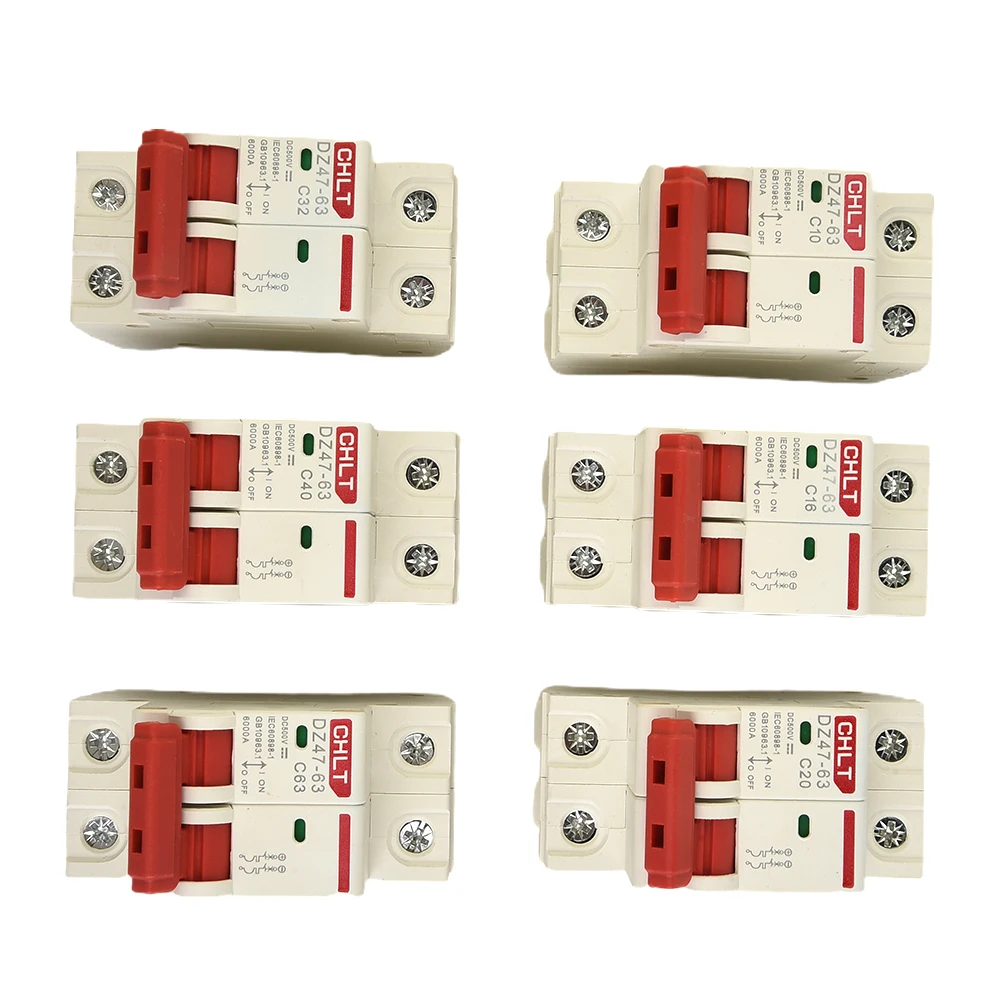

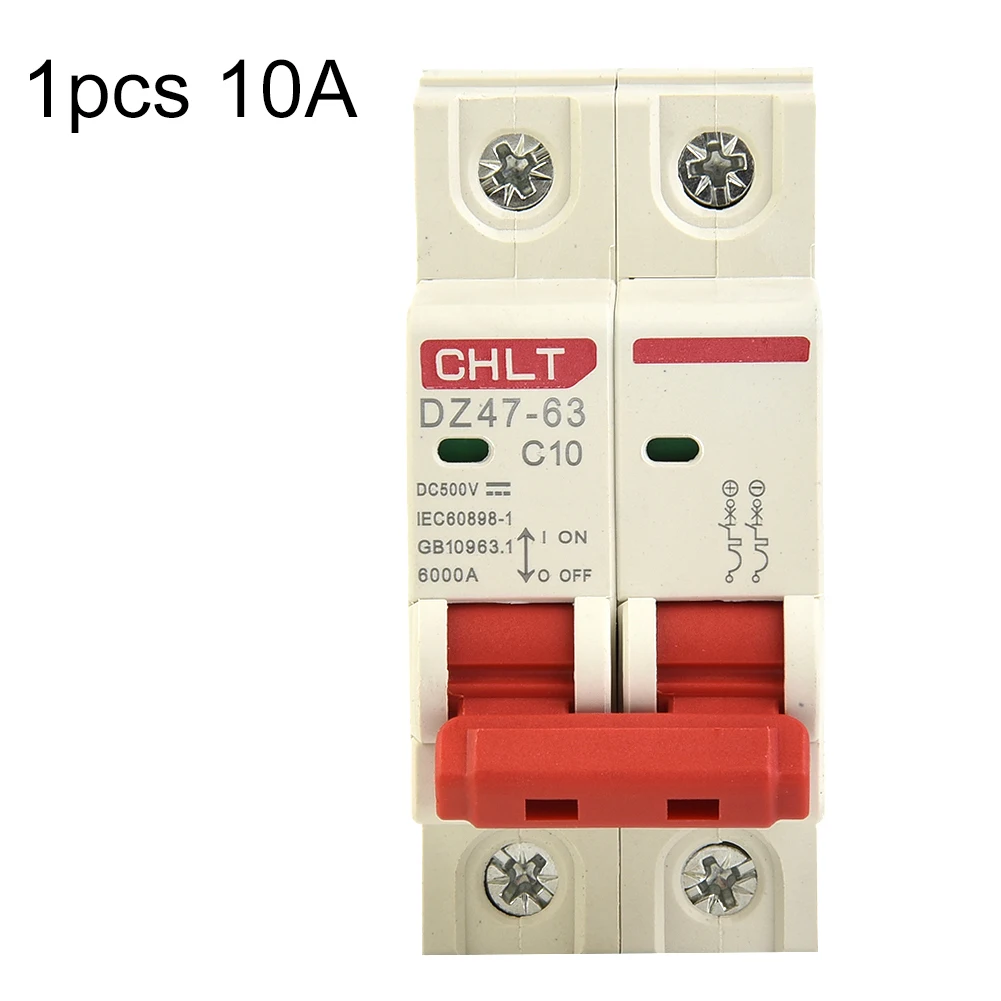

– Model: 2P 10A, 2P 16A, 2P 20A, 2P 32A, 2P 40A, 2P 63A (optional)
– Maximum current: 63A
– Current type: DC
– Material: ABS/plastic
– Number of poles: 2 poles
– Project Type: Circuit Breaker
– Instantaneous tripping characteristics: Type C
– Trip mode: overcurrent trip device
– Breaking capacity: 6kA
– Release accessories: undervoltage release
– Tripping characteristic: C
– Material: nylon flame retardant
– Rated voltage: DC500V
– for protection type: short circuit for protection
– Wiring : front wiring
– Installation : fixed

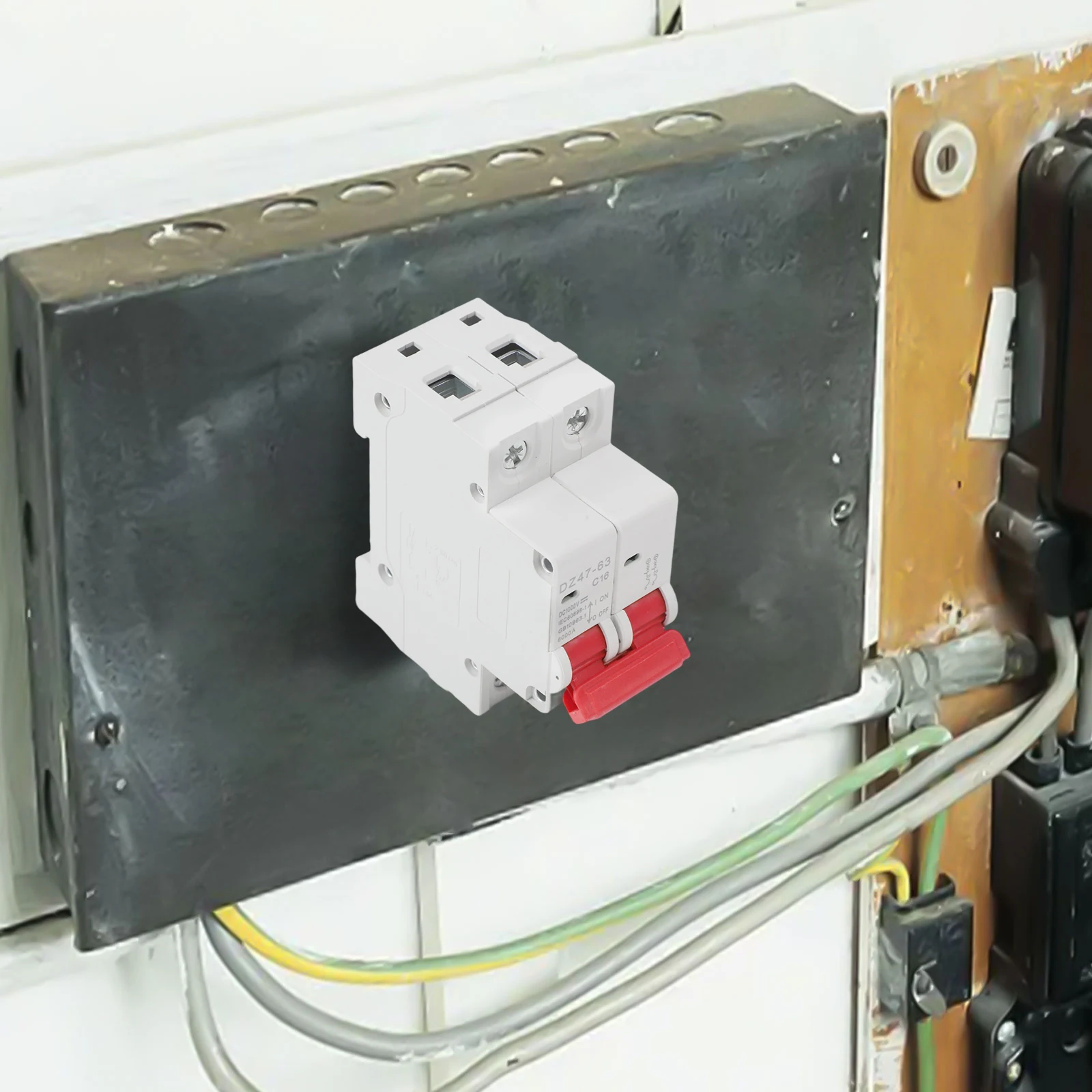

– Application scenario: terminal power distribution

Package Included:

1 * circuit breaker (optional)

Notes:

1. Due to various factors such as display brightness and light brightness, the actual color of the product may be slightly different from the website picture.
2. Please allow a slight deviation between the data and the manual measurement.
