Description
This product contains only 1Pair Solar Panel Cable Connectors (includes 1pcs Male and 1pcs Female). Should you require additional photovoltaic connectors, click here to purchase >>>
DC 500V PV Combiner Box IP65

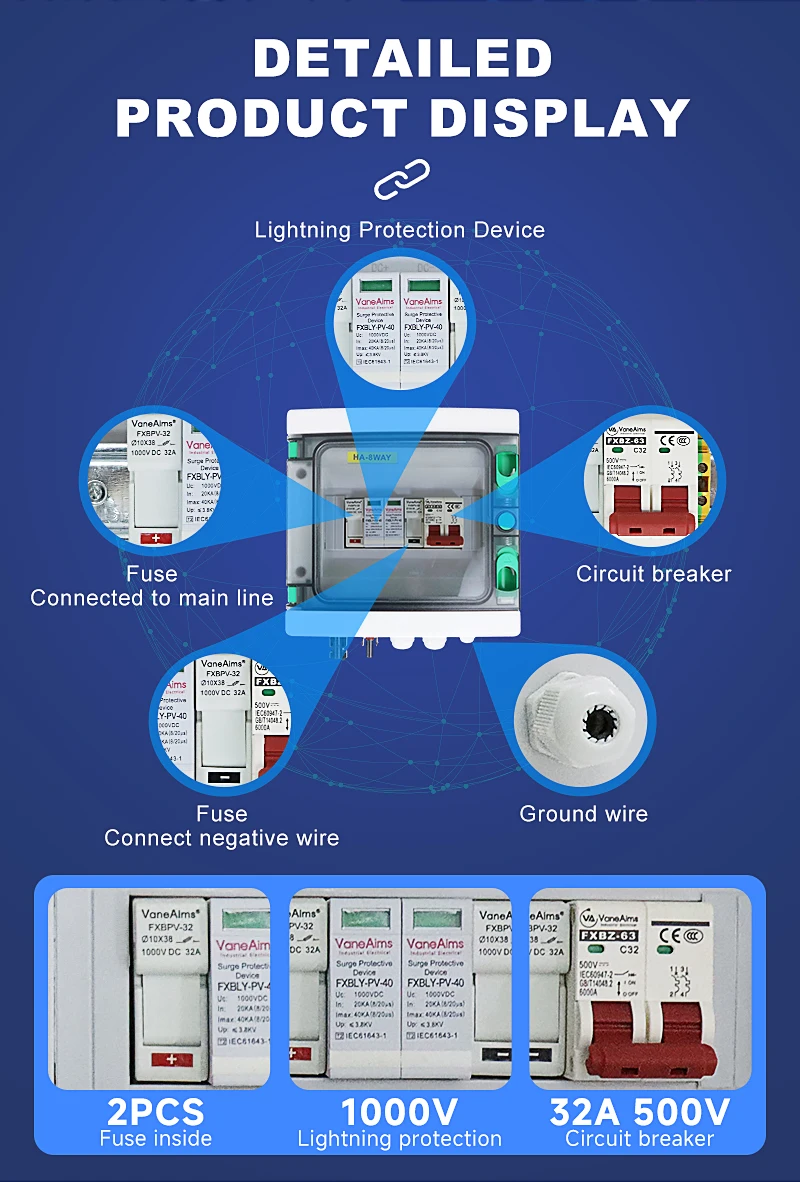

Include: 1000V Fuse holder with 15A fuse, 2P DC 500V MCB, 2P DC 1000V SPD
|

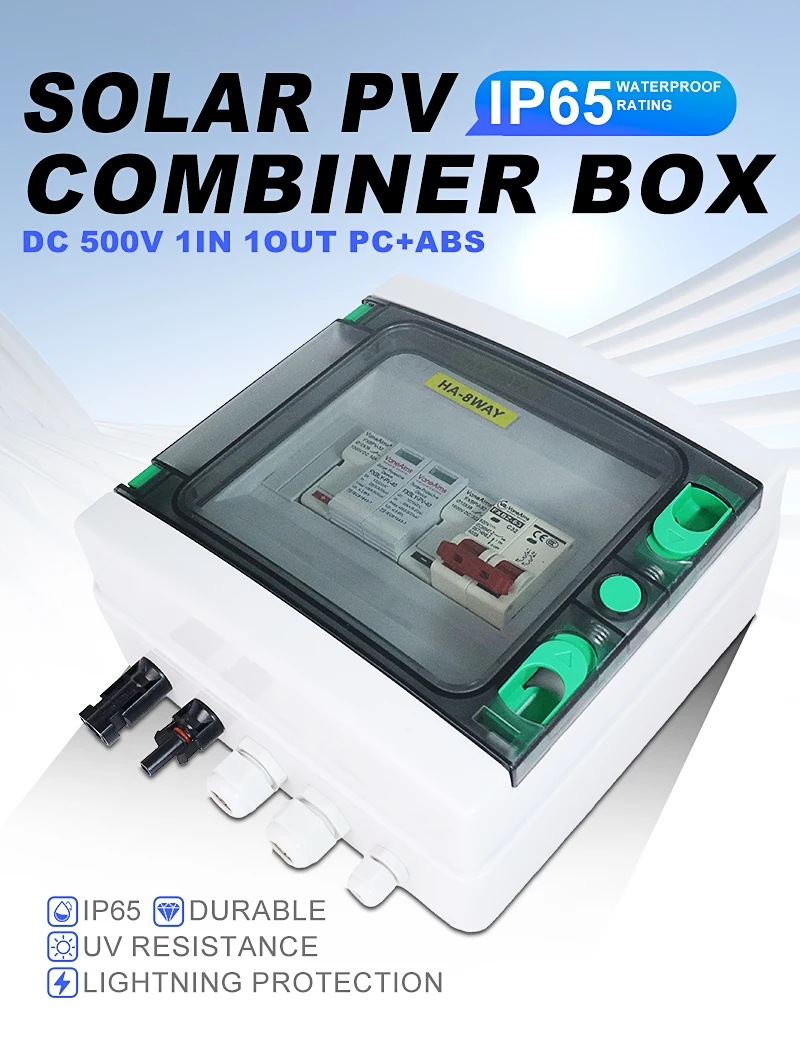

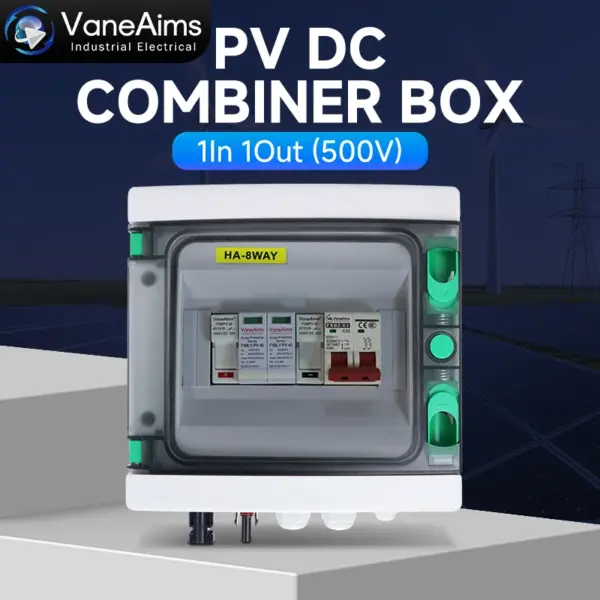

Solar PV DC 1 in 1 Out Combiner Box |
|
|
Rated voltage of photovoltaic system |
DC 500V |
|
Max input amp for each string |
15A |
|

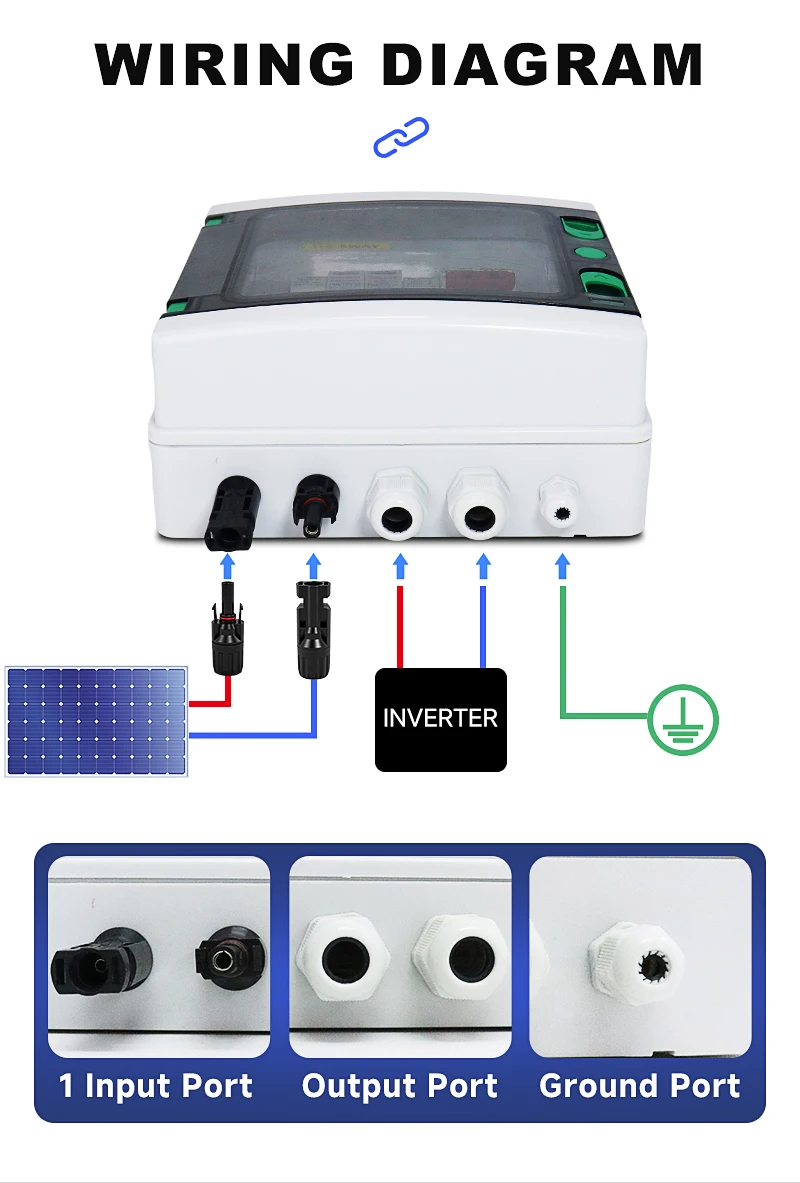

Lines |
1 input 1 output |
|
Functions |
Over-load/Short Circuit/Surge Protection |
|

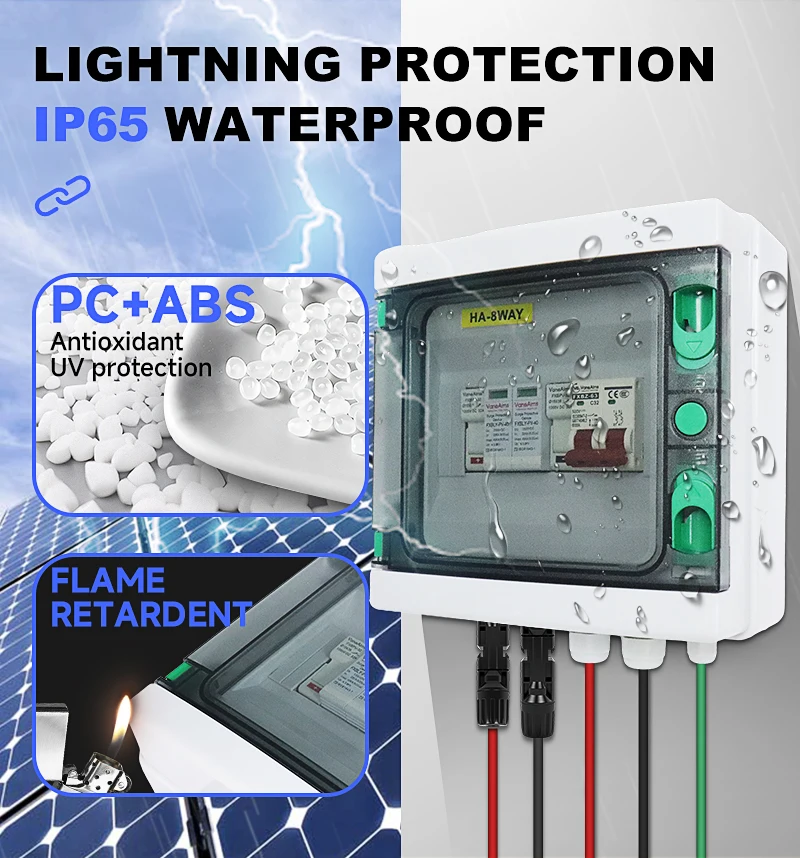

Surge Lighting protection |
|
|
Nominal discharge current |
20kA |
|
discharge current upper limit |
40kA |
|
SPD Max operation voltage |
DC1000V |
|
Poles |
2P |
|
Response time |
0.01s |
|
System |
|
|
Protection grade |
IP65 |
|
Output switch |
DC circuit breaker |
|
Box material |
PC+ABS |
|
Installation method |
Wall mounting type |
|
Installation |
indoors/outdoors |
|
Functions |
UV RESISTANCE / DURABLE / Waterproof IP65 |
|

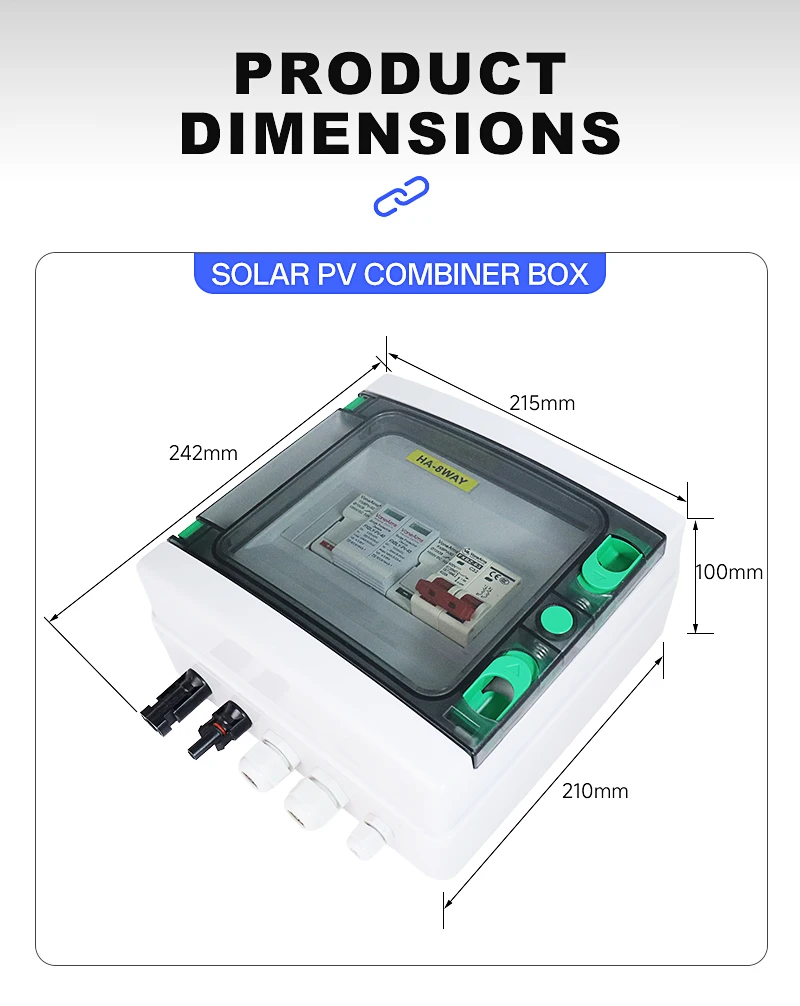

Dimension of Box Only |
|
|
Length*Width*Height(mm) |
215*210*100 |
