Description
Blank:Rubber bumper
A:Air cushion
SMC Type CDM2B Mini Stainless Steel Pneumatic Air Cylinder
Features:
1.CM2 series Stainless Steel Cylinder Pneumatic .
2.Equivalent to SMC CM2 series Stainless Steel Cylinder Pneumatic , with the same appearance.
3.Bore size(mm): 20, 25, 32, 40.
4.Double acting, Single/Double rod
5.Rubber bumper, or with adjustable air cushion at both ends(Option).
6.Built-in magnet is optional.
7.Cylinder kits, barrel, piston is available.

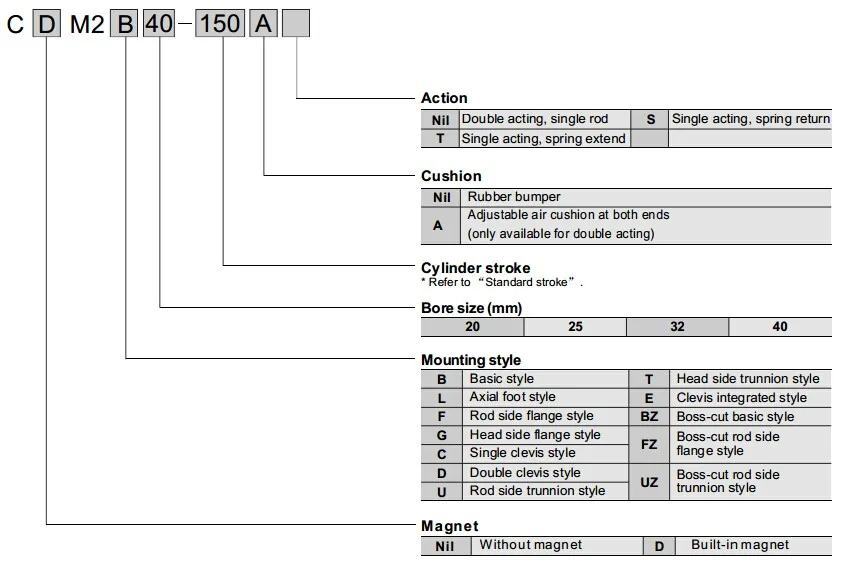

How To Order:
Specification:
|
Bore size (mm) |
20 |
25 |
32 |
40 |
|
|
Fluid |
Air |
||||
|
Action |
CM2 |
Double acting, Single/Double rod |
|||
|
CM2-S/T |
Single acting, Single rod, Spring return/extend |
||||
|
Minimum operating pressure |
Double acting |
0.05 MPa |
|||
|
Spring return |
0.18 MPa |
||||
|
Spring extend |
0.23 MPa |
||||
|
Maximum operating pressure |
1.0 MPa |
||||
|
Proof pressure |
1.5 Mpa |
||||
|
Ambient and fluid temperature |
-20 to 80°C (No freezing) |
||||
|
Cushion |
Double acting |
Rubber bumper |
|||
|
Adjustable air cushion at both ends |
|||||
|
Single acting |
Rubber bumper |
||||
|
Lubrication |
Non-lube |
||||
|
Piston rod dia. |
8 mm |
10 mm |
12 mm |
14 mm |
|
|
Rod end thread |
M8x1.25 |
M10 x 1.25 |
M14 x 1.5 |
||
|
Port size |
G1/8 |
G1/4 |
|||

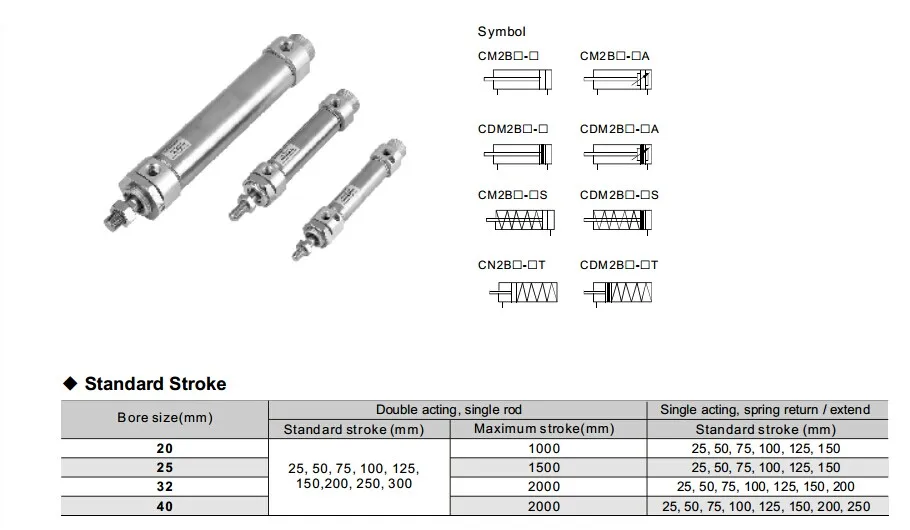

Standard Stroke:

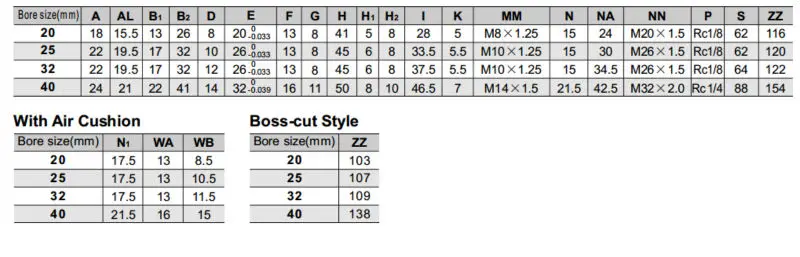

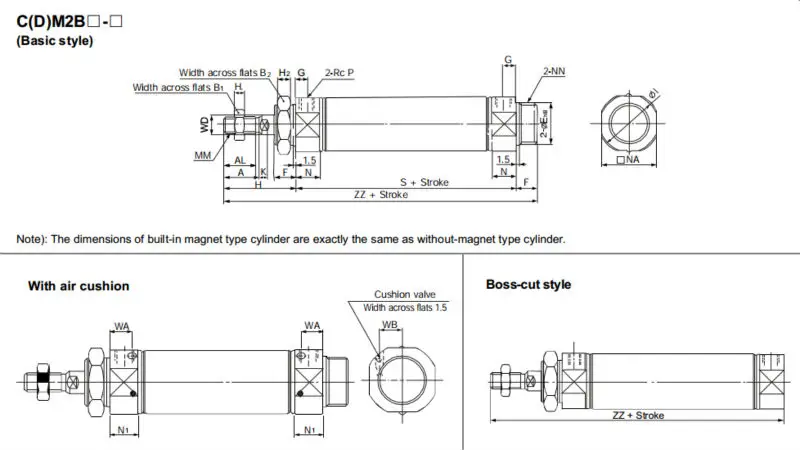

Dimensions and sizes
