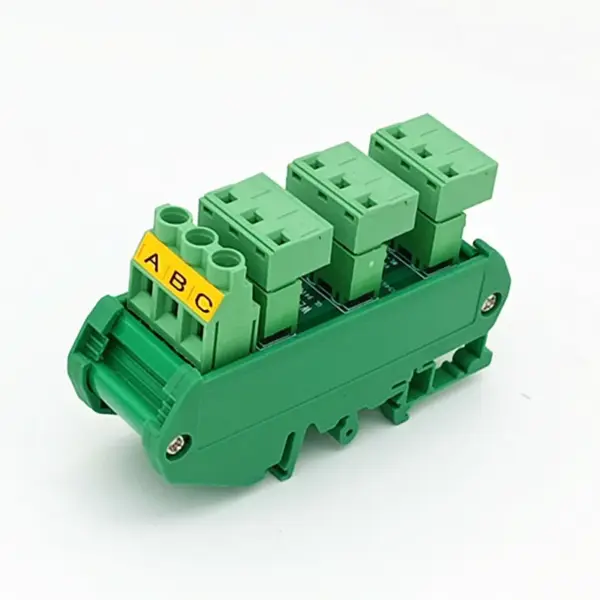

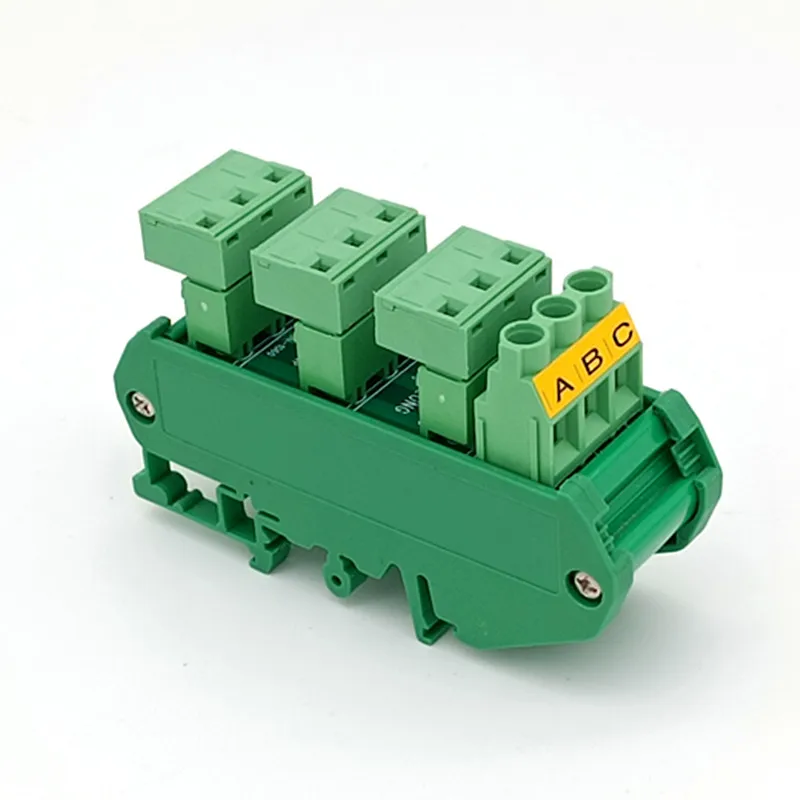

Slim DIN Rail Mount 30A/300V 3x3 Position Pluggable Terminal Block Distribution Module.

1, DIN rail mount 30Amp 300V 3×3 position screw terminal block distribution module.

2,High quality fireproof nylon material DIN rail mount carrier, can support width 35mm rail.

3,FR-4 fiber glass PCB.

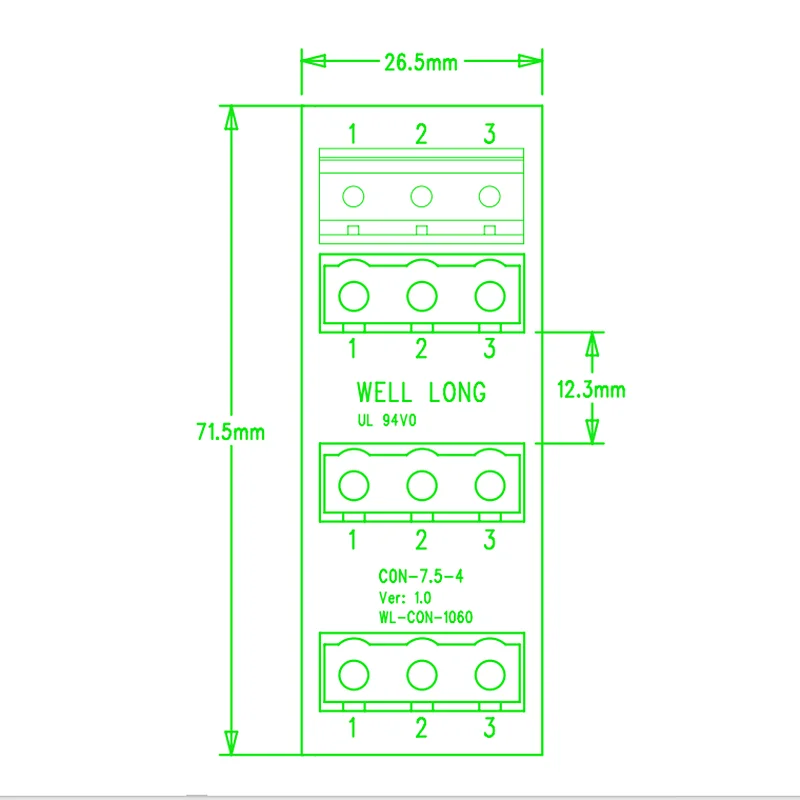

4,Product External dimensions: 89x 30x 55mm(W x L x H).

5, Terminal block INLET A / B / C positions, maximum current 30Amp(each position), maximum voltage 300V. Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4mm square. Strip length 8mm. Screws – M3,steel, Cr3+ Zn plated. Pin header and Cage – Brass.

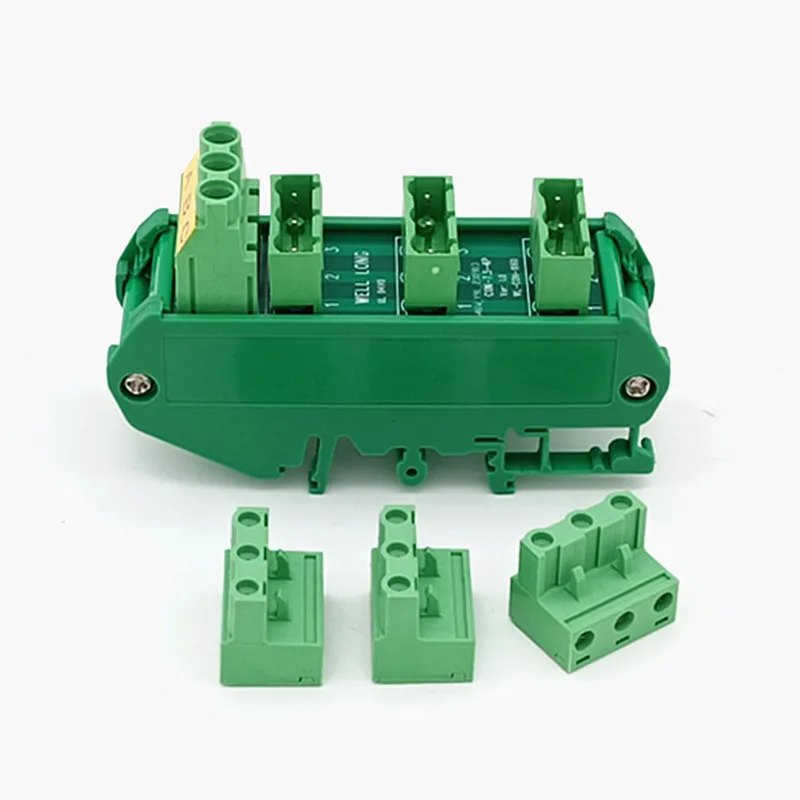

6, Pluggable screw terminal blocks, maximum current 20Amp(each position), maximum voltage 300V. Pitch 7.62mm/0.3", Wire range 28AWG ~ 12AWG / 2.5mm square. Strip length 7mm. Screws – M3,steel, Cr3+ Zn plated. Pin header and Cage – Brass.
