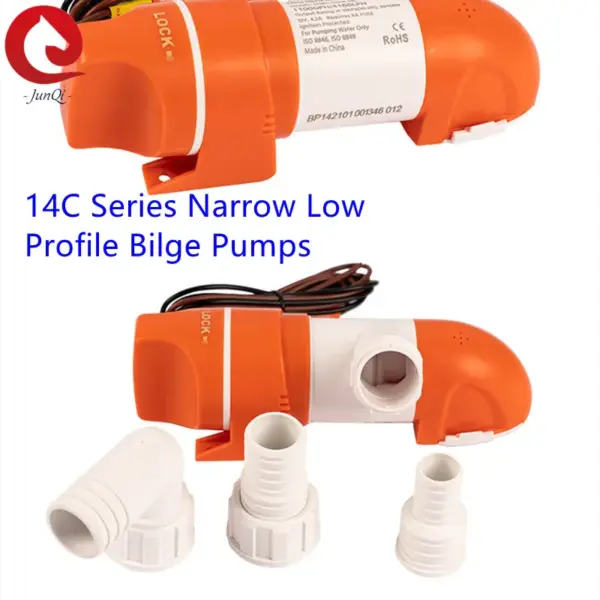

SEAFLO 14C Series Narrow Low Profile Bilge Pumps, 1100GPH/4160LPH 12V/24V Operated By Float Switch Boat Yacht Bilge Pump

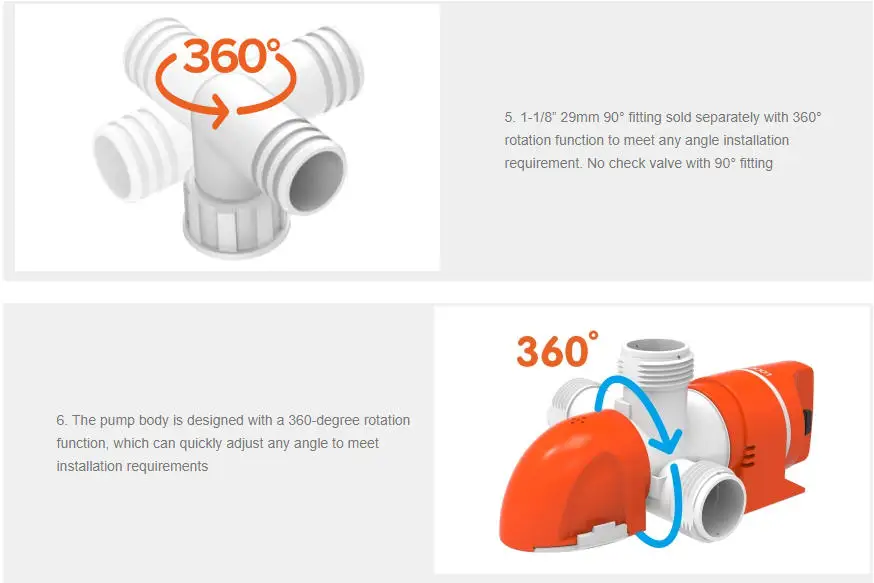

Our best drain down levels ever as low as 10mm or 1/3”. Traditional operated by switch or float switch. SEAFLO Narrow, Low profile bilge pump fits deep down in small/awkward bilge spaces where other pumps won't fit. Compact, Horizontal or vertical mounting, with 360 Degree Discharge for easy remove and replace and leaves the bilge almost dry. Port Type 3/4" (19mm), 1" (25mm), 1 1/8" (29mm) Straight Hose barb or 3/4"(19mm) 90o Elbow together with pumps to meet different installation request.

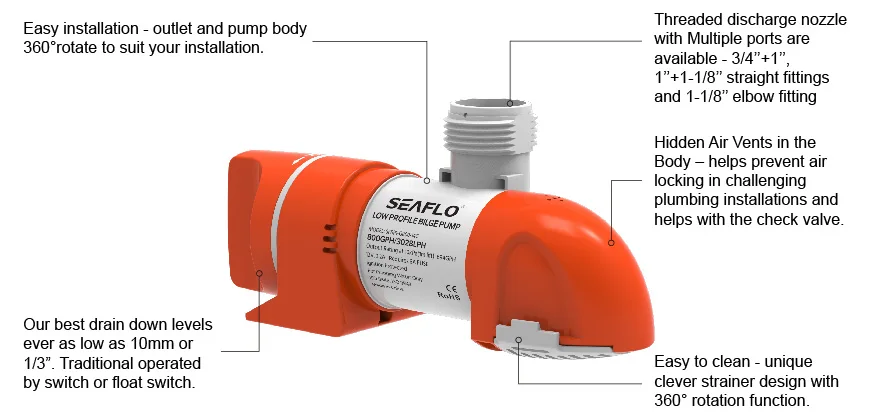

Features and Benefits:
– High performance – Flow up to 1100 US gals per hour
– Submersible and ignition protected
– Low profile strainer – Leaves the bilge almost dry
– Sealed efficient, long life motors

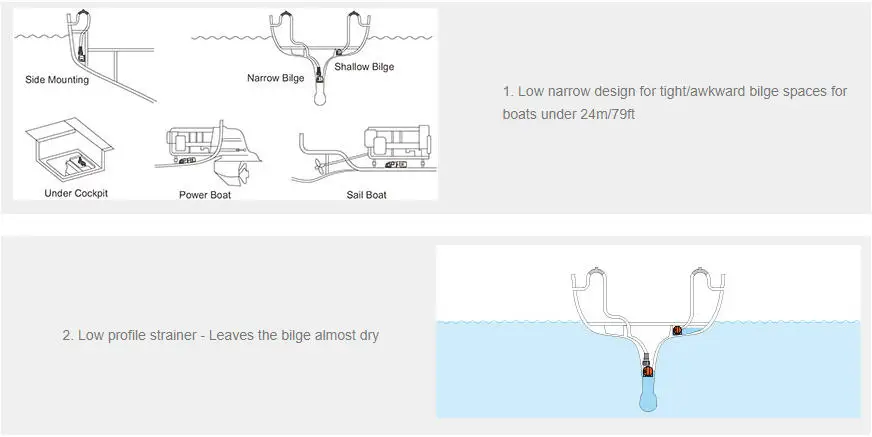

– Low narrow design for tight/awkward bilge spaces
– Easy to clean- snap fit assembly
– Efficient operation – Very low power consumption
– Exclusive moisture tight seals
– Non-return valve included – to prevent backflow

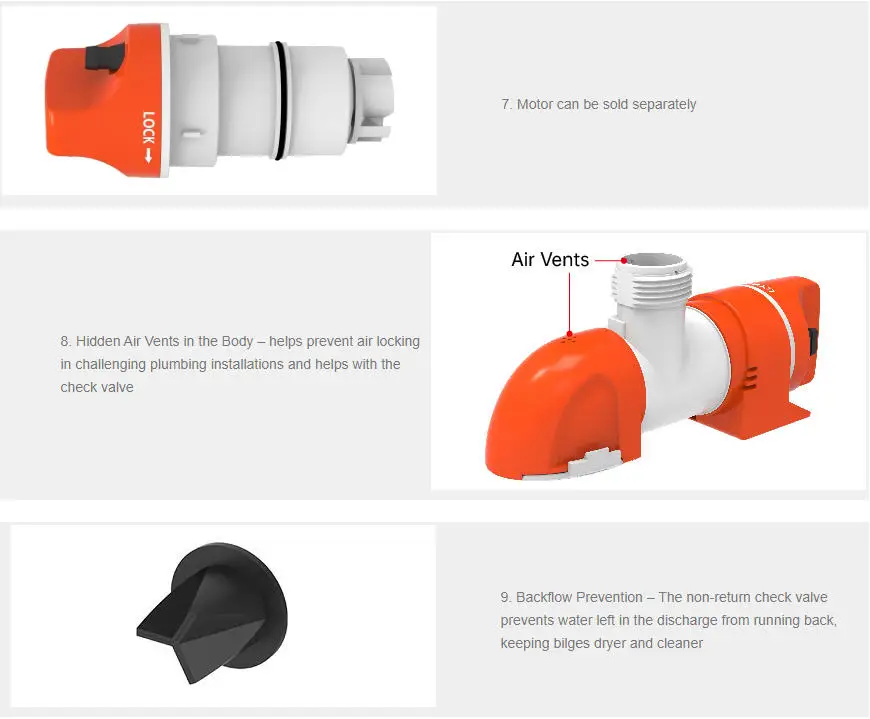

– Motor can be sold separately
– Traditional operated by switch or float switch.
– Stainless-steel motor shaft
– Marine grade silicon blocked, tin coated wiring
– Anti-Airlock protection
– Five-blade impeller to ensure high flow rate
– CE, RoHS, ISO 8846,ISO8849 standards
– Quiet operation

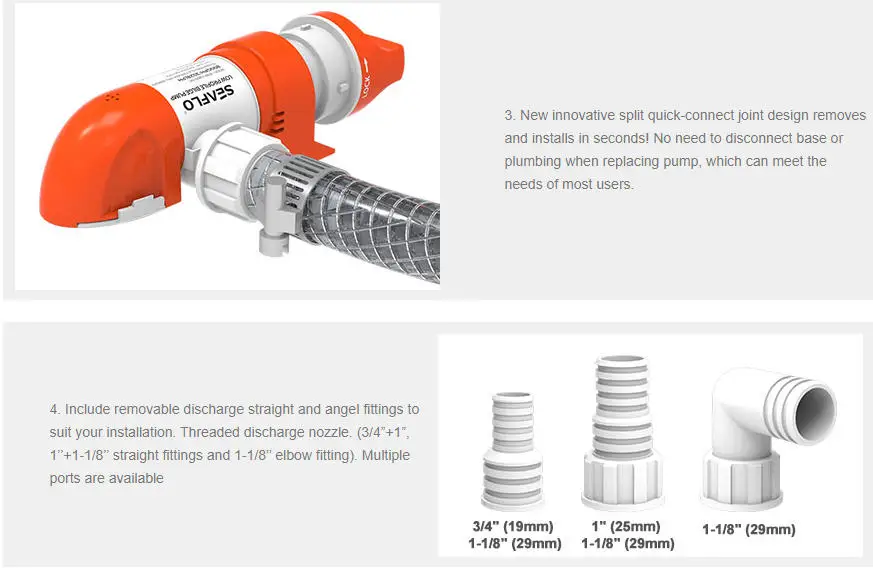

– New innovative split quick-connect joint design removes and installs in seconds! No need to disconnect base or plumbing when replacing pump, which can meet
the needs of most users.
– Easy to clean – easy to remove and replace for cleaning.

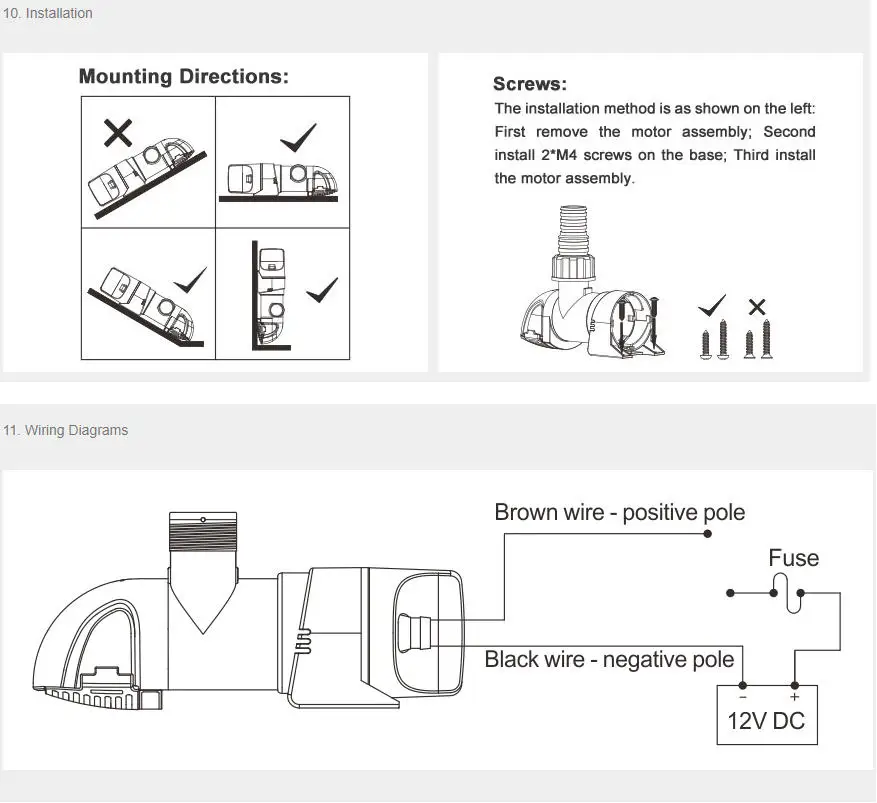

Connection Notice description and Wires Diagram:

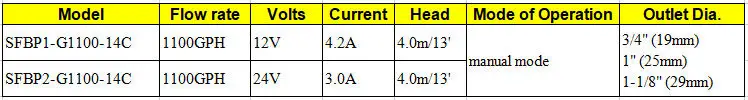

Parameters :

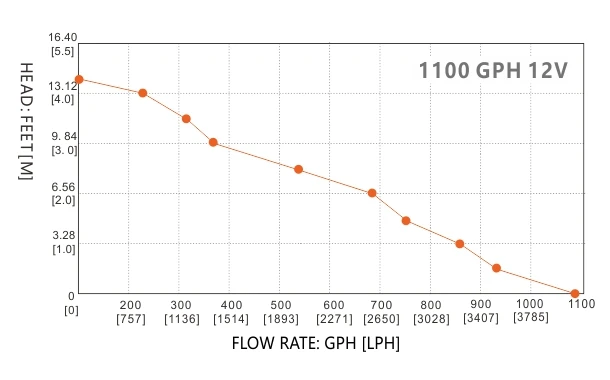

Performance Curve

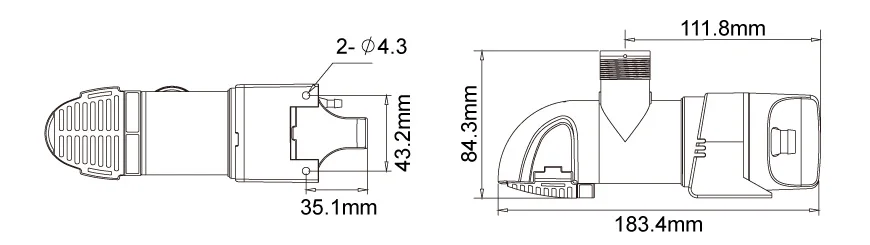

Dimensions:

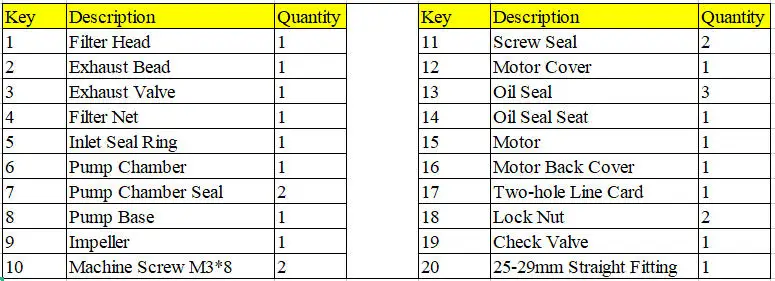

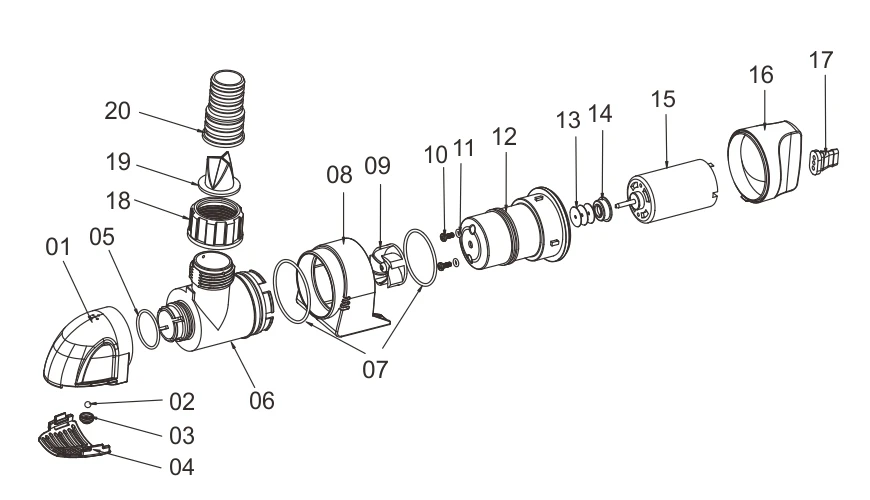

Explosive View:
If you want to order more, please feel free contact with us via email: cherrylau@junqitrading.com
