Description
Package Instruction
Large-Sized Products Are Tightly Wrapped With Bubble Cotton.
Small Size Products Are Individually Packaged In Sturdy Cartons.
Poor Packaging May Cause Damage During Transportation And Affect The Normal Use Of The Product. In Order To Ensure The Safety Of Product Transportation, We Will Do Our Best To Ensure That The Product Is Not Damaged By Violence.
Package Instruction
Large-Sized Products Are Tightly Wrapped With Bubble Cotton.
Small Size Products Are Individually Packaged In Sturdy Cartons.
Poor Packaging May Cause Damage During Transportation And Affect The Normal Use Of The Product. In Order To Ensure The Safety Of Product Transportation, We Will Do Our Best To Ensure That The Product Is Not Damaged By Violence.

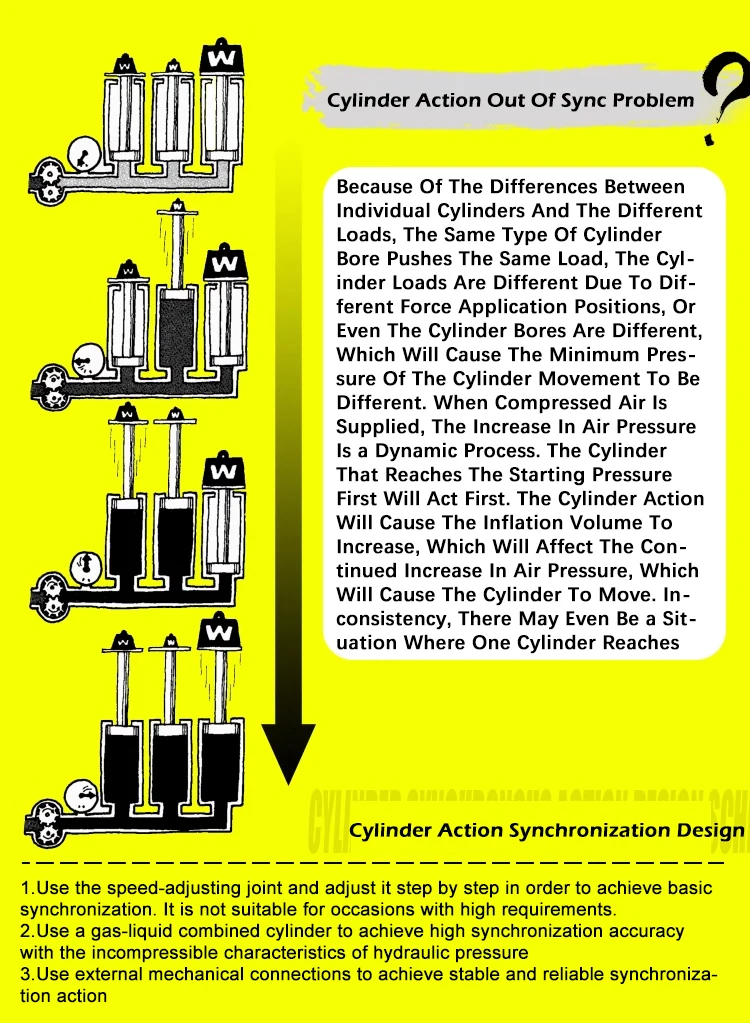

Cylinder Action Out Of Sync Problem
Because Of The Differences Between Individual Cylinders And The Different Loads, The Same Type Of Cylinder Bore Pushes The Same Load, The Cylinder Loads Are Different Due To Different Force Application Positions, Or Even The Cylinder Bores Are Different, Which Will Cause The Minimum Pressure Of The Cylinder Movement To Be Different. When Compressed Air Is Supplied, The Increase In Air Pressure Is a Dynamic Process. The Cylinder That Reaches The Starting Pressure First Will Act First. The Cylinder Action Will Cause The Inflation Volume To Increase, Which Will Affect The Continued Increase In Air Pressure, Which Will Cause The Cylinder To Move. Inconsistency, There May Even Be a Situation Where One Cylinder Reaches The End Before The Next Cylinder Continues To Move.
Cylinder action synchronization design plan
1. Use the speed-adjusting joint and adjust it step by step in order to achieve basic synchronization. It is not suitable for occasions with high requirements.
2. Use a gas-liquid combined cylinder to achieve high synchronization accuracy with the incompressible characteristics of hydraulic pressure
3. Use external mechanical connections to achieve stable and reliable synchronization action

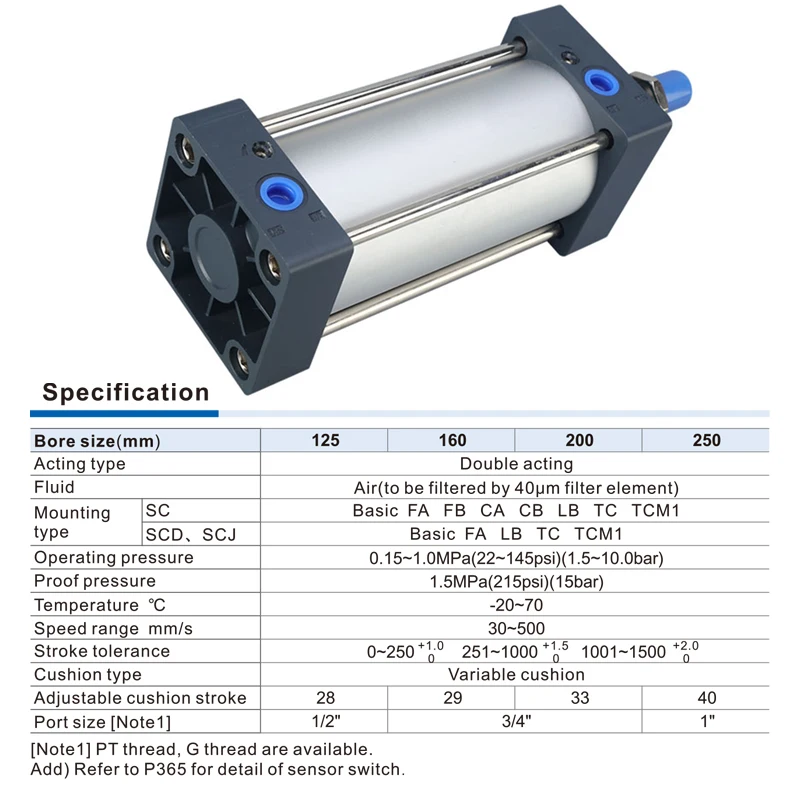

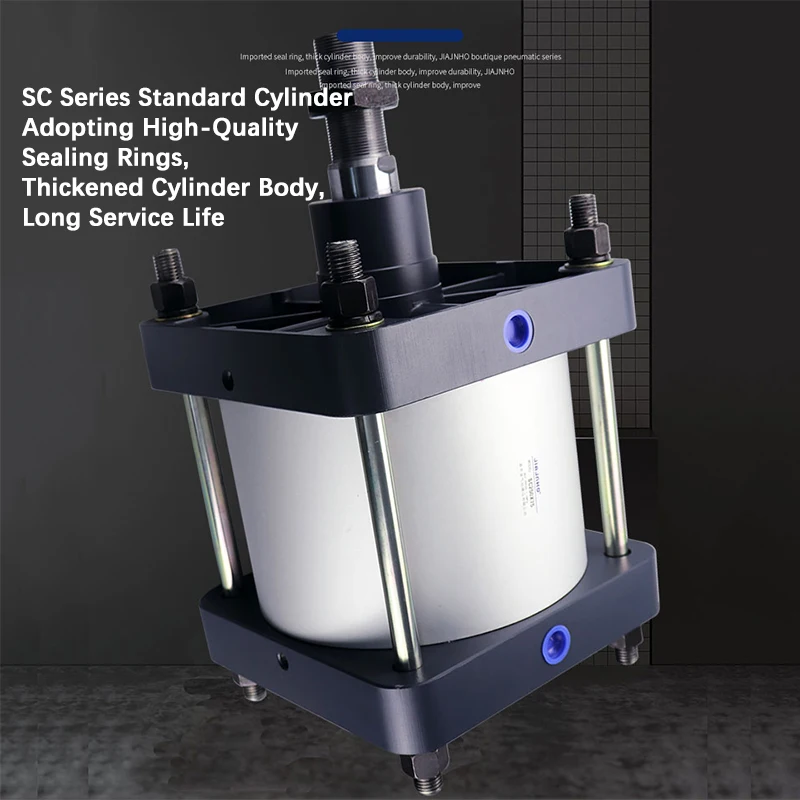

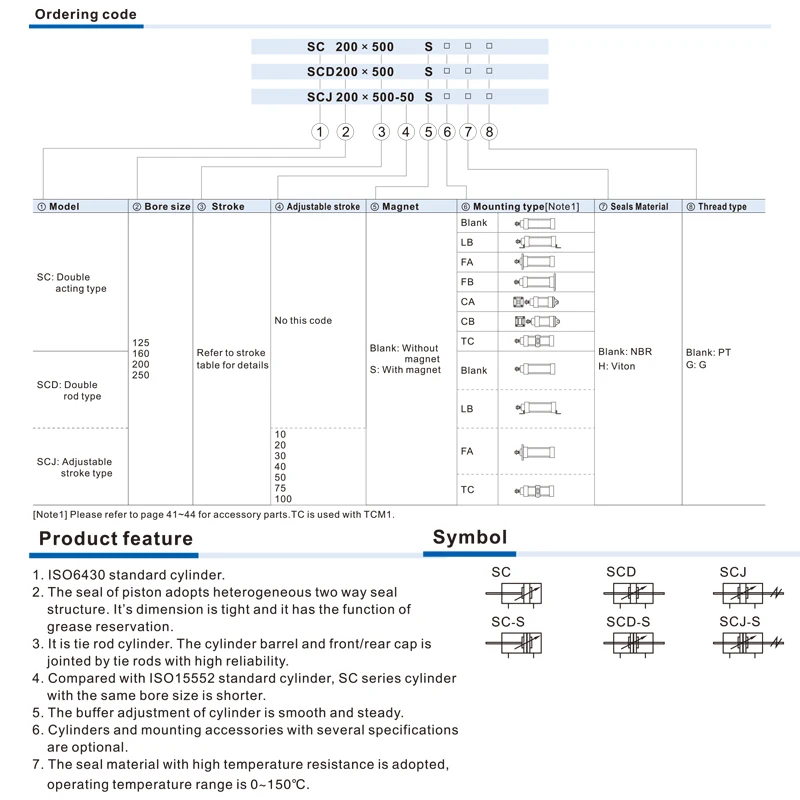

Product Feature
"1. Standard Cylinder Manufactured By Our Enterprise.

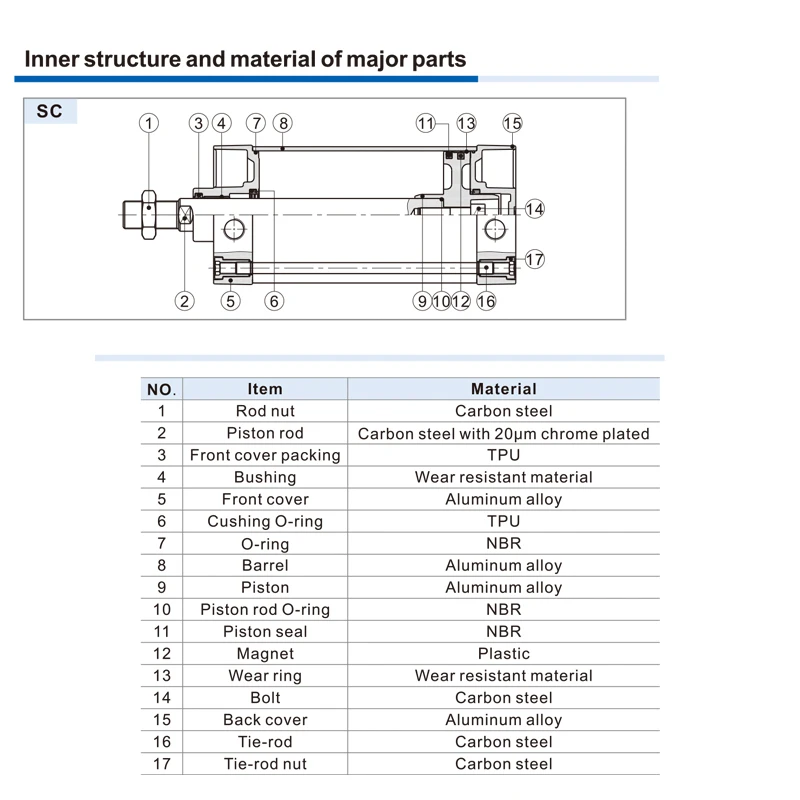

2. The Seal Of Piston Adopts Heterogeneous Two Way Seal Structure. It'S Dimension Is Tight And It Has The Function Of Grease Reservation.
3. It Is Tie Rod Cylinder. The Cylinder Barrel And Front/Rear Cap Is Jointed By Tie Rods With High Reliability.
4.The Buffer Adjustment Of Cylinder Is Smooth And Steady.

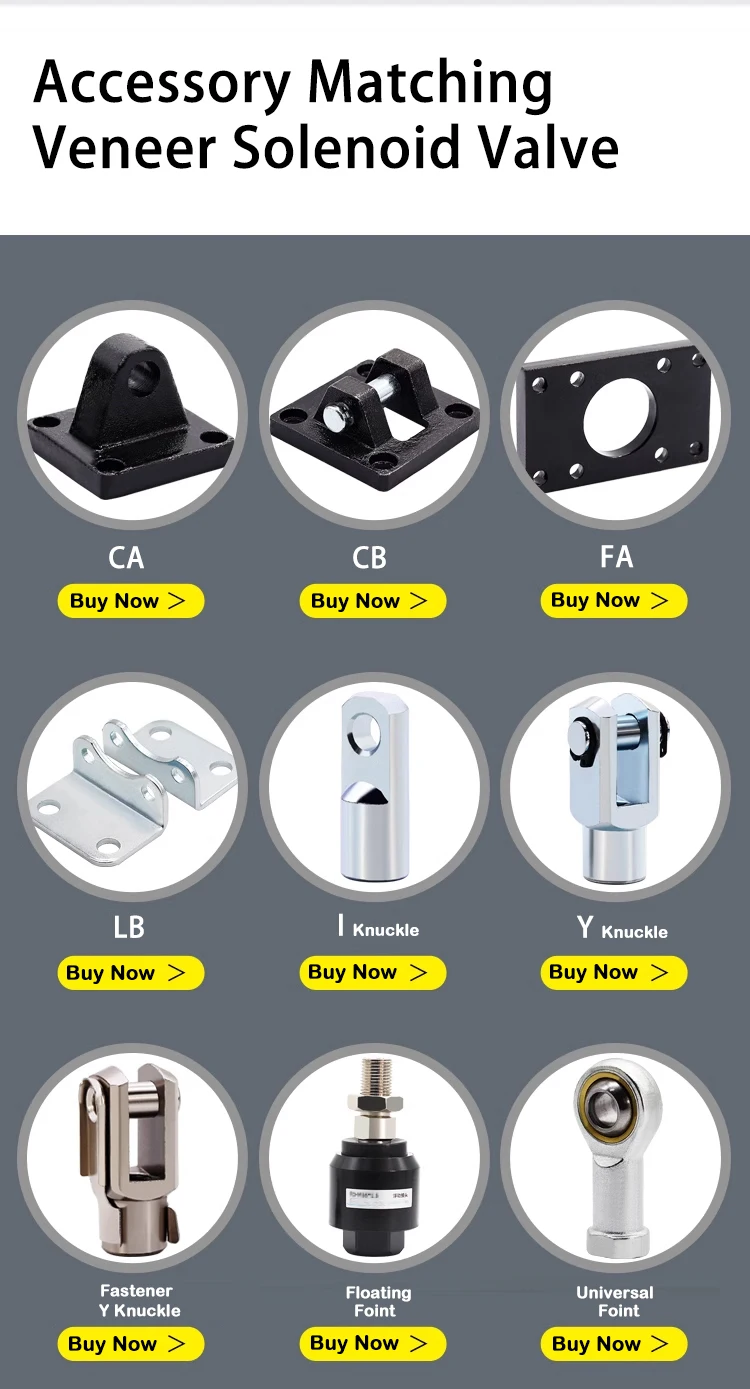

5. Cylinders And Mounting Accessories With Several Specifications Are Optional."
Installation And Application
"1.When Load Changes In The Work, The Cylinder With Abundant Output Capacity Shall Be Selected.
2. Relative Cylinder With High Temperature Resistance Or Corrosion Resistance Shall Be Chosen Under The Condition Of High Temperature Or Corrosion.
3.Necessary Protection Measure Shall Be Taken In The Environment With Higher Humidity, Much Dust Or Water Drops, Oil Dust And Welding Dregs.
4.Dirty Substances In The Pipe Must Be Eliminated Before Cylinder Is Connected With Pipeline To Prevent The Entrance Of Particles Into The Cylinder.
5.The Medium Used By Cylinder Shall Be Filtered To 40Um Or Below.
6.Anti-Freezing Measure Shall Be Adopted Under Low Temperature Environment To Prevent Moisture Freezing.
7. The Cylinder Shall Be Carried Out Test Run Without Load Before Application. Prior To Run, Buffer Shall Be Turned To The Minimum And Gradually Released To Avoid The Damage On Cylinder Caused By Excessive Impact.
8. The Cylinder Shall Avoid The Influence Of Side Load In Operation To Maintain The Normal Work Of Cylinder And Extend The Service Life.
9. If The Cylinder Is Dismantled And Stored For A Long Time, Please Conduct Anti-Rust Treatment To The Surface. Anti-Dust Caps Shall Be Added In Air Inlet And Outlet Ports."
————————————————————————————————————————————————————————————————
————————————————————————————————————————————————————————————————
