Description

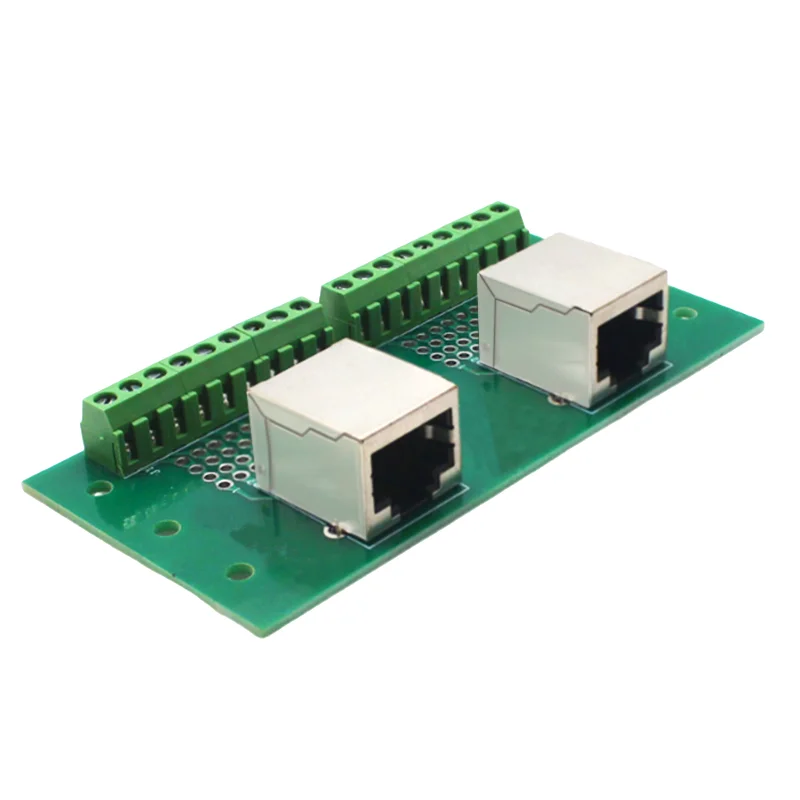

RJ45 4-Way Buss Board Interface Module
Pitch 3.81mm/0.15" screw terminal block.
Simple DIN Adapters (Feet): for width 35 / 32 / 15mm DIN rails.
Solder connection holes, three (3) per line, supports addition of 0.1" pin headers.
FR-4 fiber glass PCB, dual copper layers

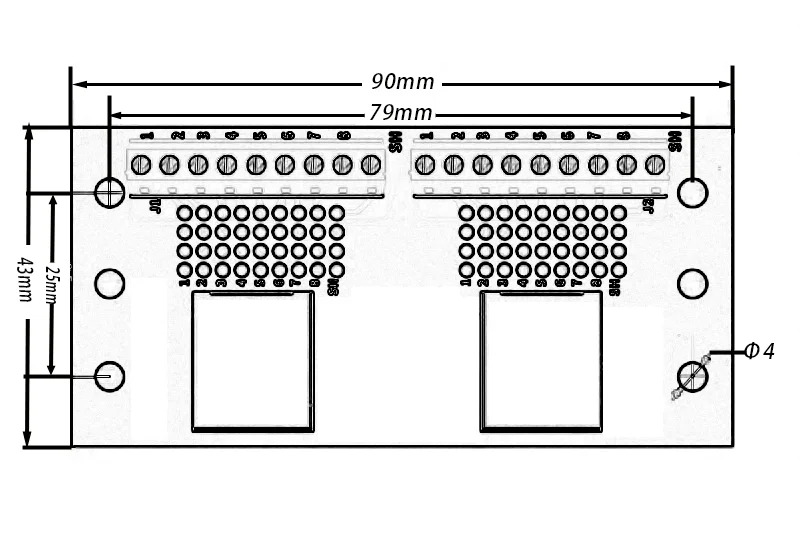

PCB dimensions: 89 x 43mm(L x W).
100% new, never used.
Rated voltage: 100V.
Rated current: 0.5A / per pin.
Operating Temperature: -20ºC to 50ºC
Terminal block specifications:
Wire range: 26 ~ 16AWG.
Strip length: 5mm.
Screws: M2, steel, Cr3+ Zn plated.
Pin header and Cage: Brass.
Certain discount will be given on large QTY order.
