Description
Product Description

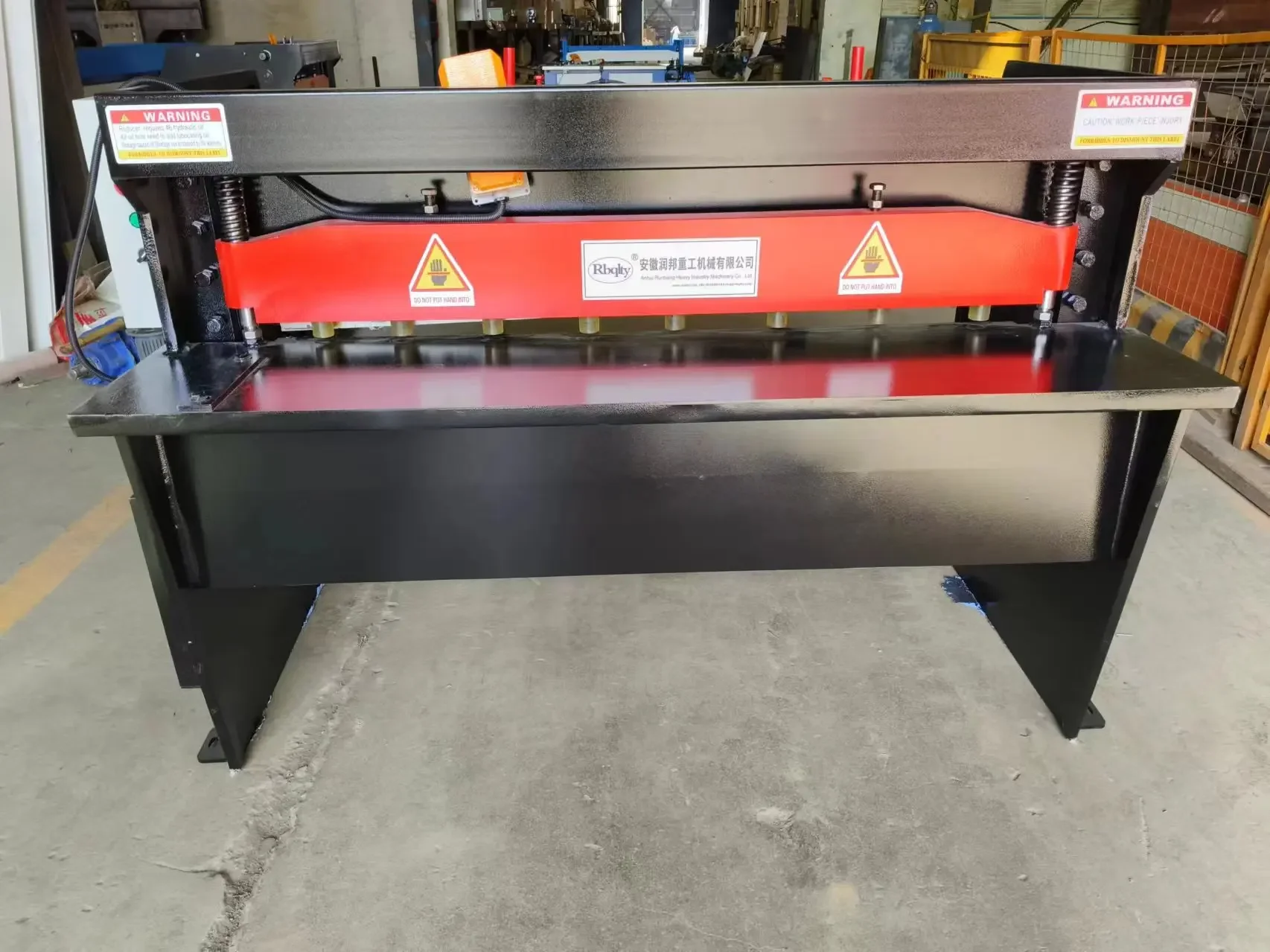

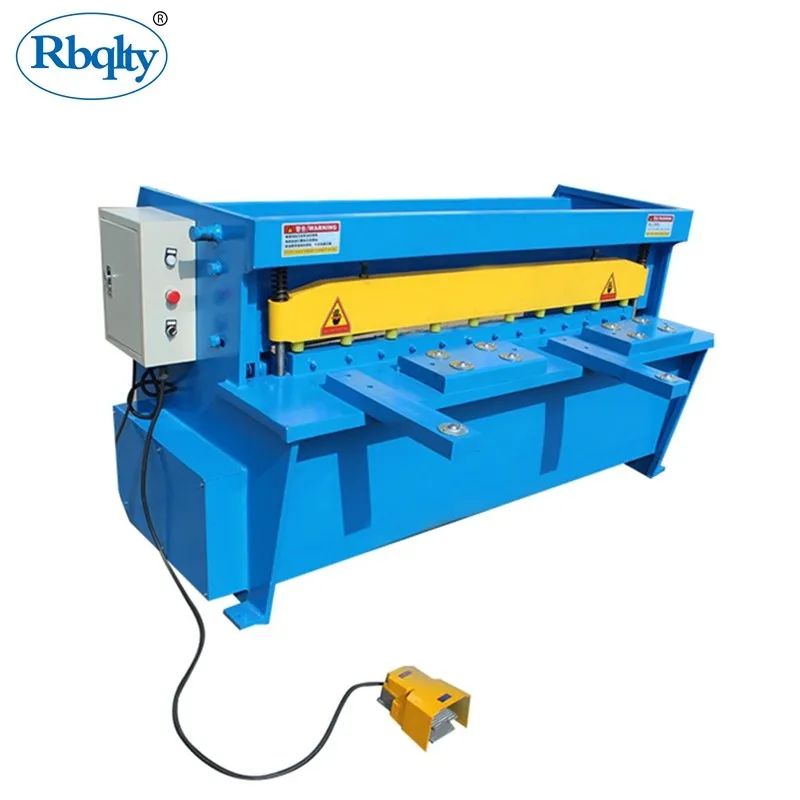

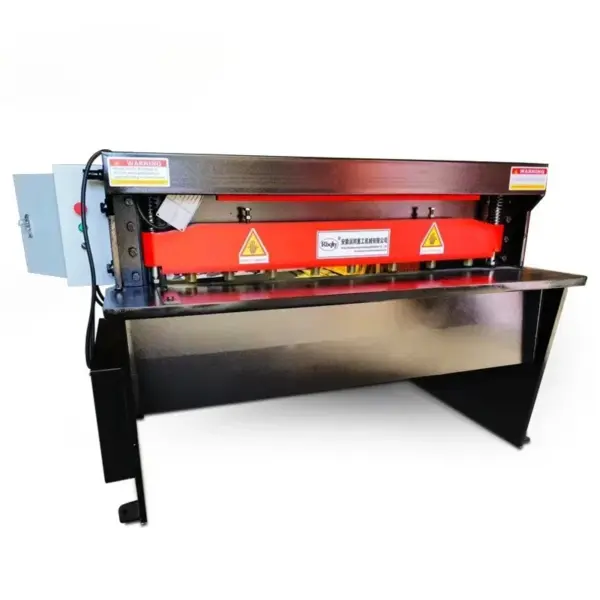

Rbqlty 2mm guillotine shearing machine electric
1,Electric shearing machine is used for the shear sheet metal in line, metal materials should be tensile strength of less than 450 N/mm2, non-metallic material including rubber, plastics,when cut hot plate temperature should below 50 °C, The machine can make only intermittent shear in full load, if tensile strength is higher , shear thickness should be reduced.
2,Electric shearing machine is applicable to uncoiling, leveling, shearing,workshop of production line for plate processing
3, Electric shearing machine base is steel- welding , the structure is compact, good rigidity.
4, Track of blade movement is precision casting copper,less friction
5, Upper guide can adjust until achieve a good shear section, below blade can adjust via welding screw make the cutting mouth smooth
6, Feeding devices use spring pressure , the clamps have mat piece, pressure force is big, and not easy to damage the sheet metal surface.
7, Electric shearing machine uses completely independent closed gear box transmission system, move directly connection, compact structure, gear have good lubrication, low noise and long life.
8, Electric shearing machine equipped with pneumatic clutch device.
1,Electric shearing machine is used for the shear sheet metal in line, metal materials should be tensile strength of less than 450 N/mm2, non-metallic material including rubber, plastics,when cut hot plate temperature should below 50 °C, The machine can make only intermittent shear in full load, if tensile strength is higher , shear thickness should be reduced.
2,Electric shearing machine is applicable to uncoiling, leveling, shearing,workshop of production line for plate processing
3, Electric shearing machine base is steel- welding , the structure is compact, good rigidity.
4, Track of blade movement is precision casting copper,less friction
5, Upper guide can adjust until achieve a good shear section, below blade can adjust via welding screw make the cutting mouth smooth
6, Feeding devices use spring pressure , the clamps have mat piece, pressure force is big, and not easy to damage the sheet metal surface.
7, Electric shearing machine uses completely independent closed gear box transmission system, move directly connection, compact structure, gear have good lubrication, low noise and long life.
8, Electric shearing machine equipped with pneumatic clutch device.
Shearing machine main features:
* high friction
* long service life
* high clutch speed
* high shearing speed
* low cost, with economic price

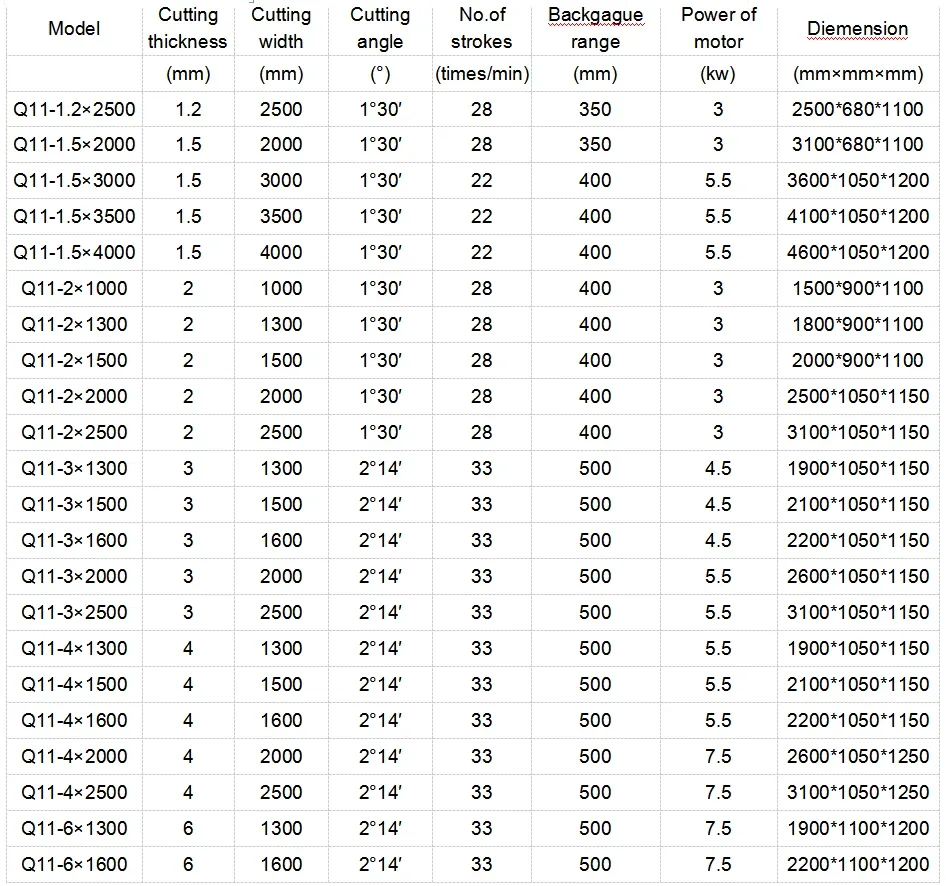

Specification

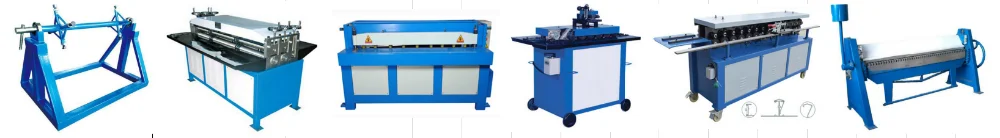

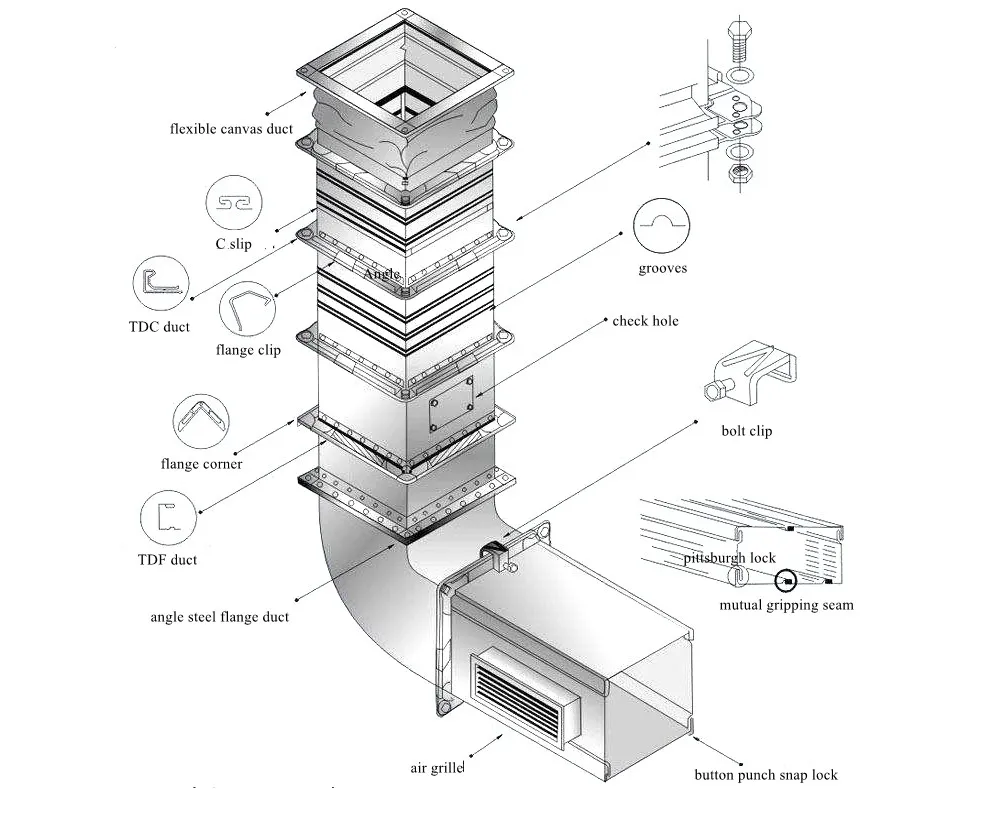

Square Duct Machines
Heating Ventilation Air Conditioning Duct Machine HVAC duct making machine
Simple duct production line
|

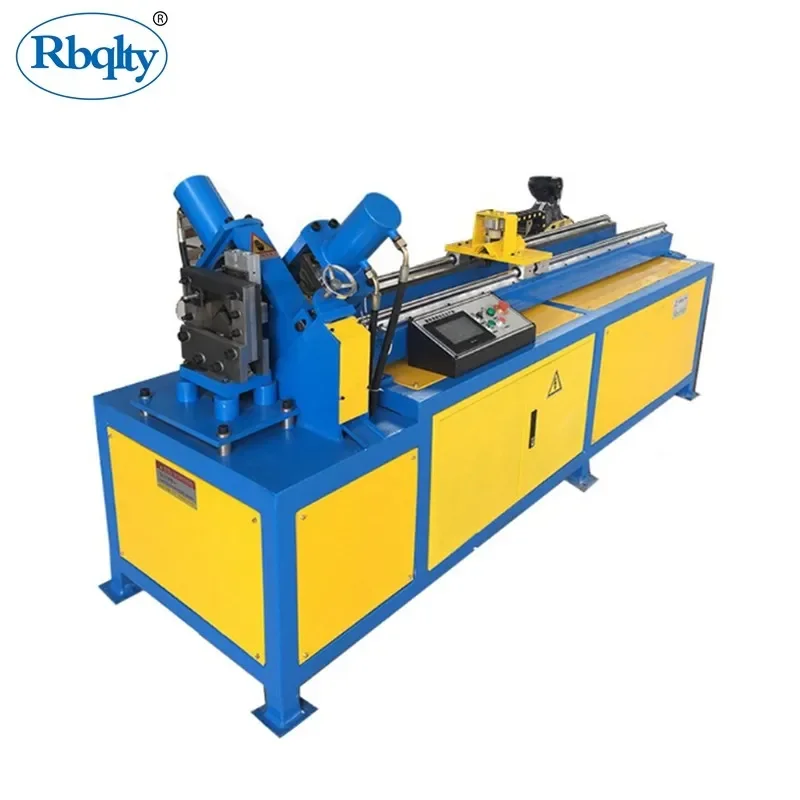

Angle steel flange line
|

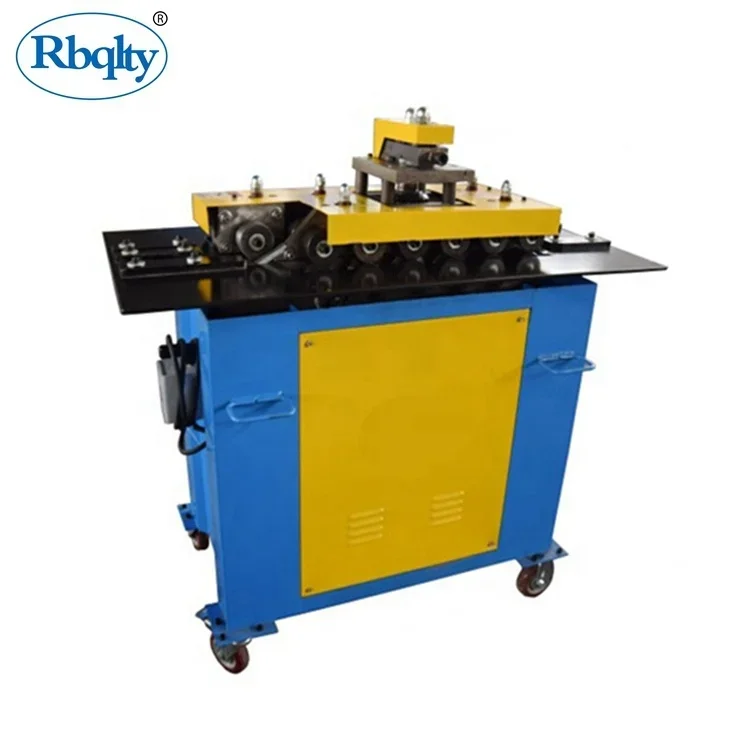

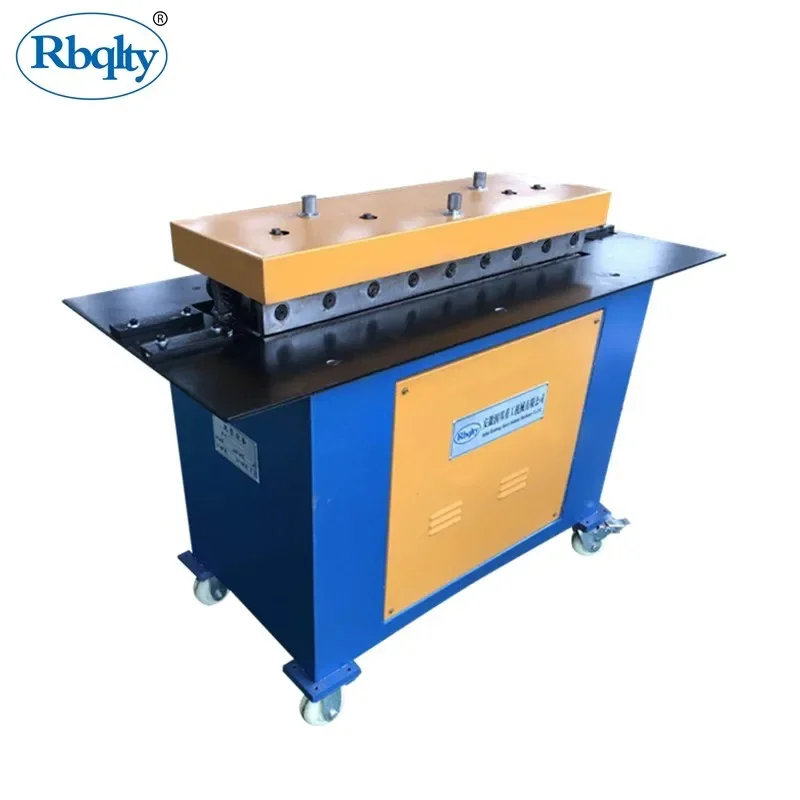

Lock forming machine
|

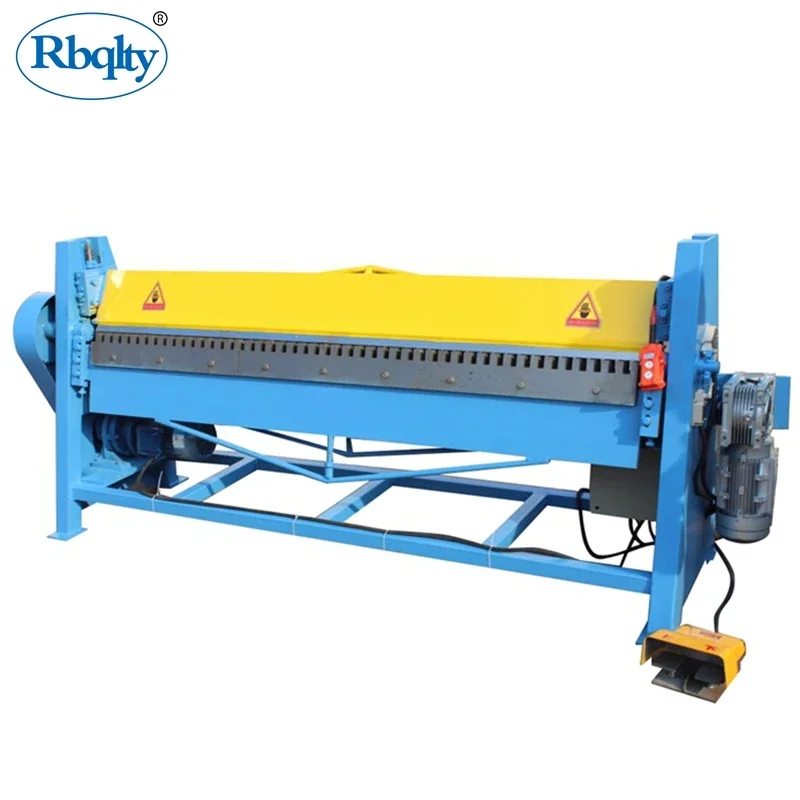

Duct folding machine
|

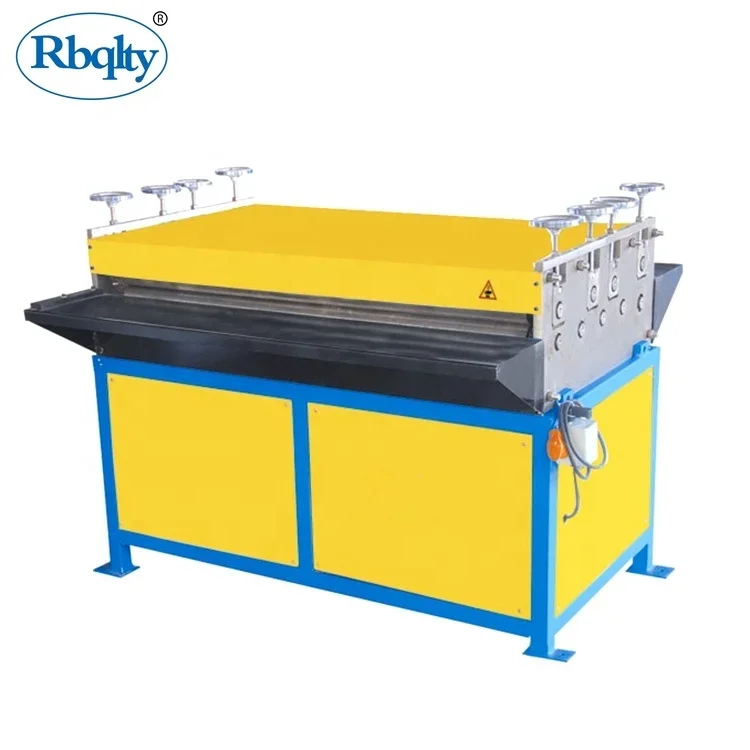

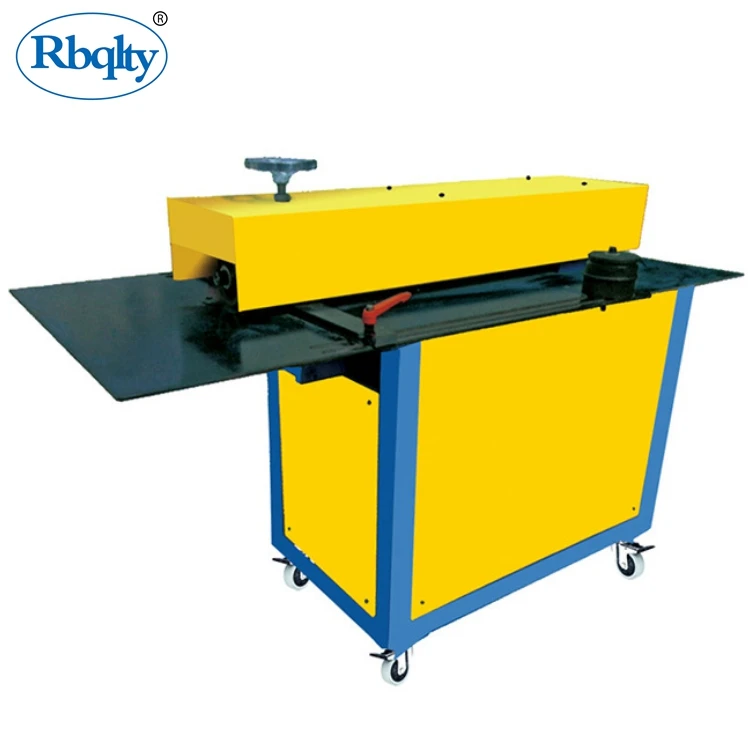

Duct beading machine
|
|
Angle steel flange making line
|
pittsburgh lock, hem, C cleat, elbow
|
fold duct and other sheet metal
|
leveling and beading 5 or 7 beads
|
|

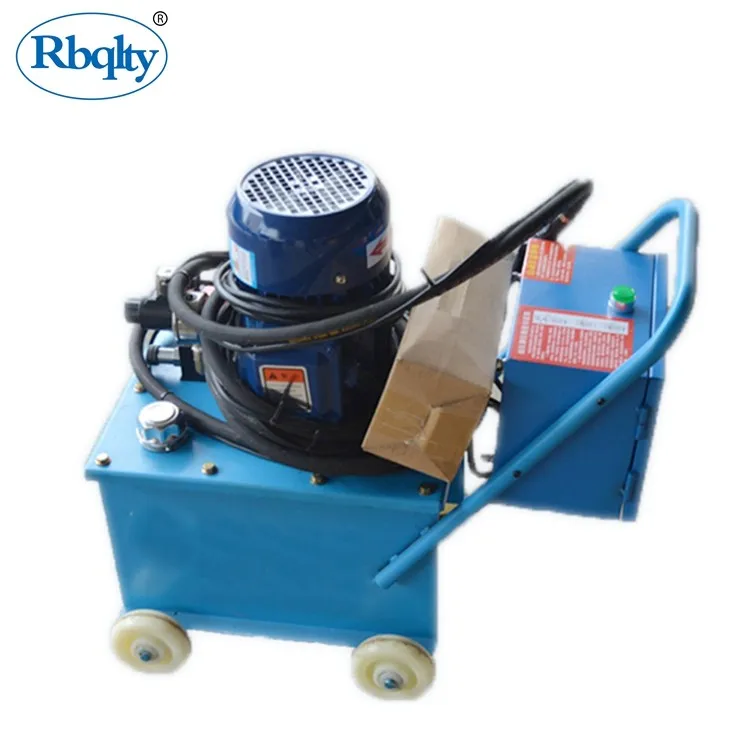

Hydraulic riveter
|
Lock seaming machine
|
Duct shearing machine
|

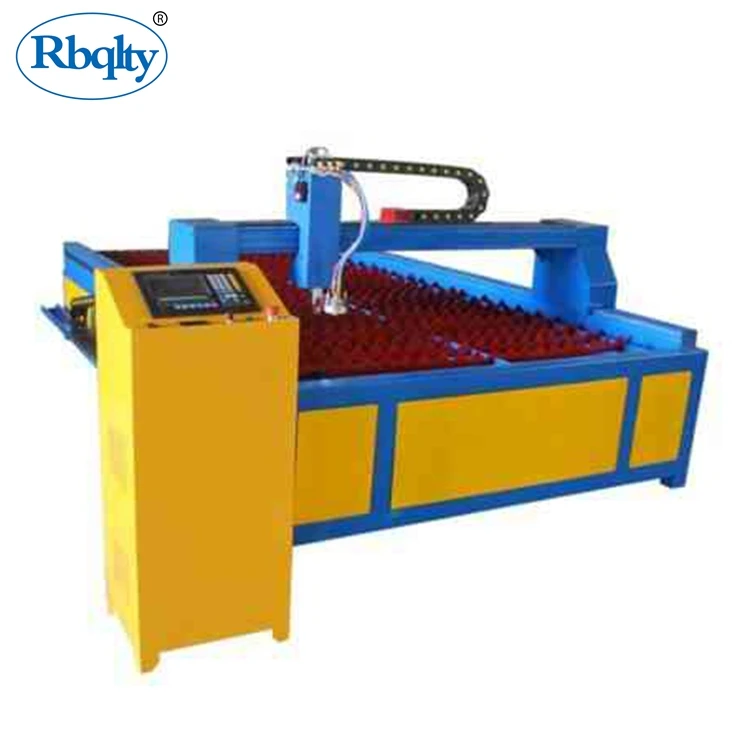

duct plasma cutter
|
|
angle steel flange riveting
|
seam the duct
|
cut the duct sheet
|
cut irregular shape duct
|
|

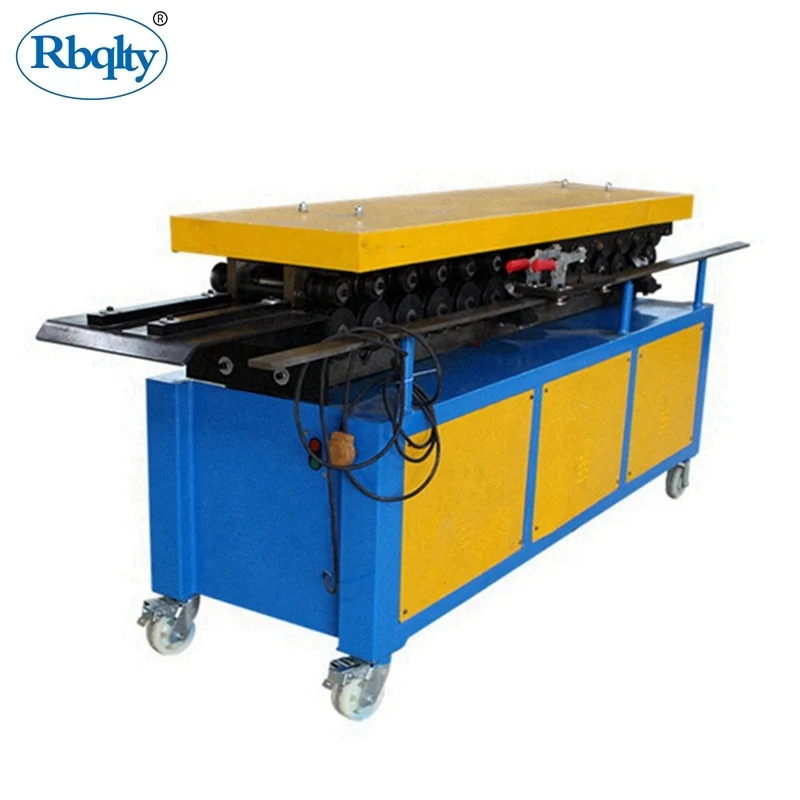

TDF making machine
|

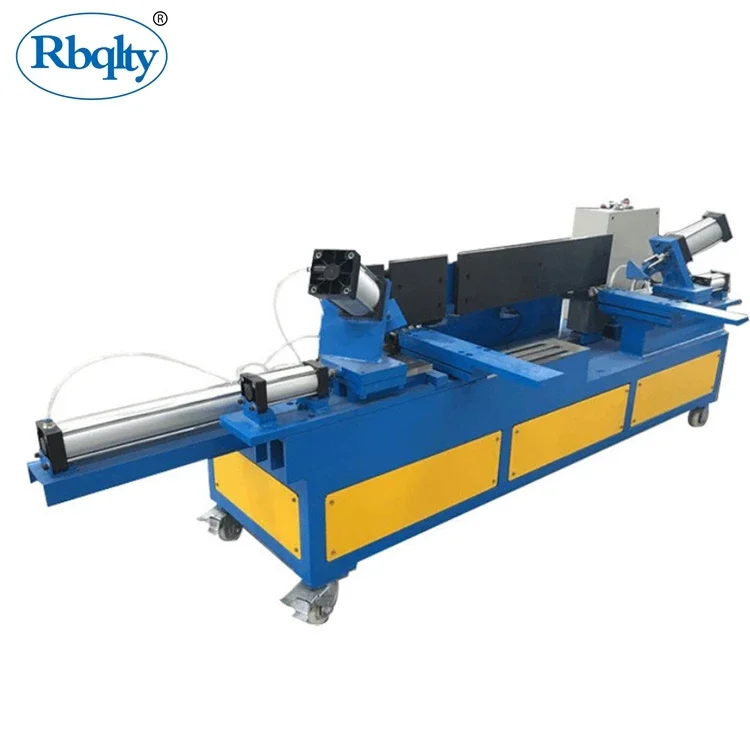

Corner installing machine
|

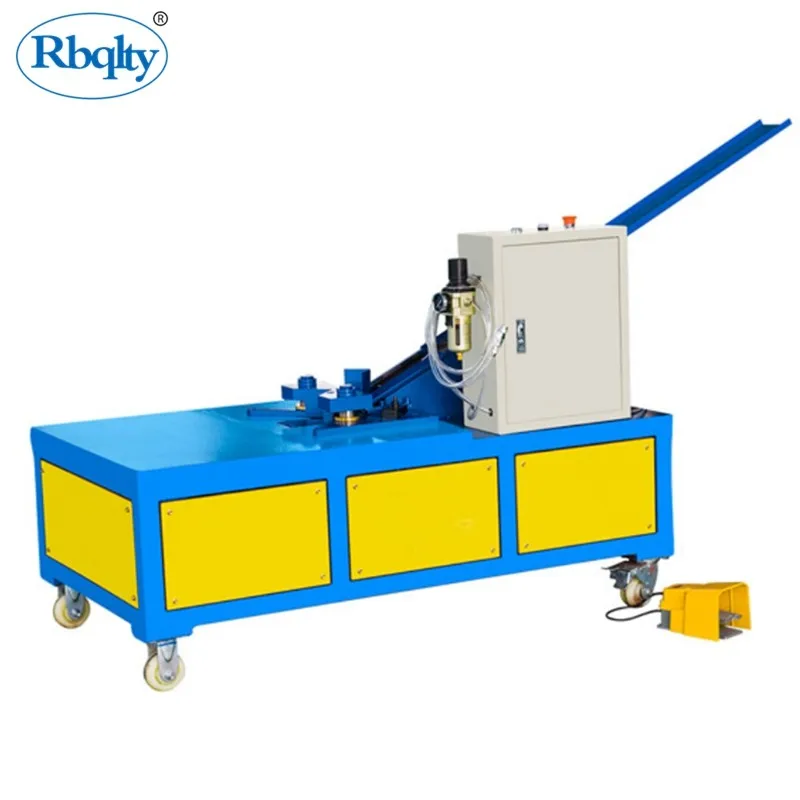

Corner punching machine
|

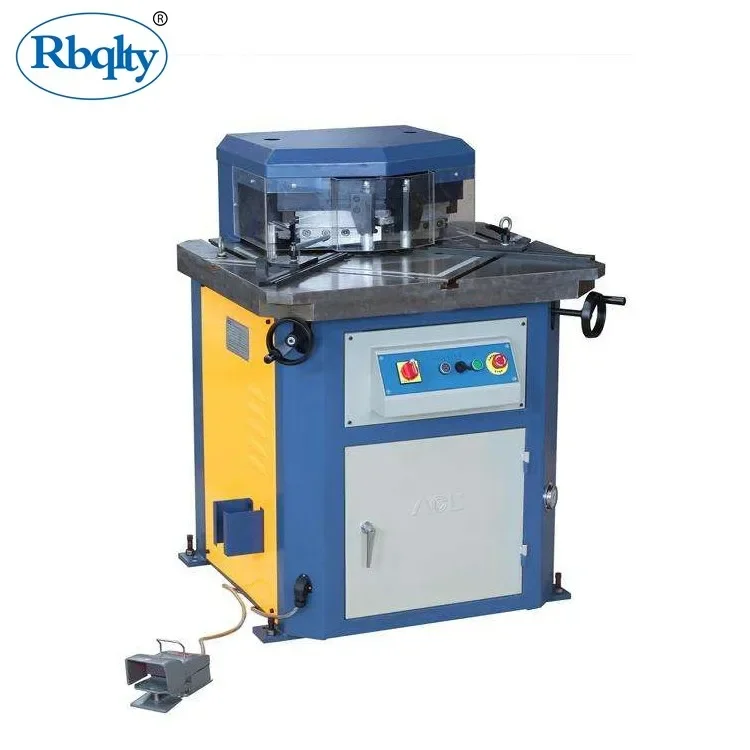

Duct notching machine
|
|
transverse flange duct
|
duct corner fast installing
|
duct corner fast punching
|
duct flange notching
|
|

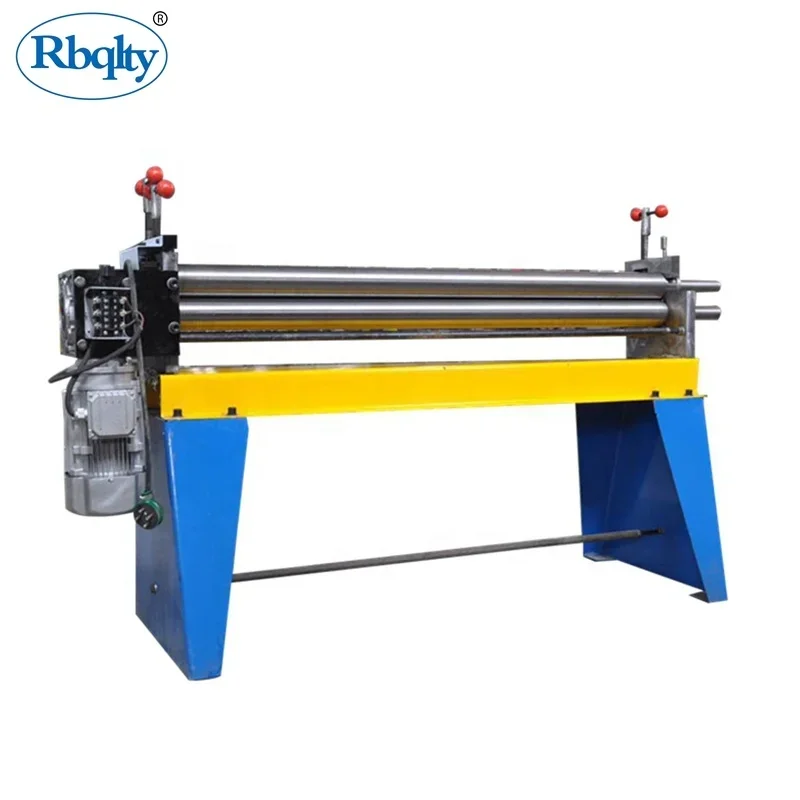

Duct rolling machine
|
Rotary shearing machine
|

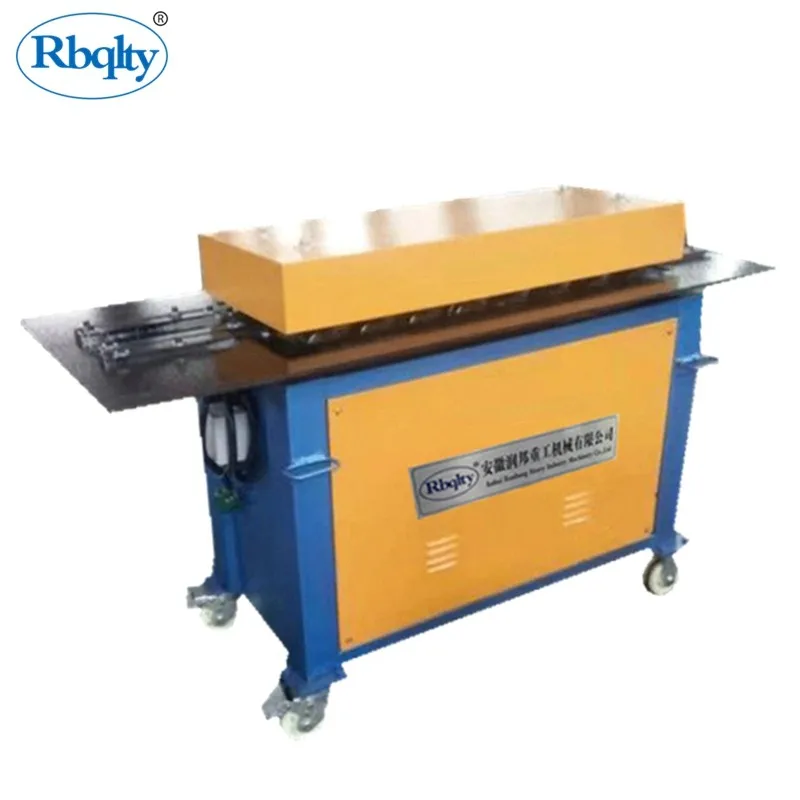

Snap Lock former
|
S & C lock former
|
|
elbow part
|
1.2mm duct sheet
|
snap lock
|
S and C cleat
|
