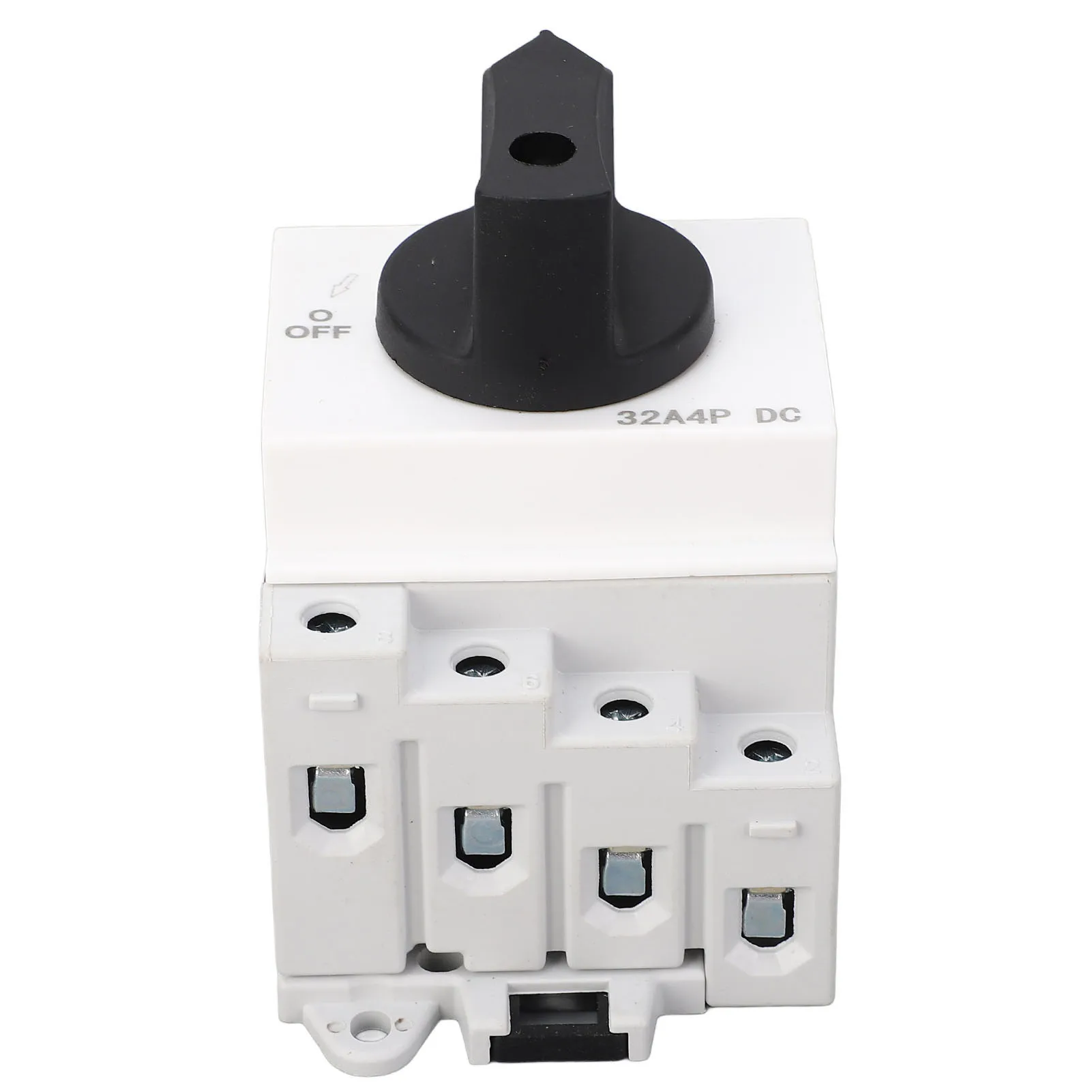

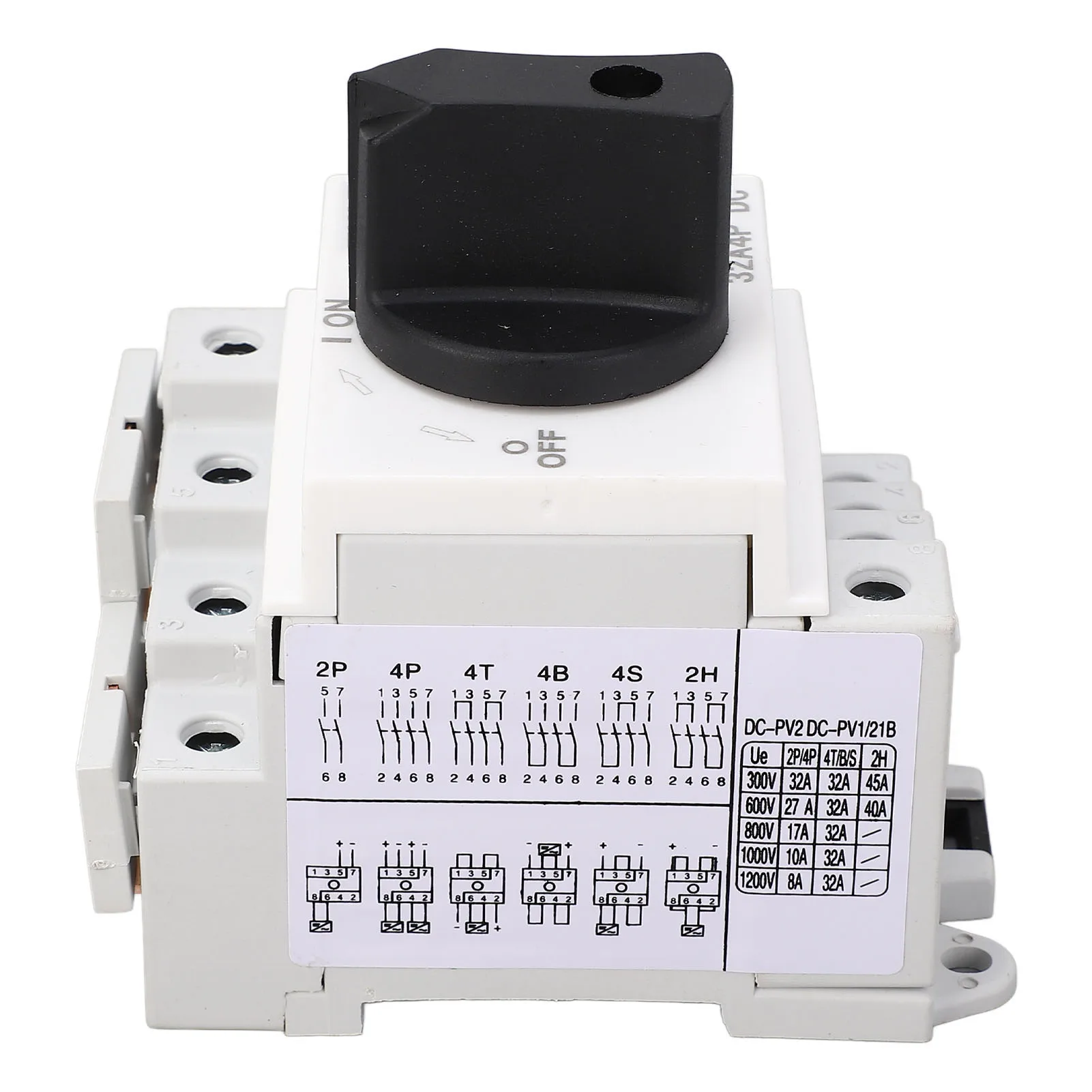

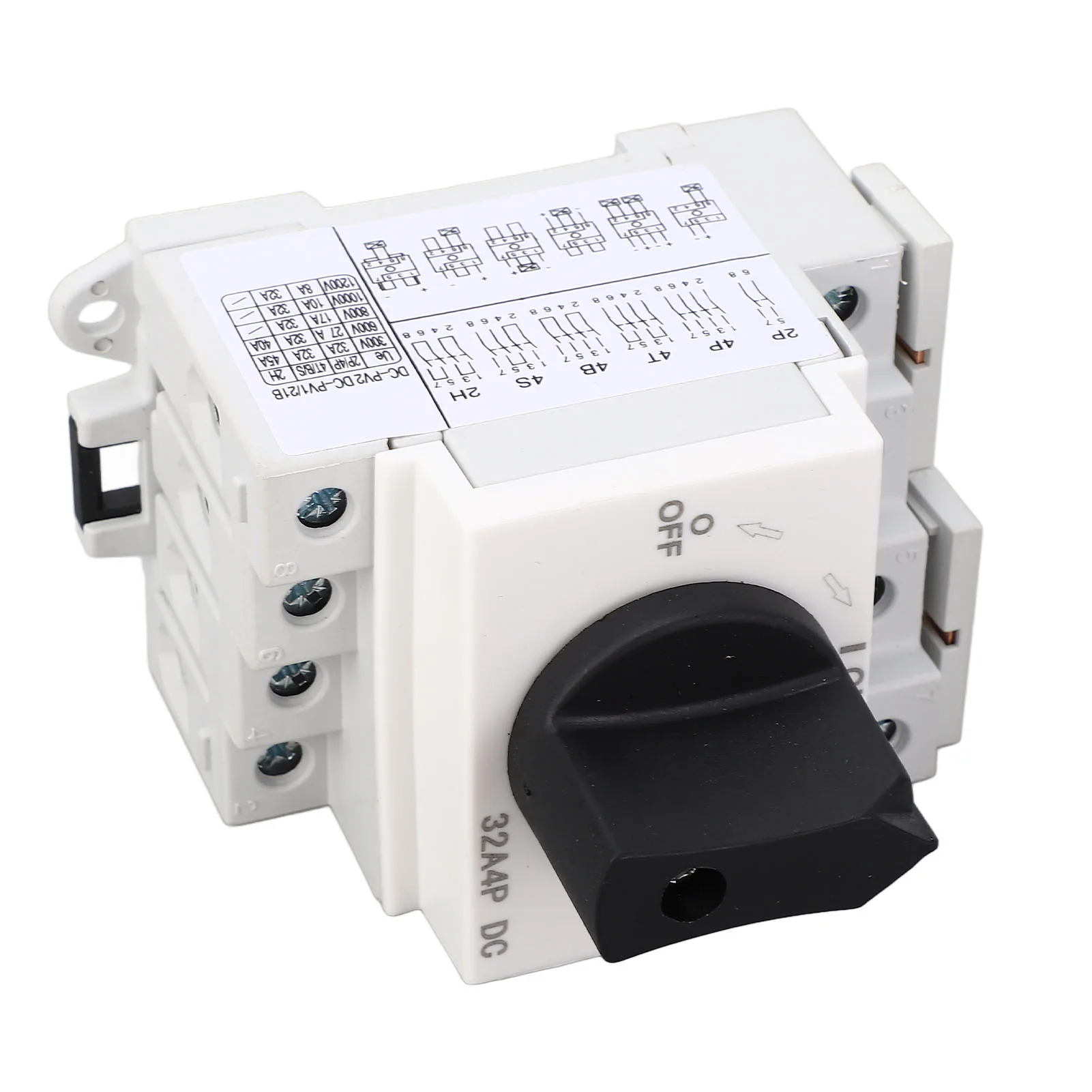

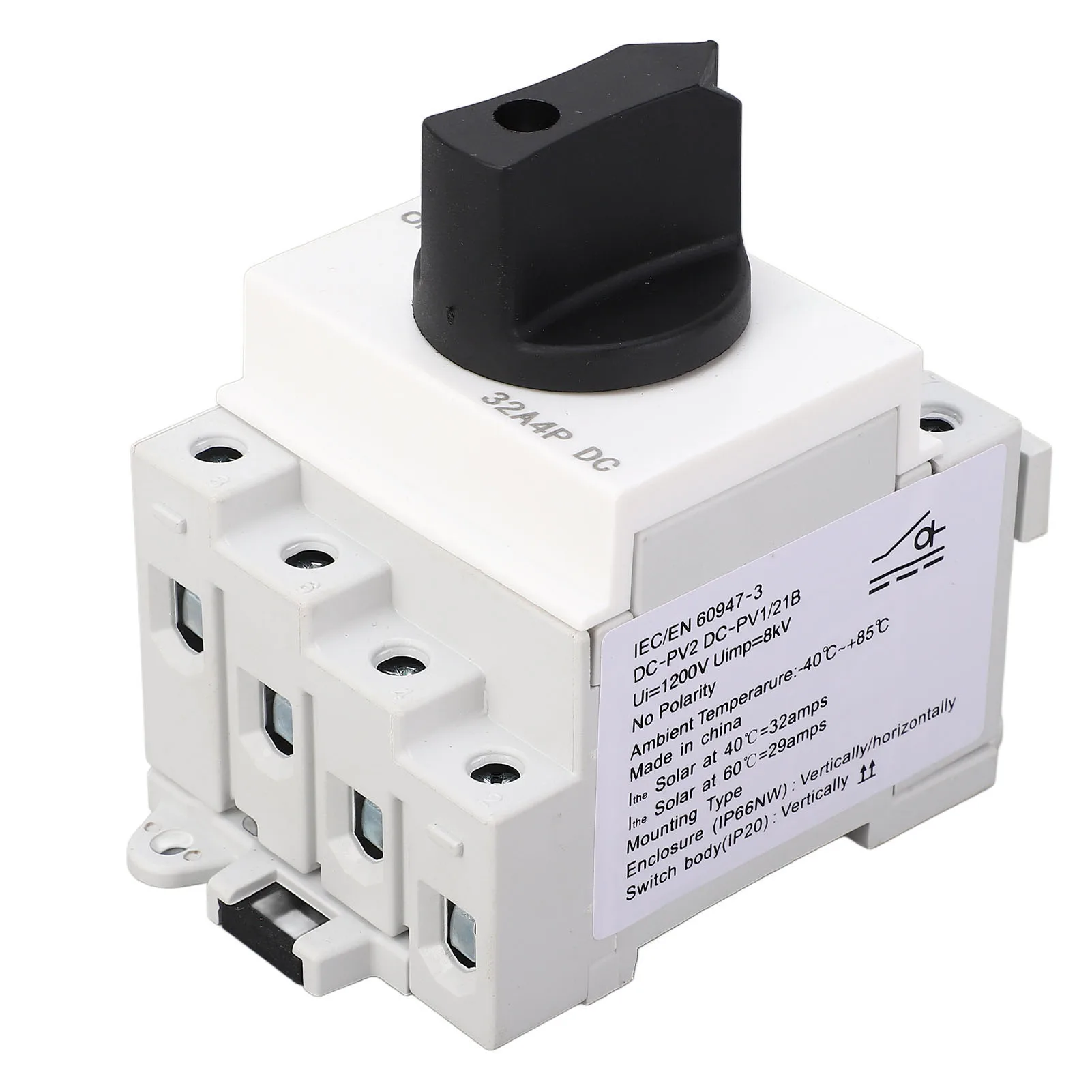

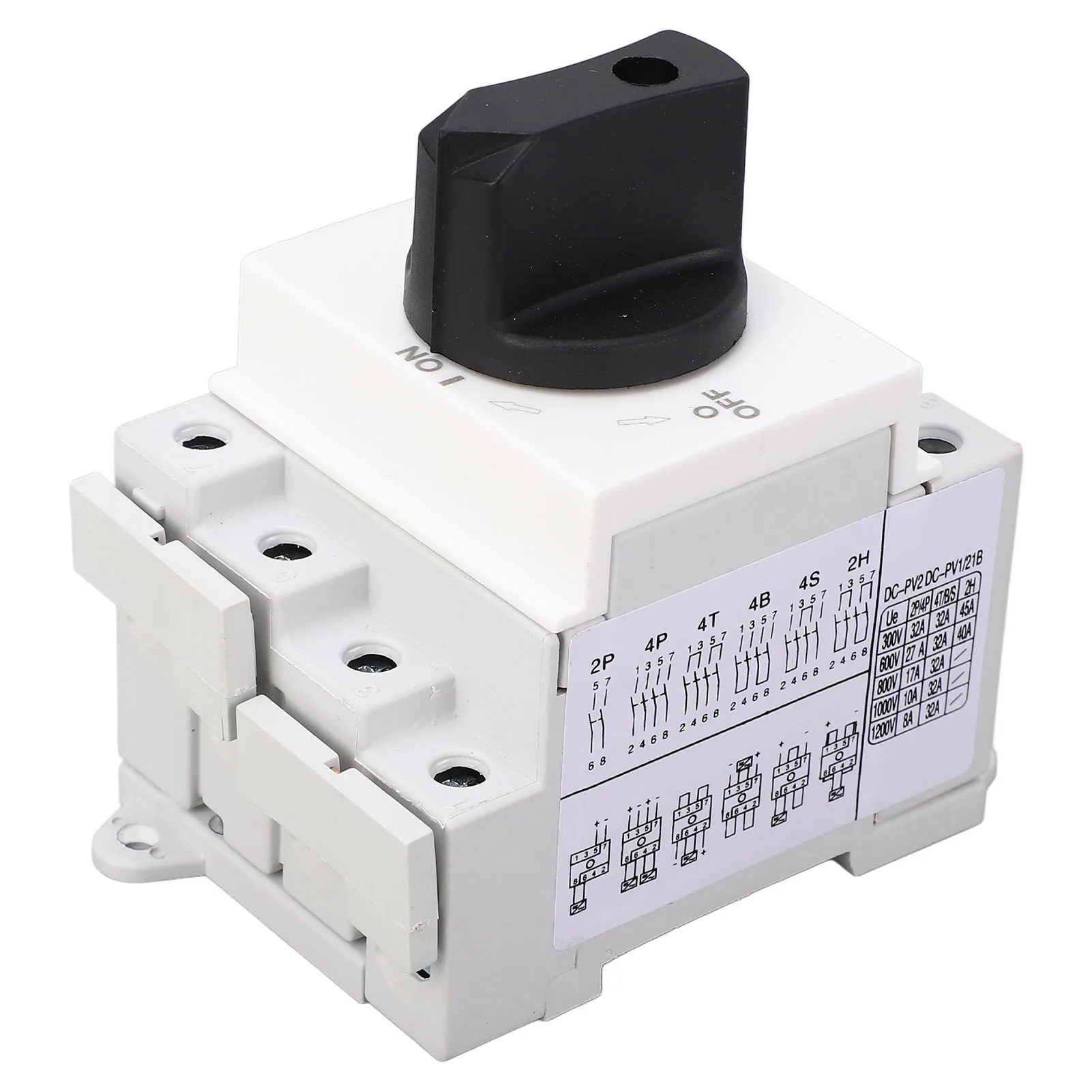

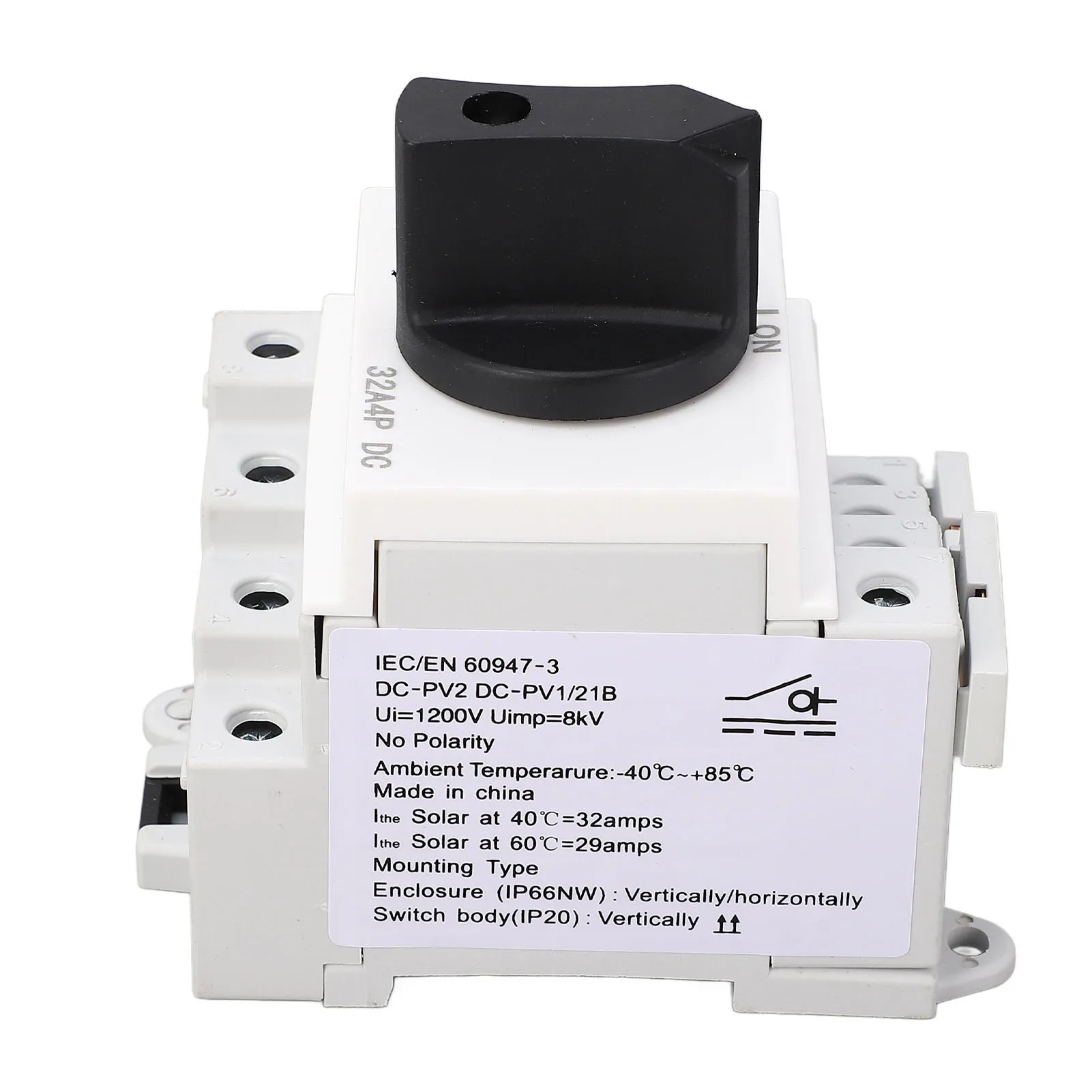

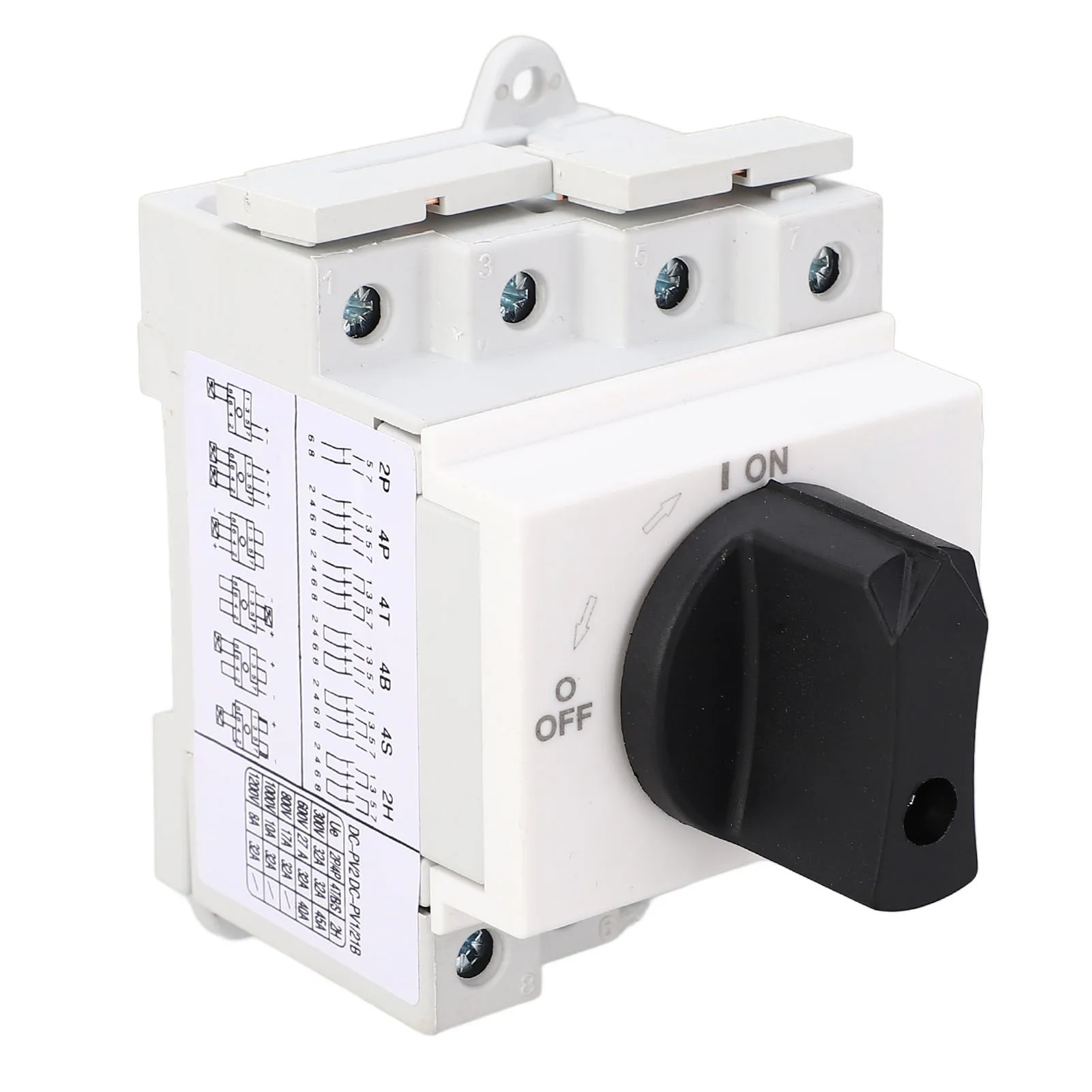

PV Photovoltaic Isolator Switch Photovoltaic DC Isolator Solar Switch 4 Poles PV Disconnect Miniature Circuit Breaker 32A 1000V

Feature:

1. STABLE AND FLAME RETARDANT: The solar DC isolation switch has an instantaneous on off structure, that is, the contact pressure is not affected by the external drive speed, and the contact pressure and overrange remain stable during the entire process before the handle is turned to the action point. The PC flame retardant shell has good flame retardant properties, dielectric properties and carbonization resistance

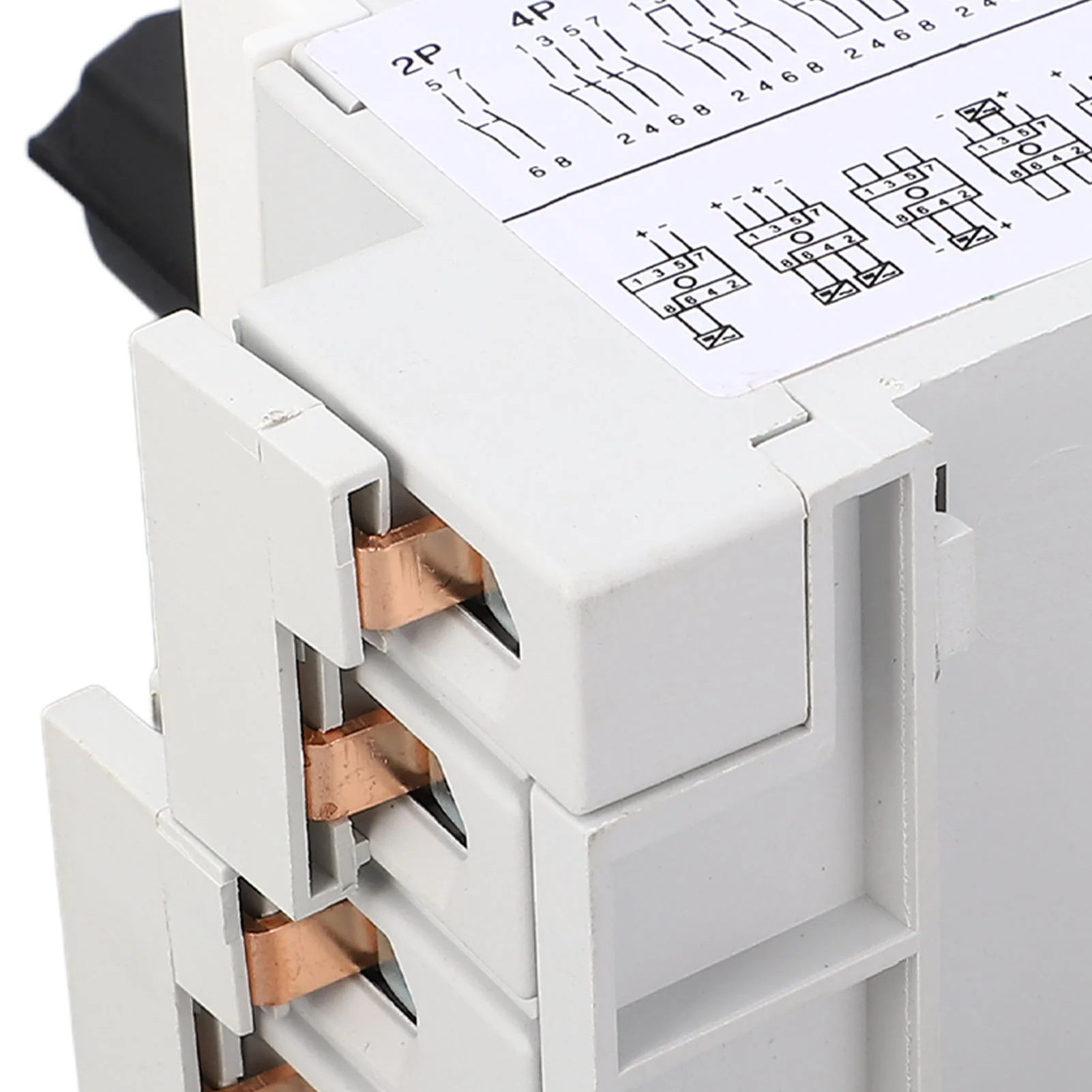

2. KNOB AND CONTACT: Photovoltaic DC isolator solar switch with flexible knob, flexible handle changeover, long mechanical life; Excellent silver contact, no arc, possess high temperature resistance, oxidation resistance, low resistance, strong conductivity
3. MULTIPLE FUNCTIONS: Integrated isolating, breaking and switching functions, the ingenious design allow the product to easily change from isolation switch to transfer switch, providing innovative solutions for many applications
4. TWO MOUNTING METHODS: Standard 35mm DIN rail mounting and screw mounting, the compact changeover switch is suitable for use where space is limited
5. WIDELY USED: Solar disconnect switch is used in power distribution and automation systems in construction, power, petrochemical and other industries to effectively solve emergency disconnection, safety disconnection and machine control, motor control and other problems

Specification:

Item Type: Photovoltaic DC Isolator Solar Switch
Model: LONQ-40
Material: PC and silver
Number of Poles: 4P
Rated Voltage: DC1000V
Insulation Voltage Ui: DC1200V
Rated Impulse Withstand Voltage Uimp: 8kV
Rated Current: 32A
Handle Operation Position: 0-90°
Usage Category: AC-15
Operating Temperature: -40℃-+85℃
Electrical Life: 50000 Times
Protection Level: IP20
Installation Method: Approx. 35mm / 1.38in DIN rail mounting, screw mounting
Size(LxWxH): Approx. 83 x 60 x 91mm / 3.27 x 2.36 x 3.58in

How to Use:

Connect between the solar panel and the solar charger controller, and between the solar panel and the inverter.

Package List:

1 x PV DC Isolator Switch
1 x User Manual
