Description
Package List:
1 x PV DC Circuit Breaker
2 x Connector Cap
2 x Connector
2 x Waterproof Ring
2 x Waterproof Head
3 x Short Pointed Screw
4 x Long Pointed Screw
4 x Flat Screw
4 x Anchor
1 x Waterproof Tape
Specification:

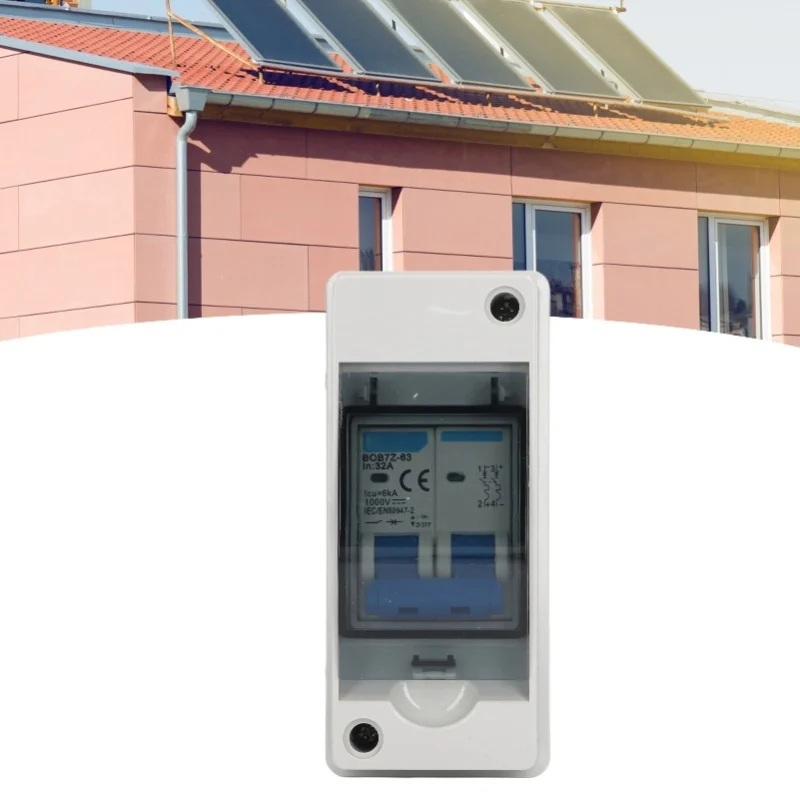

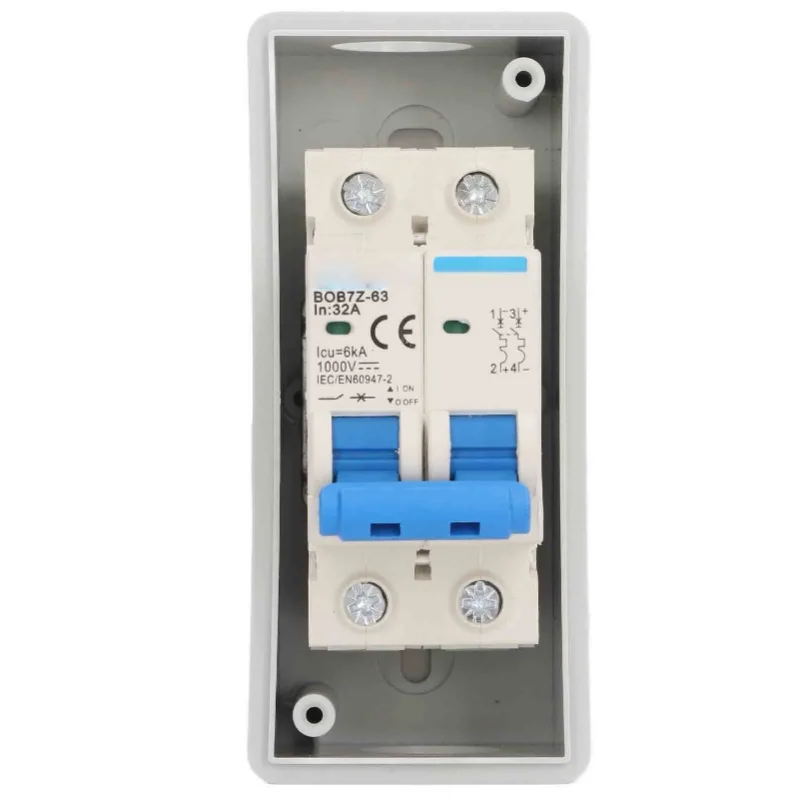

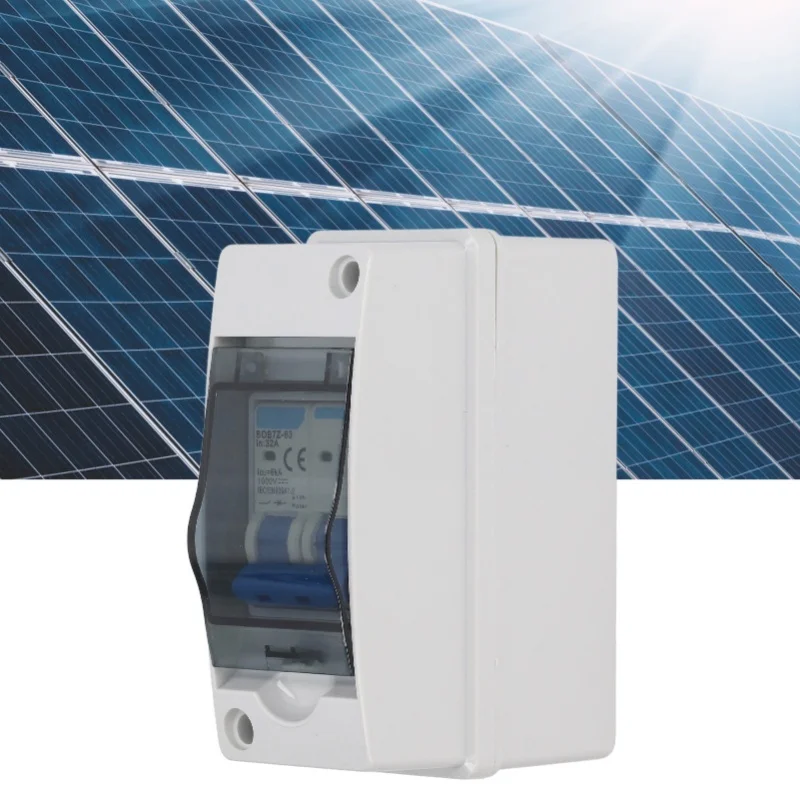

Item Type: PV DC Circuit Breaker
Material: Polycarbonate, ABS
Model: BOB7Z 63 32A
Maximum Voltage: 1000V
Maximum DC Short Circuit Current of Each Input (Isc): 32A
Protection Grade: IP65
Size (L x W x H): Approx. 120x52x90mm/4.7x2x3.5in
Cable Inlet: PG20 4²
Output Cable Sealing Sleeve: PG20 4²
Rated Insulation Voltage (Ui): 1000V
Rated Current (Le): 32A
Maximum Working Voltage (Ucpv): 1000V
Rated Working Voltage: 1000V
Breaking Capacity (ICU): 6KA
Widely Used: Applicable to photovoltaic solar panel grid connected system and solar off grid system solar power generation system, household, RV, etc.
Features:
1.Multiple Protections: Include overvoltage, overload and lightning protections, extend the working life of the solar system, support long distance communication.

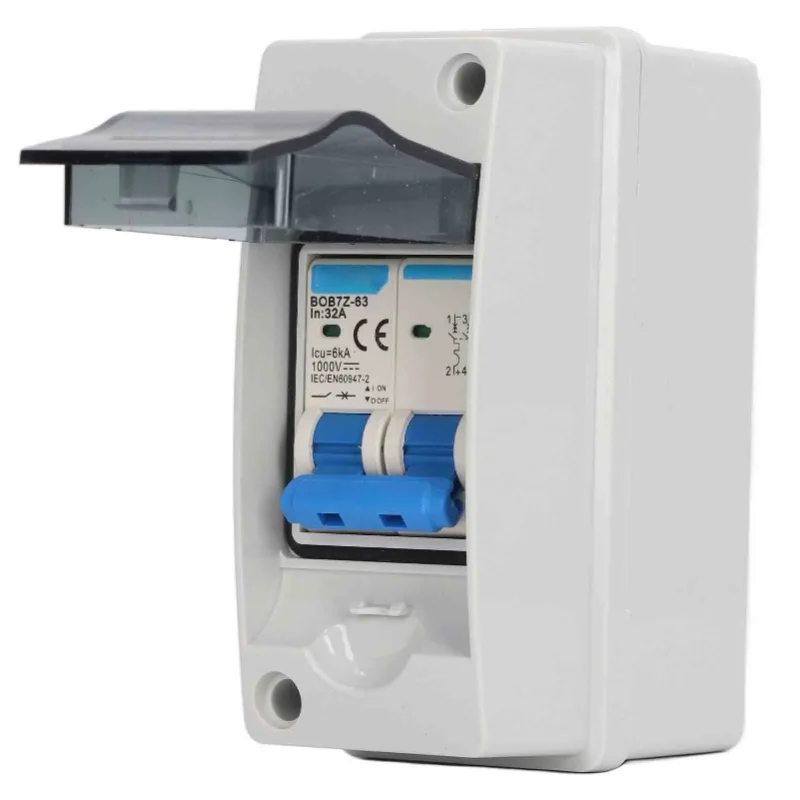

2.Reliable Components: Equipped with the most reliable DC modules to maximize the protection of this PV DC disconnect switch. Transparent cover is convenient for checking.
3.IP65 Waterproof: Our DC circuit breaker is IP65 waterproof, allows indoor and outdoor installation, can withstand severe weather and environment.
4.Simple installation: Solar PV DC combiner box is installed between solar panel and solar inverter, can realize fast and safe installation, plug and play.
5.Widely Use: Applicable to PV solar panel grid connected system and solar off grid system, solar power generation system, household, RV, etc.
