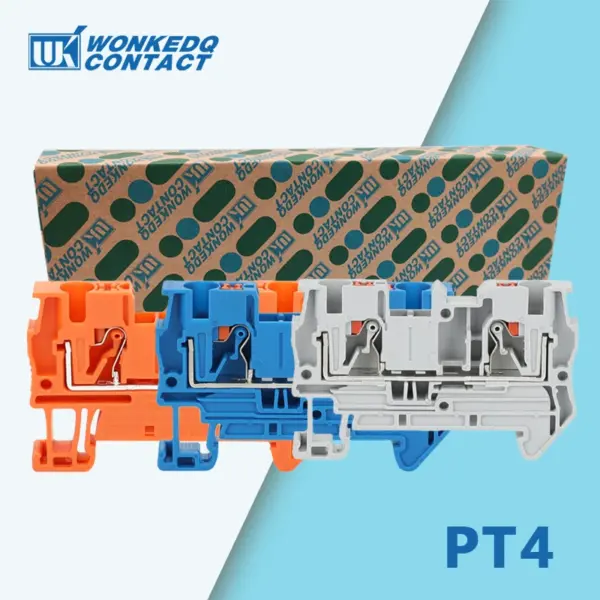

PT4 Din Rail Terminals Push-in Terminal Block 4mm² Spring Connection Screwless PT-4 Wire Electrical Connector PT 4

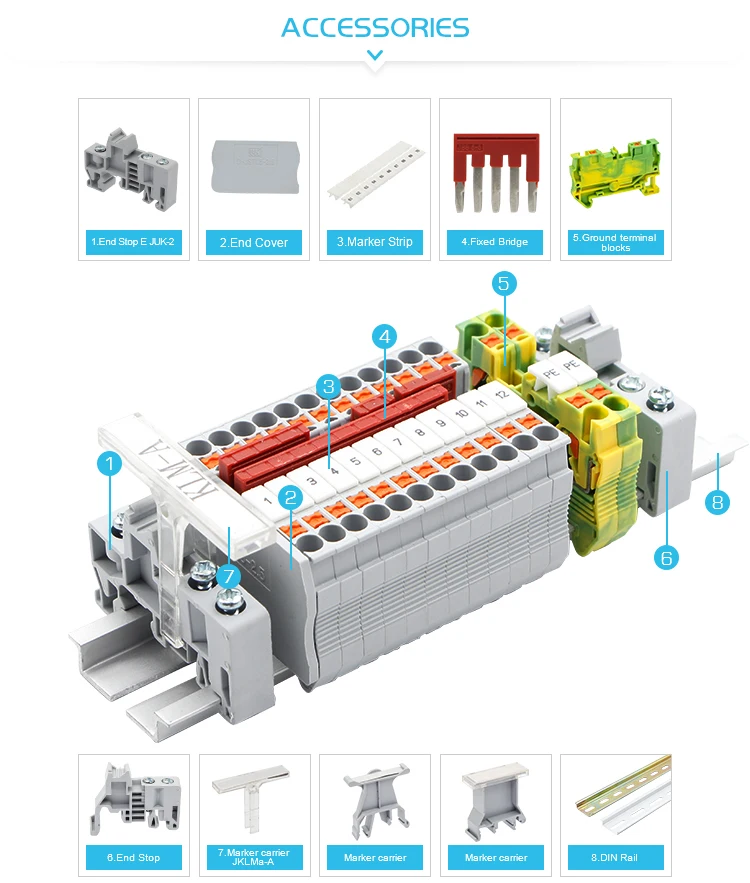

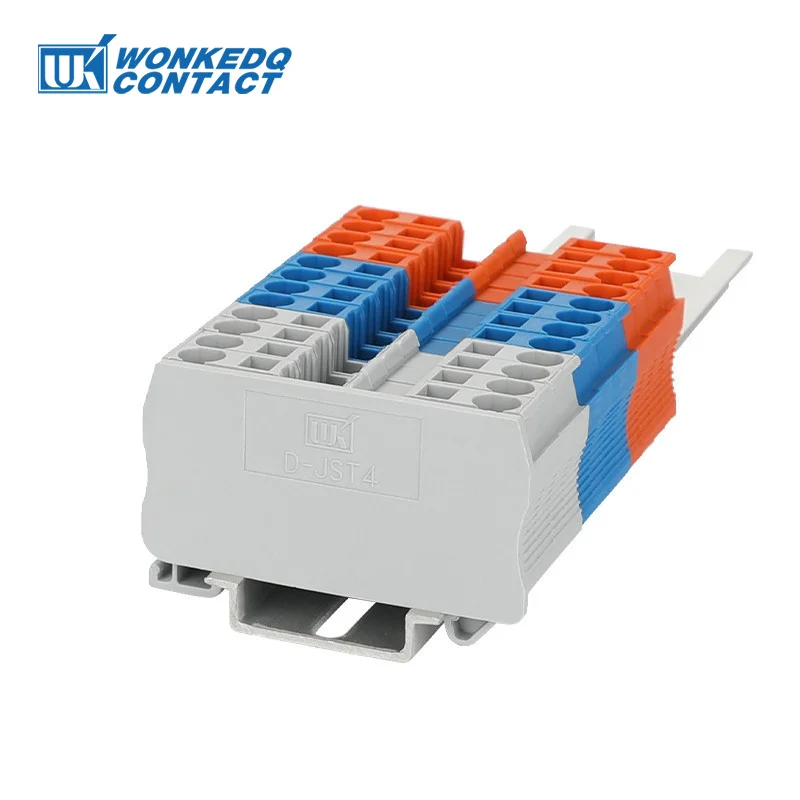

End Cover
D-ST4

Jumper Bridges
FBS 2/3/4/5/10-6

Marker Strips
ZB 6

End Stop
E-UK

Marker Carrier
JB1

Marker Clips
KLM-A

Din Rail
NS35-S

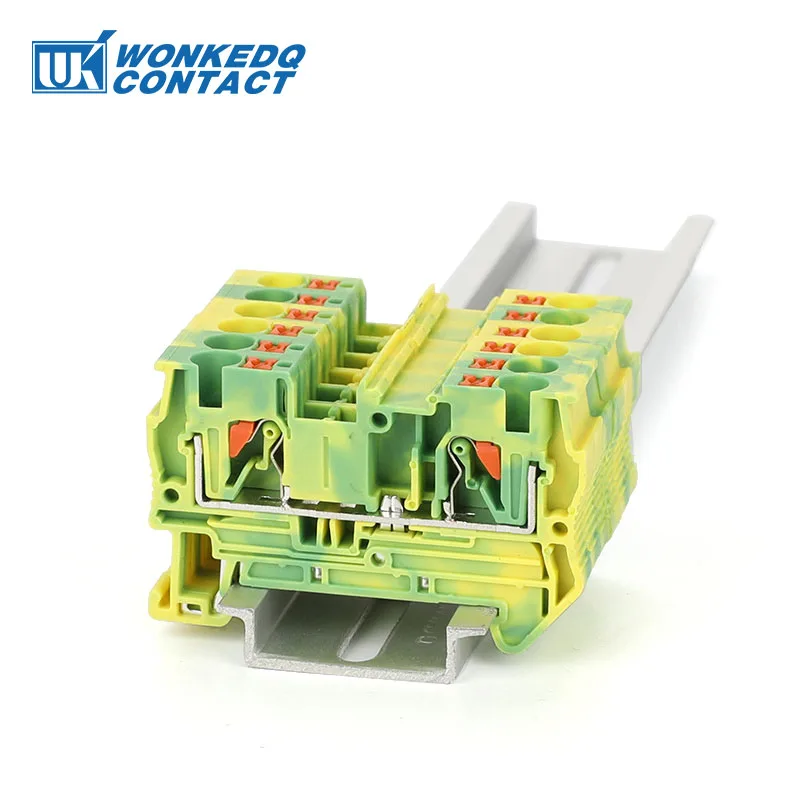

Ground Terminal Blocks
PT4-PE

Type No.

Details

Accessories

PT 4

800V/41A

0.5-6mm²/0.5-4mm²

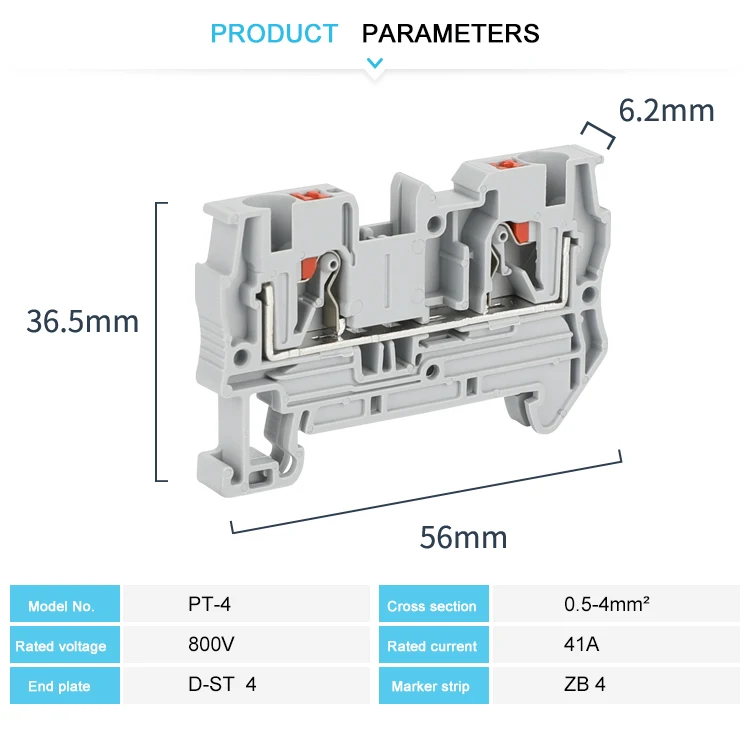

L56/H36.5/W6.2 mm

End cover:
D-ST4

Fixed bridge:
FBS 2-6, 3-6, 4-6, 5-6, 10-6

Insertion bridge:
NONE

Marker strip:
ZB 6

Model Number

PT 4

Color

Grey, Blue, other color can be customized

Length/Wide/Height (mm)

L56/H36.5/W6.2 mm

Connection method

Push-in connection

Material

Nylon PA66

Rated Voltage/Current

800V/31A

Cross section, solid/soft Cable

0.5-6mm²/0.5-4mm²

Conductor Size

20-10 AWG, 20-10 AWG

Mounting Type

NS 35/7.5

Standard

IEC 60947-7-1

LOGO

Customized logo are supported

Certification

CE/RoHS/CQC/ISO 9001
