PT2.5-QU Push-in Terminal Block Din Rail PT 2.5mm² 2-in 2-out Wire Electrical Connector Plug PT 2.5 QUATTRO – toolsindo.id

Detail Produk

Rp403.150

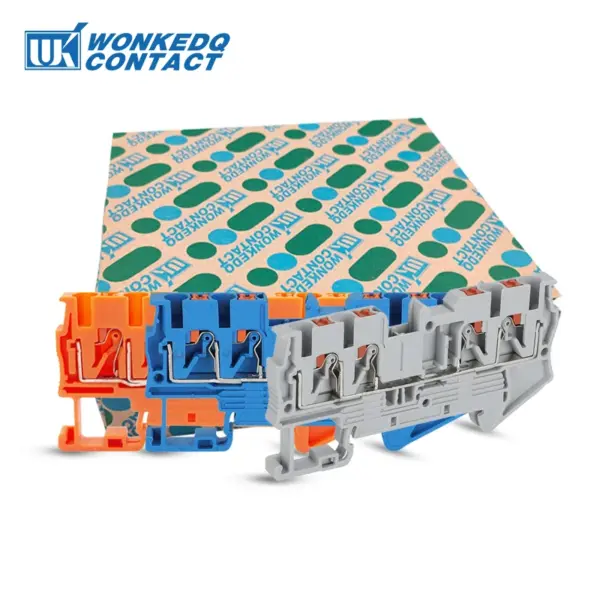

PT2.5-QU Push-in Terminal Block Din Rail PT 2.5mm² 2-in 2-out Wire Electrical Connector Plug PT 2.5 QUATTRO

Name: PT2.5-QU Push-in Terminal Block Din Rail PT 2.5mm² 2-in 2-out Wire Electrical Connector Plug PT 2.5 QUATTRO
Brand: Toolsindo.id
SKU: 1005003634387409
Price: 403150 IDR
Availability: InStock

23 terjual

SKU: 1005003634387409 Categories: Electrical Equipment & Supplies, Home Improvement

Terjual: 23+ | Toko: WONKEDQ Official Store

🕐 Pre-Order · Estimasi 30 Hari

Color

Pins

Pilihan varian akan disertakan dalam pesan WhatsApp Anda.

🚚

Pengiriman ke seluruh Indonesia Estimasi 2–7 hari kerja via ekspedisi terpercaya

💬

Konsultasi gratis via WhatsApp Tim kami siap membantu Anda memilih produk

🏷️

Harga terbaik & transparan Harga sudah termasuk pajak, tanpa biaya tersembunyi

Description

DESCRIPTION

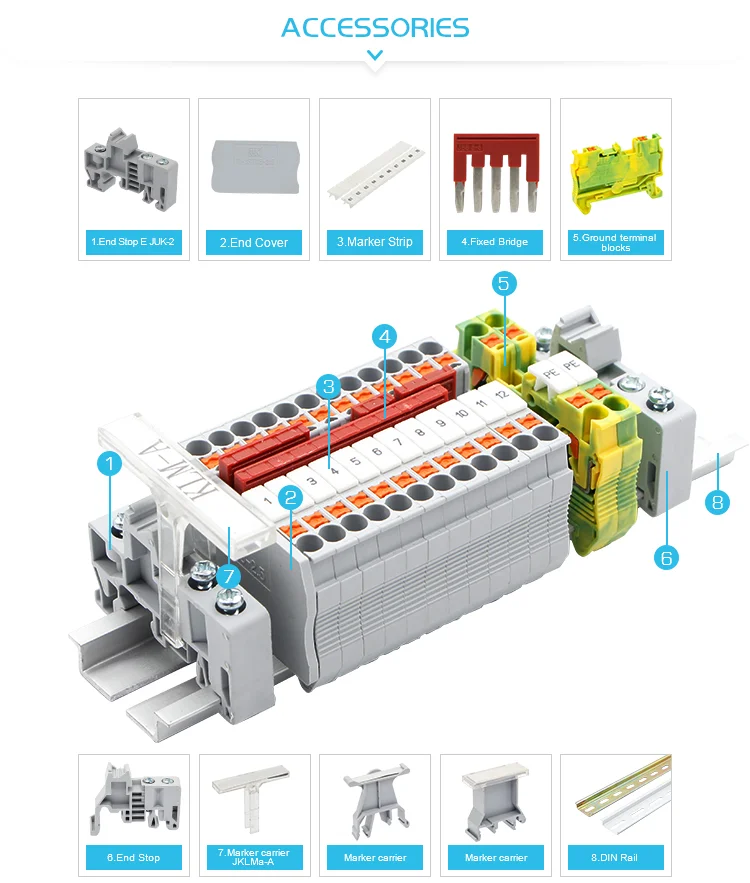

ACCESSORIES ( Click the pictures to the links)


END COVER D-ST2.5-QU	JUMPERS BRIDGE FBS 10-5	MARKER STRIPS ZB5	END STOP E-UK

MARKER CARRIER B1	MARKER CLIPS KLM-A	DIN RAIL NS35-S	GROUND TERMINAL BLOCK PT2.5-QU-PE

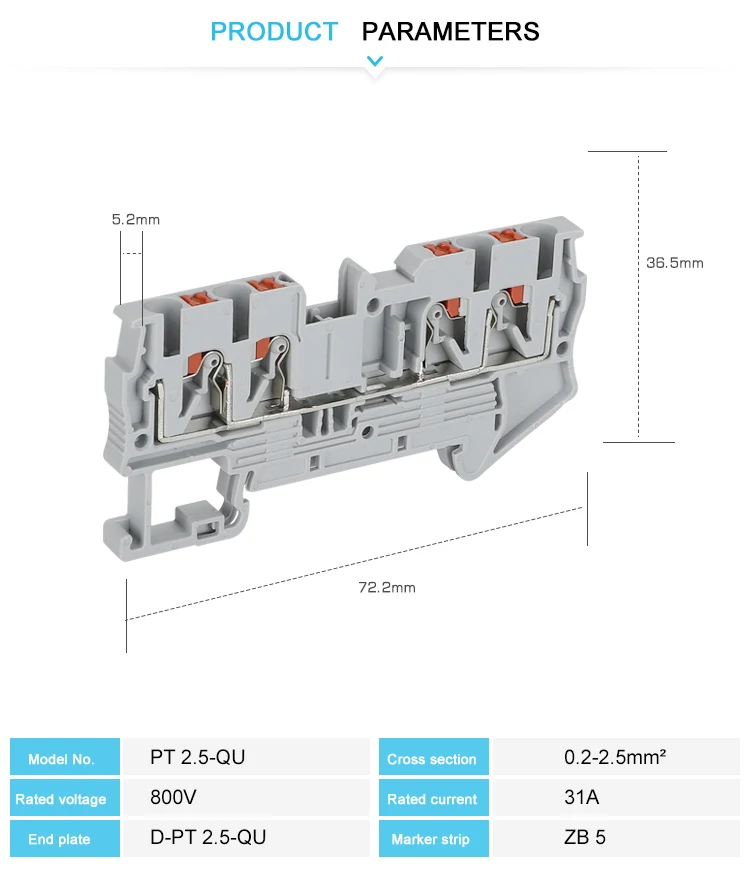

Technical Parameters

Type No.	Details	Accessories
PT 2.5-QU	800V/31A 0.2-4mm²/0.2-2.5mm² L72.2/H36.5/W5.2 mm	End cover: D-ST2.5-QU
		Plug-in bridge: FBS 2-5,3-5,4-5,5-5,10-5
		Marker strip: ZB5

Model Number	PT 2.5-QU
Color	Grey, Blue, other color can be customized
Length/Wide/Height (mm)	72.2/36.5/5.2

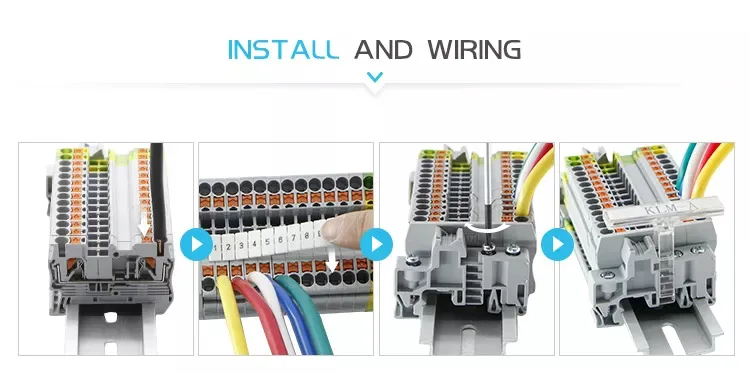

Connection method	Push-in connection
Material	Nylon PA66
Rated Voltage/Current	800V/31A
Cross section, solid/soft Cable	0.2-4mm2/ 0.2-2.5mm2
Conductor Size	24-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	9.52g/pc, 100PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
