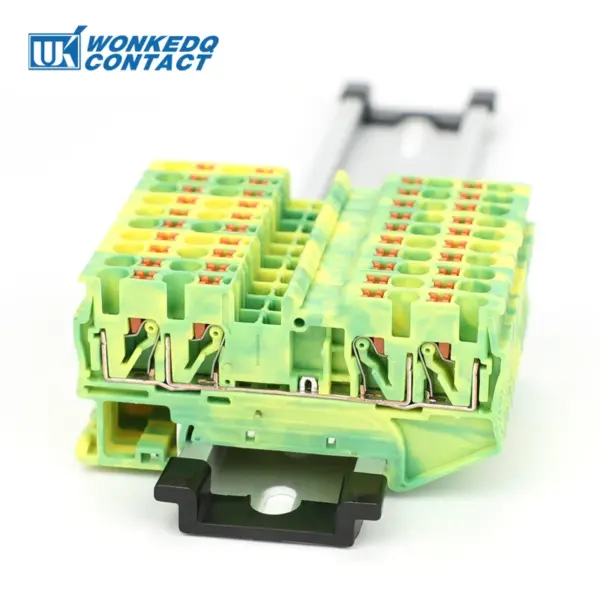

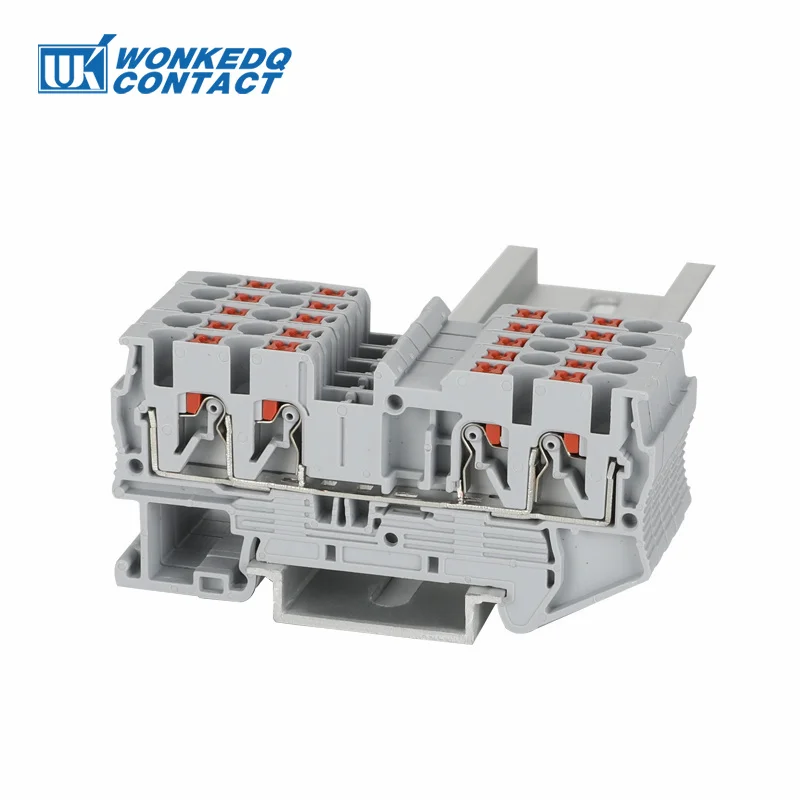

Name: PT2.5-QU-PE Ground Push-In 2-in 2-out Din Rail Terminal Block PT 2.5 QUATTRO 4 Conductor 2.5mm² Wire Connector PT 2.5-QU-PE
Brand: Toolsindo.id
SKU: 1005002432862004
Price: 337700 IDR
Availability: InStock

Description

DESCRIPTION:

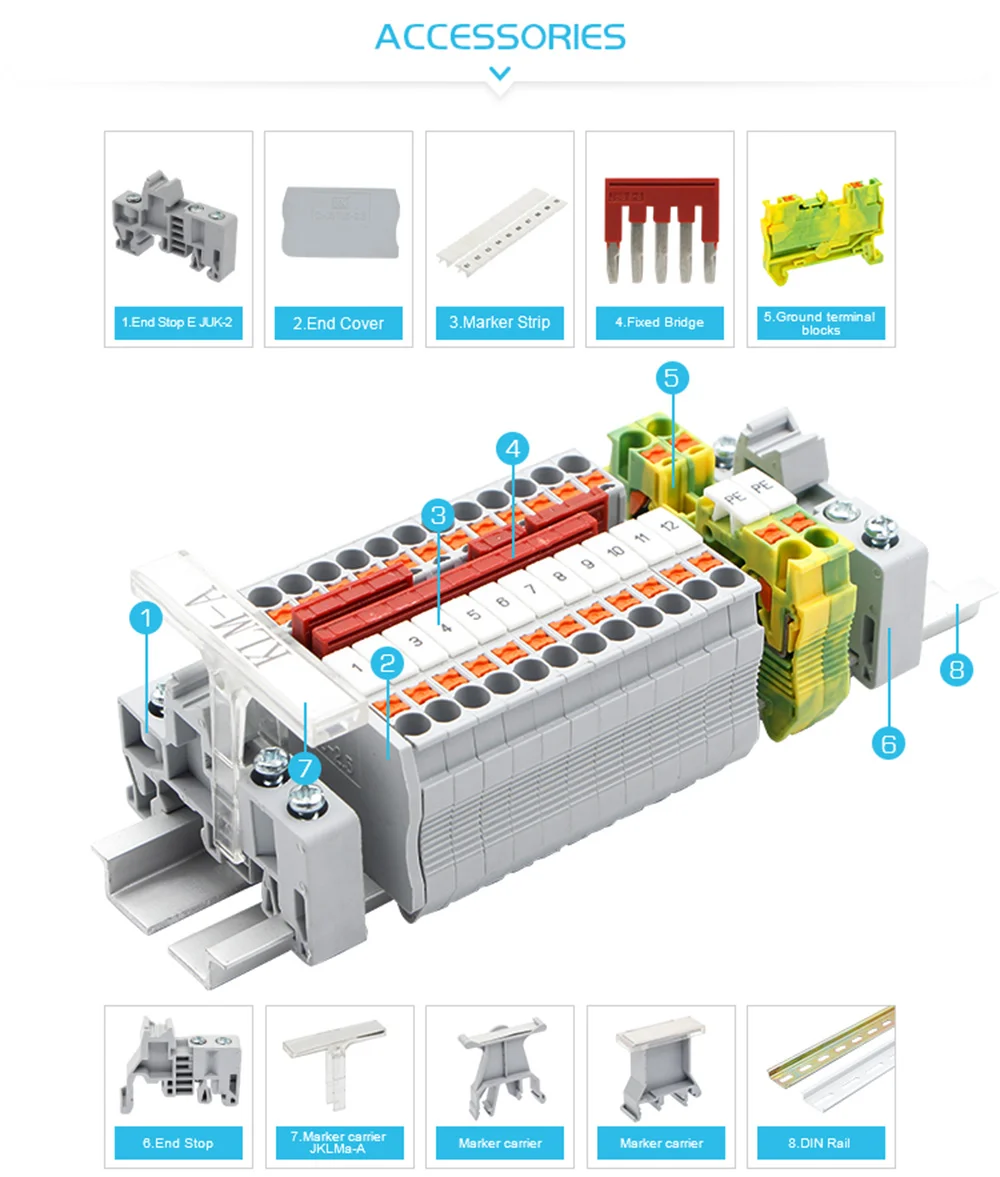

ACCESSORIES( Click the pictures to the links)


End Cover D-ST 2.5-QU	Marker Strips ZB5	End Stop E-UK	Marker Carrier JB1

Marker Clips KLM-A	Din Rail NS35-S	RECOMMEND PT 2.5-QU	RECOMMEND PT 2.5

Type No.

Details

Accessories ( click Type Number)

PT 2.5-QU-PE

0.2-4mm²/0.2-2.5mm²

L72.2/H36.5/W5.2 mm

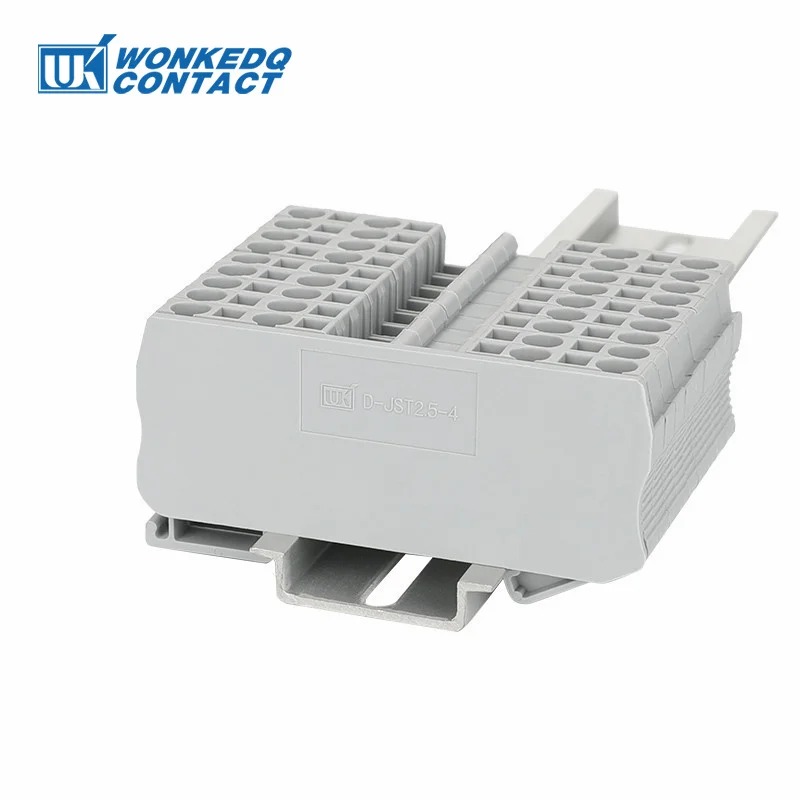

End cover:
D-ST 2.5-QU

Marker strip:
ZB 5

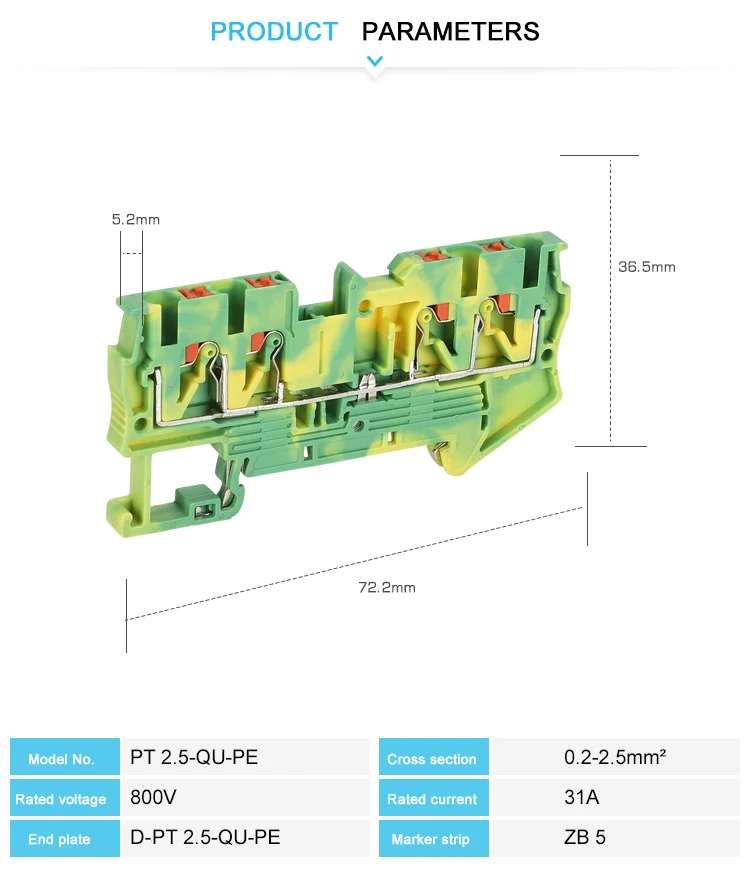

TECHNICAL PARAMETERS

Model No.	PT 2.5-QU-PE
Color	Yellow and Green
Length/Height/Wide(mm)	72.2/36.5/5.2
Connection method	Push-in connection
Material	Flame resistantNylon PA66, Tin plated brass conductor
Rated Voltage/Current	800V/31A
Cross section, solid/soft Cable	0.2-4mm²/ 0.2-2.5mm²
Conductor Size	24-12 AWG
Mounting Type	DIN RailNS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	10.91g/pc, 65PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
