Description

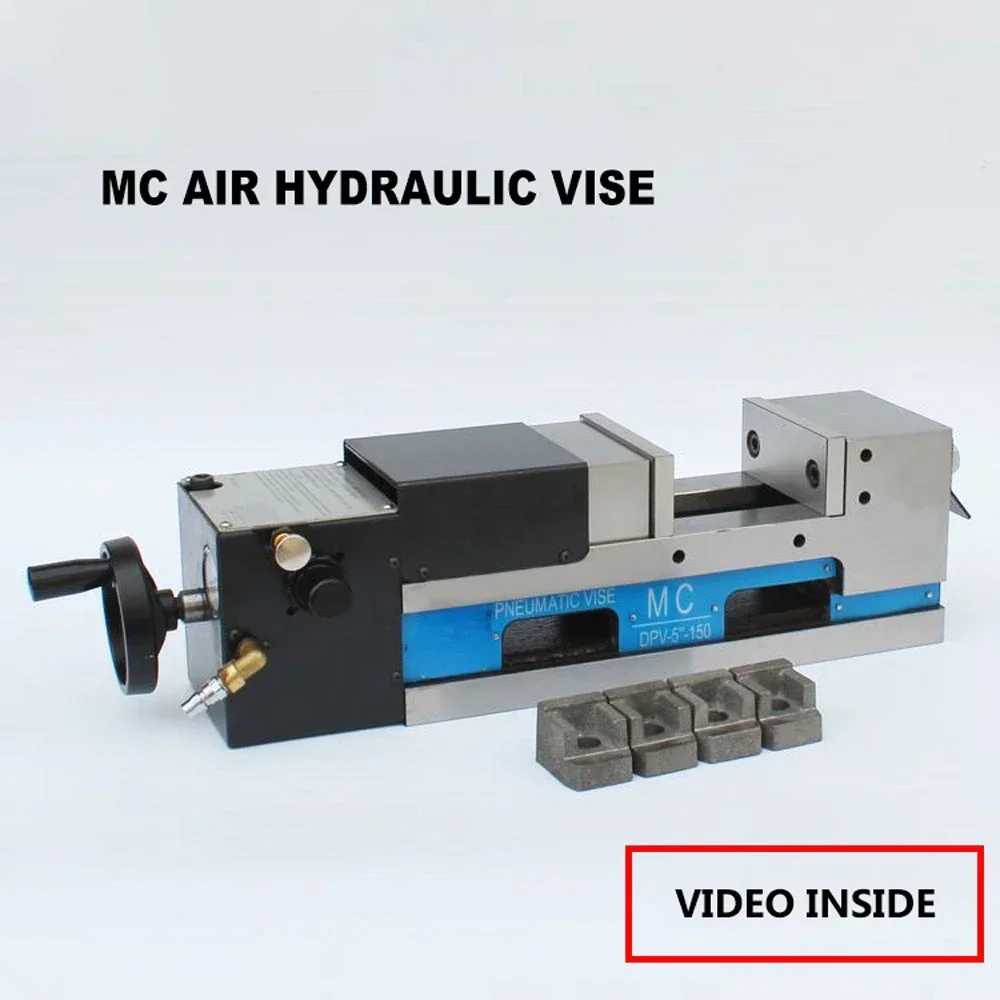

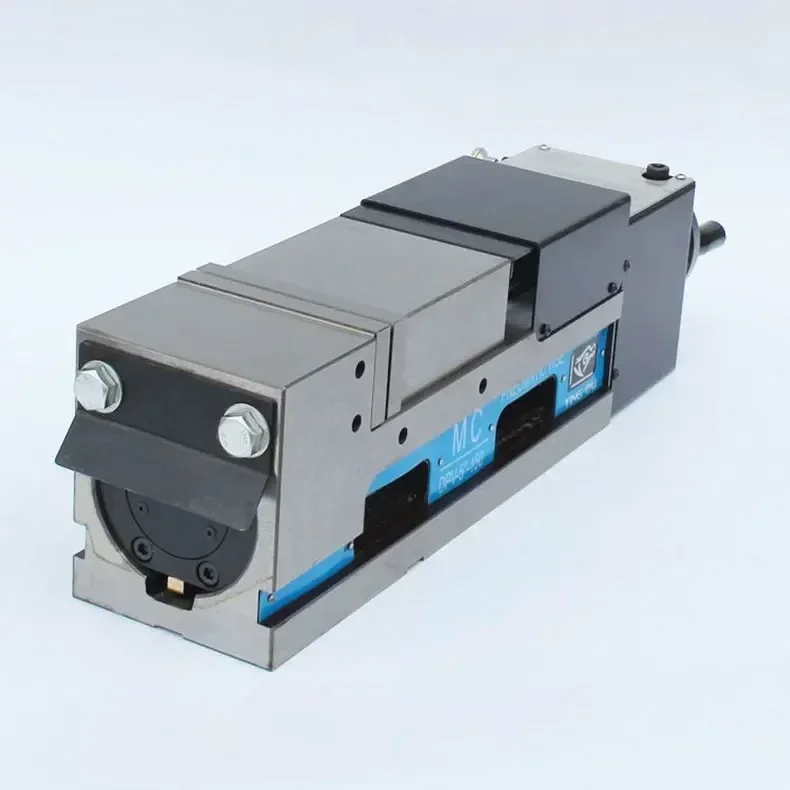

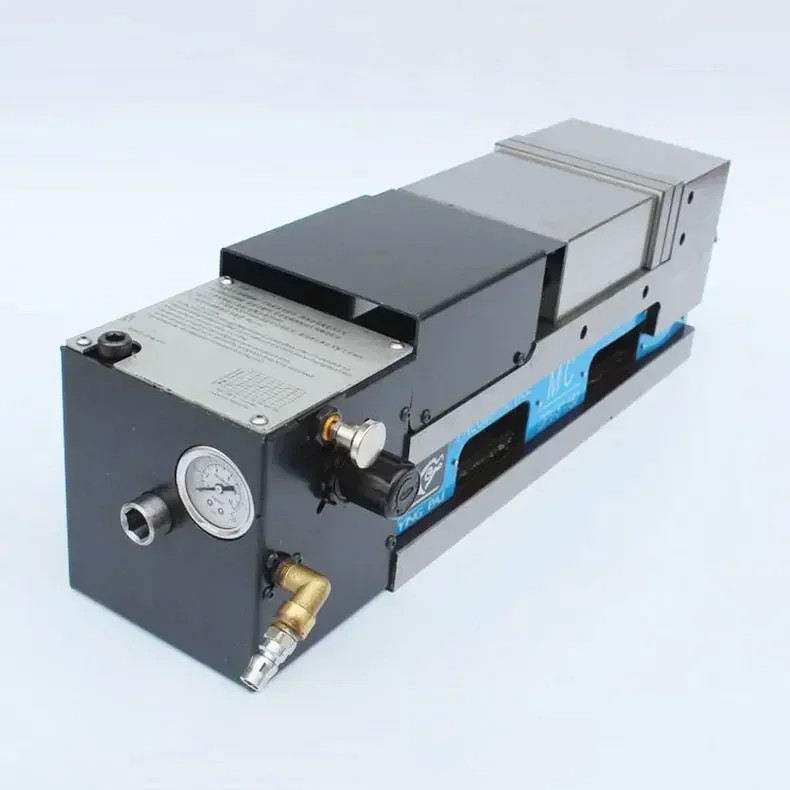

Ultra-Precision Pneumatic Vise
Ultra-high clamping force:
The low pressure source of the air pressure source 8kg/cm2 can almost reach the ultra-high clamping force of 6000kgf, and the clamping force can be freely adjusted from 0-6000kgf by the pressure regulator. Automatically find the highest air pressure source:
When the copper and aluminum products are lightly processed or the cast iron primary embryos are heavily cut, the pressure regulator can be used to adjust the required pressure, and it will not fail because the air pressure source is at a low point. Make sure the workpiece is clamped.
Maximum clamping range:

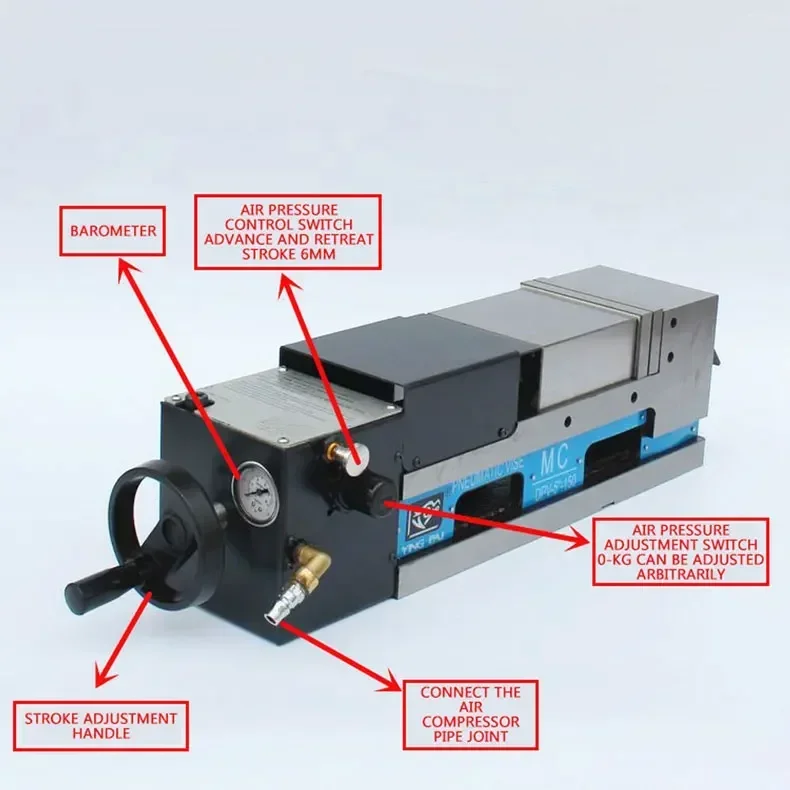

The switching speed only takes 1.5 seconds, the clamping safety distance can reach 6mm, and there is a handwheel safety line, which can easily identify the workpiece clamping safety distance with the naked eye.
Super high material:
The vise itself is designed with high ductility ductile iron (FCD-60) in one piece, and light hardening heat treatment (HRC-45) on both sides of the slide rail ensures high precision, high wear resistance and high tensile strength.
Vertical, side, lying three uses:
Fixed-size specifications, the body is polished on six sides, and the platen groove is reserved. It can be processed upright without a jig plate.

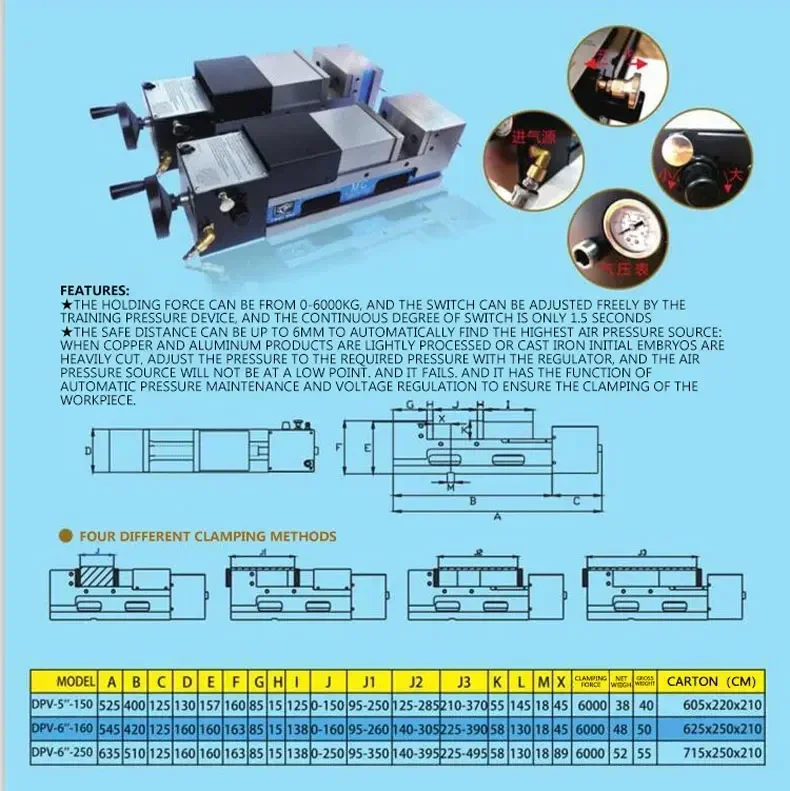

Size: 5 inch jaw width 130mm opening 0-150mm
6 inch jaw width 150mm opening 0-160mm
6 inch jaw width 150mm opening 0-250mm
