Description
Product Features:
1. Pilot mode: external and internal options available;
2.. Piston-type structure, excellent sealing, sensitive response；
3.Three-position solenoid valves offer three central functions to choose from:
4. Dual-head two-position solenoid valves feature memory function;
5. Internal holes processed with special techniques, low frictional resistance, low start-up pressure, long service life;
6.no need for oil lubrication;
7.Can be integrated with baseplate valve assembly, saving installation space;
8. Equipped with manual device for easy installation and debugging;
9. Multiple standard voltage levels available for selection.
4v solenoid valve 5 way CE CERTIFICATEGeneral parameters
|
working medium |
Air (filtered through a filter over 40μm) |
|
Action |
Pilot type |
|
lubricating |
unnecessary |
|
Working pressure range MPa(psi) |
0.15∼0.8(21~114) |
|
Guaranteed pressure resistance |
1.5MPa (215psi) |
|
Working temperature °C |
-20∼70 |
|
Body material |
aluminum alloy |
|
Standard Voltage |
AC220V, AC110V, AC24V, DC24V, DC12V |
|
Use voltage range |
AC:±15％DC:±10％ |
|
power consumption |
AC: 3VA DC: 3W |
|
protection level |
IP65 (DIN40050) |
|
heat resistance grade |
Grade B |
|
Connection type |
DIN socket type, outlet type |
|
Excitation time |
0.05 seconds or less |
4v solenoid valve 5 way CE CERTIFICATE different parameters
|
model |
Port diameter |
number of positions |
highest operating frequency |
Effective cross-sectional area mm² (CV value) |
|
4V110-M5 |
Intake=outlet=M5 |
2 position 5 way |
5 times/second |
5.5(0.31) |
|
4V120-M5 |
Intake=outlet=M5 |
2 position 5 way |
5 times/second |
5.5(0.31) |
|
4V130C-M5 |
Intake=outlet=M5 |
Three position five way |
3 times/second |
5.0(0.28) |
|
4V130E-M5 |
Intake=outlet=M5 |
Three position five way |
3 times/second |
5.0(0.28) |
|
4V130P-M5 |
Intake=outlet=M5 |
Three position five way |
3 times/second |
5.0(0.28) |
|
4V110-06 |
Intake=outlet=G1/8 |
2 position 5 way |
5 times/second |
12.0(0.67) |
|
4V120-06 |
Intake=outlet=G1/8 |
2 position 5 way |
5 times/second |
12.0(0.67) |
|
4V130C-06 |
Intake=outlet=G1/8 |
Three position five way |
3 times/second |
9.0(0.50) |
|
4V130E-06 |
Intake=outlet=G1/8 |
Three position five way |
3 times/second |
9.0(0.50) |
|
4V130P-06 |
Intake=outlet=G1/8 |
Three position five way |
3 times/second |
9.0(0.50) |
|
4v210-06 |
Intake=outlet=G1/8 |
2 position 5 way |
5 times/second |
14.0(0.78) |
|
4v220-06 |
Intake=outlet=G1/8 |
2 position 5 way |
5 times/second |
14.0(0.78) |
|
4v230C-06 |
Intake=outlet=G1/8 |
Three position five way |
3 times/second |
12.0(0.67) |
|
4v230E-06 |
Intake=outlet=G1/8 |
Three position five way |
3 times/second |
12.0(0.67) |
|
4v230P-06 |
Intake=outlet=G1/8 |
Three position five way |
3 times/second |
12.0(0.67) |
|

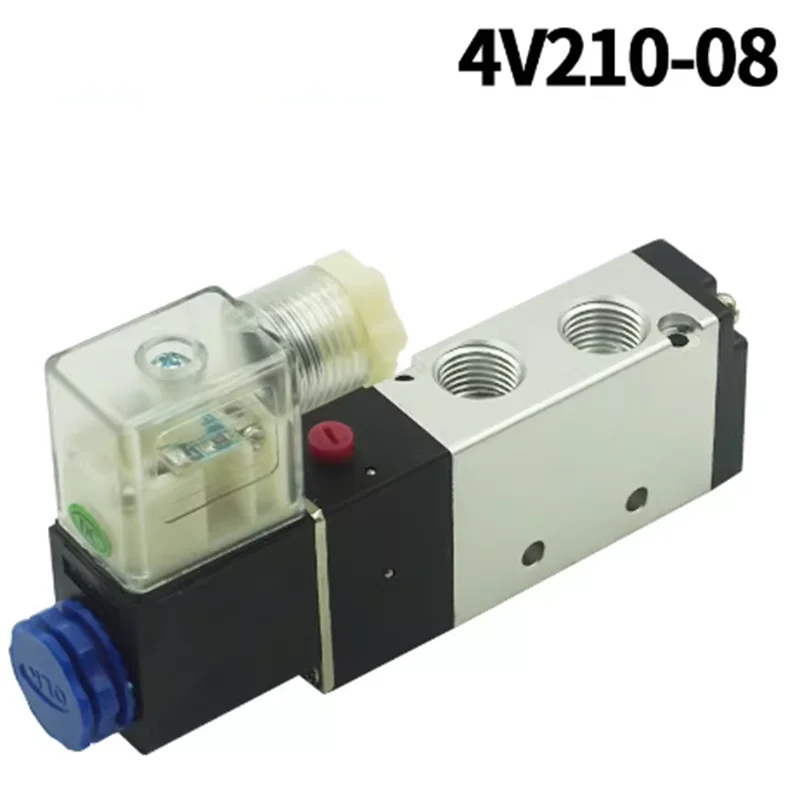

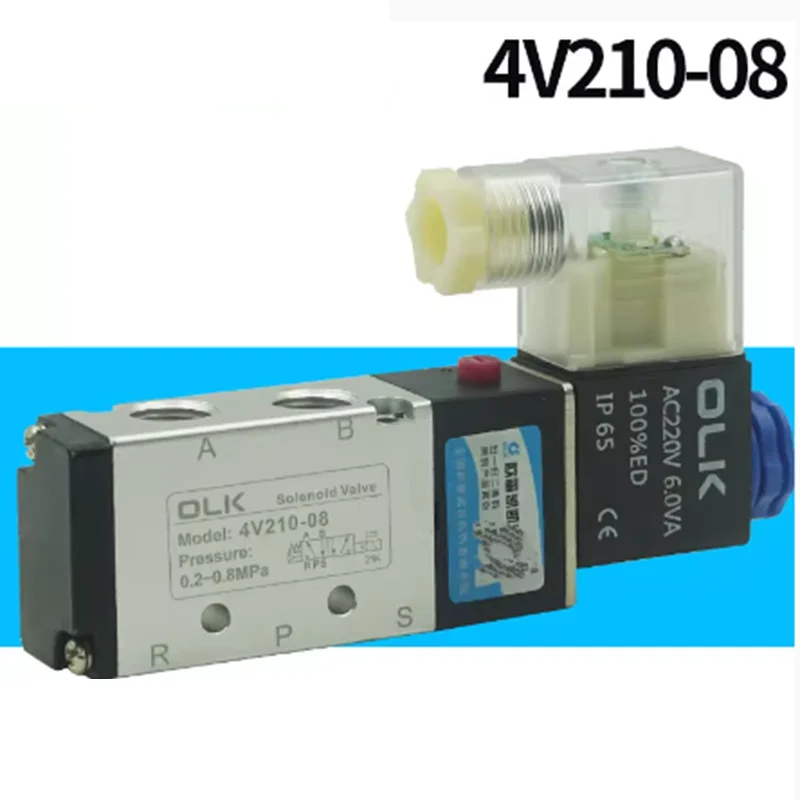

4v210-08 |
Inlet=Outlet=G1/4 Exhaust=G1/8 |
2 position 5 way |
5 times/second |
16.0(0.89) |
|
4v220-08 |
Inlet=Outlet=G1/4 Exhaust=G1/8 |
2 position 5 way |
5 times/second |
16.0(0.89) |
|
4v230C-08 |
Inlet=Outlet=G1/4 Exhaust=G1/8 |
Three position five way |
3 times/second |
12.0(0.67) |
|
4v230E-08 |
Inlet=Outlet=G1/4 Exhaust=G1/8 |
Three position five way |
3 times/second |
12.0(0.67) |
|
4v230P-08 |
Inlet=Outlet=G1/4 Exhaust=G1/8 |
Three position five way |
3 times/second |
12.0(0.67) |
|
4V310-08 |
Intake=outlet=G1/4 |
2 position 5 way |
4/sec |
25.0(1.40) |
|
4V320-08 |
Intake=outlet=G1/4 |
2 position 5 way |
4/sec |
25.0(1.40) |
|
4V330C-08 |
Inlet=Outlet=G3/8 Exhaust=G1/4 |
Three position five way |
3 times/second |
18.0(1.00) |
|
4V330E-08 |
Inlet=Outlet=G3/8 Exhaust=G1/4 |
Three position five way |
3 times/second |
18.0(1.00) |
|
4V330P-08 |
Inlet=Outlet=G3/8 Exhaust=G1/4 |
Three position five way |
3 times/second |
18.0(1.00) |
|
4V310-10 |
Intake=outlet=G1/4 |
2 position 5 way |
4/sec |
30(1.68) |
|
4V320-10 |
Intake=outlet=G1/4 |
2 position 5 way |
4/sec |
30(1.68) |
|
4V330C-10 |
Inlet=Outlet=G3/8 Exhaust=G1/4 |
Three position five way |
3 times/second |
18.0(1.00) |
|
4V330E-10 |
Inlet=Outlet=G3/8 Exhaust=G1/4 |
Three position five way |
3 times/second |
18.0(1.00) |
|
4V330P-10 |
Inlet=Outlet=G3/8 Exhaust=G1/4 |
Three position five way |
3 times/second |
18.0(1.00) |
|

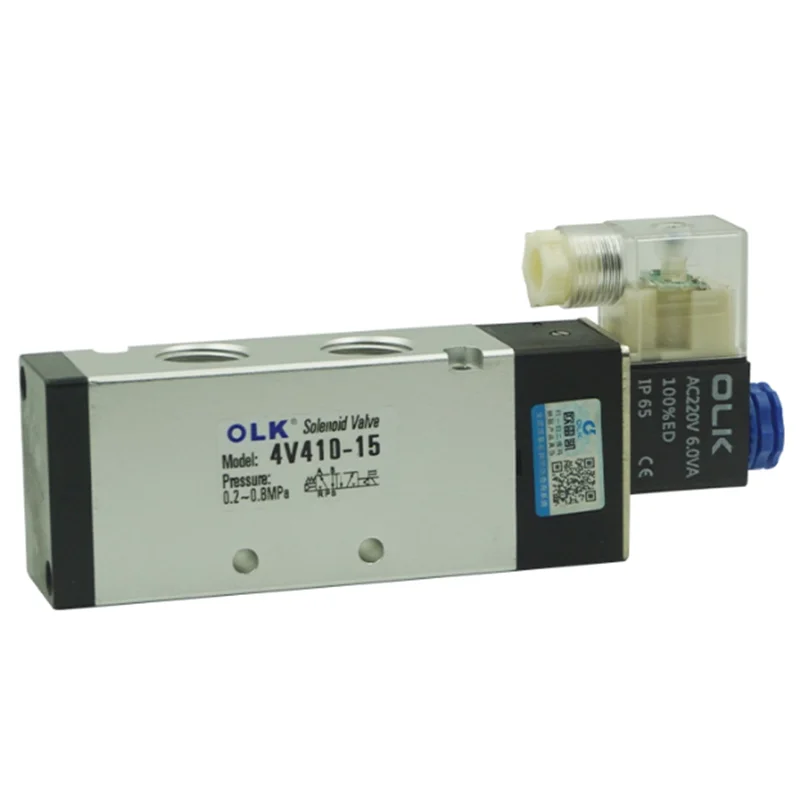

4V410-15 |
Intake=outlet=G1/2 |
2 position 5 way |
3 times/second |
50.0(2.79) |
|
4V420-15 |
Intake=outlet=G1/2 |
2 position 5 way |
3 times/second |
50.0(2.79) |
|
4V430C-15 |
Intake=outlet=G1/2 |
Three position five way |
3 times/second |
30(1.68) |
|
4V430E-15 |
Intake=outlet=G1/2 |
Three position five way |
3 times/second |
30(1.68) |
|
4V430P-15 |
Intake=outlet=G1/2 |
Three position five way |
3 times/second |
30(1.68) |
