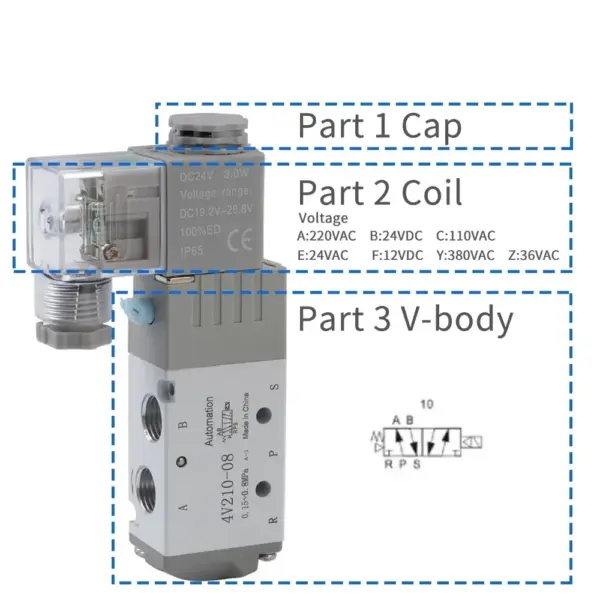

YIDI 4V210-08 Pneumatic Tool Tools Solenoid Compressed Air Directional Control Valve Switch 2 Way Position 5 Port 4V21008 AC220V AC110V AC36V DC24V DC12V

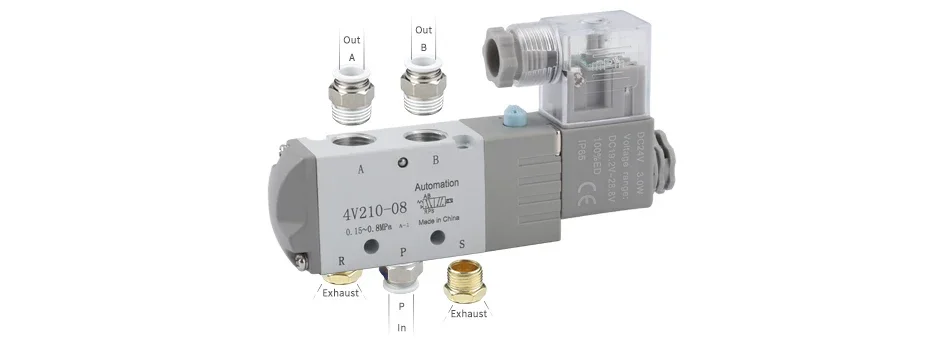

Specification: Item No.: 4V210-08 / 4V21008 Type: Solenoid Valve Action Mode: Intemal Pilot Type Working Media: Clean Air Effective Sectional Area: 16.0mm²(Cv=0.89) Position: 2/5 Position Port Size: Inlet=Outlet=1/4, Exhaust=1/8 Normal Operating Pressure: 1.5~8kgf/cm²(0.15~0.8MPa/1.5~8bar) Max.Operating Pressure: 1.0MPa(10Bar) Ambient And Fluid Tempereature: 0~120℃(32℉~248℉) Material: Nitrile Rubber and Aluminum Alloy
Order List: 1pc Valve and fittings (fittings have or not have, base on your choose.)
Installation Instructions:
Installation

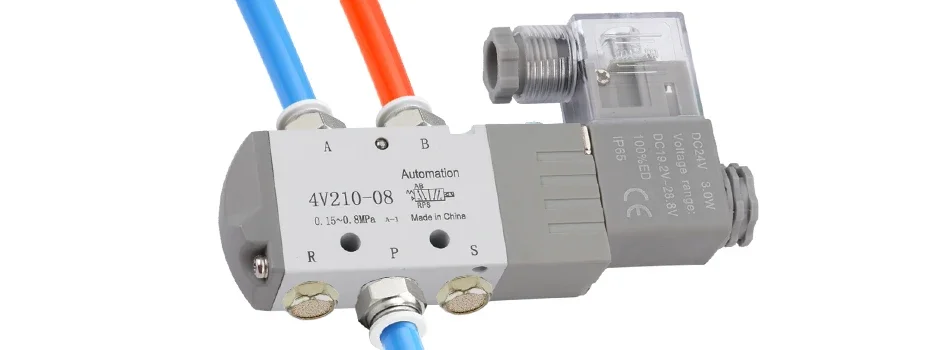

Grasp the tubing and slowly push it into the fitting until it comes to stop. The tubing will be locked by the spring gasket.
Remove
Push the release button to open the spring gasket so that the tubing can be released.

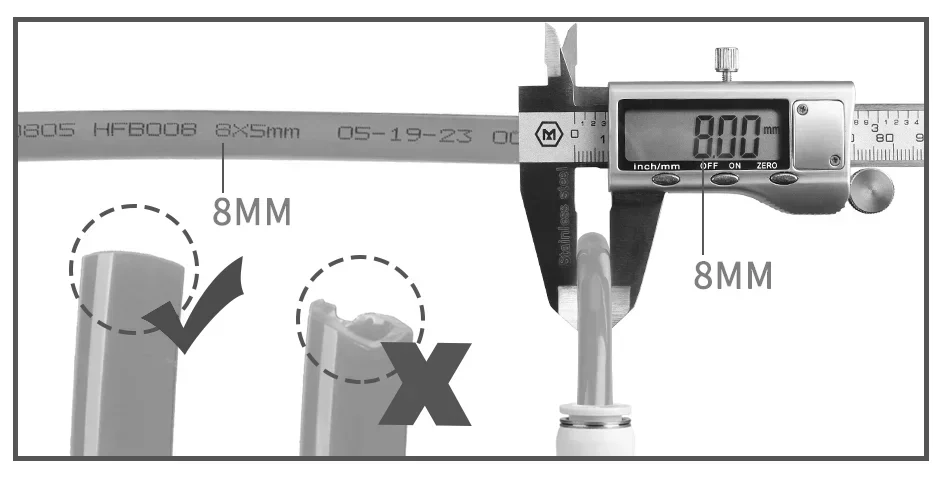

Cautions: 1. Cleaning: Clean the piping before connection to remove debris. 2. Tubing Cut: Ensure a perpendicular cut without scratches on the tubing's outer diameter. 3. Pipe Length: Avoid excessive bending; select a proper pipe length. 4. Connection: After connecting, pull the tubing gently to check its seal. 5. Release: Push evenly on the release button flange for proper tubing withdrawal. 6. Removal: Avoid rotating the tubing fully during removal. 7. Assembly: Ensure no debris enters when screwing pipes and fittings together.
Safety Instructions:
1. Pressure: Ensure zero pressure in the tubing before removal. 2. Spatter Zones: Avoid standard fittings in spatter-producing areas. 3. Monitor Conditions: Stay within specified pressure and temperature ranges. 4. Environment: Avoid corrosive gases, chemicals, and extreme conditions. 5. Placement: Avoid areas with heavy vibrations or shocks. 6. Direction: Install tubing in the correct one-way direction.
