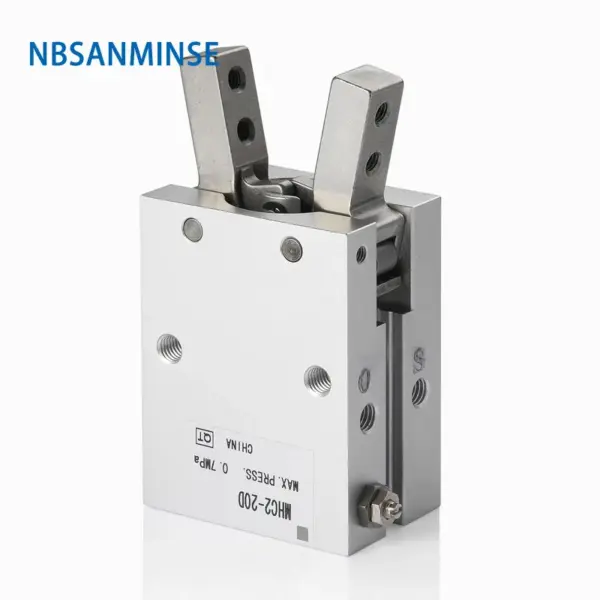

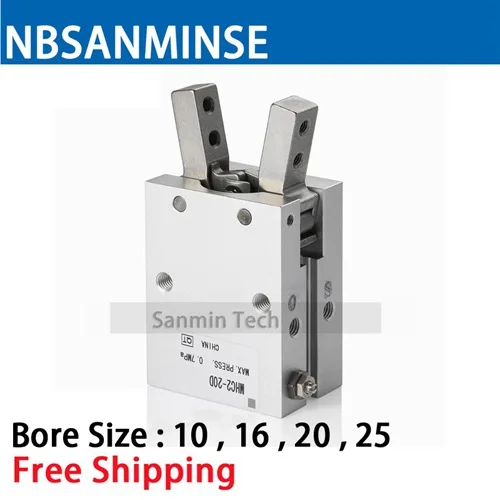

Pneumatic Parts Standard Type MHC2 10 16 20 25 Type Compress Air Parts Double Acting Cylinder Angular Style Air Gripper

Fluid

Air

Operating Pressure

Double Acting

0 . 1 to 0 . 6 MPa

Single Acting

0 . 25 to 0 . 6 MPa

Ambient and fluid temperature

– 10 to 60 ℃

Repeatability

± 0 . 01 mm

Max . Operating Frequency

180 c . p . m

Lubrication

Not required

Action

Double Acting , Single Acting

Auto Switch ( Option ) note )

Solid sate auto switch ( 3 – wire , 2 – wire )

Action

Model

Bore Size ( mm )

Gripping moment ( N ` m ) ( Effective value ) 1

Opening / Closing angle ( Both Sides )

Weight ( 2 )

( g )

Double acting

MHC2 – 10D

10

0 . 01

30 ° to -10 °

39

MHC2 – 16D

16

0 . 39

91

MHC2 – 20D

20

0 . 70

180

MHC2 – 25D

25

1 . 36

311

Single acting

MHC2 – 10S

10

0 . 070

30 ° to -10 °

39

MHC2 – 16S

16

0 . 31

92

MHC2 – 20S

20

0 . 54

183

MHC2 – 25S

25

1 . 08

316
